• Transport Package：Export Package
• Delivery Time：30 Days
• Port：Qingdao or Tianjin Port
• Pack：Waterproof Paper and Pallet
• Width：750-1000mm
• Thickness：0.13-0.4mm
• Wave Distance：76mm
• Wave Height：18mm
• Hardness：40-100 Hrb
• Material：Sgch
• Product Name：Galvanized Steel Sheet for Roofing Sheet
• Stock：Stock
• Special Use：High-strength Steel Plate
• Model NO.：WEFSUN
• Specification：Size: 0.4mm-3mm
• Trademark：wefsun
• Origin：China
• HS Code：76305866
• Production Capacity：1000ton Per Month

Basic Info.

Model NO. WEFSUN Special Use High-strength Steel Plate Stock Stock Product Name Galvanized Steel Sheet for Roofing Sheet Material Sgch Hardness 40-100 Hrb Wave Height 18mm Wave Distance 76mm Thickness 0.13-0.4mm Width 750-1000mm Pack Waterproof Paper and Pallet Port Qingdao or Tianjin Port Delivery Time 30 Days Transport Package Export Package Specification Size: 0.4mm-3mm Trademark wefsun Origin China HS Code 76305866 Production Capacity 1000ton Per Month

Product Description

Product Name: Galvanized Steel Sheet for Roofing Sheet Material: SGCC, SGCH, G550, DX51D, DX52D, DX53D
Thickness: 0.13-2.0mm
Width: 600-1000mm
Popular sizes:
Raw material 762mm to 680, 670, 660, 655, 650 mm (after corrugated) and 9 waves
Raw material 914mm to 815, 810, 790, 780mm (after corrugated) and 11 waves
Raw material 1000mm to 930 915, 910, 905, 900, 880, 875mm (after corrugated) and 12 or 14 waves
Surface treatment: Unoil, dry, chromate passivated, non-chromate passivated
Package: Seaworthy package
Monthly Output: 30000 tons
Why Choose Wefsun Steel?
1, ISO, BV, CE, SGS approved
2, Competitive price and quality from our own factory
3, Efficient service team online for 24 hours
4, Smooth production ability(50000tons/month)
5, quick delivery and standard exporting package
6, Flexible payment with T/T, L/C, Paypal, Kunlun bank, etc
Description:
Waved by galvanized sheet metal sheet and rolled wave of cold-formed into a variety of pressure plate,
Which is suitablefor industrial and civil buildings, warehouse, special construction, largespan steel
Structure housing the roof, walls and interiorand exterior decoration, etc...A light weight, high strength,
Color-rich, convenient construction, earthquake, fire, rain, long life, maintenance-free characteristics.
Character of steel galvanized corrugated roofing sheet .
 A. Corrugated design makes it excellent waterproof performance
 B. Materials as prepainted steel sheets, galvanized steel sheets, galvalume (Al-Zn coated sheets) are available to make corrugated sheet.
 C.Those material are durable, anti-corrosion in bad weather for 20-30 years based on it's Zinc(Galvanized) coating or AZ (Galvalume) coating.
 D. Different shape of the sheet make it suitable for any style of buildings.
 E.Easy to install, no need special tools to fix the sheet.
 F.Light weight due to high strength to weight ratio of steel. Light weight means easier handling lower shipping costs, easier installation
 G. Different color is availbe base on the RAL Standard make your building more beautiful.
 H. We will provide the best solutions if you don't have a exact idea of the specification you want for the steel sheet based on your weather conditions, engineering structure, construction budget and so on.


Base metal	Cold rolled steel coil,full hard cold rolled steel coil,Black cold rolled steel coil
Material	DX51D+Z,CSB,S280GD,S320GD,S350GDSGCC
Grade:	Commercia.Quality(CGCC,DX51D,DC01,SPCC), Structure.quality(S280GD,S320GD,S350GD). Deep.drawing.quality(DX52D,DX53D,DX54D,DX56D)
Standard	ASTM A653 CS/B,JIS G3302,DIN EN 10142,EN10327
Applications	Advertising,building trade,home electrical, Electrical industry,decoration,office furniture
Thickness	0.14mm-0.8mm
Tolerance	+/-0.03mm
Zinc layer	A40,A60,G60,G90,G115,G140,G165. Z12,Z18,Z22,Z25,Z27,Z35. Z60,Z80,Z100,Z120,Z150,Z180,Z220,Z275,Z350
Width	600mm,750mm,762mm,914mm,1000mm,1219mm,1200mm,1250mm,1500mm
Length	1.5m,2.0m,2.438m,2.44m,2.5m,3m.,3.5m,4m,4.5m,5m
Surface treatment	Chromated,oiled/unoiled,skinpassed,Chromated+oiled
Surface state	Regular spangle,mini spangle,zero spangle, skinpassed
Coil weight	4-8tons
ID	508mm or 610mm
Packing	Export standard seaworthy packing. Waterproof paper+steel sheet+bundle with steel strips(3-4pcs)
Delivery	Based on the quantity.
Shipment	Bulk vessel or container (FCL/LCL)
Payment	T/T or LC at sight
Loading port	Main port of China,Shang hai,Qingdao,Dalian,Tianjin etc.
Yield strength	285Mpa-305Mpa
Tensile strength	340Mpa-370Mpa



Base metal	Cold rolled steel coil,full hard cold rolled steel coil,Black cold rolled steel coil
Material	DX51D+Z,CSB,S280GD,S320GD,S350GDSGCC
Grade:	Commercia.Quality(CGCC,DX51D,DC01,SPCC), Structure.quality(S280GD,S320GD,S350GD). Deep.drawing.quality(DX52D,DX53D,DX54D,DX56D)
Standard	ASTM A653 CS/B,JIS G3302,DIN EN 10142,EN10327
Applications	Advertising,building trade,home electrical, Electrical industry,decoration,office furniture
Thickness	0.14mm-0.8mm
Tolerance	+/-0.03mm
Zinc layer	A40,A60,G60,G90,G115,G140,G165. Z12,Z18,Z22,Z25,Z27,Z35. Z60,Z80,Z100,Z120,Z150,Z180,Z220,Z275,Z350
Width	600mm,750mm,762mm,914mm,1000mm,1219mm,1200mm,1250mm,1500mm
Length	1.5m,2.0m,2.438m,2.44m,2.5m,3m.,3.5m,4m,4.5m,5m
Surface treatment	Chromated,oiled/unoiled,skinpassed,Chromated+oiled
Surface state	Regular spangle,mini spangle,zero spangle, skinpassed
Coil weight	4-8tons
ID	508mm or 610mm
Packing	Export standard seaworthy packing. Waterproof paper+steel sheet+bundle with steel strips(3-4pcs)
Delivery	Based on the quantity.
Shipment	Bulk vessel or container (FCL/LCL)
Payment	T/T or LC at sight
Loading port	Main port of China,Shang hai,Qingdao,Dalian,Tianjin etc.
Yield strength	285Mpa-305Mpa
Tensile strength	340Mpa-370Mpa

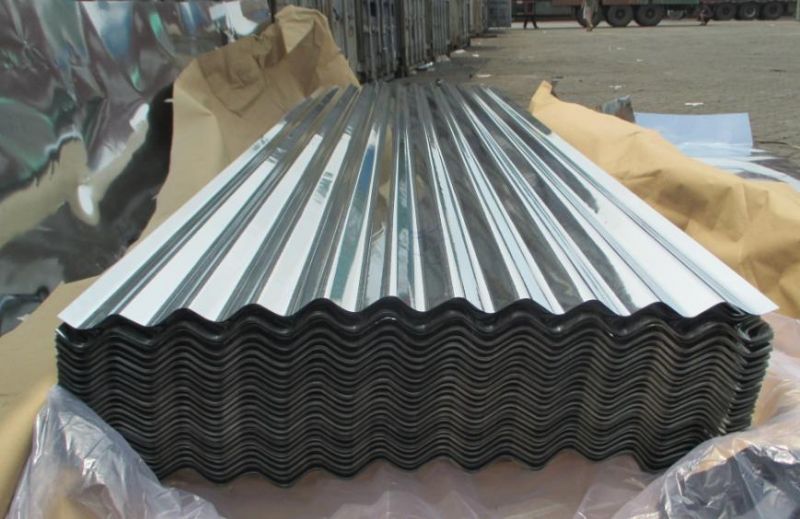

Product Photo



Loading Photo



Factory In Tanzania



Billboard In Bolivia



Company Certificate



Contact Ways
QINGDAO WEFSUN METAL MATERIAL CO.,LTD.
Address: 212/3 Fortune Centre Building 3, No.18 Qinling Road, Laoshan District,Qingdao,Shandong Province,China.
Web: wefsun.en.made-in-china.com
Contact Person: Mr.Owen.Chen

Tel: 0086-532-68617887 Mobile:0086-15194202259
