• Model NO.：301, 302, 303, 304, 304L, 304h, 310S, 316, etc
• Surface Treatment：Polished
• Length：as Requested
• Width：as Requested
• High：as Requested
• Thickness：as Requested
• Material：200, 300, 400
• MOQ：1 Ton
• Technology：Welding
• Color：as Requested
• Sample：Provided
• Transport Package：Export Standard Package, Bundled or Be Required.
• Specification：As Your Requirement
• Trademark：Zhong Heng
• Origin：Shandong, China
• Production Capacity：1000ton,Month

Overview

Product Description

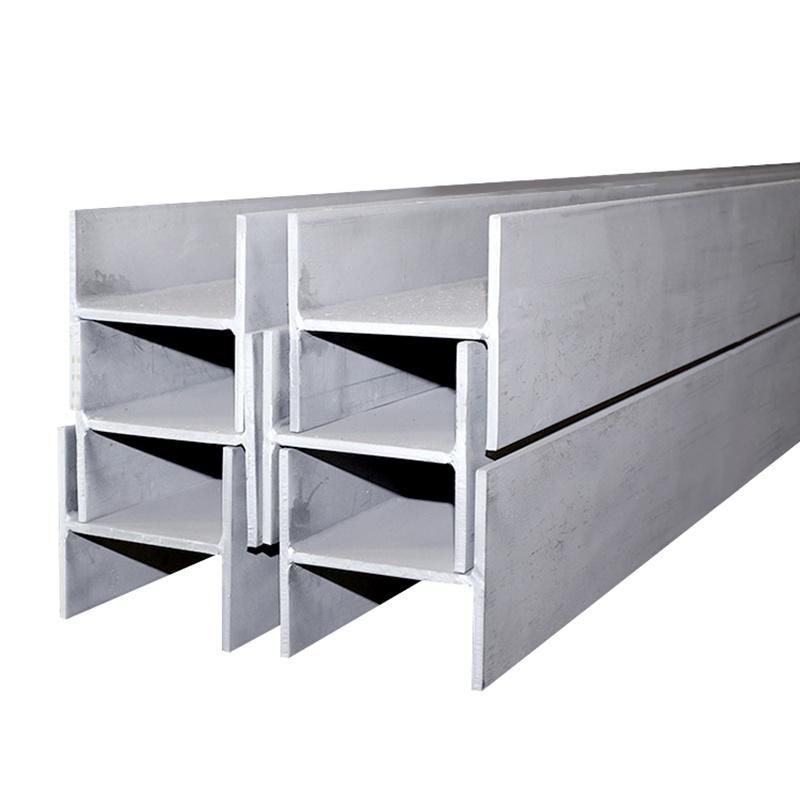

    H-beam is an economical section and high-efficiency profile with more optimized cross-sectional area distribution and more reasonable strength-to-weight ratio. It is named because its cross section is the same as the English letter "H". Since all parts of the H-beam are arranged at right angles, the H-beam has the advantages of strong bending resistance, simple construction, cost saving and light weight in all directions, and has been widely used.
    The section shape is similar to an economical section profile of the capital Latin letter H, also known as universal steel beam, wide edge (edge) I-beam or parallel flange I-beam. The cross-section of H-beam usually includes two parts, the web plate and the flange plate, also known as the waist and the edge.
    The inner and outer sides of the flange of H-beam are parallel or nearly parallel, and the flange ends are at right angles, so it is named parallel flange I-beam. The thickness of the web of the H-beam is smaller than that of the common I-beam with the same height of the web, and the flange width is larger than that of the common I-beam with the same height of the web, so it is also named wide-edge I-beam. Determined by the shape, the section modulus, moment of inertia and corresponding strength of H-beam are obviously better than ordinary I-beam of the same single weight. Used in metal structures with different requirements, whether it is subjected to bending moment, pressure load, or eccentric load, it shows its superior performance. Compared with ordinary I-beam, it can greatly improve the bearing capacity and save metal by 10% to 40%. H-beams have wide flanges, thin webs, many specifications, and flexible use. They can save 15% to 20% of metal when used in various truss structures. Because the inner and outer sides of the flanges are parallel, and the edge ends are at right angles, it is easy to assemble and combine into various components, which can save about 25% of the welding and riveting workload, which can greatly speed up the construction speed of the project and shorten the construction period.
    Due to the above advantages, H-beams are widely used, mainly used for: various civil and industrial building structures; various large-span industrial plants and modern high-rise buildings, especially industrial plants in areas with frequent seismic activity and high temperature working conditions; requirements Large-scale bridges with large bearing capacity, good section stability and large span; heavy equipment; highways; ship skeletons; mine support; foundation treatment and dam engineering; various machine components.
There are many product specifications of H-beam, and the classification methods are as follows. (1) According to the flange width of the product, it is divided into wide flange, middle flange and narrow flange H-beam. The flange width B of wide flange and middle flange H-section steel is greater than or equal to the web height H. The flange width B of the narrow flange H-beam is approximately equal to one-half of the web height H. (2)            According to product use, it is divided into H-shaped steel beam, H-shaped steel column, H-shaped steel pile, and extremely thick flange H-shaped steel beam. Sometimes parallel leg channels and parallel flange T-beams are also included in the scope of H-beams. Generally, the narrow flange H-beam is used as the beam material, and the wide-flange H-beam is used as the column material. (3) According to the production method, it is divided into welded H-beam and rolled H-beam. (4) According to the size, it is divided into large, medium and small H-beams. Usually, products with a web height H above 700mm are called large, those with a height of 300 to 700mm are called medium, and those with a height of less than 300mm are called small. By the end of 1990, the world's largest H-beam had a web height of 1200mm and a flange width of 530mm.
    Internationally, H-beam product standards are divided into two categories: the imperial system and the metric system. The United States, the United Kingdom and other countries use the imperial system, and China, Japan, Germany, and Russia use the metric system. Although the measurement units used in the imperial and metric systems are different, most of the H-beams use four dimensions to express their specifications, namely: the height of the web h, flange width b, web thickness d and flange thickness t. Although countries around the world express different H-beam size specifications. However, the size range and size tolerance of the products produced are not much different.

Product Parameters

We also supply

Our Advantages

Certifications

Packaging & Shipping

Company Profile

FAQ

1. What is your payment terms?

Zhongheng Steel prefers 30%TT before inspection and the rest 70% against BL. However, our price term is negotiable. Multiple payment terms are available from us.

2. Which payment method can I choose?
Zhongheng Steel accepts all types of secured payment methods. Bank transaction, Alibaba Trading Assurance, Paypal and etc are all available from us. Please feel free to contact us about your preferred payment method.

3. Is sample providing service available?
Zhongheng Steel provides free samples to our clients. We usually also cover the sample shipping cost. Please feel free to order a sample from us.

4. Is customization available?
Zhongheng Steel's expert equipment and highly-trained workers are capable of manufacturing highly customized products. Please feel free to discuss with us about your customized requirements, we can surely meet your needs.

5. What products and materials do you supply?
Zhongheng Steel mainly supplies all catalogs and all grades of steel and stainless steel products. Coils, strips, sheet, pipes, bars, beams, flanges and other customized products. Tin coating, Ti coating, galvanization and other surface treatments are also available.
Other than steel products,Zhongheng Steel also has high production capacity and holds large ready stock of all kinds of copper and aluminum products.
Please feel free to consult us about any related products above, we can surely meet your requirements.

6. Why should I choose you?
Zhongheng Steel Industry company has deeply engaged in metal material market for over 15 years. We established perfect reputation world-widely. Craftsmanship spirit is the fundamental of Zhongheng Steel since we are established. Zhongheng Steel keeps our products as highest quality and lowest price to maintain our self competitive. Proving our clients with best trading experience is the goal we always insist of.

7. How can I make sure you are a reliable supplier?
Zhongheng Steel is willing to provide our copies of company registration certificate, Alibaba registration and Chinese exporting registration for you to view. These certificates are under Chinese Trading Law effect. They can help you officially check our company's capability and status.
On the products' side, certificates as Mill Test Certificate(MTC), Third Party Material Quality Conformity Certificate and other required certificates are available before the order. Samples are also available from us for you to test in your own testing facility. Zhongheng Steel also supports third-party inspection before shipping. Zhongheng Steel also welcomes a company tour for you to check our factory status.
