• Length：0.1-12m
• Transport Package：Standard Seaworthy Packing
• Specification：100x100mm to 900x300mm
• Trademark：no
• Origin：China

Basic Info.

Length 0.1-12m Transport Package Standard Seaworthy Packing Specification 100x100mm to 900x300mm Trademark no Origin China

Product Description

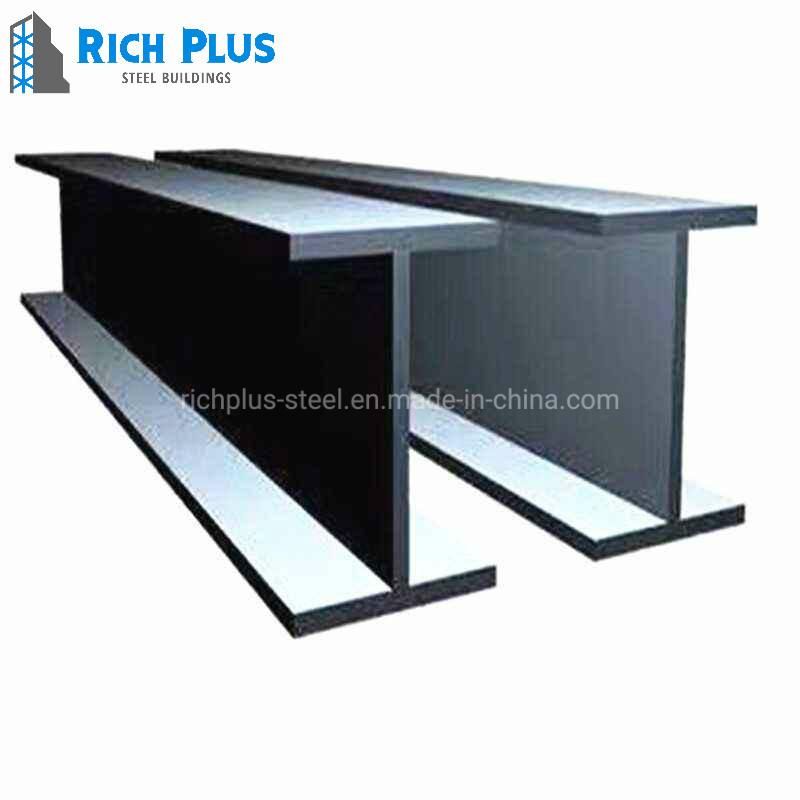

H-beam is a structural beam made of rolled steel. It is incredibly strong. It gets its name because it looks like a capital H over its cross section. The H-beam has wider flanges than an I-beam, but the I-beam has tapered edges. The width is the flange, and the height is the Web. The difference between both H-beams and I-beams is the flange by web ratio. The H-beam tends to be heavier than the I-beam, and that is why some say that it is better than the I-beam, but that is subjective, as the H-beam is generally heavier.

Product name	hot rolled H beam
Shape	H&I beam
Technique	Hot rolled / Welded
Standard	ASTM / AS / BS / GB / JIS
Materials	Q235B, SS400, A-36, AS300B, S355J0, S450J0-T, S275JR

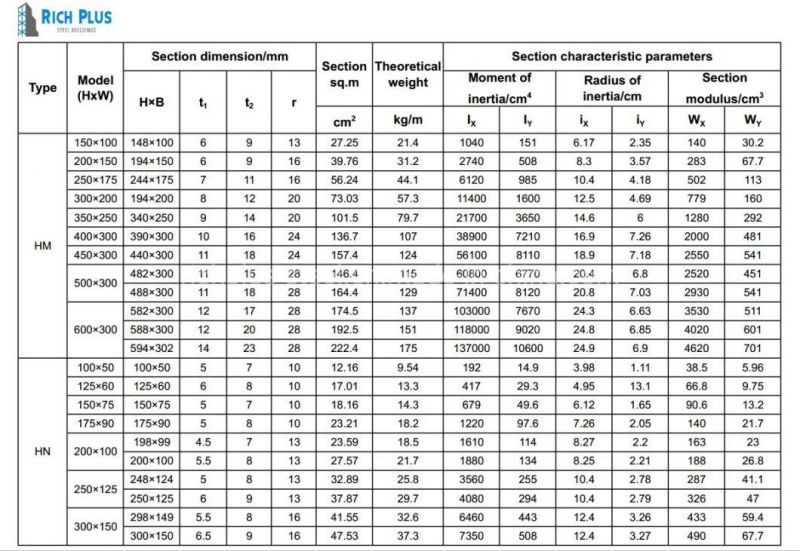

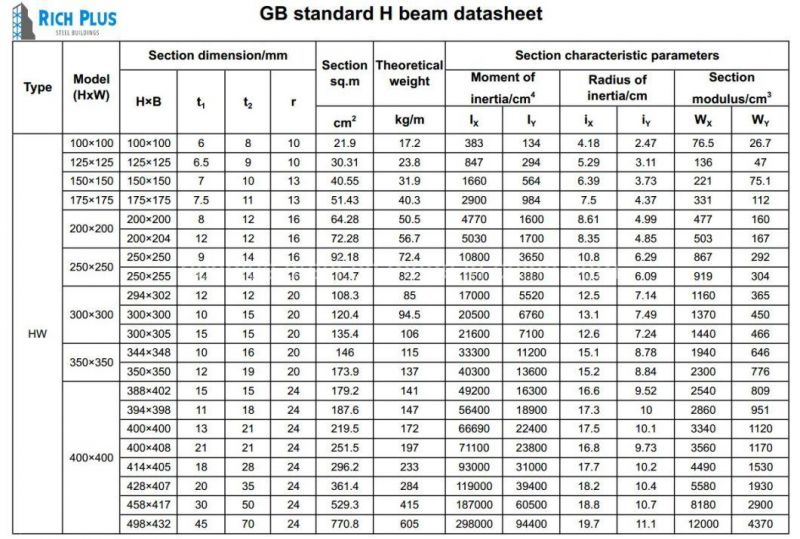

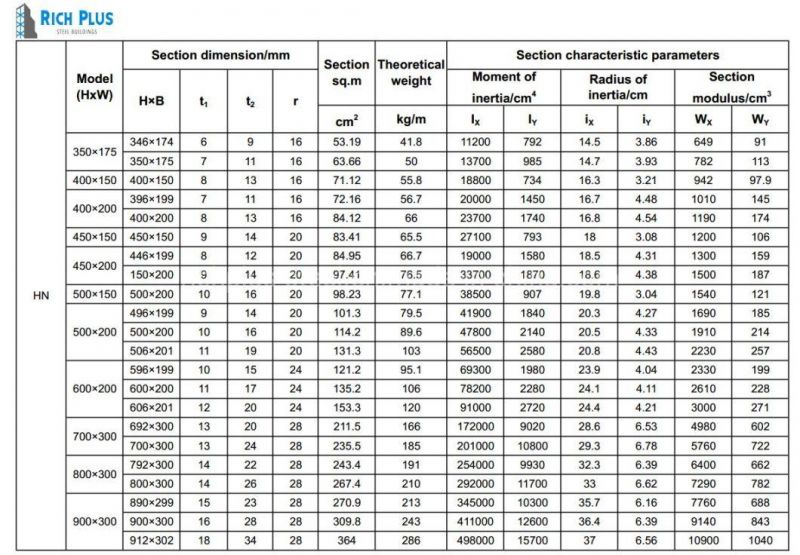

Size	100*50*5*7-900*300*16*28mm
Surface treatment	Galvanized/Black/Painted
Length	1-12m or customized
Delivery time	In 10-30 days after receiving the deposit or L/C
Trade terms	FOB, CFR, CIF
Payment terms	T/T or L/C

I-beam has tapered edges where an H-beam does not. It gets its name from the fact that it looks like a capital I when you see it from its cross section. With an I-beam, the height of the cross section is higher than the width of its flange. The I-beam is lighter than the H-beam, which means a H-beam is not always ideal.

The cross-sectional shape is similar to the economical section profile of the uppercase Latin letter H/I. It is also called universal steel beam, wide edge (edge) I-beam or parallel flange I-beam. The cross section of the H/I-section steel usually comprises two parts, a web and a flange plate, also known as the waist and the side.

H-beam and I-beam looks quite similar that makes it confusing to many who is not concered about the differences between h-beam and i beam.
