B500 D25 Thread Bar for Rock Bolts in Mining
Handan Yidao Metal Products Co., Ltd- Technique：Hot Rolled
- Composition：Ferrous Steel Scrap
- Standard：ASTM, GB
- Type：Carbon Steel Bar
- Shape：Bar
- Surface Treatment：Black
Base Info
- Transport Package：Pallet
- Certificate：SGS Report

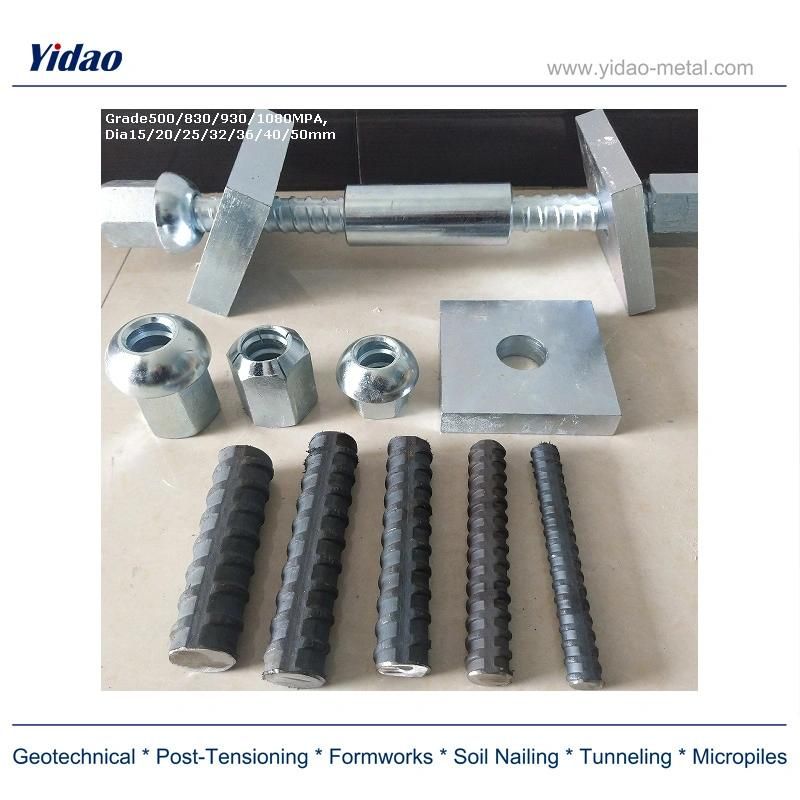

- Accessories：Nut, Plate, Coupler, Spacer etc
- Finish：Plain or Zinc Plated or HDG
- Break Load：190-2100kn
- Other Grade：500,830,930,1080MPa
- Grade：Yield 500,Tensile 630MPa
- Application：Structural Steel Bar
- Special Use：Free Cutting Steel
- Model NO.：25-500
- Specification：D15-50mm
- Trademark：YD
- Origin：China
- HS Code：730840
- Production Capacity：5000ton,Month
Description
500/630. close to grade60/75
Nominal Bar Dia D1
mm²
20
25
32
Nominal Section Area
mm²
314
491
804
Nominal Weight
kg/m
2.47
4.1
6.65
Yield Load
KN
157
245
402
Ultimate Load
KN
198
309
507
Features•Widest range of bar diameters from 15mm up to 75mm•Continuous robust thread appropriate for all environmental conditions and suitable for cutting or lengthening with a coupler at any location•High quality threaded bar system with superior fatigue performance•Widest range of bar grades from 500MPa up to 1230MPa (ultimate)•Full range of accessories facilitate easy and reliable installation•Suitable for temporary or permanent applications•Available in standard lengths of 12m (custom lengths on request)•Tested to the latest international standards

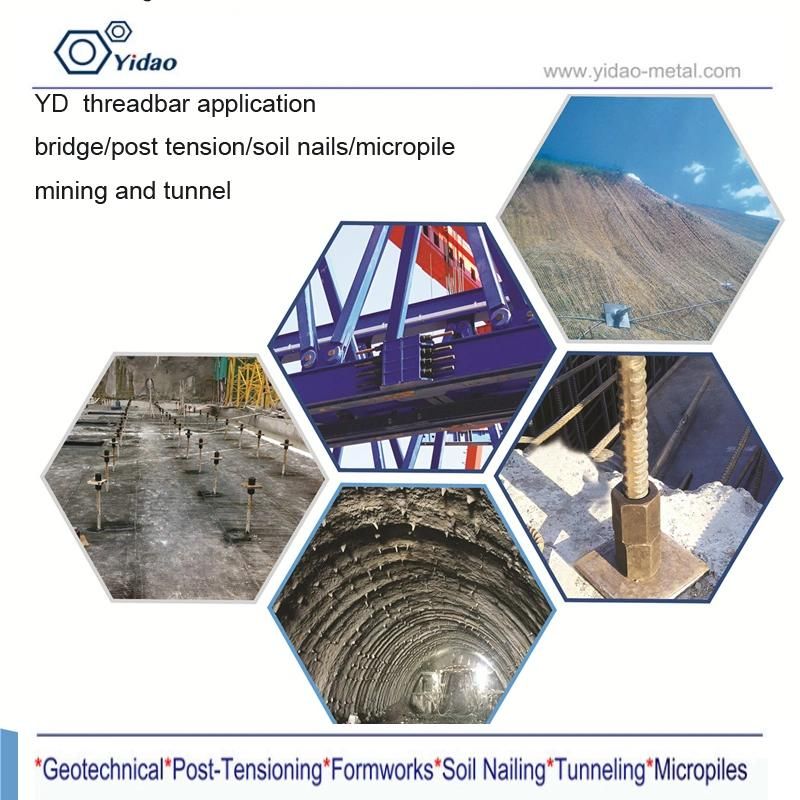

ApplicationConcrete Reinforcement Steel BarsRock BoltsMini and Micro PilesPiles and Diaphragm Wall CagesGround AnchorsSoil NailsTie Rods
We are China factory for hot rolled,continuous thread bar/post tension bar, Dia15/20/25/32/36/40/50mm, grade 500/830/930/1080MPa,over 10years and 5000MT per month. More details, pls contact me. Anna Yang
Handan Yidao Metal Products Co.,Ltd
No.183 Lianfang East Road, Handan, Hebei China 056004
*Post-Tensioning *Formworks *Geotechnical *Ground Anchors *Soil Nailing *Tunneling
