• Model NO.：50mm
• Usage：Pipeline Transport
• Section Shape：Round
• Surface Color：Black,Varnish,Galvanized etc.
• Technical：Hot or Cold Deformed
• Transport Package：Hex. Bundles
• Specification：20-530mm
• Trademark：KM,OEM
• Origin：China
• Production Capacity：50ton,Month

Basic Info.

Model NO. 50mm Usage Pipeline Transport Section Shape Round Surface Color Black/Varnish/Galvanized etc. Technical Hot or Cold Deformed Transport Package Hex. Bundles Specification 20-530mm Trademark KM/OEM Origin China Production Capacity 50ton/Month

Product Description

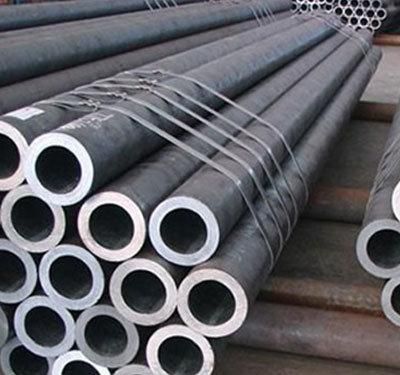

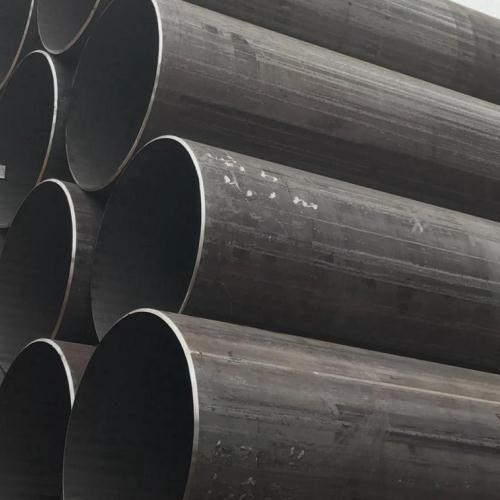

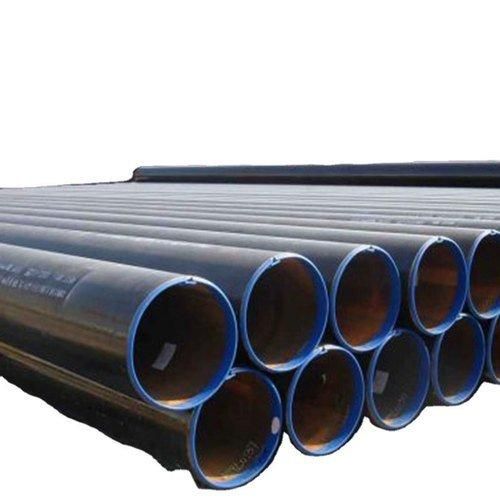

GOST 8732-78 10th 09G2S 15X Hot Deformed Seamless Pipe

Hot-rolled steel seamless pipes are the most common format successfully used in all national economic sectors. These products are known for the greatest reliability, especially for laying communications for various purposes. Most often, a seamless hot-deformed steel pipe GOST 8732-78 is used in the construction of monolithic-frame structures, where reliability is above all under such impressive loads.

Standardization hot rolling seamless tubes 8732 are produced from steel billets of the main grades:

• 10th, 20th, 35th and 45th standard;
• 35V;
• 40G and 45G;
• 15X and 40X;
• 9X1;
• 20PV;
• 30KhGSA;
• 17G1S,
• 09G2S;
• 10-20DDD.

Standard: GOST 8732-78 Equivalent Standard: ASTM A106, ASTM A53, EN 10216-1, DIN 1629

Material: 10 Equivalent Material: 1010, E235, St35.8, St37

Chemistry Composition

C, % Si, % Mn, % Cr, % Ni, % S, % P, % Cu, % 0.07-0.14 0.17-0.37 0.35-0.65 0.15 max 0.30 max 0.040 max 0.035 max 0.30 max

Mechanical Properties

Tensile Strength, MPa Yield Strength, MPa Elongation, % 353 min 216 min 24 min

Size & Tolerance

Available outer diameter 20-530mm Available thickness 2.5-75mm Outside Diameter, mm Tolerance 32≤OD≤50 ±0.5mm 51≤OD≤219 ±1%

Wall thickness & Tolerance

Wall Thickness, mm Tolerance, % 3≤OD≤15 +12.5/-15 16≤OD≤30 ±12.5 32≤OD≤45 +10/-12.5

GOST 8732-78 applies to hot-worked seamless steel pipes of general purpose, manufactured by outside diameter, wall thickness and length.

Manufacture: the tubes shall be manufactured by cold drawn and hot rolled. Delivery Condition: heat treated. Inspection & Test: chemical composition test, elongation test, hardness test, flattening test, bending test, flaring test, NDT, surface inspection and dimension check.

Length: 4000mm; 6000mm; 6500mm; 10000mm; 12010mm; and so on. Max length: 18000mm
