Wire Rope for Rotary Drilling Rig
JiangxiZhongtian Intelligent Equipment Co., Ltd.- Alloy or Not：Non-alloy
- Application：Rope, Construction
- Technique：Ungalvanized
- Surface：Smooth
- Certification：ISO, CCC, CE
- Standard：BS, JIS, GB, ASTM, DIN, AISI
Base Info
- Trademark：ZTM

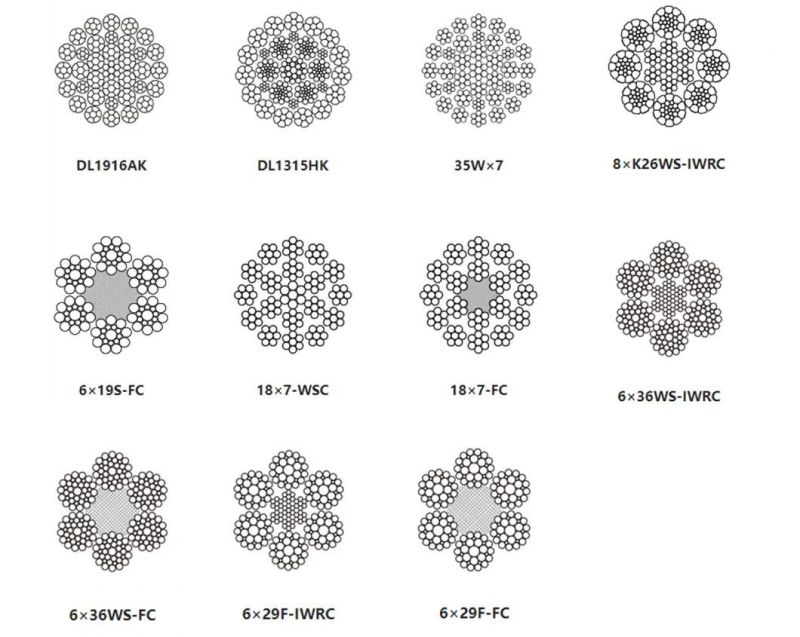

- Specification：35W*7

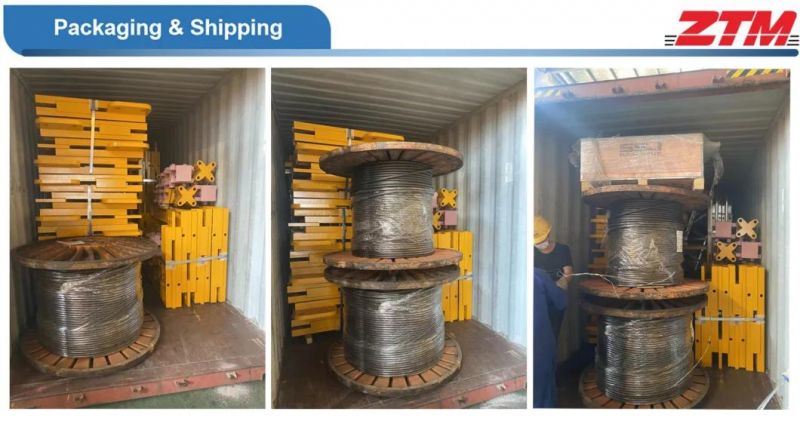

- Transport Package：in Reels or Coils, on Pallets
- Nominal Diameter：18mm
- Weight：149(Kg,100m)
- Material：Carbon Steel
- Tensile Strength：1960MPa
- Finish：Ungalvanized
- Model NO.：35W*7 18mm
- Origin：Jiangxi, China
- HS Code：8431499000
- Production Capacity：100000meter Per Month
Description
Minimum Breaking Load /KN1570N/m2 1770N/m2 1960N/m2 2160N/m2 10 46 56.5 63.7 70.6 75.6 11 55.7 68.4 77.1 85.4 91.5 12 66.2 81.4 91.8 102 109 13 77.7 95.5 108 119 128 14 90.2 111 125 138 148 16 118 145 163 181 194 18 149 183 206 229 245 20 184 226 255 282 302 22 223 274 308 342 366 24 265 326 367 406 435 26 311 382 431 477 511 28 361 443 500 553 593 30 414 509 573 635 680 32 471 579 652 723 774 36 596 732 826 914 980 40 736 904 1020 1130 1210 44 891 1090 1230 1370 1460 48 1060 1300 1470 1630 1740 52 1240 1530 1720 1910 2040 56 1440 1770 2000 2210 2370 60 1660 2030 2290 2540 2720
