Quality UL FM Ms Steel Pipes
Weifang East Pipe Industry Technical Co., Ltd.- Usage：Pipeline Transport, Boiler Pipe, Hydraulic,Automobile Pipe, Machinery Industry, Chemical Industry, Mining, Construction & Decoration, Special Purpose
- Technique：ERW
- Material：Carbon Steel
- Surface Treatment：Painted, Galvanized...
- Type：Welded
- Section Shape：Round
Base Info
- Specification：NPS: 1,2" ---12" WT: 2.11--10.31mm
- Transport Package：Plastic Clothes and Steel Strip
- Certificates：UL FM API GOST Ce ISO JIS...

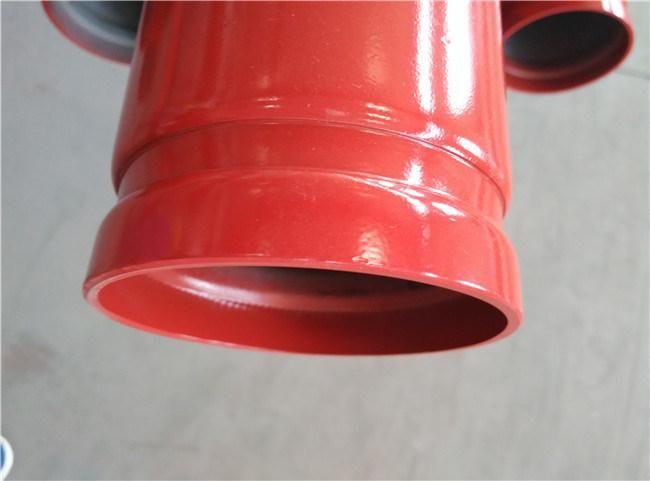

- End Finish：Groove. Thread. Bevel, Plain, Shoulder End...
- Standard：ASTM A53,A795,A135 En10255 BS1387
- Coating Thickness：Paint Thickness: 20um Zinc Thickness:50-70um
- Model NO.：C-001
- Trademark：WEIFANG EAST
- Origin：China
- HS Code：73063090
- Production Capacity：500, 000 Ton,Year
Description
NORMAL WEIGHT(mm) (INCH) (mm) (inch) (mm) (inch) (kg/mtrs) (lbs/ft) (mm) (inch) (kg/mtrs) (lbs/ft) 15 1/2'' 21.30 0.840 ---- ---- ---- ---- 2.77 0.109 1.27 0.85 20 3/4'' 26.70 1.050 2.11 0.083 1.28 0.96 2.87 0.113 1.69 1.13 25 1'' 33.40 1.315 2.77 0.109 2.09 1.41 3.38 0.133 2.50 1.68 32 1.1/4'' 42.20 1.660 2.77 0.109 2.69 1.81 3.56 0.140 3.39 2.27 40 1.1/2'' 48.30 1.900 2.77 0.109 3.11 2.09 3.68 0.145 4.05 2.72 50 2'' 60.30 2.375 2.77 0.109 3.93 2.64 3.91 0.154 5.45 3.66 65 2.1/2'' 73.00 2.875 3.05 0.120 5.26 3.53 5.16 0.203 8.64 5.80 80 3'' 88.90 3.500 3.05 0.120 6.46 4.34 5.49 0.216 11.29 7.58 90 3.1/2'' 101.60 4.000 3.05 0.120 7.41 4.98 5.74 0.226 13.58 9.12 100 4'' 114.30 4.500 3.05 0.120 8.37 5.62 6.02 0.237 16.09 10.80 125 5'' 141.30 5.563 3.40 0.134 11.58 7.78 6.55 0.258 21.79 14.63 150 6'' 168.30 6.625 3.40 0.134 13.85 9.30 7.11 0.280 28.29 18.99 200 8'' 219.10 8.625 4.78 0.188 25.26 16.96 7.04 0.277 36.82 24.72 250 10'' 273.10 10.750 4.78 0.188 31.62 21.23 7.08 0.307 51.05 34.27
