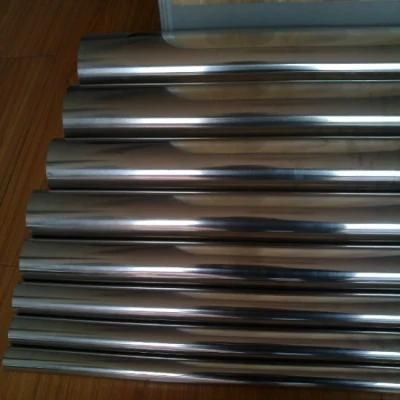

Cold Drawing Bright 17-4pH Stainless Steel Round Bar

Taizhou Heng Yue New Compound Mstar Technology Co., Ltd.
  • Certification：ISO, RoHS, AISI, ASTM, GB, EN, DIN, JIS
  • Grade：300 Series
  • Standard：ASTM, AISI, GB, JIS, DIN, EN
  • Type：Stainless Steel Bars
  • Shape：Round
  • Technique：Cold-Drawing

Base Info

  • Trademark：Hengyue
  • Specification：3mm-400mm
  • Transport Package：Bundle & Ply-Wooden Boxes
  • Surface Treatment：Bright
  • Model NO.：630-1
  • Origin：Jiangsu, China
  • HS Code：7222400000
  • Production Capacity：2000 Ton

Description

Chemical Composition LimitsWeight%CSiMnP + S maxCrNiCb + TaCuAMS 56430.071.0 max1.0 max0.04 P
0.03 S15.0 - 17.53.0 - 5.05 X C / 0.453.0 - 5.0AISI 6300.071.0 max1.0 max0.04P
0.03 S15.0 - 17.53.0 -5.00.15 - 0.453.0 - 5.017-4 PH  is a martensitic, precipitation-hardening stainless steel that provides an outstanding combination of high strength and hardness along with excellent corrosion resistance. 17-4 PH has good fabricating characteristics and can be age hardened by a single step, low temperature treatment.

Typical Mechanical PropertiesMaterialConditionUltimate Tensile Strength (ksi)0.2 % Yield Strength (ksi)Elongation % in 2D% Reduction of AreaRockwell C HardnessAlloy 17-4 PH
Bar AMS 5643Cond A----363 HB maxAlloy 17-4 PH
Bar AMS 5643H9001901701040388-444Alloy 17-4 PH
Bar AMS 5643H9251701551044375-429Alloy 17-4 PH
Bar AMS 5643H10251551451245331-401Alloy 17-4 PH
Bar AMS 5643H10751451251344311-375Alloy 17-4 PH
Bar AMS 5643H11001401151445302-363Alloy 17-4 PH
Bar AMS 5643H11501351051650277-352
