500MPa Thread Bar for Reinforcing Concrete
Handan Yidao Metal Products Co., Ltd- Technique：Hot Rolled
- Composition：Ferrous Steel Scrap
- Standard：GB
- Type：Carbon Steel Bar
- Shape：Bar
- Surface Treatment：Color Coated
Base Info
- Specification：D20,25,32,36,40
- Transport Package：Bundle
- Tensile Strength：630n,mm2
- Yield Strength：500n,mm2

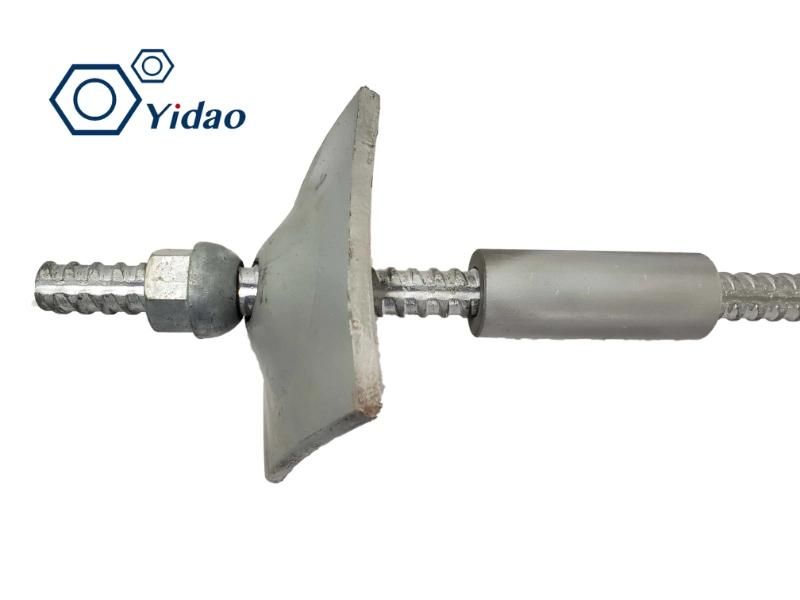

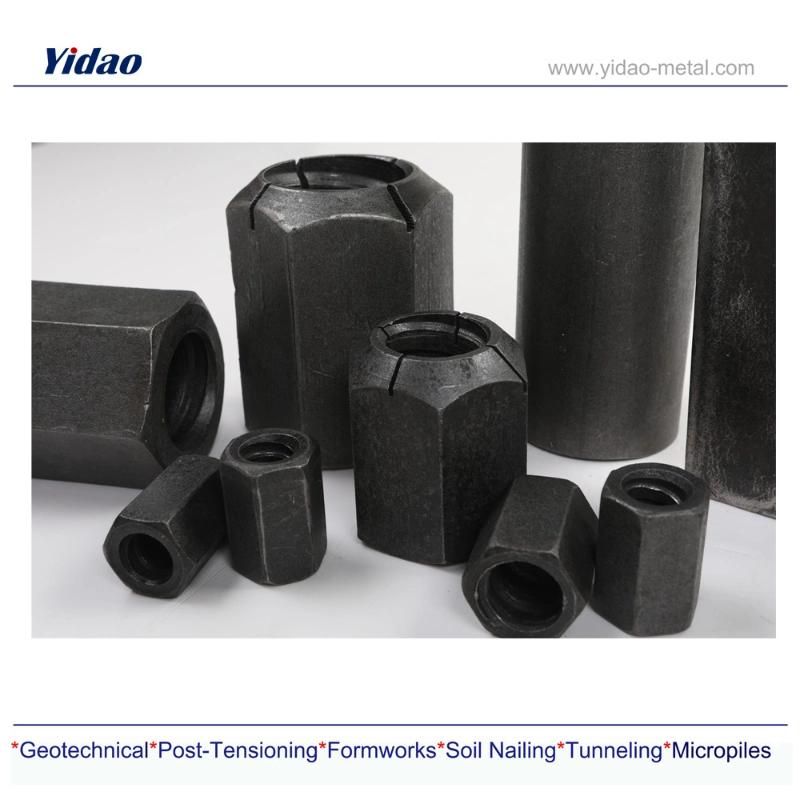

- Accessories：Nut, Connector, Plate, Spacer
- Length：1-12m Cutting as Demand
- Application：Structural Steel Bar
- Special Use：High-strength Steel Plate
- Model NO.：20
- Trademark：YD or OEM
- Origin：China
- HS Code：730840
- Production Capacity：5000ton,Month
Description
Product Description 36 40 1018 1257 8.41 10.34 509 628 641 792
1Fully threaded bar - can be cut and coupled at any point.
2 Robust threadform - ideal for construction site use.
3 Coarse pitch threadform with two flats - ensures self-cleaning of thread.
4 Fully galvanized systems - galvanized threadbars and accessories also available from stock.

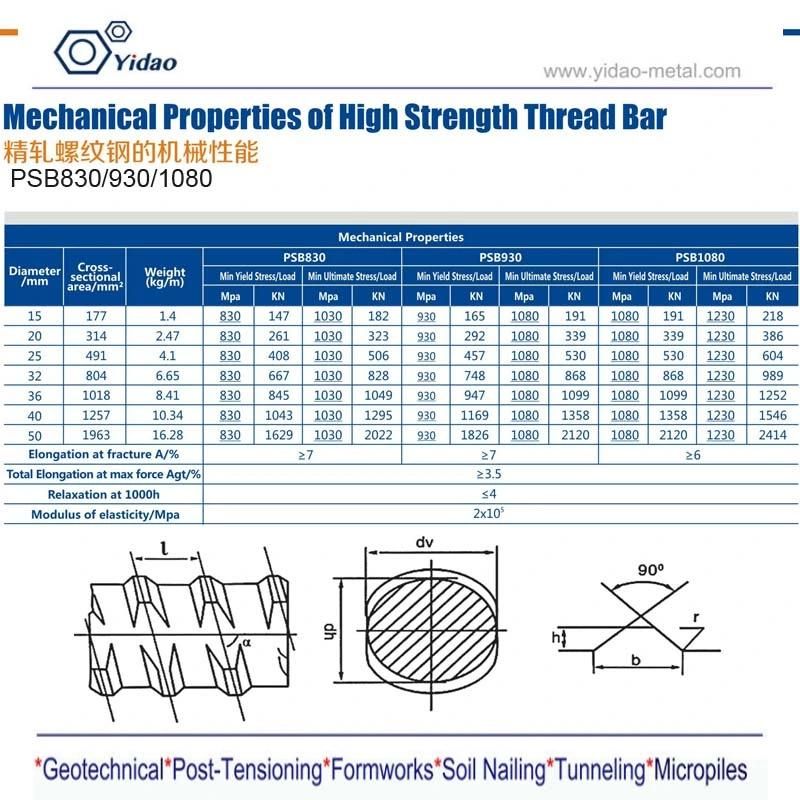

500/630
Nominal Bar Dia D1
mm²
20
25
32
Nominal Section Area
mm²
314
491
804
Nominal Weight
kg/m
2.47
4.1
6.65
Yield Load
KN
157
245
402
Ultimate Load
KN
198
309
507
1Fully threaded bar - can be cut and coupled at any point.
2 Robust threadform - ideal for construction site use.
3 Coarse pitch threadform with two flats - ensures self-cleaning of thread.
4 Fully galvanized systems - galvanized threadbars and accessories also available from stock.
All accessories avaible.
Other grade PSB830/1030, 930/1080, 1080/1230MPA available
Application
1.Threadbar for Connecting Reinforcement
2.Threadbar for Prefabricated Connecting Reinforcement
3.Threadbar for Typical Applications for Reinforcing Concrete
4. Threadbar for Mounting Connecting Reinforcement
5.other application-geotechnical, soil nailling ,rock bolts ,ground anchors ,form work ,post-tension system ,bridge ,micro piles ,mining and tunneling ect.
