ASTM TM2 Thermal bimetal strip bimetallic sheet
Shanghai Tankii Alloy Material Co., Ltd.- Technique：Cold Rolled
- Surface Treatment：Galvanized
- Certification：ISO
- Standard：ASTM, GB
- Application：circuit breaker
- Stock：Not Stock
Base Info
- Temperature curvature：39.4%
- bending：20.5
- resistivity：1.12
- Linear temperature range：90~320
- Elastic modulus is not less than：113000
- Allows the use of temperature range：-70~200ºC
- density：7.7
- use：circuit breaker
- features：Than bending is very high, high resistivity
- rigidity：-70~320
- Model NO.：ASTM TM2
- Transport Package：Wooden Case
- Specification：negotiable
- Trademark：tankii
- Origin：China
- HS Code：7408229000
- Production Capacity：3000 Tons,Year
Description
Composition
Typical Physical properties

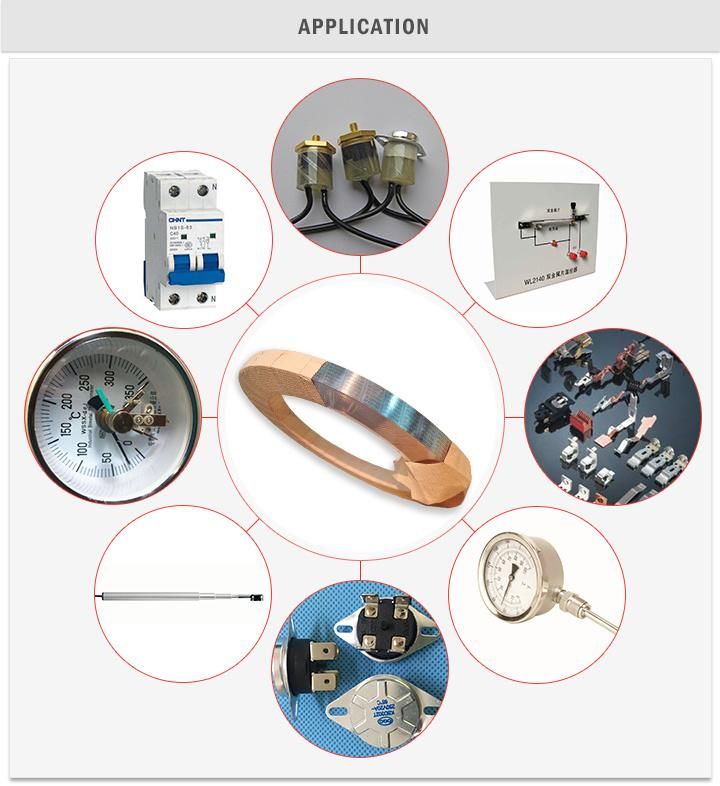

Application: The material is mainly in automatic control devices and instrumentation (eg: exhaust thermometers, thermostats, voltage regulators, temperature relay, automatic protection switching, diaphragm meters, etc.) make temperature control, temperature compensation, current limit, temperature indicator and other heat-sensitive components.
Feature: The basic characteristics of Thermostat Bimetallic is bending deformation with temperature changes, resulting in a certain moment.
Thermostat Bimetallic Strip expansion coefficient is different from the two or more layers of metal or alloy along the entire contact surface firmly bonded, having a temperature-dependent shape change occurs thermosensitive functional composites. Wherein the higher expansion coefficient of the active layer is a layer called a low coefficient of expansion of the layer is named passive layer.
Style of supply
ASTM TM2 - Strip - Width= 5~120 mm; Thickness= 0.1~3mm
