ASTM A249 En 10217-7 SUS 304 316 Austenitic Welded Tube Stainless Steel Seamless Pipe
Shandong Jichang Import and Export Co., Ltd.- Type:Stainless Steel Pipes
- Standard:ASTM, AISI, GB, EN
- Grade:300 Series
- Certification:ISO, RoHS, AISI, ASTM, EN
- Shape:Round
- Technique:Cold Rolled
Base Info
- Model NO.:304,316
- Surface Treatment:Bright
- Transport Package:Nuded Cargo or Nylon Bags or Wooden Box
- Specification:6mm-273mm
- Trademark:JICHANG
- Origin:Shandong China
- Production Capacity:3000 Tons Per Month
Description
Basic Info.
Model NO. 304/316 Surface Treatment Bright Transport Package Nuded Cargo or Nylon Bags or Wooden Box Specification 6mm-273mm Trademark JICHANG Origin Shandong China Production Capacity 3000 Tons Per MonthProduct Description

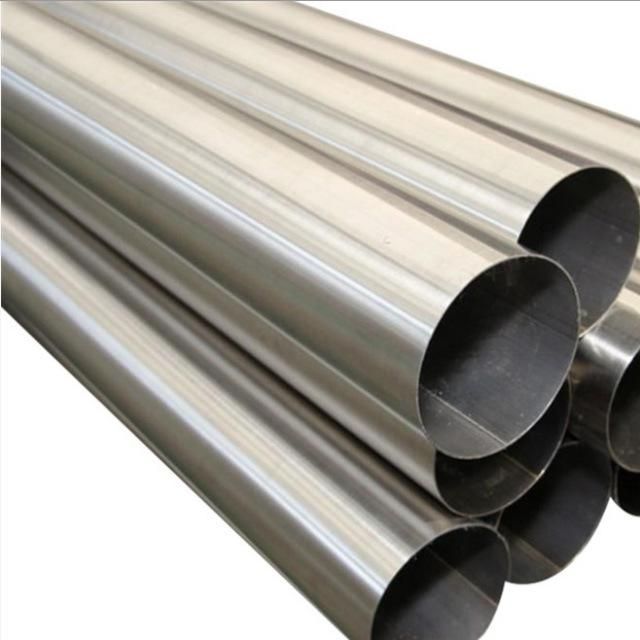

Raw material from POSCOStainless steel tube
Specifications:
1) Diameters: 4 - 76.2mm
2) W. T.: 0.4 - 2.5mm
3) Grades: 316L/304/304L/310S, etc.
4) Standard: GB/ISO/EN/ASTM/JIS, etc.
5) Application range: Widely use in the foodstuff, medical equipment, power, boiler, cooler, auto, condenser etc.
6) Packing: Inner packing: 1 PC/plastic bag; Outer packing: Bundles in weaving bags or in plywooden case.
Outside path in class deviation mm table 3 | Outside path inIIclass deviation mm table 4 | |||||||||||||||||||||||||||||
|
|
The weld takes care of of settle Chinese foot length as 3 ms~9 ms, general settle the Chinese foot with the 6 ms.
The weld takes care of of settle the Chinese foot length in usually length, its the deviation of admission is the 5 mms of ±.
Adopt partial the degree of flinch in a the tube of weldfor keeping the Chinese foot measurement should not very in 2.0 mms.
The machine function sees the table 5
table 5
Steel number | Card number | The heat handles Make degree | The anti- pulls the strength MPa | Accept defeat the strength MPa | Extension rate% | Degree of hardnessHRB |
0Cr19N19 | 304 | ≥1010°C Nasty and cold | ≥520 | ≥205 | 40 | ≤90 |
00Cr19Ni11 | 304L | " " | ≥480 | ≥175 | 40 | ≤90 |
0Cr17Ni12M02 | 316 | " " | ≥520 | ≥205 | 40 | ≤90 |
0Cr17Ni14M02 | 316L | " " | ≥480 | ≥175 | 40 | ≤90 |
0Cr18Ni11Ti | 321 | ≥920°C Nasty and cold | ≥520 | ≥205 | 40 | ≤90 |
