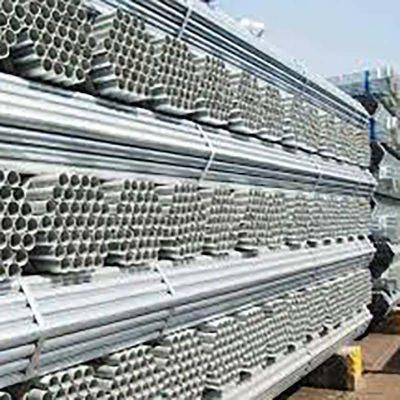

Painted UL FM Bevel End Fire Fighting Steel Pipes
Weifang East Pipe Industry Technical Co., Ltd.- Usage：Pipeline Transport, Boiler Pipe, Hydraulic,Automobile Pipe, Machinery Industry, Chemical Industry, Mining, Construction & Decoration, Special Purpose
- Technique：ERW
- Material：Carbon Steel
- Surface Treatment：Painted, Galvanized...
- Type：Welded
- Section Shape：Round
Base Info
- Specification：NPS: 1,2" ---12" WT: 2.11--10.31mm
- Transport Package：Plastic Clothes and Steel Strip
- End Finish：Groove. Thread. Bevel, Plain, Shoulder End...
- Standard：ASTM A53,A795,A135 En10255 BS1387...
- Certificates：UL FM API GOST Ce ISO
- Coating Thickness：Paint Thickness: 20um Zinc Thickness:50-70um
- Model NO.：C-001
- Trademark：EAST
- Origin：China
- HS Code：73063090
- Production Capacity：500, 000 Ton,Year
Description
ASTM A53NPS DN OD,in.[mm] WT,in.[mm] Weight Plain End
lb/ft[kg/m] SCH PCS/ BUNDLE ½'' 15 0.840[21.3] 10 120 0.109[2.77] 0.85[1.27] 40 120 ¾'' 20 1.050[26.7] 0.083[2.11] 0.86[1.28] 10 84 0.113[2.87] 1.13[1.69] 40 84 1'' 25 1.315[33.4] 0.109[2.77] 1.41[2.09] 10 60 0.133[3.38] 1.68[2.50] 40 60 1-1/4'' 32 1.660[42.2] 0.109[2.77] 1.81[2.69] 10 42 0.140[3.56] 2.27[3.39] 40 42 1-1/2'' 40 1.900[48.3] 0.109[2.77] 2.09[3.11] 10 36 0.145[3.68] 2.72[4.05] 40 36 2'' 50 2.375[60.3] 0.109[2.77] 2.64[3.93] 10 26 0.154[3.91] 3.66[5.44] 40 26 2-1/2'' 65 2.875[73.0] 0.120[3.05] 3.53[5.26] 10 18 0.203[5.16] 5.80[8.63] 40 18 3'' 80 3.500[88.9] 0.120[3.05] 4.34[6.46] 10 14 0.216[5.49] 7.58[11.29] 40 14 3-1/2'' 90 4.000[101.6] 0.120[3.05] 4.98[7.41] 10 12 0.226[5.74] 9.12[13.57] 40 12 4'' 100 4.500[114.3] 0.120[3.05] 5.62[8.37] 10 10 0.237[6.02] 10.80[16.07] 40 10 5'' 125 5.563[141.3] 0.134[3.40] 7.78[11.58] 10 7 0.258[6.55] 14.63[21.77] 40 7 6'' 150 6.625[168.3] 0.134[3.40] 9.30[13.85] 10 5 0.280[7011] 18.99[28.26] 10 5 8'' 200 8.625[219.1] 0.188C[4.78] 16.96[25.26] 10 3 0.322[8.18] 28.58[42.55] 40 3 10'' 250 10.750[273.1] 0.188C[4.78] 21.23[31.62] 10 3 10.750[273.0] 0.365[9.27] 40.52[60.29] 40 3 12'' 300 12.750[323.8] 0.406[10.31] 53.57[79.70] 40 2
BS1387 (BLACK & GALVANISED)
N.D. O.D. WALL THICKNESS BLACK WEIGHT GALVANIZED WEIGHT PLAIN ENDS SCREWED&
SOCKETED PLAIN ENDS SCREWED&
SOCKETED Inch (mm) (Maximum mm) (Minimum mm) (mm) (Kg/m) (Kg/m) (Kg/m) (Kg/m) LIGHT 1/2" 15 21.4 21 2 0.947 0.956 0.947 0.956 3/4" 20 26.9 26.4 2.3 1.38 1.39 1.38 1.39 1" 25 33.8 33.2 2.6 1.98 2 1.98 2 1 1/4" 32 42.5 41.9 2.6 2.54 2.57 2.54 2.57 1 1/2" 40 48.4 47.8 2.9 3.23 3.27 3.23 3.27 2" 50 60.2 59.6 2.9 4.08 4.15 4.08 4.15 2 1/2" 65 76 75.2 3.2 5.71 5.83 5.71 5.83 3" 80 88.7 87.9 3.2 6.72 6.89 6.72 6.89 4" 100 113.9 113 3.6 9.75 10 9.75 10 MEDIUM 1/2" 15 21.7 21.1 2.6 1.12 1.22 1.12 1.22 3/4" 20 27.2 26.6 2.6 1.56 1.57 1.56 1.57 1" 25 34.2 33.4 3.2 2.41 2.43 2.41 2.43 1 1/4" 32 42.9 42.1 3.2 3.1 3.13 3.1 3.13 1 1/2" 40 48.8 48 3.2 3.57 3.6 3.57 3.6 2" 50 60.8 59.8 3.6 5.03 5.1 5.03 5.1 2 1/2" 65 76.6 75.4 3.6 6.43 6.55 6.43 6.55 3" 80 89.5 88.1 4 8.37 8.54 8.37 8.54 4" 100 114.9 113.3 4.5 12.2 12.5 12.2 12.5 5" 125 140.6 138.7 5 16.6 17.1 16.6 17.1 6" 150 166.1 164.1 5 19.7 20.3 19.7 20.3 HEAVY 1/2" 15 21.7 21.1 3.2 1.44 1.45 1.44 1.45 3/4" 20 27.2 26.6 3.2 1.87 1.88 1.87 1.88 1" 25 34.2 33.4 4 2.94 2.96 2.94 2.96 1 1/4" 32 42.9 42.1 4 3.8 3.83 3.8 3.83 1 1/2" 40 48.8 48 4 4.38 4.42 4.38 4.42 2" 50 60.8 59.8 4.5 6.19 6.26 6.19 6.26 2 1/2" 65 76.6 75.4 4.5 7.93 8.05 7.93 8.05 3" 80 89.5 88.1 5 10.3 10.5 10.3 10.5 4" 100 114.9 113.3 5.4 14.5 14.8 14.5 14.8 5" 125 140.6 138.7 5.4 17.9 18.4 17.9 18.4 6" 150 166.1 164.1 5.4 21.3 21.9 21.3 21.9
