• Transport Package：Standard Packing to Export.
• Color Coated Roofing Steel：Prepainted Roofing Sheet
• Corrugated Steel Sheet：Roofing Sheet
• Backside Painting：5-7um
• Top Painting：5+20um
• Classification：T Type, Waves, Floor Deck
• Color：Ral Colors
• Zinc Coating：40g--275G,M2
• Length：as Customers′s Requirements
• Width：600-1250mm
• Thickness：0.16mm-1.2mm
• Stock：Not Stock
• Special Use：High-strength Steel Plate
• Model NO.：T sheet
• Specification：ISO9001, SGS
• Trademark：ISO9001, ISO14000, SGS, CE
• Origin：Shandong, China
• HS Code：721070100
• Production Capacity：10, 000mt,Month

Basic Info.

Model NO. T sheet Special Use High-strength Steel Plate Stock Not Stock Thickness 0.16mm-1.2mm Width 600-1250mm Length as Customers′s Requirements Zinc Coating 40g--275G/M2 Color Ral Colors Classification T Type, Waves, Floor Deck Top Painting 5+20um Backside Painting 5-7um Corrugated Steel Sheet Roofing Sheet Color Coated Roofing Steel Prepainted Roofing Sheet Transport Package Standard Packing to Export. Specification ISO9001, SGS Trademark ISO9001, ISO14000, SGS, CE Origin Shandong, China HS Code 721070100 Production Capacity 10, 000mt/Month

Product Description

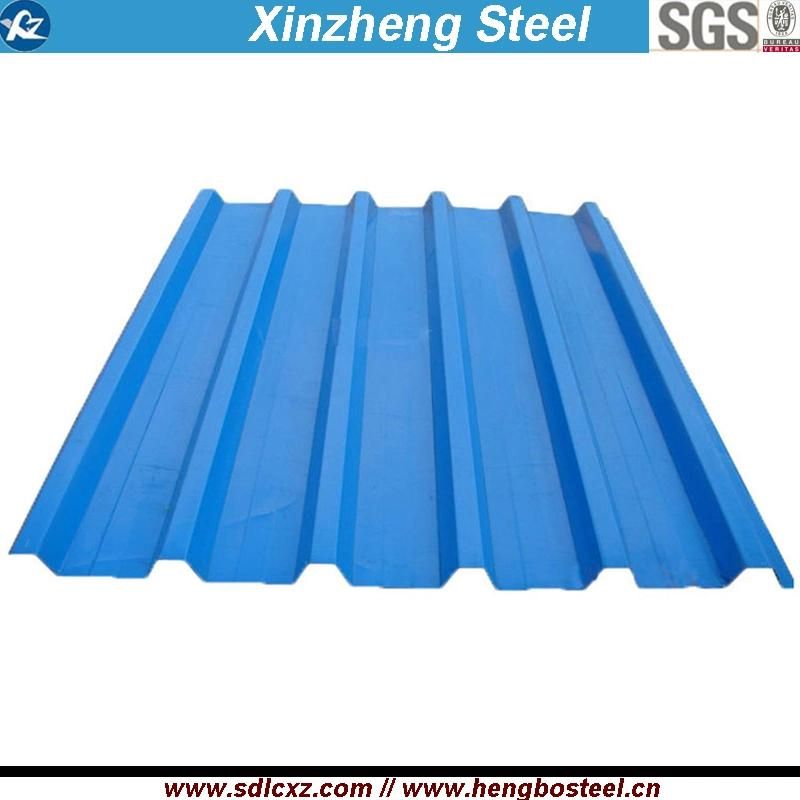

T Type Color Coated Corrugated Steel Sheet


1. Product introduction:

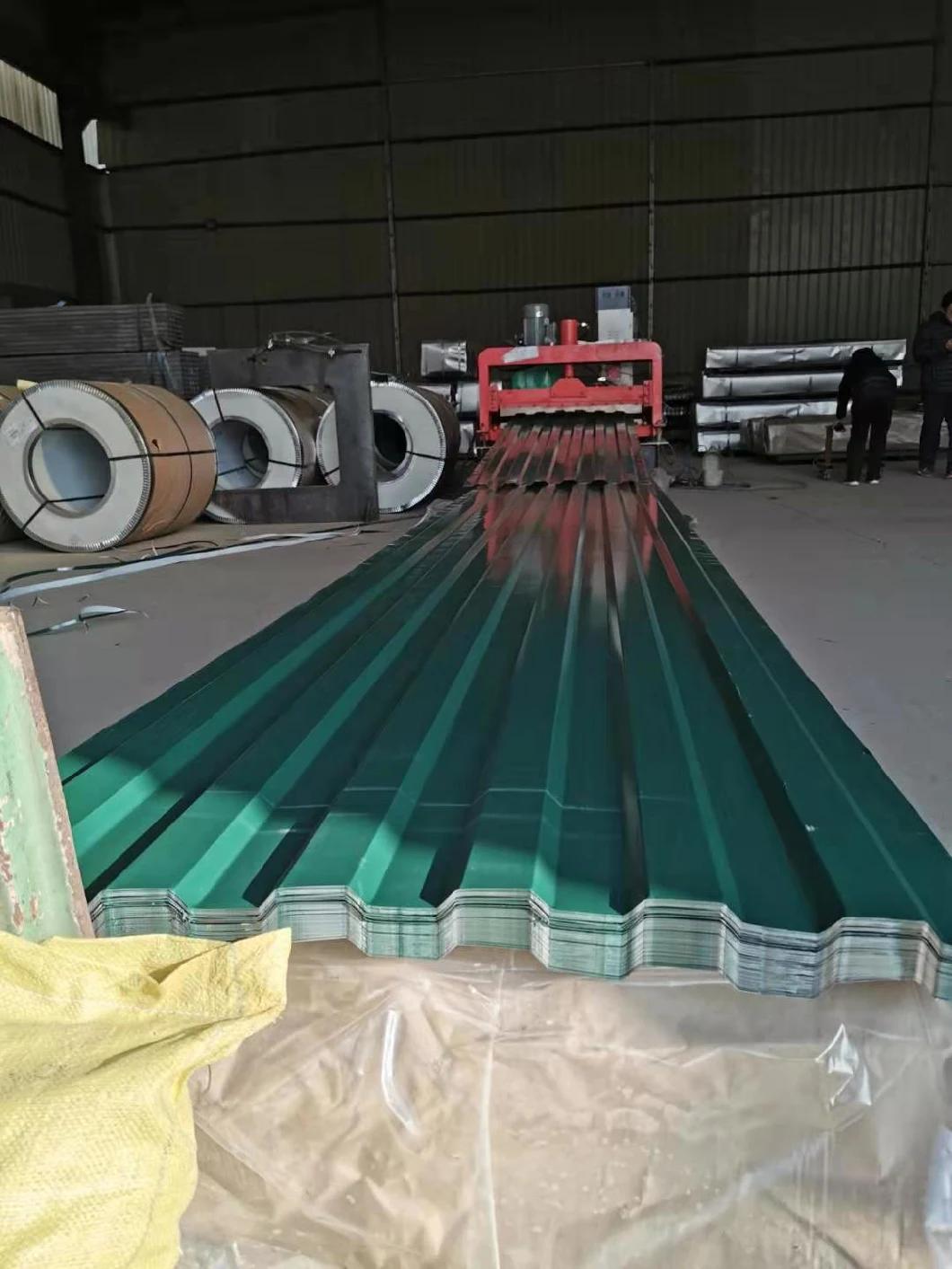

Corrugated galvanised steel (colloquially corrugated iron or pailing, commonlyabbreviated CGI) is a building material composed of sheets of hot-dip galvanised mild steel, cold-rolled to produce a linear corrugated pattern in them. The corrugations increase the bending strength of the sheet in the direction perpendicular to the corrugations, but not parallel to them. Normally each sheet is manufactured longer in its strong direction.

CGI is lightweight and easily transported. It was and still is widely used especially in rural and military buildings such as sheds and water tanks. Its unique properties were used in the development of countries like Australia from the 1840s, and it is still helping developing countries today.






2. Specifications:

Standard: JISG3302/ASTMA653
Thickness: 0.16mm--1.2mm
Zinc coating: 40-275g
Color: RAL colors
Top painting: 5+20um
Backside painting: 5-7um
Material: SGCH, SPCC, SGCC, DX51D
WIDTH: 600MM-1250MM
Raw material: 762mm to 665mm( after corrugated ) and 9 waves
Raw material: 914mm to 800mm (after corrugated) and 11waves
Raw material: 1000mm to 900mm (after corrugated) and 12 to waves
We also can produces as customers' requirement


3. Details:


Capacity	about 1,000 tons per month for the steel sheet and coil product
Grade	SGCC, DX51D, Q195, all according to the customer's request
Standard	SPCC,SGCC,SGCD FULL HARD,Q195, all according to the customer's request
Thickness	0.16mm -1.2mm, all available
Width	600mm - 1250mm , all available
Length	we can adjust the length according to your request
Elongation	Min. 7%
Zinc coating weight	Min. 40gm/m2, double side
Spangle	regular spangle, minimized spangle and zero spangle
Edge	mill edge, cut edge
MOQ	1 containner
