• Transport Package：Welded Technique High Quality H Beam for Overhead
• Type of Steel for Building Structure：High-Strength Steel
• Member：Steel Beam
• Connection Form：Welded Connection
• Forming：Hot-Rolled Steel
• Type：H-Section Steel
• Certificate：ISO9001,SGS,BV
• Tolerance：Based
• Weight：17.2~286kg,M
• Flange Thickness：8~35mm
• Model NO.：125X125
• Specification：100x100mm~900x300mm
• Trademark：Lai Steel
• Origin：Shandong, China
• Production Capacity：10000 Ton One Month

Weight (kg/m)

Height×Breadth

Web thickness

Flange thickness

                    100×100

6

8

16.9

125×125

6.5

9

23.6

150×150

7

10

31.1

175×175

7.5

11

40.4

200×200

8

12

49.9

250×250

9

14

71.8

300×300

10

15

93.0

300×300

15

15

105.0

350×350

12

19

134.9

400×400

13

21

171.7

148×100

6

9

20.7

194×150

6

9

29.9

244×175

7

11

43.6

294×200

8

12

55.8

340×250

9

14

78.1

390×300

10

16

104.6

440×300

11

18

120.8

482×300

11

15

110.8

488×300

11

18

124.9

582×300

12

17

132.8

588×300

12

20

147.0

100×50

5

7

9.3

125×60

6

8

13.1

150×75

5

7

14.0

175×90

5

8

18.0

198×99

4.5

7

17.8

200×100

5.5

8

20.9

248×124

5

8

25.1

250×125

6

9

29.0

298×149

5.5

8

32.0

300×150

6.5

9

36.7

346×174

6

9

41.2

350×175

7

11

49.4

396×199

7

11

56.1

400×200

8

13

65.4

446×199

8

12

65.1

450×200

9

14

74.9

496×199

9

14

77.9

500×200

10

16

88.1

596×199

10

15

92.4

600×200

11

17

103.4

700×300

13

24

181.8

800×300

14

26

206.8

900×300

16

28

240.1

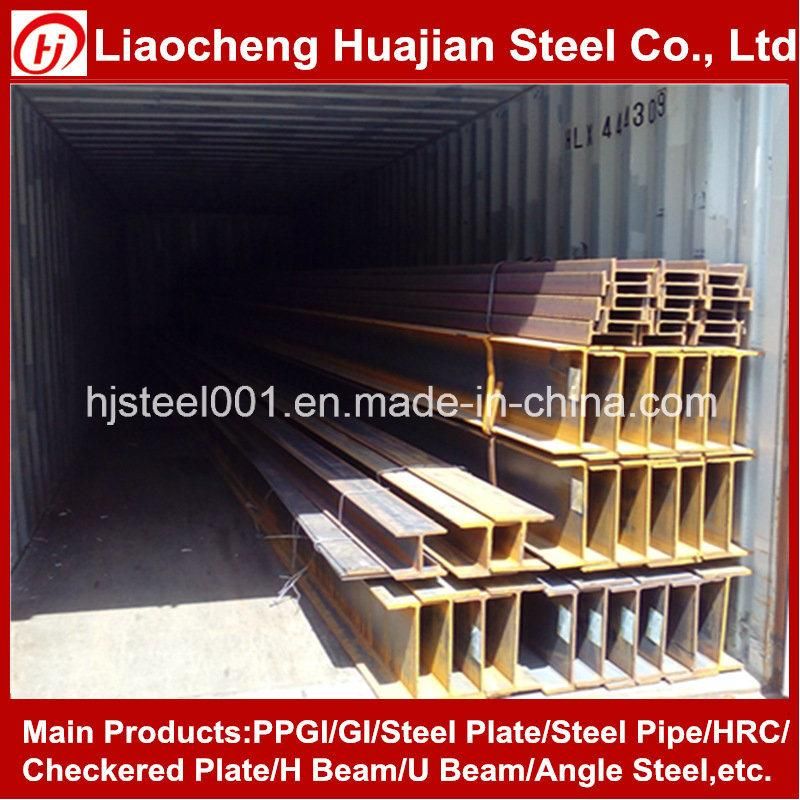

Product Loading




Company Information

Liaocheng Huajian Steel Co.,Ltd is located in Liaocheng, Shandong Province, which is known as "the Water City of Jiangbei", and our company was established in the year 2006. We are a modern private enterprises which are specialized in processing and exporting steel materials in China and win high reputations from our customers.

Our main items are:

1. Cold rolled steel/ galvanized steel/ galvalume steel/ prepainted steel/ corrugated steel

2. steel profiles, such as, steel angle section/ H beams/ I beams/ Channel section etc..

3. HRC MS plate, checkered steel plate, alloy steel plate /coil etc..

4. also the carbon steel/ galvanized steel round and square tubes, and stainless steel etc.


Besides, we can do customization as your demand or samples, etc..

Warmly welcome your esteemed come and visit our company and the production line.

Our current export markets are: Sorth America, North America, Europe,Australia,Africa, Asia, etc..

Adhere to the principle of"fair,objective,scientific,honest management, keeping promises, credibility honoring, following delivery schedule", Liaocheng Huajian Steel Co.,Ltd is willing to establish long-term close cooperation with our customers and make progress together to create a more brilliant future!

Our Advantages

(1): High quality with reasonable price.
(2): Wide excellent experiences with after-sale service.
(3): Every process will be checked by responsible QC which insures every product's quality.
(4): Professional packing teams which keep every packing safely.
(5): Trial order can be done in one week.
(6): Free Samples can be provided as your requirements.


FAQ
1. Minimum Order Quantity?

  The MOQ is usually 25 tons or more, it depends .


 2. What kind of terms of payment can you accept?

   T/T, L/C are available.


 3. What grams of the product can you offer?

  These products can be customized according to your requirement.

4.Is free sample available?

  Yes, free sample is available.

  The sample is cost free, but please afford the freight cost, and we will figure it in the order as long as we work together.For those clients who have already established business relation with us, even the freight cost will be free.

5. Can you do Customization & Reproduction if I provide a photo?

  Yes, we do Customization & Reproduction service.

 6. Does the packaging safe and arrive in good conditions?

  Yes, safe Packing guarantee , all the products will arrive your door under good conditions.  We response to problem of shipping if there unfortunately is.

 7. How long does it usually take to deliver the product?

  We will make the shipment to you immediately. It will take about 18 to 40 days arrive worldwide. It de  pends on the specific quantity.

 8. Is drop shipping available?

  Yes, it is, we can send to worldwide.

If you have any questions about our products or our company, please don't hesitate to contact us, we will try our best to serve you well!
