• Trademark：kingmetal
• Specification：1,2"-48"
• Transport Package：Bundles or Seaworthy Wooden Cases
• Section Shape：Round
• Usage：Machinery Industry, Construction & Decoration
• Origin：China
• HS Code：73045110
• Production Capacity：3000 Ton,Month

Basic Info.

Usage Machinery Industry, Construction & Decoration Section Shape Round Transport Package Bundles or Seaworthy Wooden Cases Specification 1/2"-48" Trademark kingmetal Origin China HS Code 73045110 Production Capacity 3000 Ton/Month

Product Description

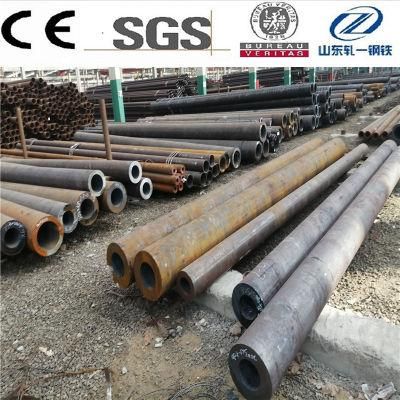

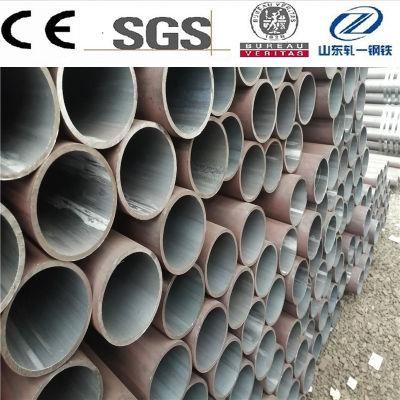

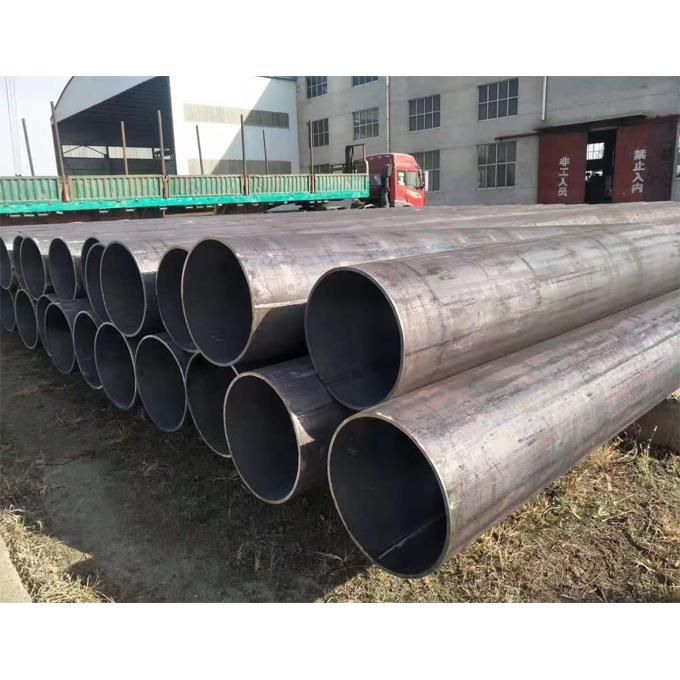

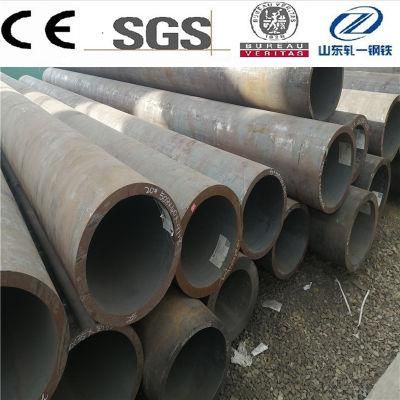

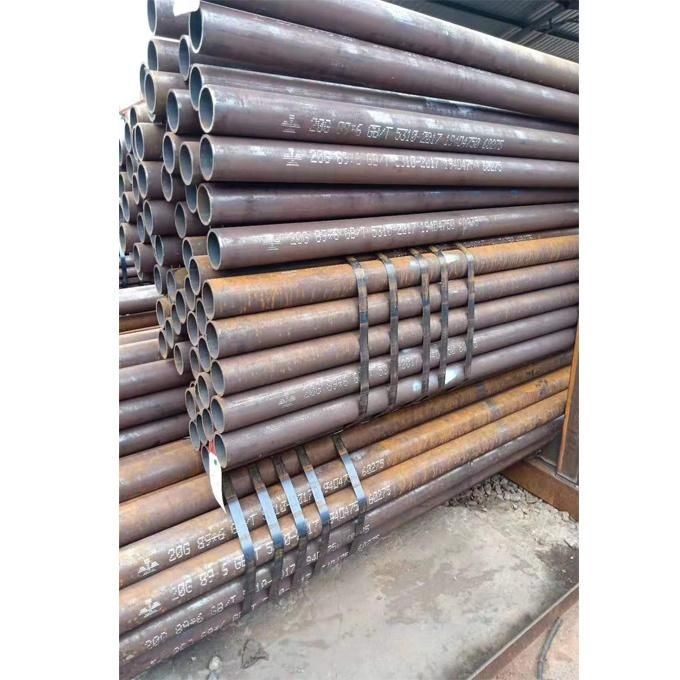

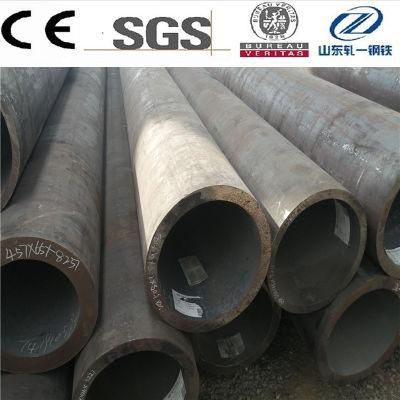

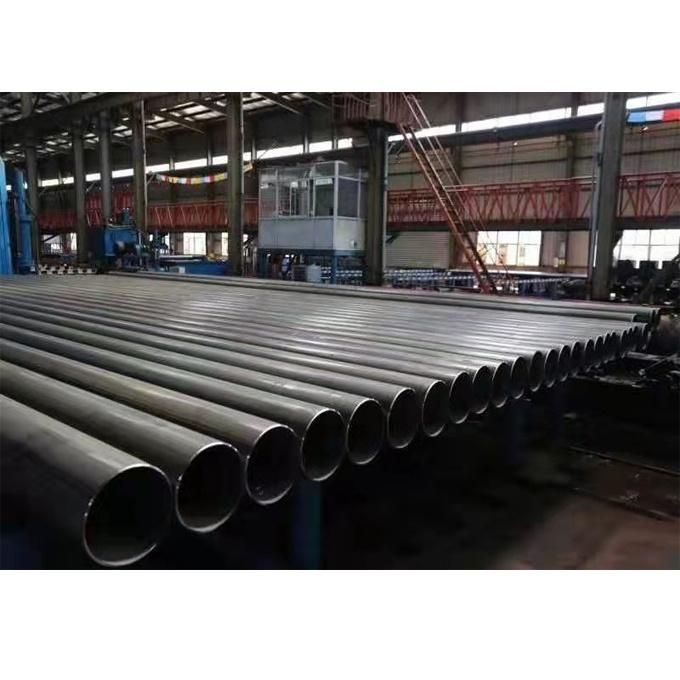

En10210 S355j2 1.0577 Alloy Structure Steel Pipe

Chemical composition %  of  steel  S355J2 (1.0577):   EN 10025-2-2004

Nominal thickness =< 40(mm) C max = 0.20 Nominal thickness =< 30(mm) CEV max = 0.45

C	Si	Mn	P	S	Cu	CEV
max   0.22	max   0.55	max   1.6	max   0.03	max   0.03	max   0.55	max   0.47

Mechanical properties of   steel   S355J2 (1.0577)

Nominal thickness (mm):	to 3	3 - 100	100 - 150	150 - 250	250 - 400
Rm - Tensile strength (MPa) Flat and long products	510-680	470-630	450-600	450-600	450-600



Nominal thickness (mm):	to 16	16 - 40	40 - 63	63 - 80	80 - 100	100 - 150	150 - 200	200 - 250
ReH - Minimum yield strength (MPa) Flat and long products	355	345	335	325	315	295	285	275



KV - Impact energy (J) longitud.,	-20° 27	0° 27	+20° 27



Nominal thickness (mm):	to 1	1 - 1.5	1.5 - 2	2 - 2.5	2.5 - 3
A - Min. elongation Lo = 80 mm (%) parallel,	14	15	16	17	18



Nominal thickness (mm):	3 - 40	40 - 63	63 - 100	100 - 150	150 - 250
A - Min. elongation Lo = 5,65 √ So (%) parallel,	22	21	20	18	17

Equivalent grades of   steel   S355J2 (1.0577)
Warning! Only for reference

EU EN	USA -	Germany DIN,WNr	Japan JIS	France AFNOR	England BS	European old EN	Italy UNI	China GB	Sweden SS	Czechia CSN
S355J2	A656	1.0577 ASt52 St52-3N	SS490YA	A52FP	224-460	Fe510D2 S355J2G4	S355J2G4	Q345D	2134-01	11531
