• Trademark：yunhe
• Specification：1x7
• Transport Package：Coil Packing, Z2 Packing, Wooden Reel Packing
• MOQ：1 Ton
• Samples：Free Samples
• Model NO.：1x7
• Origin：China
• HS Code：7312100000
• Production Capacity：12000 Per Month

Basic Info.

Model NO. 1x7 Samples Free Samples MOQ 1 Ton Transport Package Coil Packing, Z2 Packing, Wooden Reel Packing Specification 1x7 Trademark yunhe Origin China HS Code 7312100000 Production Capacity 12000 Per Month

Product Description

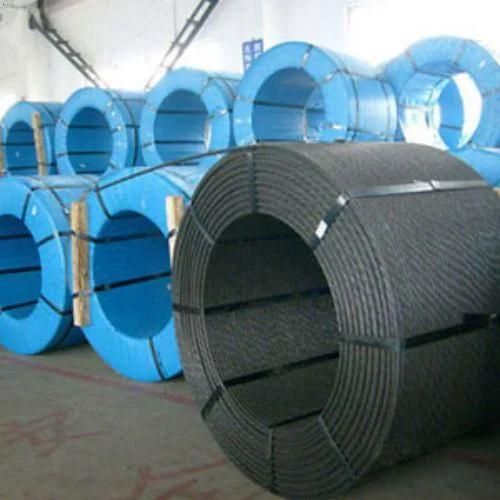

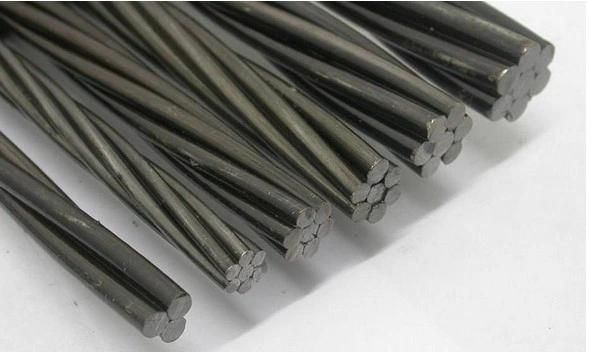

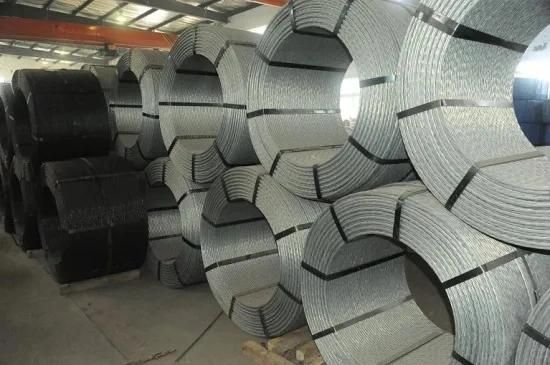

9.53mm 12.70mm 15.24mm Pc Steel Wire Gbt5224 Steel Strand Pc Strand For Construction

Application
PC STRAND is mainly used for concrete structure, such as railway and highway, overhead crane construction, multi-floor industrial building and etc, Produscts have been widely applied to the major domestic rail, road, and construction. Features :Strong force and flexible.
Standard
1860MPa, 1720MPa, 1770MPa, 1960MPa, 2000MPa, 2100MPa.








Specification

1. Item	alibaba hot sales China Factory Railway sleeper construction 7 wire 12.7mm pc steel wire strand
2. Specification	1 x 7 wire, 1x2 wire,1x3 wire,1x19 wire
	9.53mm, 12.7mm, 15.2mm, 15.7mm, 17.8mm, 21.8mm
3. Appliacation	Widely Used for any aqueduct, viaduct, bridge, tunnel and railway construction
4. Certificate	ISO9001:2000  SGS BV
5. Standard	ASTM A416, BS5896, JIS G3536, GB/T5223, EN10138
6. Output	500, 000 ton/year
7. Features	High tensile, low relaxtion
8. Twist	Left and right hand lay
9. Factory Test	Norminal diameter, breaking force, elongation at rupture, tensile strenght, stress relaxastion property, relax value at 1000h
10. Packing	Inner diameter: 760mm Outside diameter: 1400mm max Coil's width: 760mm Coil's Weight: 2500-3500kg Standard Export Package (Wrapped by steel strips, waterproof cloth sheet, wooden pallet)

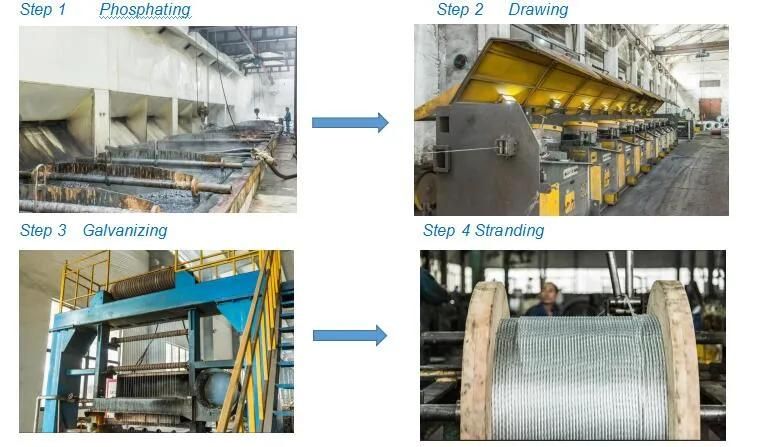

Production process
GSW producing process is phosphating, drawing, galvanizing, stranding and packing .

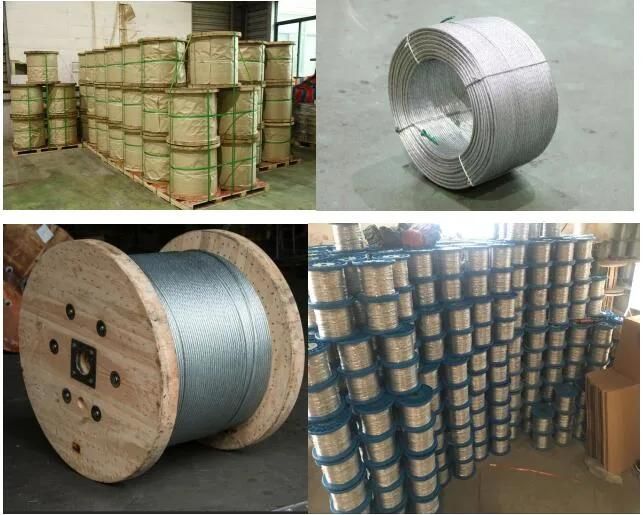

Package

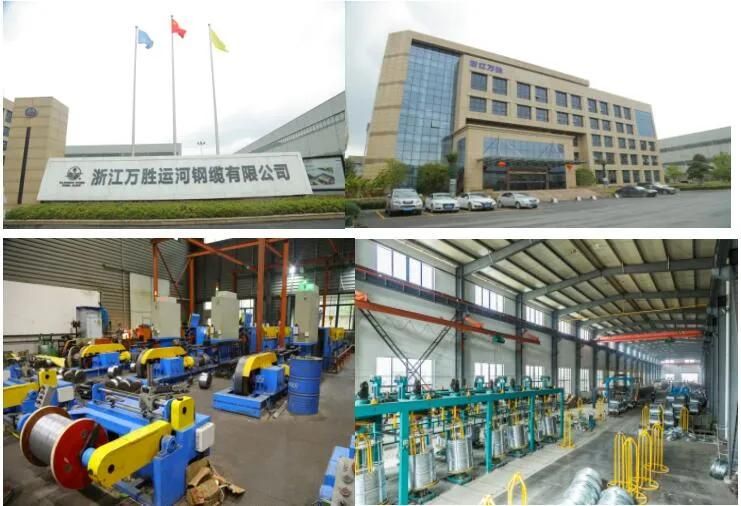

 About us

ZHEJIANG WANSHENG YUNHE STEEL CABLE CO .,LTD established  in 1958,located in Hangzhou City,it is one of the leading manufacturer for galvanized steel wire and strand, Aluminium Clad Steel wire & strand for cables & communication  industry in China around more than 60 years .Also it is national key supporting high-tech enterprise.The production capacity at present over 30,000 tons per year.We now have a registered capital of 200 million RMB and covering an area of 37 thousand square meters. Our company has attained ISO 9001 quality management system certifications and ISO 14001 quality environment system certifications.

Our company's "Yunhe'' brand products as follows: Galvanized steel core wire and strand for aluminum conductor steel reinforced(ACSR)for power transmission lines, poles or towers,Galvanized steel wire and strand, Phosphate steel wire for optical fiber cable ,Carbon spring steel wire,Aluminium Clad Steel Wire & Strand ,Galvanized steel wire for armouring cable.



FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A:30% T/T in advance ,balance before shippment.
