• Model NO.：1000,1200
• Stock：Stock
• Transport Package：Container
• Specification：1000,1200
• Trademark：WISKIND
• Origin：China
• HS Code：7308900000
• Production Capacity：50000000ton,Year

Basic Info.

Model NO. 1000/1200 Stock Stock Transport Package Container Specification 1000/1200 Trademark WISKIND Origin China HS Code 7308900000 Production Capacity 50000000ton/Year

Product Description

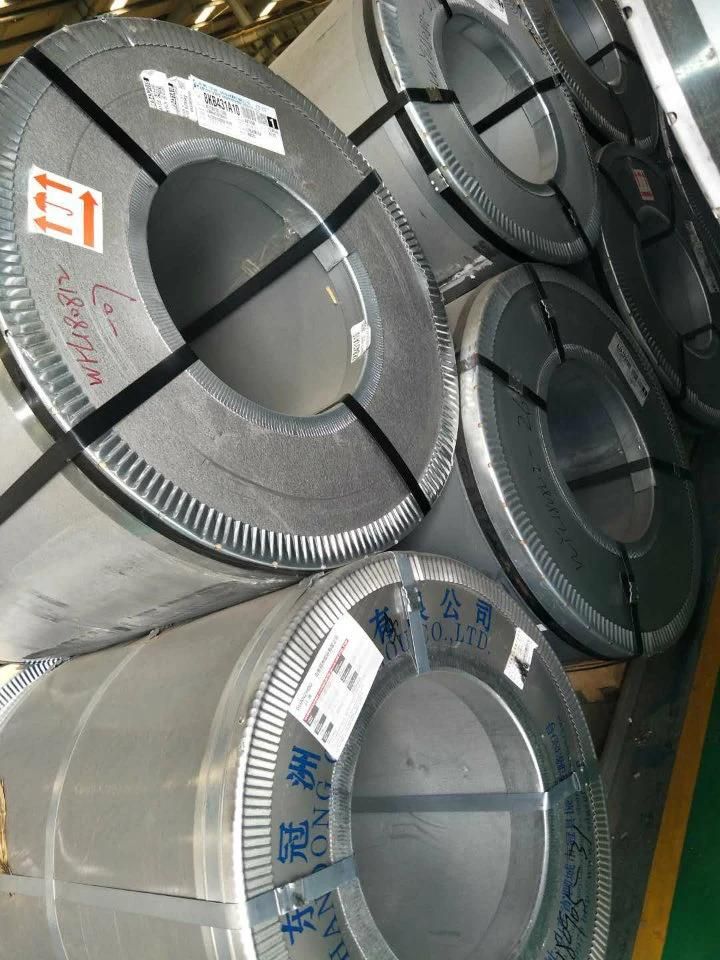

Professional Manufacture of Prepainted Galvanized Steel Coil ( GI, PPGI, PPGL Steel )





Material	CGCC, SGCH, G350, G450, G550, DX51D, DX52D, DX53D
Width	20-1500mm
Zinc Coating	Z40-275G/M2
Painting Coating	Top: 15 to 25 um (5 um + 12-20 um) back: 7 +/- 2 um
Painting	Nippon, KCC, AkzoNobel, etc
Coating Type	PE, SMP, HDP, PVDF
Resin Con-structure	Double painting and double baking process
Back Side Coating Color	Light grey, white and so on
Coil ID	508 / 610mm
Coil Weight	3-5 Tons
MOQ	5 tons or one container
Payment	T/T, LC, Kun Lun Bank, Western Union, Paypal, O/A, DP
Hardness	Soft hard(60), medium hard(HRB60-85), full hard(HRB85-95)
Surface structure	Norma, Matt, PVC film, wood grain, Flower Grained, embossed, etc
Color chart	RAL color number

Package	3 layers of packing, inside is kraft paper, water plastic film is in the middle And ouside GI steel sheet to be covered by steel strips with lock, with Inner coil sleeve.
Monthly Output	10000 tons
Remarks	Insurance is all risks and accept the third party test
Loading Port	Tianjin/Qingdao/Shanghai Port

Color Coated Steel has the following advantages:
1)Uses hot galvanized steel coil as the base material, has zinc layer protection; Use another layer of Polyester to coate on the Galvanized Steel, give a double protection for resistanting rustiness.
2)Width 800mm-1250m
3)Life span is usually 1.5 times longer than that of galvanized steel.
4)Color coated sheet is light, beautiful and has good anti-erosion performance
5)They can be used for sandwich panel, corrugated steel sheets, furniture, steel workshop, construction, home appliance, and other industries.
6)More common specifications: 0.25mm, 0.3mm, 0.32mm, 0.35mm, 0.37mm, 0.4mm, 0.42mm, 0.45mm, 0.47mm, 0.5mm.
9)We could do the Color as per your request, you could supply us RAL Number. And special painting, for example HDP, SMP and PVDF, you should tell us before placing order.
Product PPGI/ Prepainted steel coil/ Color coated steel coil
Brand WISKIND
Base material Hot dipped galvanized steel
Thickness 0.14-1.5mm
Width 914-1250mm(according to your need)
Coil Weight 3-6tons
Color Red,ocean blue,white gray or any color according to the RAL No. or customers samples'
Zinc-coating 60g/m2-180g/m2
Technique Cold rolled-hot dipped galvanizing-color coated
Painting Top painting:15~25μm                              Back painting: 6~10μm
Tolerance Thickness: +/-0.02mm                               Width:+/-2mm

The special order can be negotiated

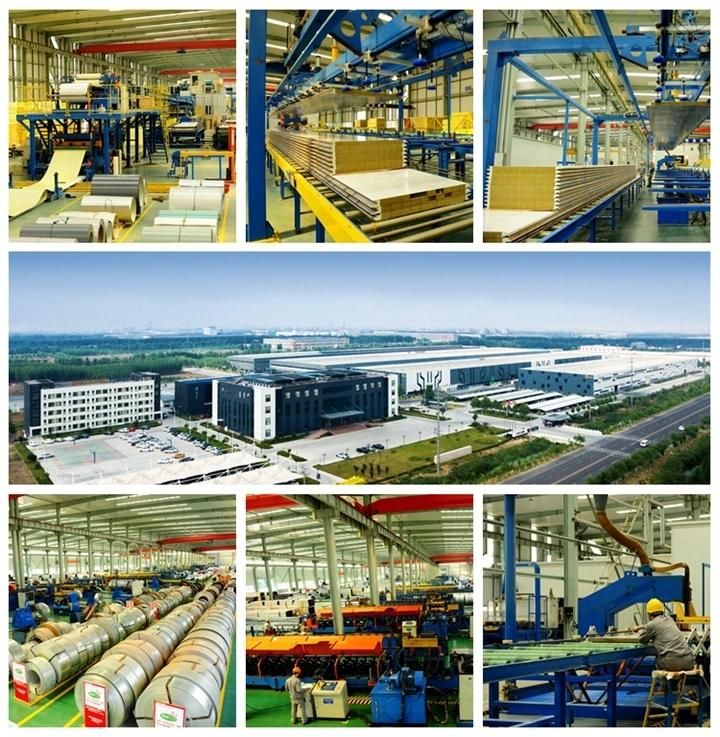

Our company
