• Model NO.：L6,Skt4,1.2714
• Origin：China
• Production Capacity：10000ton Per Month

Basic Info.

Model NO. L6/Skt4/1.2714 Origin China Production Capacity 10000ton Per Month

Product Description

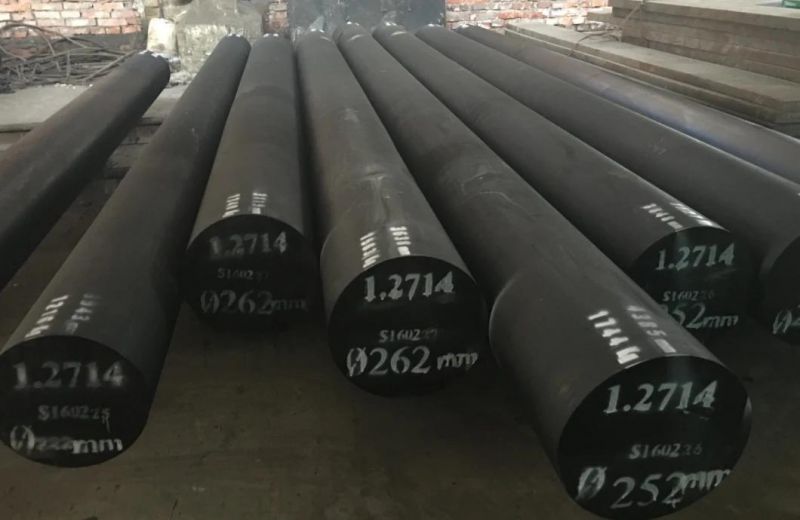

L6/Skt4/1.2714 Machined/Grinded Steel Round Bar/Forged Block/Tool Steel for Hot Forging Mold/Hot Work Tool Steel

Dimensions:
Round: dia.10-700 mm
Flat: 6-120 x 40-1200 mm
Block: 80-600 x 100-1600 mm

Delivery Condition

EAF+LF+VD+(ESR), Hot rolled or Forged, Annealed or Quenching+Tempering (360-410HB), Black surface or Machined surface, UT SEP1921 Class3 D/d

Equivalence

AISI / SAE	DIN / W.Nr	JIS	GB
L6	1.2713 / 1.2714	SKT4	5CrNiMoV



Chemical Composition(%)

Steel Grade	C	Si	Mn	P	S	Cr	Mo	V	Ni
1.2714	0.50-0.60	0.10-0.40	0.60-0.90	≤ 0.030	≤ 0.030	0.80-1.20	0.35-0.55	0.05-0.12	1.50-1.80
1.2713	0.50-0.60	0.10-0.40	0.65-0.95	≤ 0.030	≤ 0.030	0.60-0.80	0.25-0.35	0.07-0.12	1.50-1.80
L6	0.65-0.75	0.10-0.50	0.25-0.80	≤ 0.030	≤ 0.030	0.60-1.20	≤ 0.50	--	1.25-2.00
5CrNiMoV	0.50-0.60	≤ 0.40	0.50-0.80	≤ 0.030	≤ 0.030	1.00-1.20	0.45-0.55	0.07-0.12	1.40-1.80



Characteristics

1.2714/SKT4/L6 is highly recommendable for Close Die Forgings due to its characteristics of high wear-resistance, extra toughness , high hardness which is achieved with Cr-Ni-Mo-V high graded alloys.
The equivalent grade DB6 / L6 / SKT4 normally used as a pre hardened condition. The standard hardness is 360 to 430 BHN. DIN 1.2714 is the upgraded version of DIN 2713 for better performance of dies.

Applications
DIN 1.2714 is used for making Dies for Drop Forging Hammers & Mechanical Presses, Die Molds, Shoe Blocks, Die Holder, Cassettes, Piston Rods, Cranks, Boaster, Shearing Blades, Tools, plastic molds, Shafts Etc. Quenching + Tempering condition is suitable for the application as forging dies, slides, punch heads, extruding stamps press tools, hot shear knives, extrusion press tools, die holders, support tools, tool holders, pressure plates.

Delivery Time: 7-10 working days for steel in stock. 20-60 working days for direct production based on the quantity.

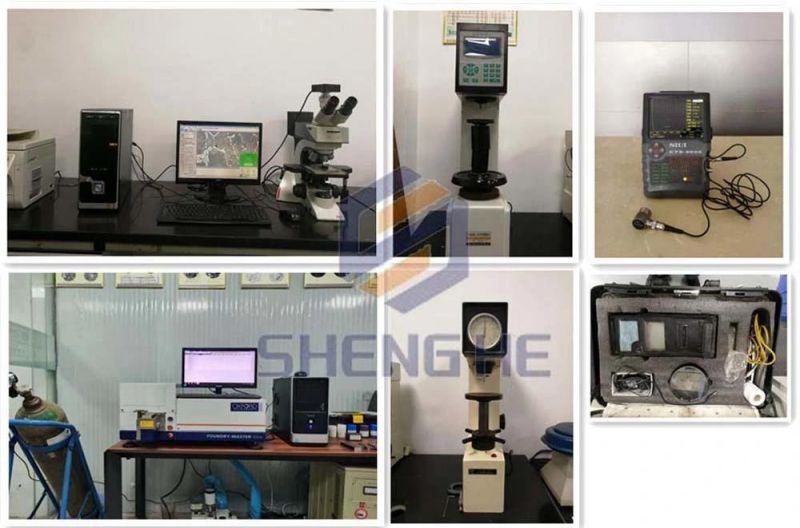

Our Independent Laboratory

In order to guarantee a uniform good quality, ShengHe perform necessary testing and inspection according to international standards and specifications.

ShengHe has its own lab with full equipments and a team of professional Q&A and Q&C engineers to do all the tests and analysis of the materials: chemical analysis, mechanical test, UT test, microstructure analysis, hardness checking, etc. The lab also provide third party inspection service.

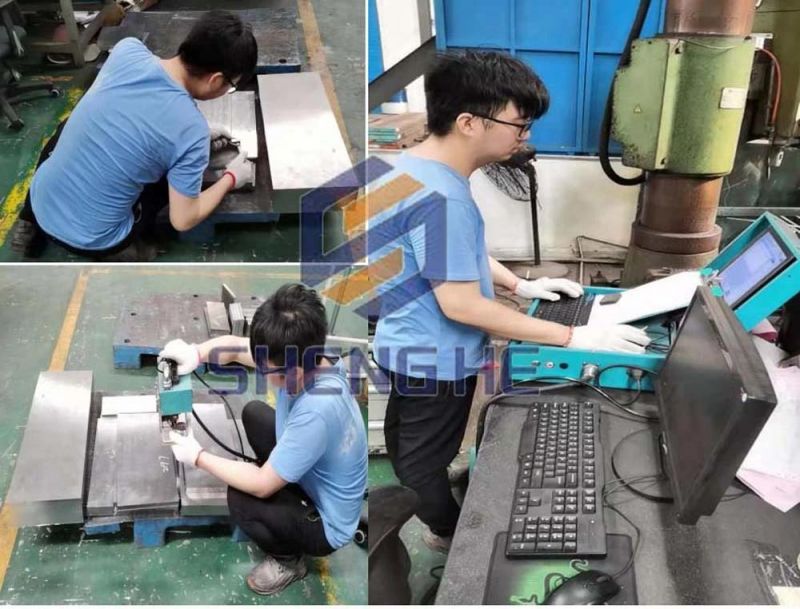

•  Ultrasonic testing

•  Spectrographical analysis

•  Hardness testing

• Microstructure analysis

• Tensile testing

•  Impact testing

We do pre-shipment inspection on all product before shipment

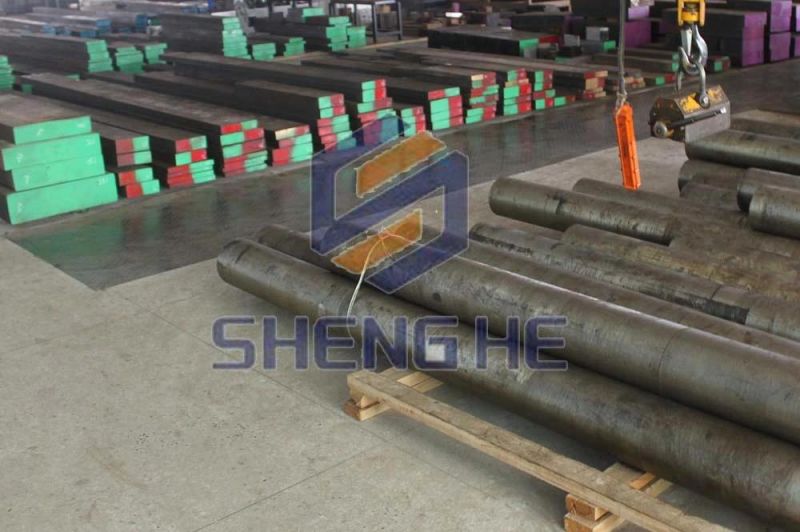

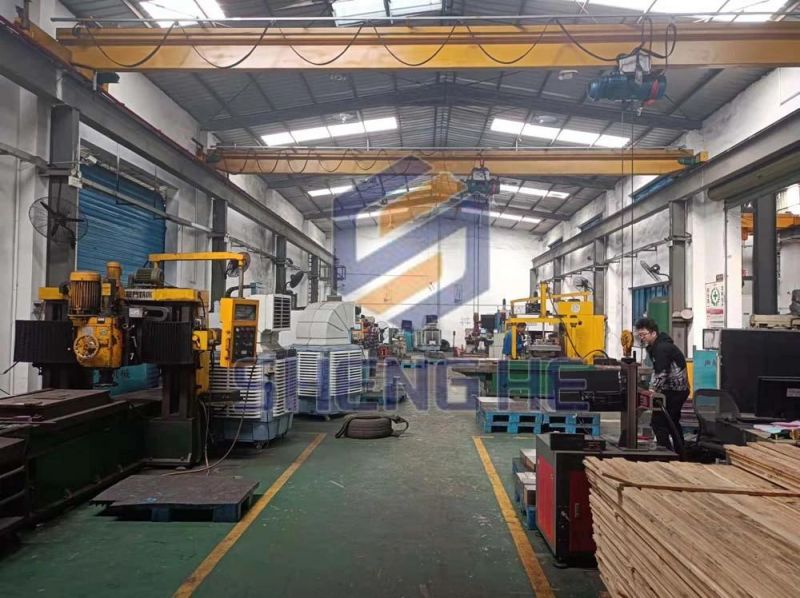

Our Factory

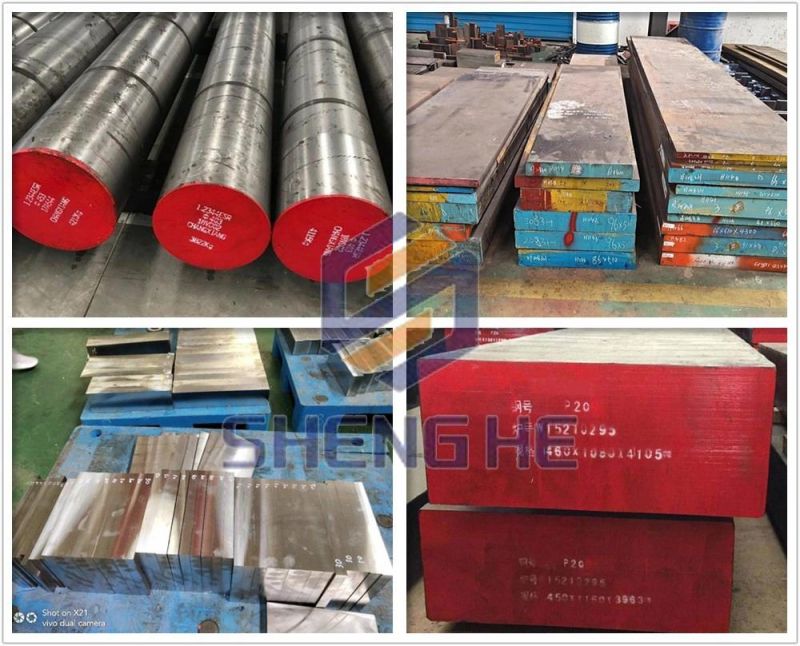

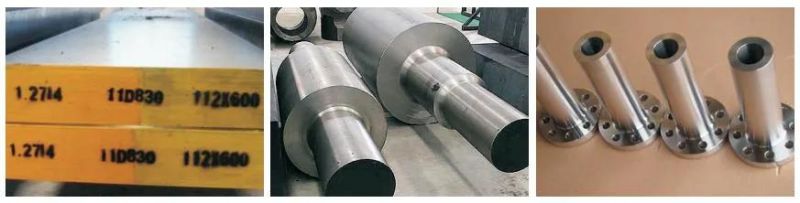

Our Product(steel round bars, flat bars, forged blocks,precision finished mold plate)

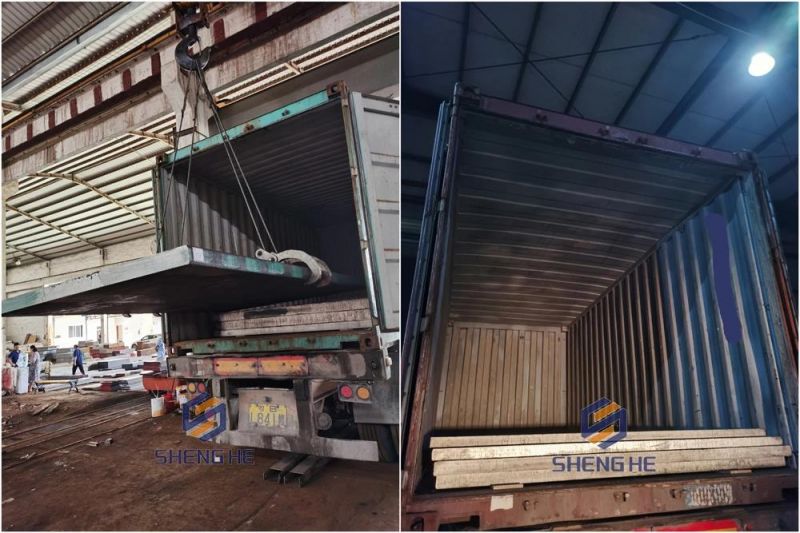

Our loading pictures for flat steel

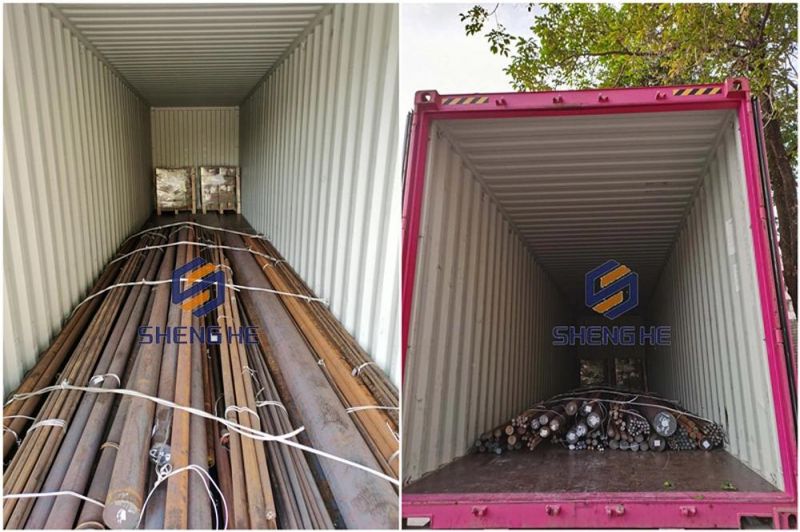

Our loading pictures for round steel and mold accessories

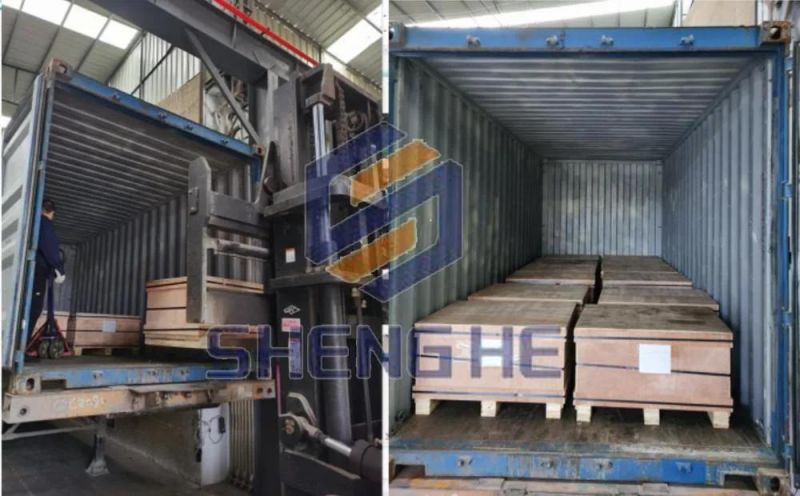

Our loading pictures and packing for precision ground mold plate

FAQ:
Q1: Are you a trading company or manufacturer?
We belongs to Wuhan Zhongye Group,we also have our own factory for steel raw material sales and machining.Apart from our own mill, we can also provide material from other mills based on customer's different requirement.

Q2:What is the major steel grade your company offer?
S50C/S55C/S45C/1.2311/718/1.2738/1.2316/1.2083/1.2312/1.2714/H13/H11/D2/D3/O1/O2/4140/4340/5140/8620/52100/M2/M35/M42, etc, in round bar, flat bar and plate, and also semi-finished or precision ground flat bars.

Q3:What service does ShengHe Metal Provide?
Apart from sales of raw materail, we do machining processing like cutting, milling, grinding, turning, peeling, drilling, CNC machining.

Q4: What do you do to control product quality?
Before loadnig into container, all product will go through pre-shipment inspection by our professional QC group. UT test shalled be applied to steel material, according to Sep 1921 C/c,D/d,or E/e level based on different type of steel.

Q5:What is your MOQ?
Our MOQ each order is around 25 Tons(one container), customer can mix different types of steel to reach this quantity.

Q6: Can we visit your company and factory?
Yes, warmly welcome! We can book the hotel for you before you come to China and arrange our driver to our airport to pick you up when you come.
