Hot DIP Galvanized EMT Elbow

Weifang East Pipe Industry Technical Co., Ltd.
  • Usage：Pipeline Transport, Machinery Industry, Mining, Construction & Decoration, Wire Pulling
  • Surface Treatment：Hot DIP Galvanized
  • Technique：ERW
  • Material：Carbon Steel
  • Type：Welded
  • Section Shape：Round

Base Info

  • Specification：1,2"-6"
  • Transport Package：Carton Box
  • Model NO.：15°22.5°30°45°60°90°
  • Trademark：east conduit
  • Origin：China
  • Production Capacity：5000tons,Year

Description



hot dip galvanized emt elbow
UL 797/ ANSI C80.3;UL File No.:E340594
from 1/2" to 4":90 deg/ 45 deg/ 30 deg/ 22.5deg/15deg;
for EMT conduit connection;
Hot dip galvanized(HDG);
carbon steel coil;
carton;
20 to 30 days after we receive your advance payment or copy of L/C;
L/C at sight or T/T;



Dimension Chart

Pipe SizeMini.UL Radius(mm)Weight Per 100pcs(KG)Weight Per 100pcs(LBS)Standard Carton QtyWeight Per Carton(KG)
1/2"X90°10210.824505.42
3/4"X90°11419.743509.84
1"X90°14635.177207.02
1-1/4"X90°18464.31422012.86
1-1/2"X90°21079.6176107.96
2"X90°241123.42721012.34
2-1/2"X90°267211.846750105.92
3"X90°330310.868535108.79
3-1/2"X90°381471.4103935164.99
4"X90°406566.1124825141.52



REMARK:Elbows special radius available upon request

CONTACT INFORMATION:

TEL:+86-536-8187103

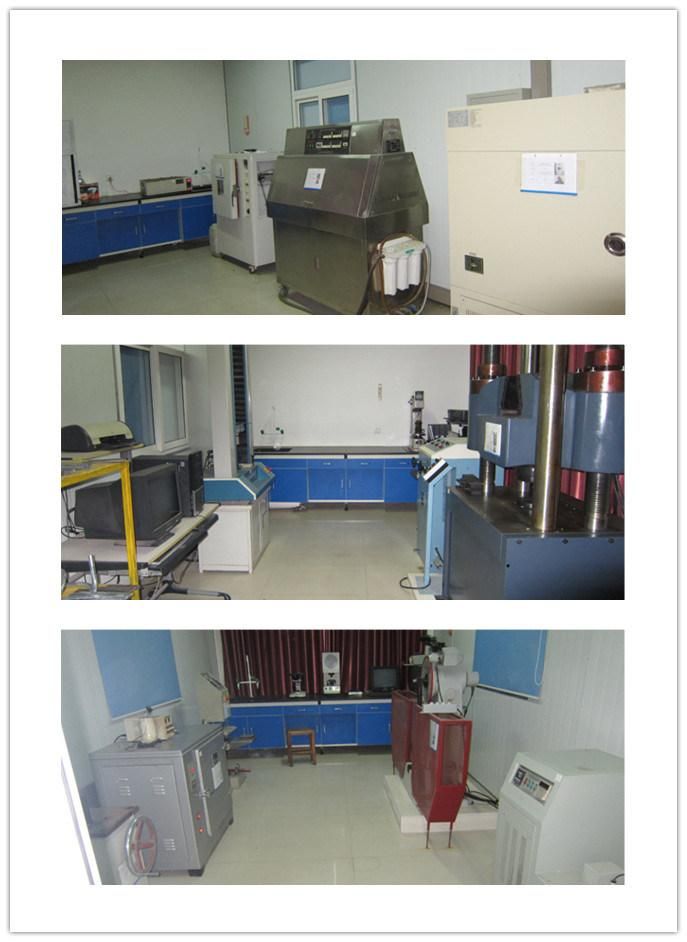

FACTORY & LABORATORY
Hot DIP Galvanized EMT ElbowHot DIP Galvanized EMT Elbow

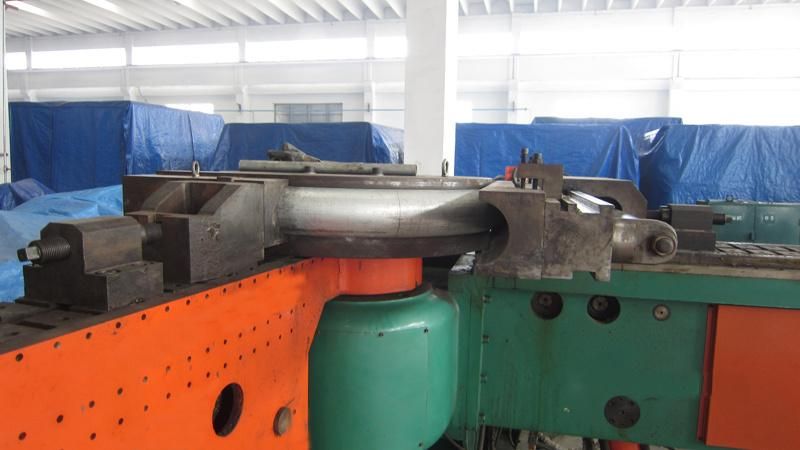

BENDING MACHINE
Hot DIP Galvanized EMT Elbow

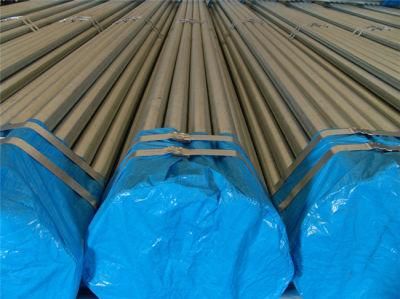

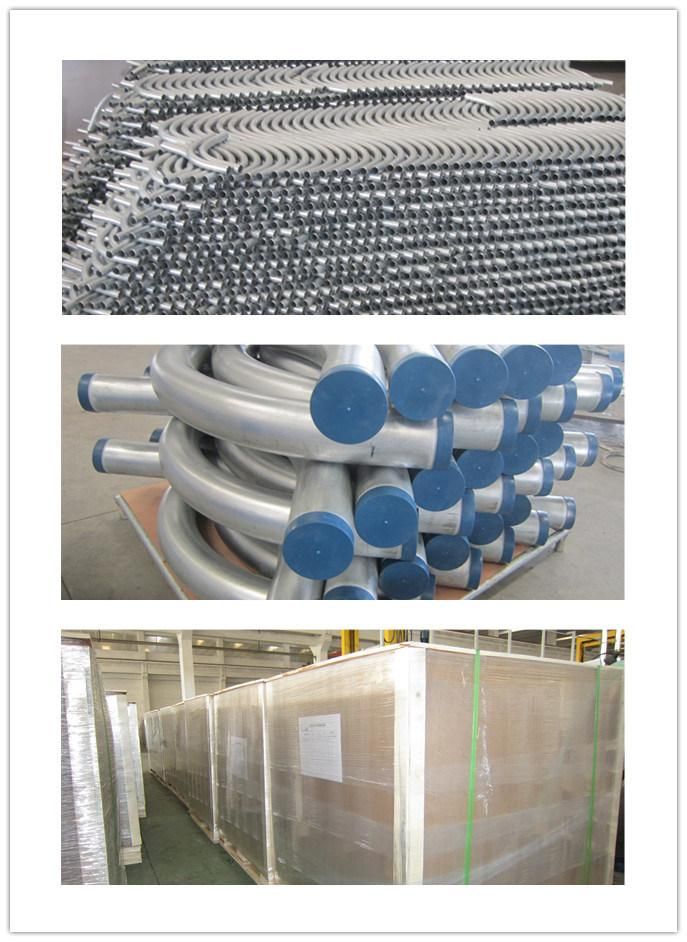

PRODUCTS AND PACKING
