• Model NO.：Roofing Sheet Color Coated Galvanized Coil
• Application：Roofing and Wall ,Corrugated Sheet
• Edge：Slit edge
• Stock：Not Stock
• Name：Roofing Sheet Color Coated Galvanized Coil
• Thickness：0.12mm-2mm
• Width：600mm-1250mm
• Length：as You Request
• Top Paint Type：PVDF,HDP,SMP,PE,PU
• Coating Process Front：Double Coated&Double Drying, Single Coated&Double
• Ral Color：All
• MOQ：3tons
• Surface：Embossed, Mill Finish, Coated
• Standard Dia：1200mm
• Weight：2.5 T,Coil,3.0 T,Coil
• Protective Film：as Per Customer′s Request
• Trade Term：EXW, Fob, CFR, CIF...
• Certificate：ISO9001,Bam,FM,GS,Ukas
• Package：Standard Export Seaworthy Packing
• Transport Package：Standard Export Packing
• Specification：0.08mm-1.2mm*500mm-2500mm
• Trademark：Hengsteel
• Origin：China
• HS Code：76109000
• Production Capacity：30000 Ton , Month

Overview Color Coated Galvanized CoilType of
substrateHot dip galvanized, Galvalume, Electro galvanized,Zinc alloy, Cold rolled
steel, AluminiumThickness0.12-2mmToleranceThickness: ± 0.01mmWidth600-1250mm  ( Normal:1250, 1200,1000,914 mm)Top Paint10-25 micron(Normal:10-12mic)Back paint5-12 micron(Normal:5-7mic)CoatingZn coatingAZ coating30-400gsm30-400gsmCoil weight3-9 tons or as your requirement.Coil ID508/610 mmGradeGalvanizedGalvalumeSGCC/DX51D+Z, DX52D+Z,
SGCD/DX53D+Z,SGCE/DX54D+Z,
SGCH.......DX51D+AZ, DX52D+AZ, DX53D+AZ,
DX54D+AZ,SGLCC,SGLCD,SGLC4

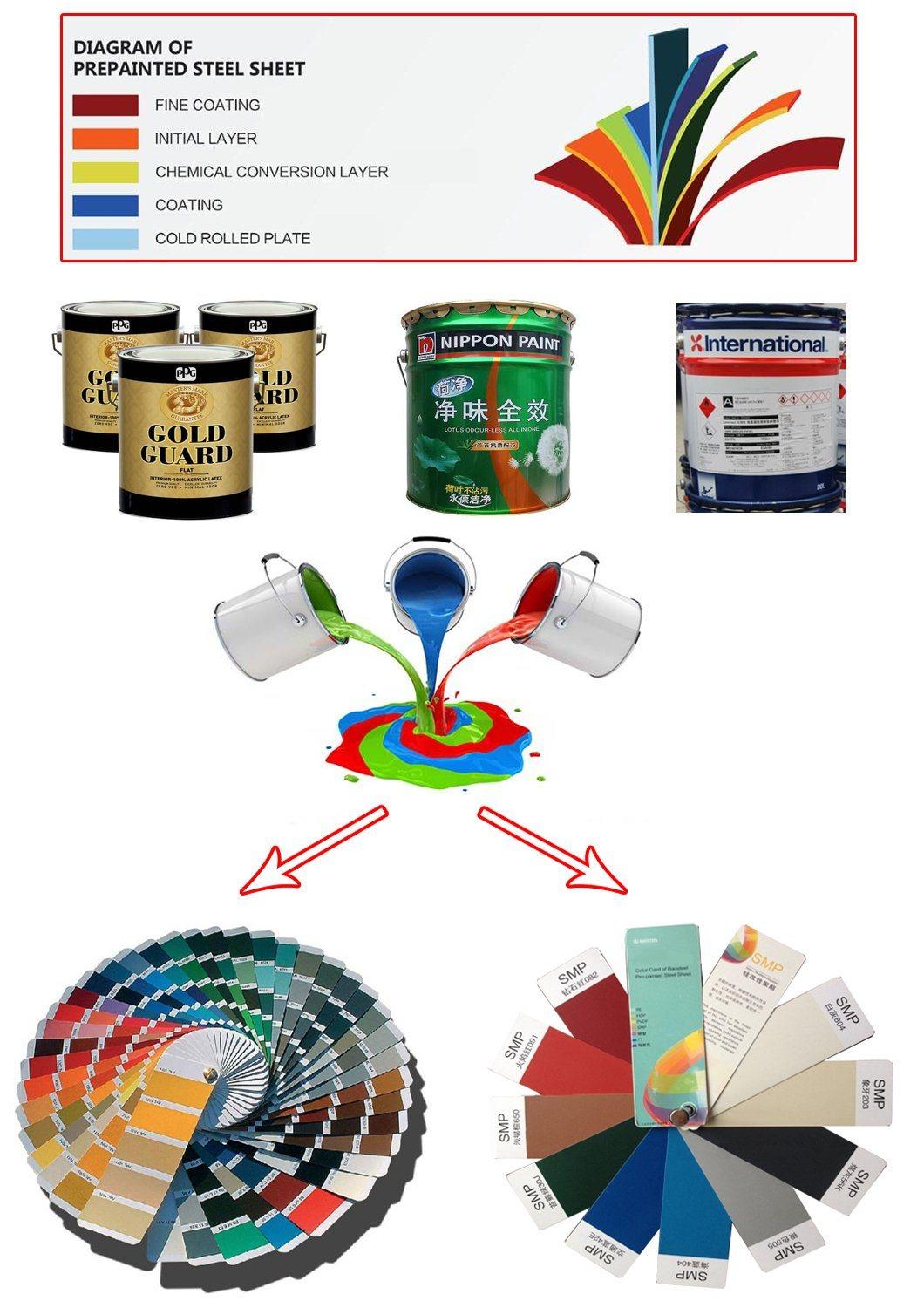

40,SGLHC........Coating typeTop paint: PE, SMP, HDP, PVDF, PUFunctions: Decorative, Machinability, Weather resistance, Scrath
resistance, Stain resistance, Chemical resistance, Adhesion resistancePrimer paint: Polyurethane, Epoxy, PEFunctions:Machinability, Corrosive resistance, Adhesion, Scrath
resistanceBack paint: Epoxy, Modified polyesterFunctions: Scrath resistance, Bending adhesion, Corrosive resistanceType of
coating
processFront: Doulbe coated & double dryingBack: Double coated & double drying, single coated & double dryingDouble coated & double drying is used for corrugated sheetDouble coated & single drying is for sandwich panelPackingStandard export package .Plastic film in the first layer,second layer is Kraft
 paper. Third layer is galvanized sheet.ApplicationBuilding industry ,structural use, roofing, commercial use ,household
appliance, industry facilities, office buildingsHOT DIP GALVANIZED PLATEQ/BQB 420DC51D+ZOrdinary useTDC51DDC52D+ZSPCDTDC52DDC53D+ZSPCETDC53DS280GD+ZStructure useTS280GDS350GD+ZStructure useTS350GDS550GD+ZHigh strength structure useTS550GDELECTRO GALVANIZED PLATEQ/BQB 430SECCOrdinary useTSECCSECDSPCDTSECDSECESPCETSECEBLCE+ZOrdinary useTBLCEBLDE+ZSPCDTBLDEBUSDE+ZSPCETBUSDEHOT DIP GALVALUME PLATEQ/BQB 425DC51D+AZCold forming useTDC51D+AZDC52D+AZCold forming useTDC52D+AZS250GD+AZStructure useTS250GD+AZS300GD+AZStructure useTS300GD+AZS350GD+AZStructure useTS350GD+AZS550GD+AZHigh strength structure useTS550GD+AZ

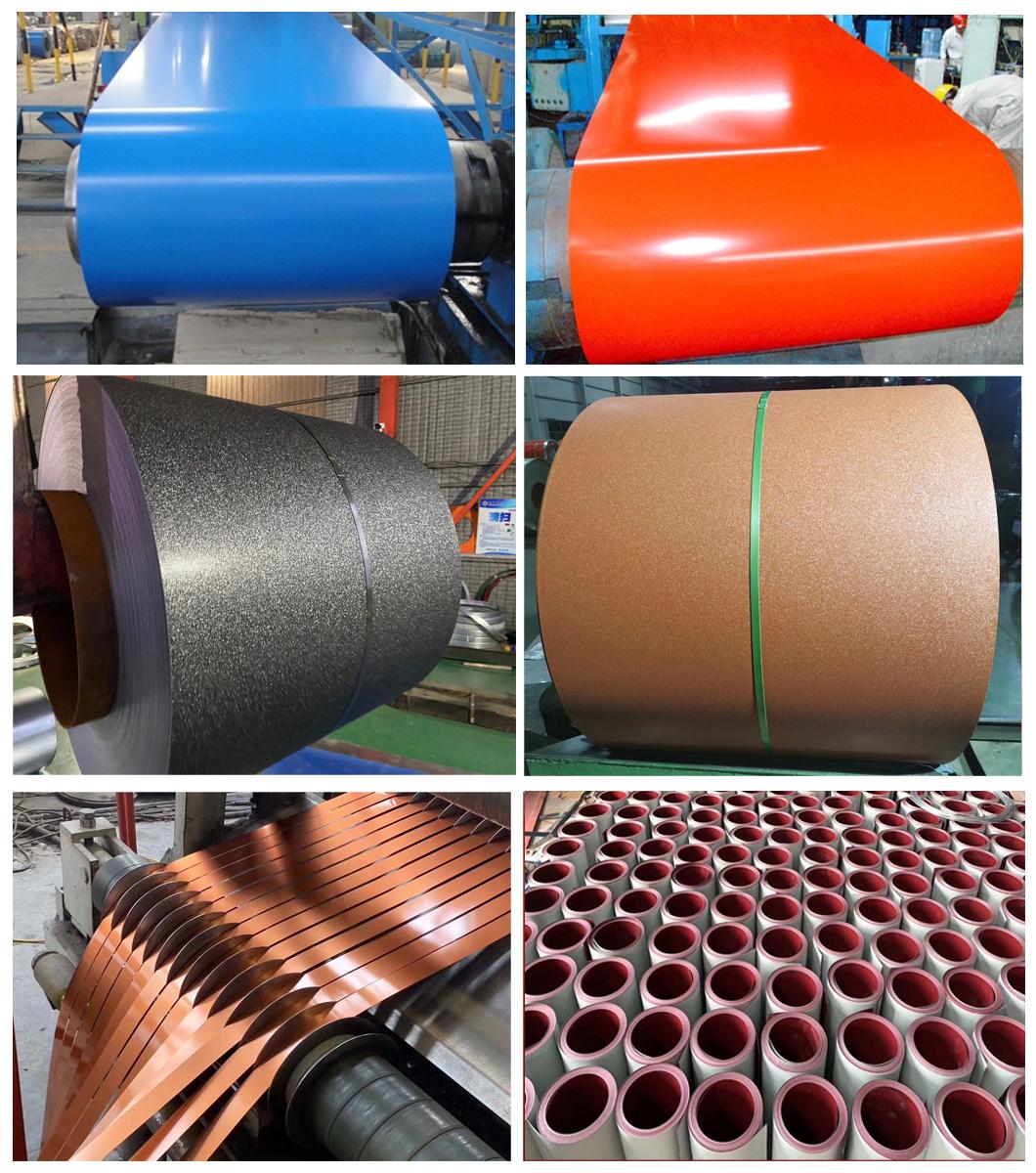

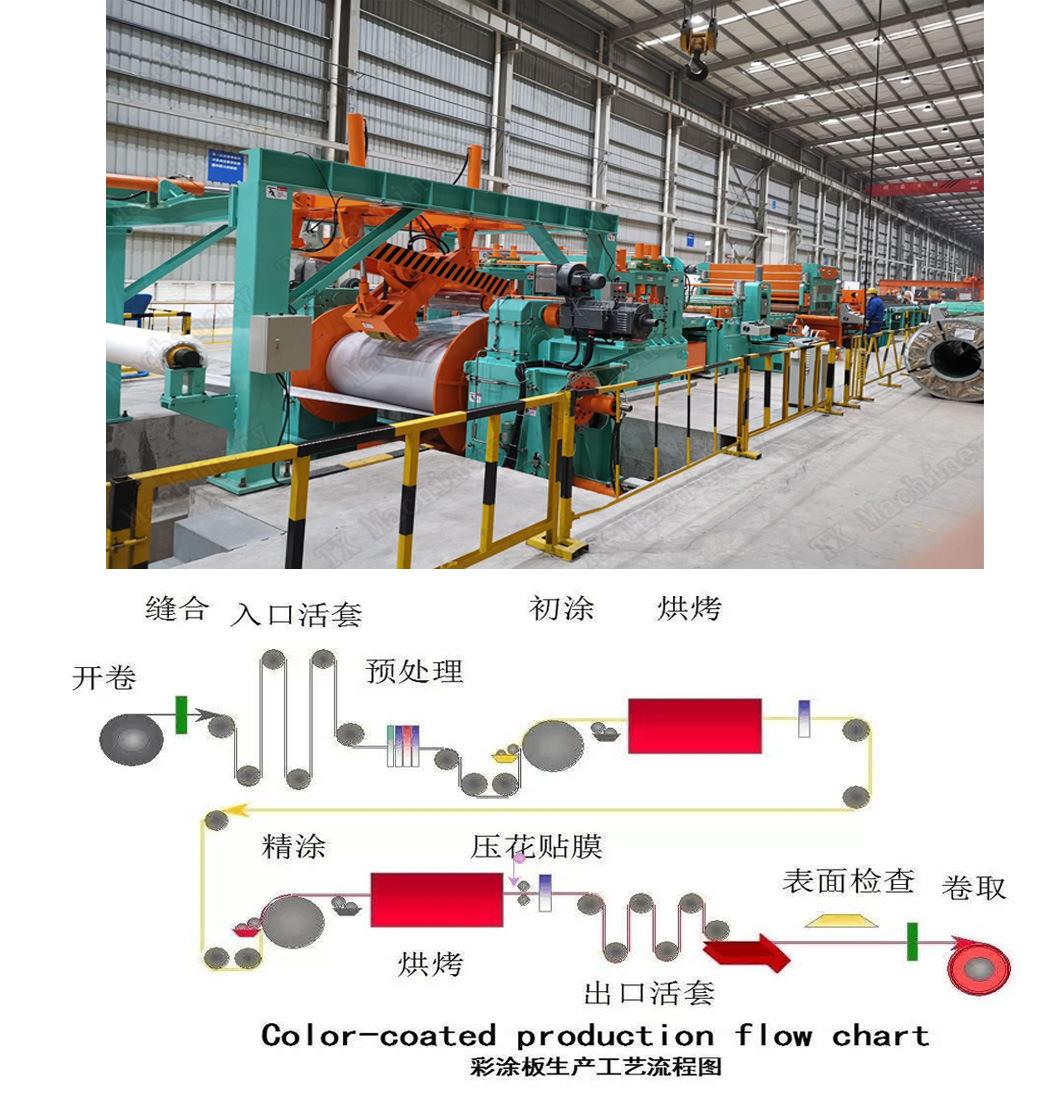

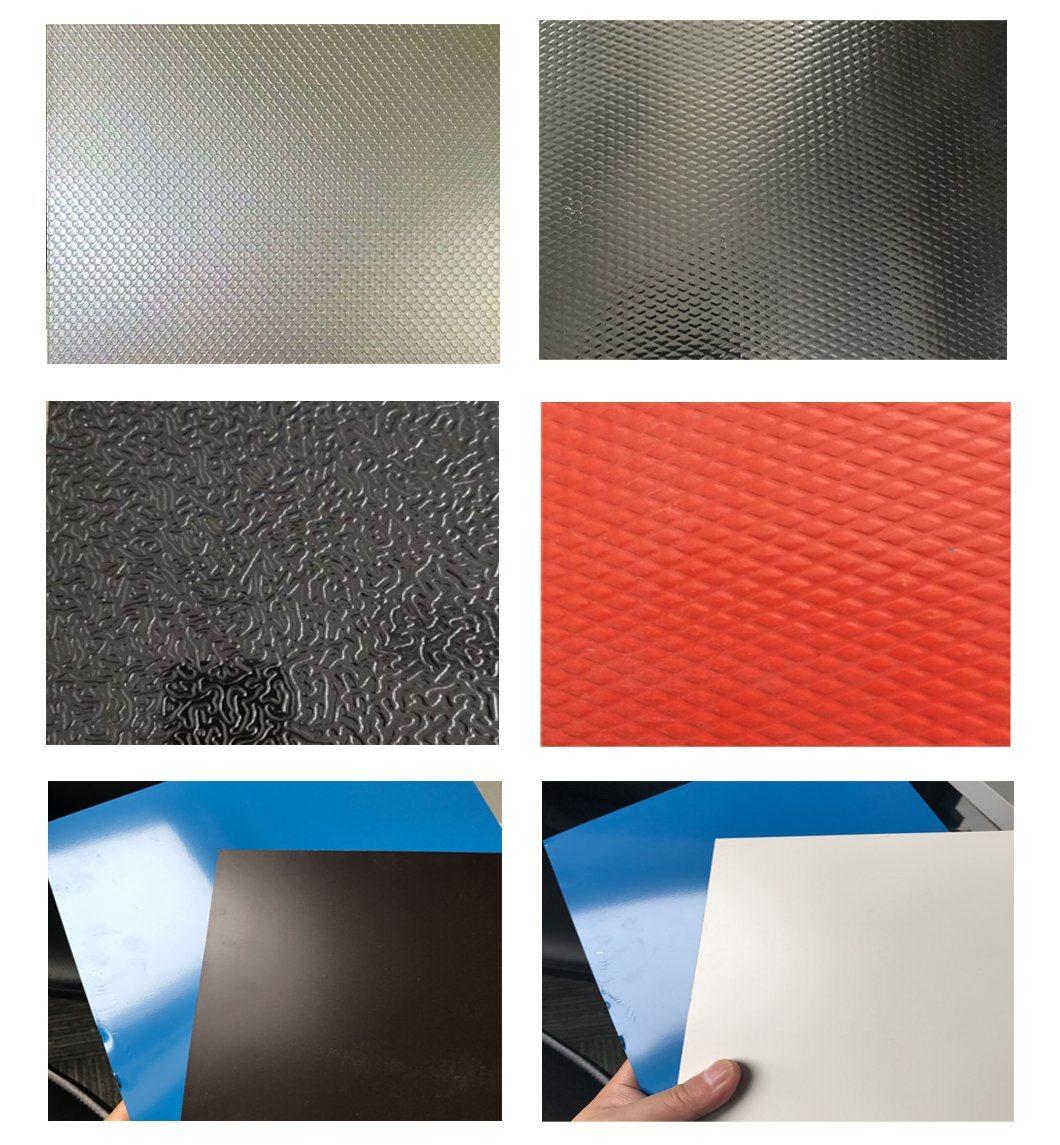

Produce ShowProduct ProcessSurface

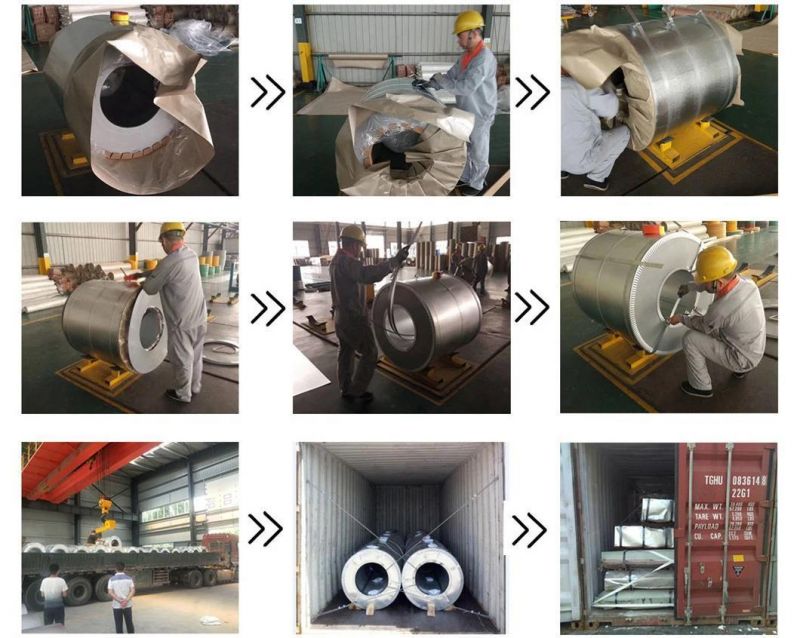

Packaging & Shipping

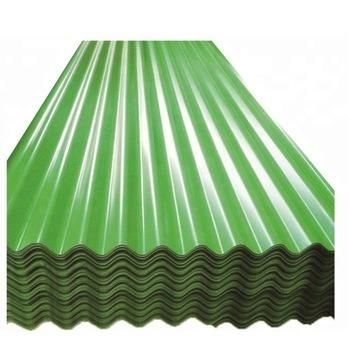

Application

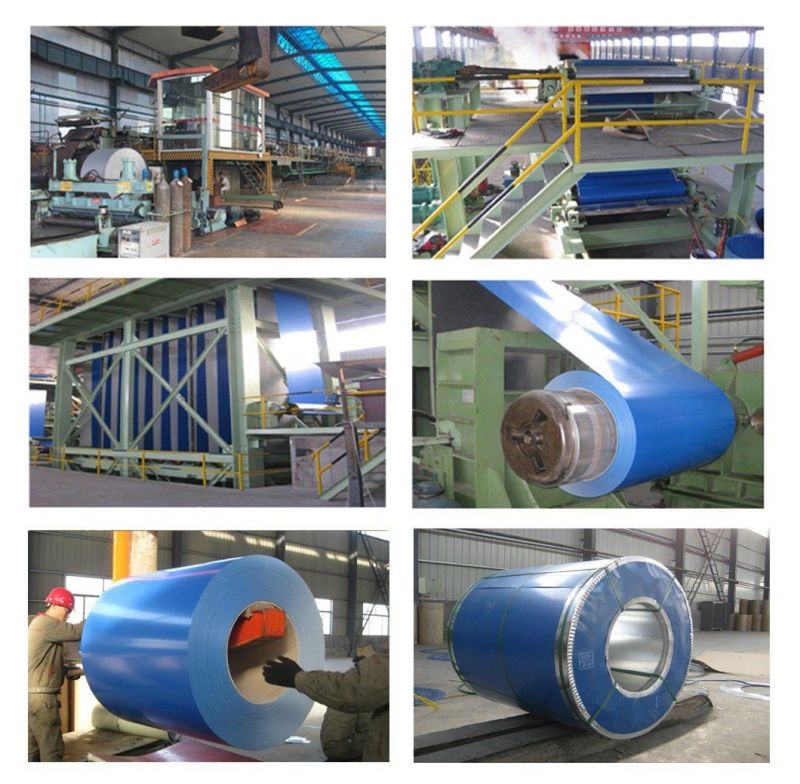

Factory



Certificate&Customer Praise

Us and customers
