• Trade Term：EXW, Fob, CFR, CIF...
• Protective Film：as Per Customer′s Request
• Weight：2.5 T,Coil,3.0 T,Coil
• Standard Dia：1200mm
• Surface：Embossed, Mill Finish, Coated
• MOQ：3tons
• Coating Process Front：Double Coated&Double Drying, Single Coated&Double
• Top Paint Type：PVDF,HDP,SMP,PE,PU
• Zinc Coated：30-400GSM
• Length：as You Request
• Width：600-1250mm
• Thickness：0.12-2mm
• Name：0.12mm Color Coated PPGI Galvanized Steel Coil
• Stock：Not Stock
• Edge：Slit edge
• Application：Roofing and Wall ,Corrugated Sheet
• Model NO.：0.12mm Color Coated PPGI Galvanized Steel Coil
• Certificate：ISO9001,Bam,FM,GS,Ukas
• Package：Standard Export Seaworthy Packing
• Transport Package：Standard Export Packing
• Specification：0.08mm-1.2mm*500mm-2500mm
• Trademark：Hengsteel
• Origin：China
• HS Code：76109000
• Production Capacity：30000 Ton , Month

Overview Prepainted Steel CoilsType of
substrateHot dip galvanized, Galvalume, Electro galvanized,Zinc alloy, Cold rolled
steel, AluminiumThickness0.12-2mmToleranceThickness: ± 0.01mmWidth600-1250mm  ( Normal:1250, 1200,1000,914 mm)Top Paint10-25 micron(Normal:10-12mic)Back paint5-12 micron(Normal:5-7mic)CoatingZn coatingAZ coating30-400gsm30-400gsmCoil weight3-9 tons or as your requirement.Coil ID508/610 mmGradeGalvanizedGalvalumeSGCC/DX51D+Z, DX52D+Z,
SGCD/DX53D+Z,SGCE/DX54D+Z,
SGCH.......DX51D+AZ, DX52D+AZ, DX53D+AZ,
DX54D+AZ,SGLCC,SGLCD,SGLC4
40,SGLHC........Coating typeTop paint: PE, SMP, HDP, PVDF, PUFunctions: Decorative, Machinability, Weather resistance, Scrath
resistance, Stain resistance, Chemical resistance, Adhesion resistancePrimer paint: Polyurethane, Epoxy, PEFunctions:Machinability, Corrosive resistance, Adhesion, Scrath
resistanceBack paint: Epoxy, Modified polyesterFunctions: Scrath resistance, Bending adhesion, Corrosive resistanceType of
coating
processFront: Doulbe coated & double dryingBack: Double coated & double drying, single coated & double dryingDouble coated & double drying is used for corrugated sheetDouble coated & single drying is for sandwich panelPackingStandard export package .Plastic film in the first layer,second layer is Kraft
 paper. Third layer is galvanized sheet.ApplicationBuilding industry ,structural use, roofing, commercial use ,household
appliance, industry facilities, office buildingsHOT DIP GALVANIZED PLATEQ/BQB 420DC51D+ZOrdinary useTDC51DDC52D+ZSPCDTDC52DDC53D+ZSPCETDC53DS280GD+ZStructure useTS280GDS350GD+ZStructure useTS350GDS550GD+ZHigh strength structure useTS550GDELECTRO GALVANIZED PLATEQ/BQB 430SECCOrdinary useTSECCSECDSPCDTSECDSECESPCETSECEBLCE+ZOrdinary useTBLCEBLDE+ZSPCDTBLDEBUSDE+ZSPCETBUSDEHOT DIP GALVALUME PLATEQ/BQB 425DC51D+AZCold forming useTDC51D+AZDC52D+AZCold forming useTDC52D+AZS250GD+AZStructure useTS250GD+AZS300GD+AZStructure useTS300GD+AZS350GD+AZStructure useTS350GD+AZS550GD+AZHigh strength structure useTS550GD+AZ

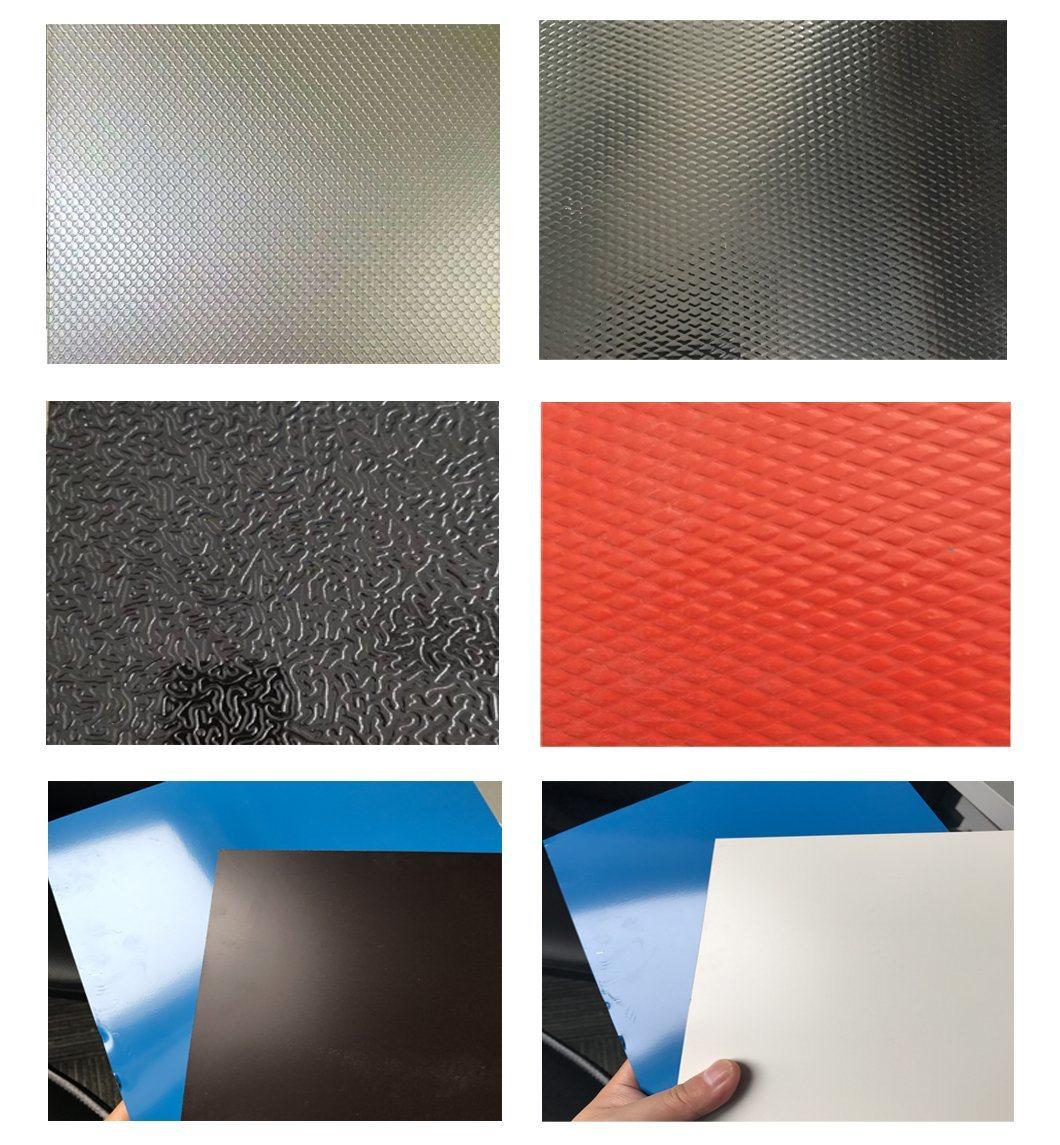

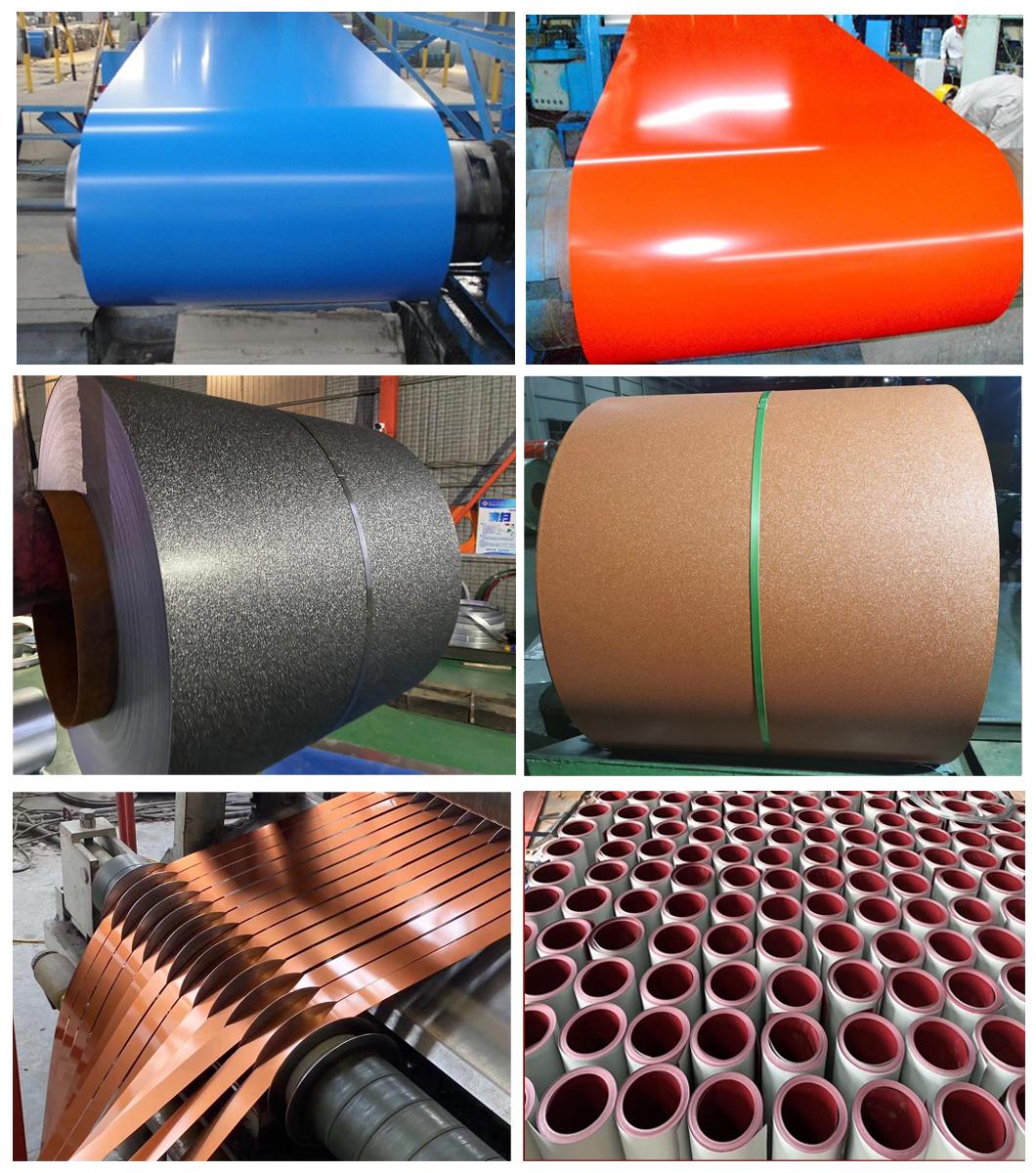

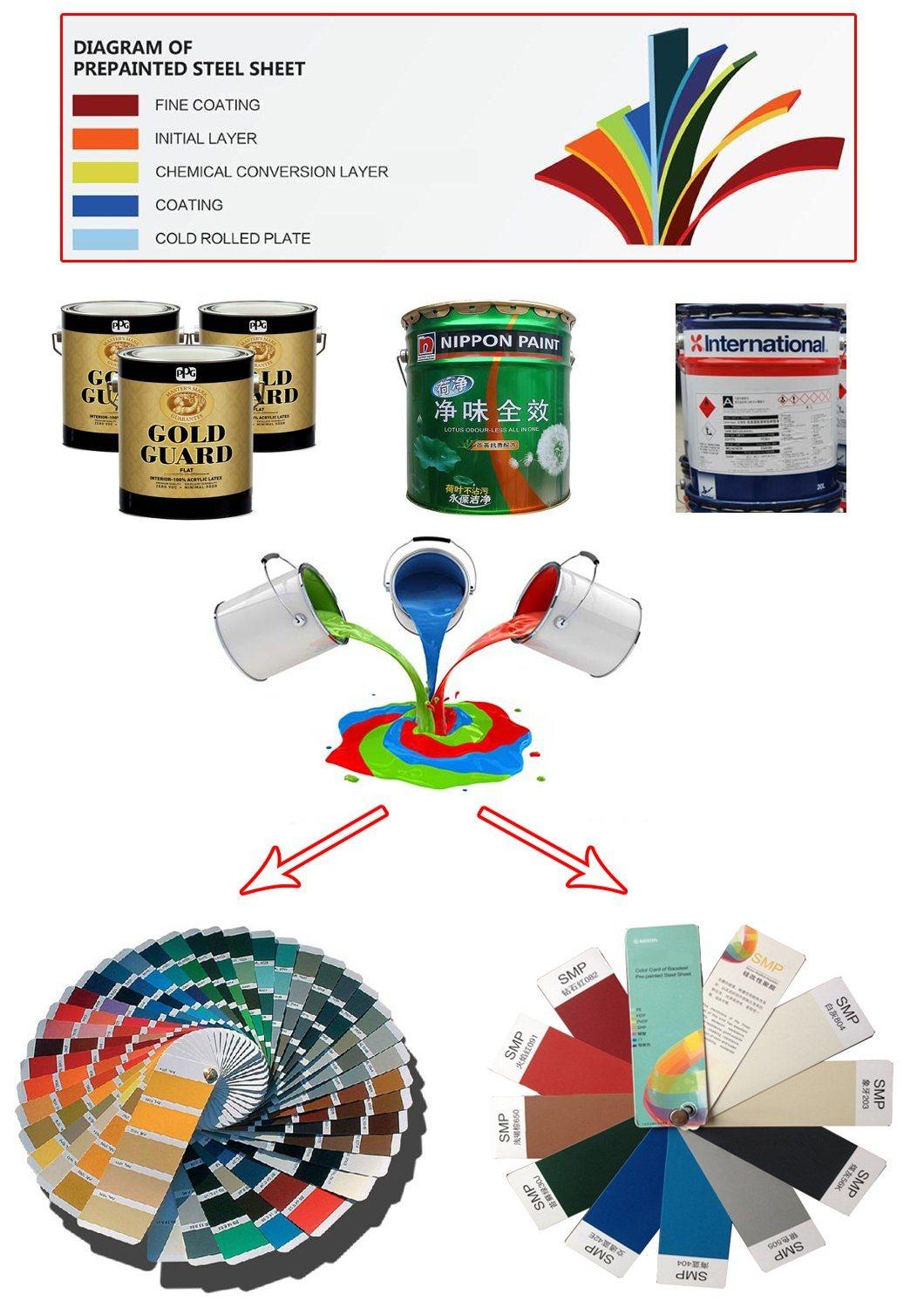

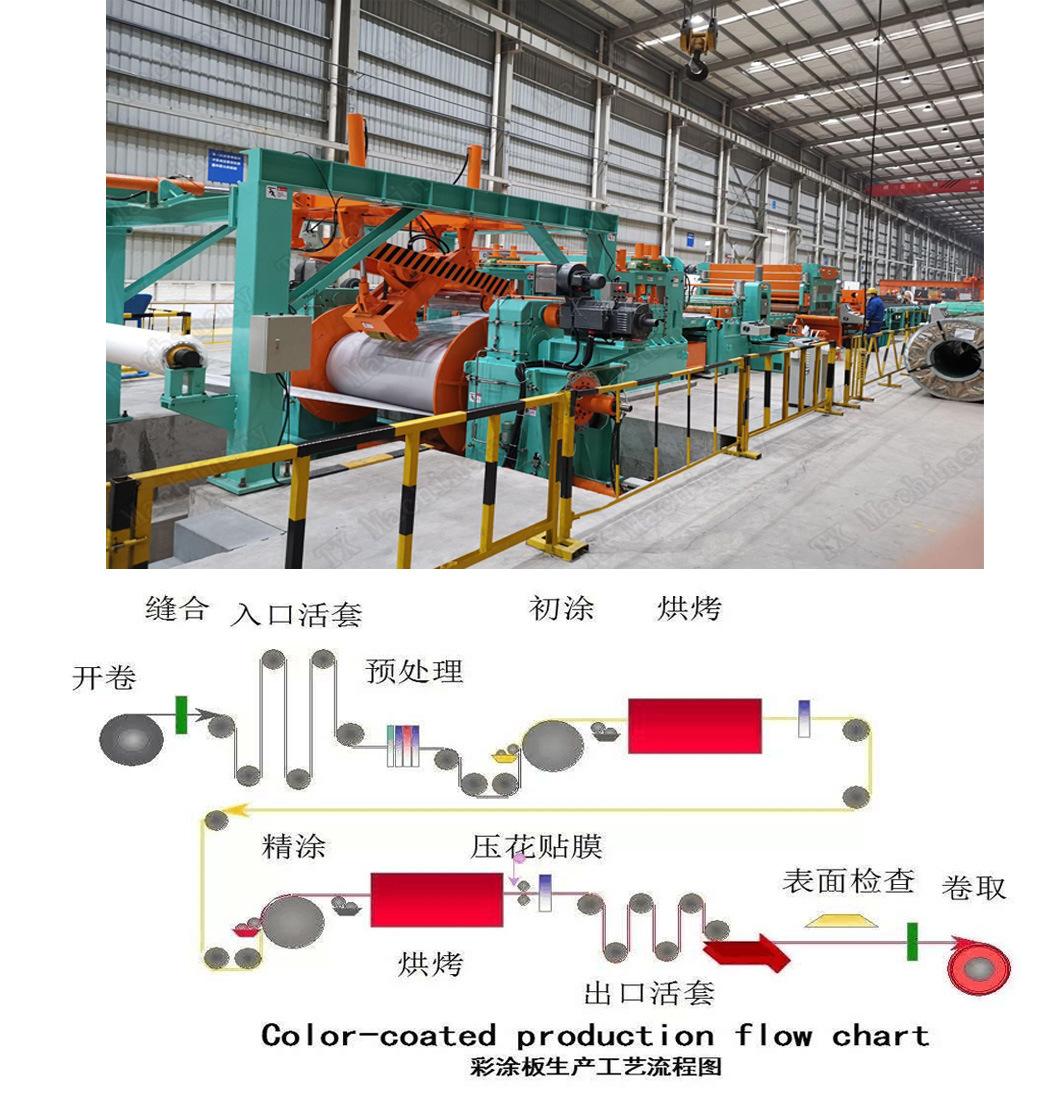

Produce ShowProduct ProcessSurface

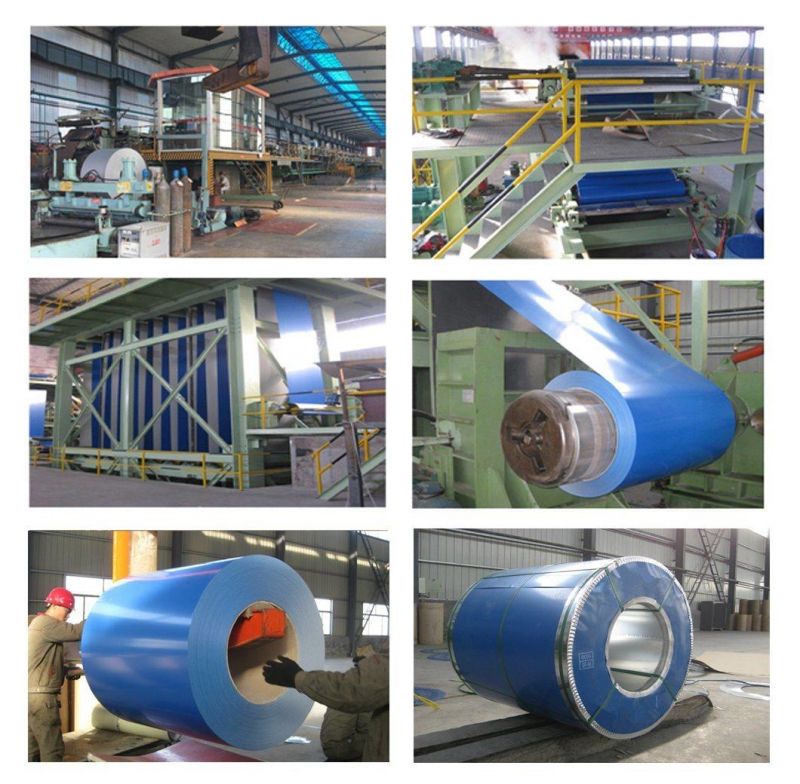

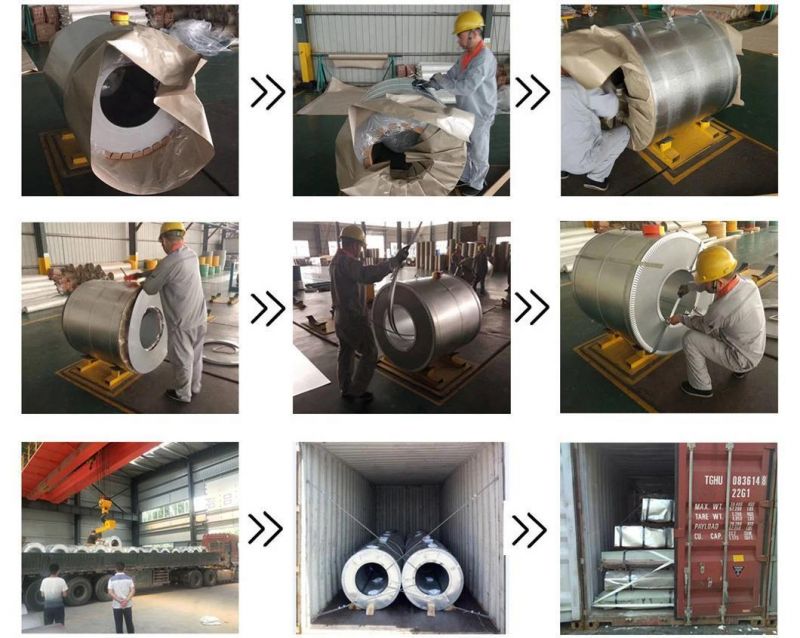

Packaging & Shipping

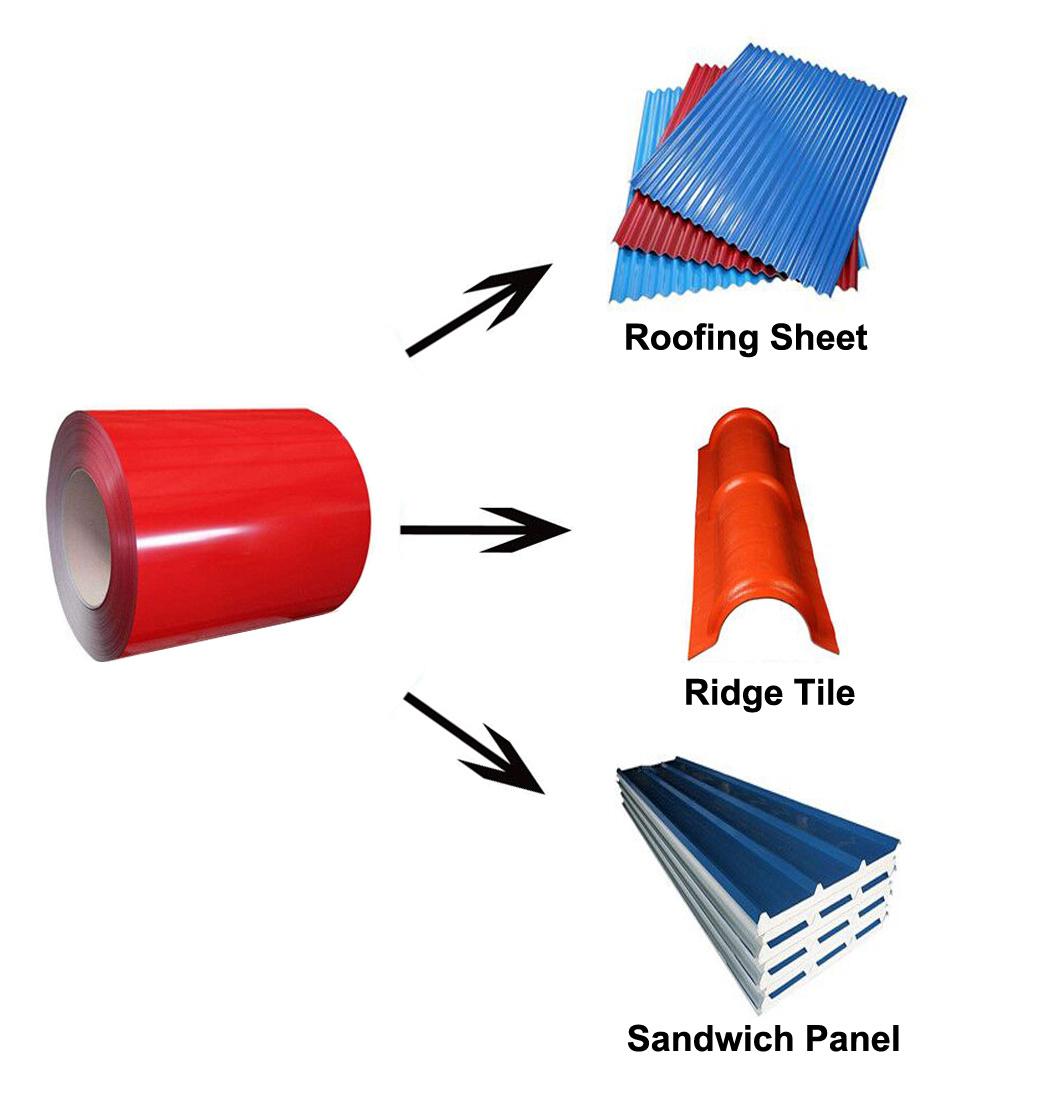

Application

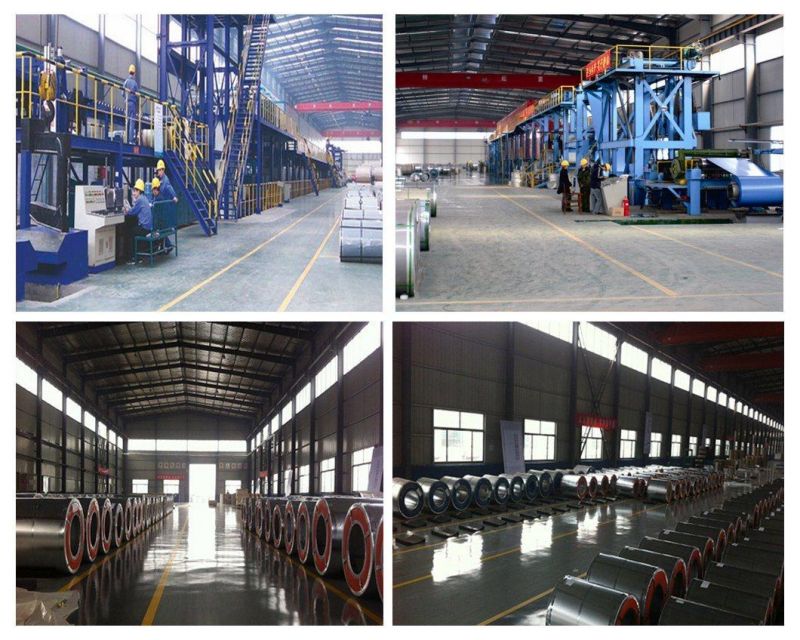

Factory



Certificate&Customer Praise

Us and customers
