Sup9a Hot Rolled Steel Flat Bars for Truck Leaf Spring
Tianjin Qiangbang Industrial Co., Ltd.- Special Use：High-strength Steel Plate
- Alloy：Alloy
- Application：Tool Steel Bar
- Technics：Hot Rolled
- Standard：DIN, JIS, AISI, ASTM, BS
- Production Line：Short Stress Production Line
Base Info
- Transport Package：Export Packing
- Raw Material：Continuous Casting Billets
- Surface2：Double Grooved
- Surface1：Smooth Plain
- Place of Origin：Tianjin, China (Mainland)
- Length：as Customers′ Requirements
- Width：40~160mm
- Thickness：4~35mm
- Brand Name：Daqiang
- Model NO.：4mm x 40mm - 35mm x 125mm
- Specification：4x40mm~35x125mm
- Trademark：DaQiang
- Origin：Tianjin, China
- HS Code：72283000
- Production Capacity：400000 Tons,Year
Description

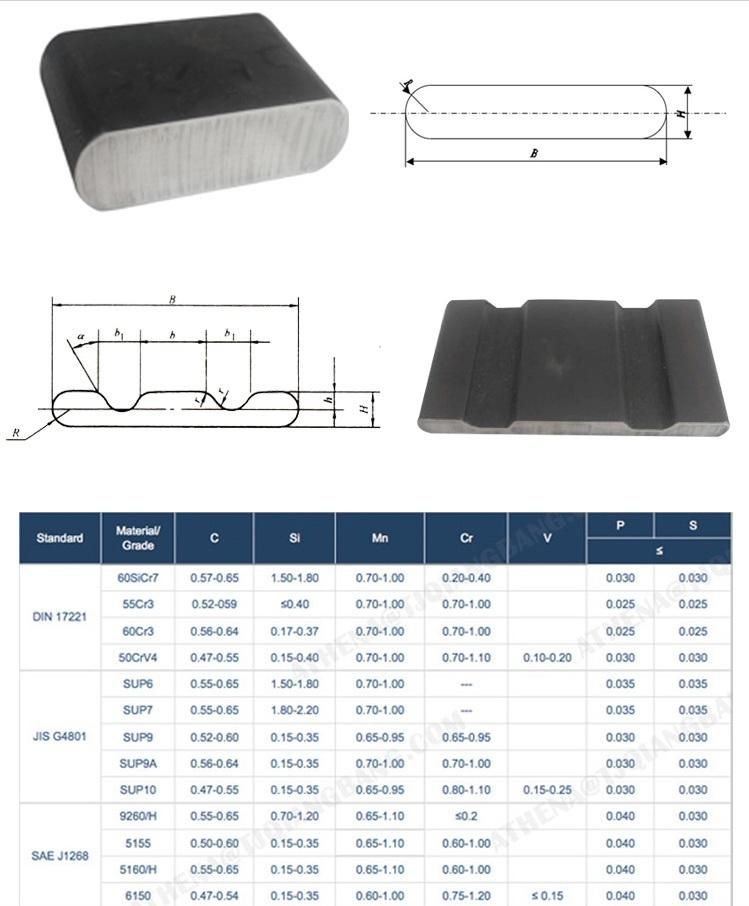

StandardMaterial/ Grade C Si Mn Cr V P S ≤ DIN 17221 60SiCr7 0.57-0.65 1.50-1.80 0.70-1.00 0.20-0.40 0.030 0.030 55Cr3 0.52-059 ≤0.40 0.70-1.00 0.70-1.00 0.025 0.025 60Cr3 0.56-0.64 0.17-0.37 0.70-1.00 0.70-1.00 0.025 0.025 50CrV4 0.47-0.55 0.15-0.40 0.70-1.00 0.70-1.10 0.10-0.20 0.030 0.030 JIS G4801 SUP6 0.55-0.65 1.50-1.80 0.70-1.00 --- 0.035 0.035 SUP7 0.55-0.65 1.80-2.20 0.70-1.00 --- 0.035 0.035 SUP9 0.52-0.60 0.15-0.35 0.65-0.95 0.65-0.95 0.030 0.030 SUP9A 0.56-0.64 0.15-0.35 0.70-1.00 0.70-1.00 0.030 0.030 SUP10 0.47-0.55 0.15-0.35 0.65-0.95 0.80-1.10 0.15-0.25 0.030 0.030 SAE J1268 9260/H 0.55-0.65 0.70-1.20 0.65-1.10 ≤0.2 0.040 0.030 5155 0.50-0.60 0.15-0.35 0.65-1.10 0.60-1.00 0.040 0.030 5160/H 0.55-0.65 0.15-0.35 0.65-1.10 0.60-1.00 0.040 0.030 6150 0.47-0.54 0.15-0.35 0.60-1.00 0.75-1.20 ≤ 0.15 0.040 0.030
