- Trademark：yunhe
- Specification：1*7
- Transport Package：Coil Packing, Z2 Packing, Wooden Reel Packing
- MOQ：1 Ton
- Samples：Free Samples
- Model NO.：1*7
- Origin：China
- HS Code：7312100000
- Production Capacity：12000 Per Month

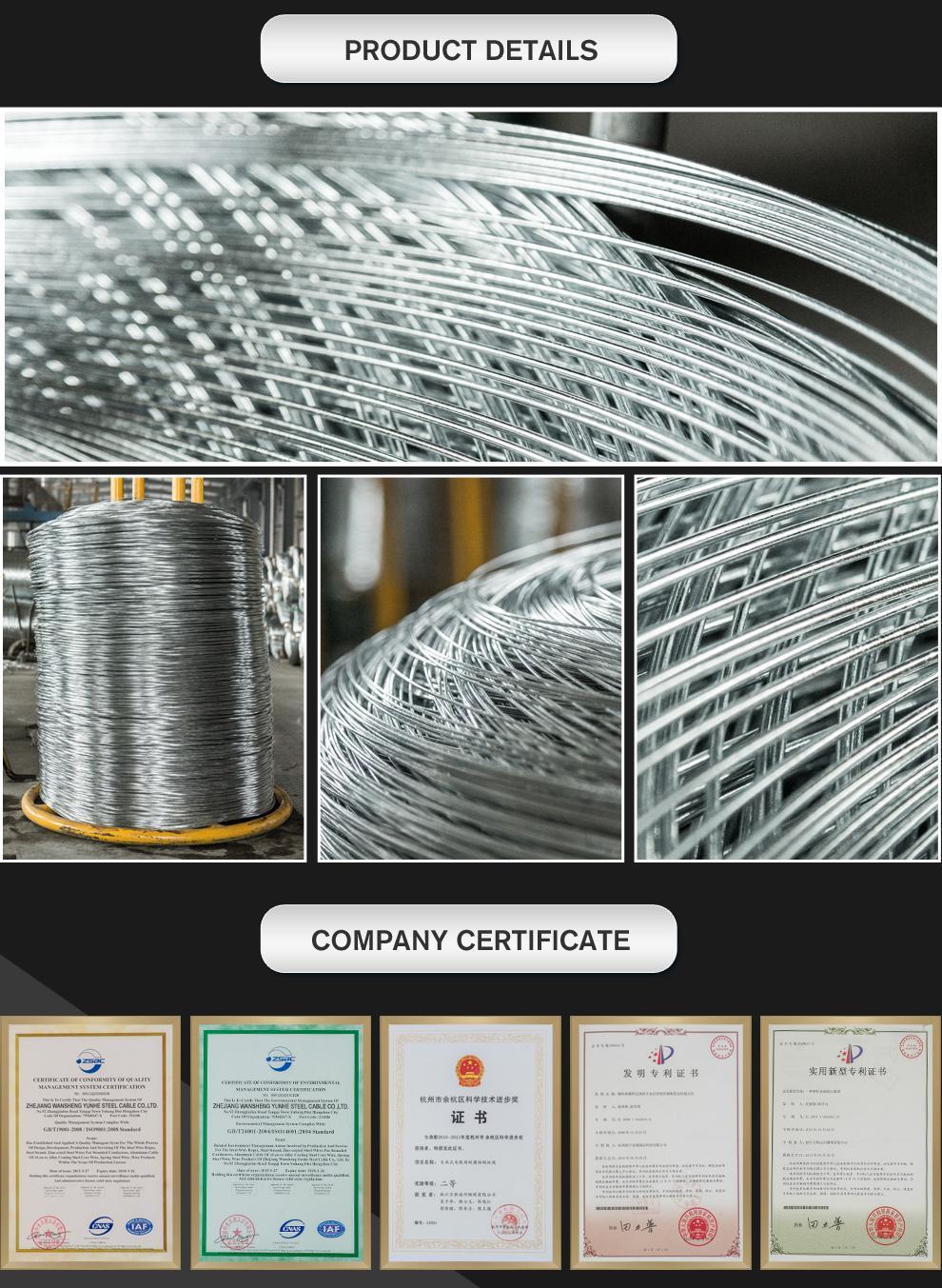

1*7 Lightly Galvanized 7/1.0mm Steel Wire Strand High Tensile for Optical Fiver Cable OFC
| suitable for hanger,hang,communication cable,the power line for built on stillsand,and fixing or binding things |
In (mm)
Dia | No of wire | In (mm)
Wire Dia | Weight lb/1000ft
(kg/km) | Common Grade lbf (KN) | Siemens Martin
Grade
lbf (KN) | High Strength
Grade
lbf (KN) | Extra High Strength Grade
lbf (KN) |
| 1/8 (3.18) | 7 | 0.041 (1.04) | 32(48) | 540 (2.402) | 910 (4.048) | 1330 (5.916) | 1830 (8.140) |
| 5/32 (3.97) | 7 | 0.052 (1.32) | 51 (76) | 870 (3.870) | 1470 (6.539) | 2140 (9.519) | 2940 (13.078) |
| 3/16 (4.76) | 7 | 0.062 (1.57) | 73 (109) | 1150 (5.115) | 1900 (8.452) | 2850 (12.677) | 3990 (17.748) |
| 7/32 (5.56) | 3 | 0.104 (2.64) | 88 (131) | 1400 (6.228) | 2340 (10.409) | 3500 (15.569) | 4900 (21.796) |
| 7/32 (5.56) | 7 | 0.072 (1.83) | 98 (146) | 1540 (6.850) | 2560 (11.387) | 3850 (17.126) | 5400 (24.020) |
| 1/4 (6.35) | 3 | 0.120 (3.05) | 117 (174) | 1860 (8.274) | 3040 (13.523) | 4730 (21.040) | 6740 (29.981) |
| 1/4 (6.35) | 7 | 0.08 (2.03) | 121 (180) | 1900 (8.452) | 3150 (14.012) | 4750 (21.129) | 6650 (29.581) |
| 9/32 (7.14) | 3 | 0.130 (3.30) | 137 (204) | 2080 (9.252) | 3380 (15.035) | 5260 (23.398) | 7500 (33.362) |
| 9/32 (7.14) | 7 | 0.093 (2.36) | 164 (244) | 2570 (11.432) | 4250 (18.905) | 6400 (28.469) | 8950 (39.812) |
| 5/16 (7.94) | 3 | 0.145 (3.68) | 171 (255) | 2490 (11.076) | 4090 (18.193) | 6350 (28.246) | 9100 (40.479) |
| 5/16 (7.94) | 7 | 0.104 (2.64) | 205 (305) | 3200(14.234) | 5350 (23.798) | 8000 (35.586) | 11200 (49.820) |
| 3/8 (9.52) | 3 | 0.165 (4.19) | 220 (328) | 3330 (14.813) | 5569 (24.732) | 8360 (37.187) | 11800 (52.489) |
| 3/8 (9.52) | 7 | 0.120 (3.05) | 273 (407) | 4250 (18.905) | 6950 (30.915) | 10800 (48.040) | 15400 (68.503) |
| 7/16 (11.11) | 7 | 0.145 (3.68) | 399 (595) | 5700 (25.355) | 9350 (41.591) | 14500 (64.499) | 20800 (92.523) |
| 9/16 (14.29) | 7 | 0.188 (4.78) | 671 (1000) | 9600 (42.703) | 15700 (69.837) | 24500 (108.981) | 35000 (155.688) |
| 9/16 (14.29) | 19 | 0.113 (2.87) | 637 (949) | 9640 (42.881) | 16100 (71.616) | 24100 (107.202) | 33700 (149.905) |
| 5/8 (15.88) | 19 | 0.125 (3.18) | 796 (1186) | 11000 (49.930) | 18100 (80.513) | 28100 (124.995) | 40200 (178.819) |
| 3/4 (19.05) | 19 | 0.150 (3.81) | 1155 (1721) | 16000 (71.172) | 26200 (116.543) | 40800 (181.487) | 58300 (259.331) |
| | | | | | | | |
| | | | | | | | |
| | | | | | | | |
Rare earth zinc aluminum alloy coated steel wire strand
| suitable for hanger,hang,communication cable,the power line for built on stillsand,and fixing or binding things |
| Con. | Dia. mm | Dia. strand mm | cross-section mm2 | Tensile strength,Mpa | weight kg/100m |
| 1170.00 | 1270.00 | 1370.00 | 1470.00 | 1570.00 |
| Minmium breaking force,KN |
| 1*3 | 2.90 | 6.20 | 19.86 | 21.33 | 23.16 | 24.98 | 26.80 | 28.63 | 15.99 |
| 3.20 | 6.40 | 24.13 | 25.97 | 28.19 | 30.41 | 32.63 | 34.85 | 19.47 |
| 3.50 | 7.50 | 28.86 | 31.06 | 33.72 | 36.38 | 39.03 | 41.69 | 23.29 |
| 4.00 | 8.60 | 37.70 | 40.58 | 44.05 | 47.52 | 50.99 | 54.45 | 30.42 |
| 1*7 | 1.00 | 3.00 | 5.50 | 5.92 | 6.43 | 6.93 | 7.44 | 7.94 | 4.37 |
| 1.20 | 3.60 | 7.92 | 8.53 | 9.25 | 9.98 | 10.71 | 11.44 | 6.29 |
| 1.40 | 4.20 | 10.78 | 11.60 | 12.60 | 13.59 | 14.58 | 15.57 | 8.56 |
| 1.60 | 4.80 | 14.07 | 15.14 | 16.44 | 17.73 | 19.03 | 20.32 | 11.17 |
| 1.80 | 5.40 | 17.81 | 19.17 | 20.81 | 22.45 | 24.09 | 25.72 | 14.14 |
| 2.00 | 6.00 | 21.99 | 23.67 | 25.69 | 27.72 | 29.74 | 31.76 | 17.46 |
| 2.20 | 6.60 | 26.60 | 28.63 | 31.08 | 33.53 | 35.97 | 38.42 | 22.77 |
| 2.30 | 6.90 | 29.08 | 31.30 | 33.99 | 36.65 | 39.33 | 42.00 | 23.09 |
| 2.60 | 7.80 | 37.17 | 40.01 | 43.43 | 46.85 | 50.27 | 53.69 | 29.51 |
| 2.90 | 8.70 | 46.24 | 49.77 | 54.03 | 58.28 | 62.53 | 66.79 | 36.71 |
| 3.00 | 9.00 | 49.48 | 53.26 | 57.81 | 62.36 | 66.92 | 71.47 | 42.37 |
| | 3.20 | 9.60 | 56.30 | 60.60 | 65.78 | 70.96 | 76.14 | 81.32 | 44.70 |
| | 3.50 | 10.50 | 67.35 | 72.50 | 78.69 | 84.89 | 91.08 | 97.28 | 53.48 |
| | 3.80 | 11.40 | 79.39 | 85.46 | 92.76 | 100.10 | 107.40 | 114.70 | 63.04 |
| | 4.00 | 12.00 | 87.96 | 94.68 | 102.80 | 110.90 | 119.00 | 127.00 | 69.84 |
Zinc coated steel wire strand
| suitable for hanger,hang,communication cable,the power line for built on stillsand,and fixing or binding things |
| Con. | Dia. mm | Dia. strand mm | cross-section mm2 | Tensile strength,Mpa | weight kg/1000m |
| 1170.00 | 1270.00 | 1370.00 | 1470.00 | 1570.00 |
| Minmium breaking force,KN |
| 1*19 | 1.6 | 8.0 | 38.20 | 40.22 | 43.66 | 47.10 | 50.54 | 53.98 | 304 |
| 1.8 | 9.0 | 48.35 | 50.91 | 55.26 | 59.62 | 63.97 | 68.32 | 385 |
| 2.0 | 10.0 | 59.69 | 62.85 | 68.23 | 73.60 | 78.97 | 84.34 | 475 |
| 2.2 | 11.0 | 72.20 | 76.08 | 82.58 | 89.00 | 95.58 | 102.09 | 569 |
| 2.3 | 11.5 | 78.94 | 83.12 | 90.23 | 97.33 | 104.40 | 111.50 | 628 |
| 2.6 | 13.0 | 100.90 | 106.20 | 115.30 | 124.40 | 133.50 | 142.60 | 803 |
| 2.9 | 14.5 | 125.50 | 132.20 | 143.40 | 154.70 | 166.00 | 177.30 | 999 |
| 3.2 | 16.0 | 152.80 | 160.90 | 174.70 | 188.40 | 202.20 | 215.90 | 1220 |
| 3.5 | 17.50 | 182.80 | 192.50 | 208.90 | 225.40 | 241.80 | 258.30 | 1460 |
| 4.00 | 20.0 | 238.80 | 251.50 | 272.90 | 294.40 | 315.90 | 337.40 | 1900 |
| 1*37 | 1.6 | 11.2 | 74.39 | 73.98 | 80.30 | 86.63 | 92.95 | 99.27 | 595 |
| 1.8 | 12.6 | 94.15 | 93.63 | 101.60 | 109.60 | 117.60 | 125.60 | 753 |
| 2.0 | 14.0 | 116.20 | 115.50 | 125.40 | 135.30 | 145.20 | 155.10 | 930 |
| 2.3 | 16.1 | 153.70 | 152.90 | 165.90 | 179.00 | 192.00 | 205.10 | 1230 |
| 2.60 | 18.2 | 196.40 | 195.30 | 212.00 | 228.70 | 245.40 | 262.10 | 1570 |
| 2.90 | 20.3 | 244.40 | 243.10 | 263.80 | 284.60 | 305.40 | 326.20 | 1950 |
| 3.20 | 22.4 | 297.60 | 296.00 | 321.30 | 346.60 | 371.90 | 397.10 | 2380 |
| | | | | | | | | |
| | | | | | | | | |
| | | | | | | | | |
| | | | | | | | | |
