Hot DIP Galvanized Conduit Pipe and Fittings EMT Elbow
Weifang East Pipe Industry Technical Co., Ltd.- Usage：Pipeline Transport, Machinery Industry, Mining, Construction & Decoration, Wire Pulling
- Surface Treatment：Hot DIP Galvanized
- Technique：ERW
- Material：Carbon Steel
- Type：Welded
- Section Shape：Round
Base Info
- Specification：1,2"-4"
- Transport Package：Carton Box
- Model NO.：15°22.5°30°45°60°90°
- Trademark：east conduit
- Origin：China
- Production Capacity：5000tons,Year
Description
| L/C at sight or T/T; |
Dimension Chart
| Pipe Size | Mini.UL Radius(mm) | Weight Per 100pcs(KG) | Weight Per 100pcs(LBS) | Standard Carton Qty | Weight Per Carton(KG) |
| 1/2"X90° | 102 | 10.8 | 24 | 50 | 5.42 |
| 3/4"X90° | 114 | 19.7 | 43 | 50 | 9.84 |
| 1"X90° | 146 | 35.1 | 77 | 20 | 7.02 |
| 1-1/4"X90° | 184 | 64.3 | 142 | 20 | 12.86 |
| 1-1/2"X90° | 210 | 79.6 | 176 | 10 | 7.96 |
| 2"X90° | 241 | 123.4 | 272 | 10 | 12.34 |
| 2-1/2"X90° | 267 | 211.8 | 467 | 50 | 105.92 |
| 3"X90° | 330 | 310.8 | 685 | 35 | 108.79 |
| 3-1/2"X90° | 381 | 471.4 | 1039 | 35 | 164.99 |
| 4"X90° | 406 | 566.1 | 1248 | 25 | 141.52 |
REMARK:Elbows special radius available upon request
CONTACT INFORMATION:
TEL:+86-536-8187103
Factory

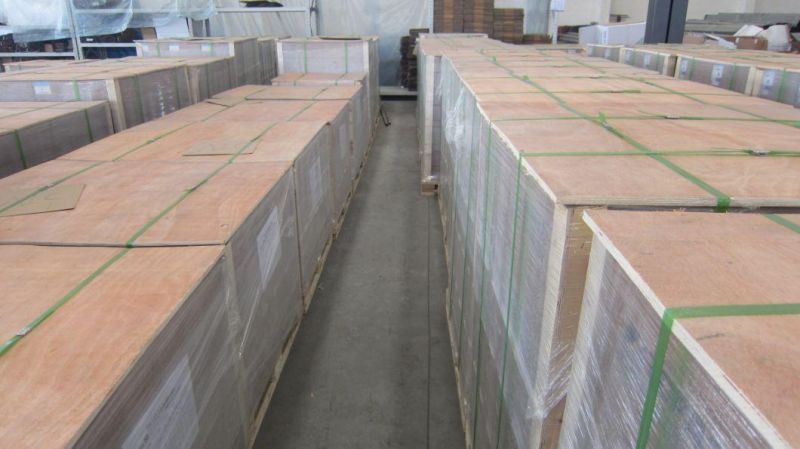

Packing

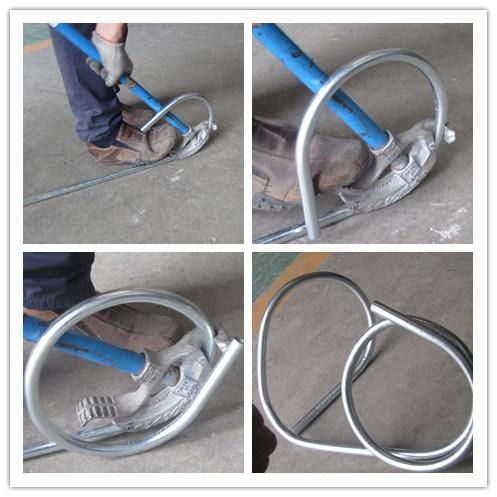

Bending Test
Feedback from Customers
Big Team Service for You
