• Transport Package：Waterproof Plastic Bag Then Bundles with The Stri
• Trademark：XINGHE
• Origin：Made in China

Outer diameterPre galvanized:1/2''-4''(21.3-114.3mm)Hot dipped galvanized:1/2''-24''(21.3mm-600mm)

Wall ThicknessPre galvanized:0.6-2.5mmHot dipped galvanized: 0.8- 25mmStandardBS 1387,BS1139,EN39,EN10219,ASTM A53,ASTM A795, API 5L,GB/T3091etc.Cross SectionRound/Square/Rectangular/Ovel etc.TypeElectronic Resistance Welded (ERW )End TreatmentPlain / Thread / Coupling / Groove / Necking etc.ApplicationGreenhouse/Scaffolding/Oil gas water transportation/Transportation,etcDelivery Time15-25 Days normally after your deposit .Chemical Composition%Mechanical PropertyMaterialC%Mn%S%P%Si%Yield PointTensile StrengthElongation      (Mpa)(Mpa)(%)Q1950.06-0.120.25-0.50<0.05<0.045<0.3>195315-43032-33Q2350.12-0.20.30-0.70<0.045<0.045<0.3>235375-50024-26Q345<0.201.0-1.6<0.04<0.04<0.55>345470-63021-22
PRODUCT DETAILED

Brief Introduction

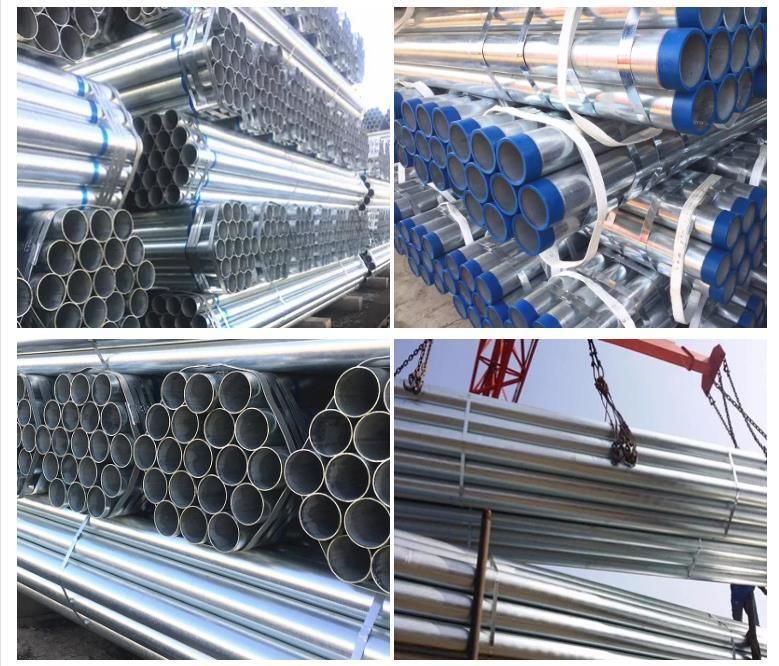

Galvanized steel pipe are also called Galvanized Steel tube and Gi pipe. It possess features of corrosion resistance,anti-rust,acid resistance, which extend its service life largely. Galvanized steel pipe is widely used in many area:water pipe, gas pipe, oil and other generally low pressure fluid pipeline, and is also used in petroleum industry especially the marine oil field oil well pipe, oil pipe, chemical coking equipment oil heater, cooler,coal run oil exchanger tubes, mine tunnel support rack pipe etc.

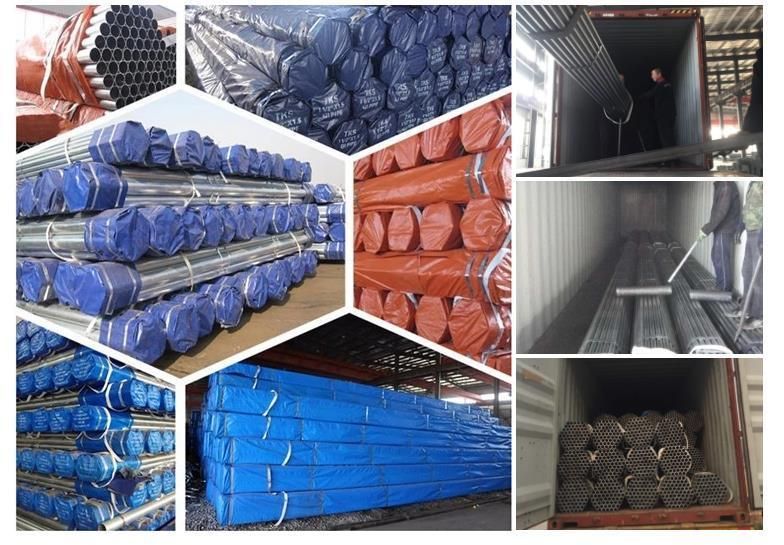

PACKING AND LOADING



CUSTOMERS


CONTACT PERSON
