• Origin：Jiangsu, China
• Trademark：suntay
• Specification：3.0x2.4mm,2.7x2.2mm,2.4x2.0mm,2.2x1.8mm,2.4x2.8mm,
• Transport Package：Packed in Coil
• Model NO.：GS-220122-6
• HS Code：721710
• Production Capacity：10000tons,Year

Basic Info.

Model NO. GS-220122-6 Transport Package Packed in Coil Specification 3.0x2.4mm,2.7x2.2mm,2.4x2.0mm,2.2x1.8mm,2.4x2.8mm, Trademark suntay Origin Jiangsu, China HS Code 721710 Production Capacity 10000tons/Year

Product Description

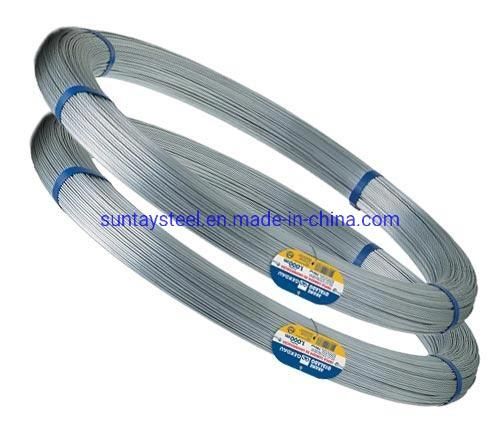

Galvanized Oval Steel Wire used for fence

1.Material:


hot dipped galvanized steel wire, high tensile, high carbon,

hot dipped galvanized iron wire, low carbon

2.The most popula size


1) 2.4*3.0mm (JP15x17)

Package:1000 meters/coil or 45kg/coil, then ten coils per bundle

Breaking load: ≥700kg

Zinc coating : 90-100g/m2 and more



  2) 2.2*2.7mm (JP14x16)

Package:1000meters/coil, 1250 meters/coil or 45kg/coil, then ten coils per bundle

Breaking load: ≥600kgf

Zinc coating:90g-100g/m2 and more

The specification of oval wire

Size	Breaking Force	Zinc coating	Diameter Tolerance	Length	Weight
17/15 3.0×2.4mm	700kgf	Min80g/m2	±0.06mm	1000M	45
16/14 2.7×2.2mm	600kgf	Min80g/m2	±0.06mm	1250M	45
15/13 2.4×2.0mm	500kgf	Min80g/m2	±0.06mm	1500M	45
14/12 2.2×1.8mm	400kgf	Min80g/m2	±0.06mm	1900M	45
N°12 2.4×2.8mm	500MPA	Min50g/m2	±0.06mm	465M	25
N°6 4.55×5.25mm	500MPA	Min50g/m2	±0.06mm	170M	25

Application:
Packing
Loading
