Scaffolding Pipe Load Capacity Hot DIP Galvanized Steel Pipe
Tianjin Youfa International Trade Co., Ltd.- Usage：Construction & Decoration, Scaffolding
- Surface Treatment：Galvanized
- Material：Carbon Steel
- Technique：Hot Rolled
- Type：Welded
- Section Shape：Round
Base Info
- Transport Package：in Bundle by Steel Strip
- Business Type：Manufacturer & Exporter
- Zinc Coating：40GSM-600GSM
- Steel Grade：S235gt,S355,Stk400,Stk500,Q345,Q235
- Length：6.5m,6.0m,5.0m,4.0m,3.0m,1-12.0m
- Wall Thickness：3.2mm,4.0mm
- Diameter：1-1,2" (48.3mm)
- Standard：En39,BS1139
- Commodity：Galvanized Scaffolding Steel Tube
- Specification：48.3x3.2mm, 48.3x4.0mm
- Trademark：Youfa
- Origin：China
- HS Code：7306309000
- Production Capacity：5000mt,Day
Description
-7.50%
Dimensions,mass and tolerances according to EN39 / BS1139:
Dimensions
The specified outside diameter is 48.3MM and the specified wall thickness is 3.2MM for type 3 and 4.0MM for type 4;
Tolerances on dimensions
The tolerance on specified outside diameter is +/-0.5MM;
The tolerance on out of roundness is included in the diameter tolerance;
The tolerance on wall thickness is -10%;
The inside diameter of tubes shall allow insertion of agauge of diameter 37.7mm for aminimu length of 200mm;
Mass
The nominal mass per unit length of type 3 tube is 3.56kg/m and for type 4 tube 4.37kg/m
Tolerance on Mass
The mass deviation on a single tube shall notexceed -7.5% of the specified mass;
Customized Process type for Galvanized steel pipe:
1. Stamping / Embossing
2. Threaded ends / Socketed & plastic cap protection
3. Grooved ends
4. Bending / Arched
5. Water proof bag / Plastic bag protection

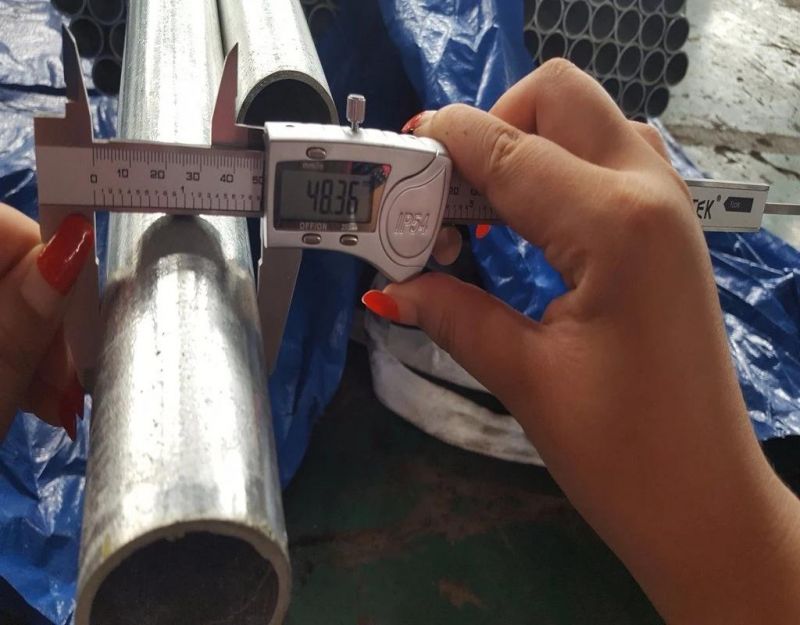

Products Test and Quality Control:

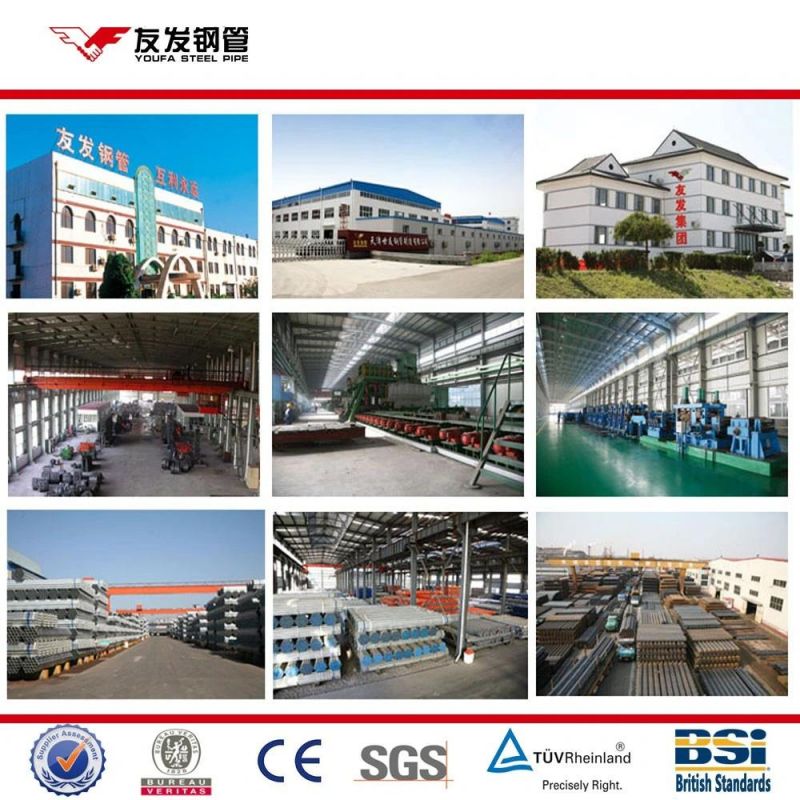

Company's information:
Tianjin Youfa Steel Pipe Group Co.,Ltd were founded on July 1st,2000, with the headquarters location at the largest welded pipe production basein China-Daqiuzhuang Village, Tianjin city, which is a large-scale steel pipe manufacturing enterprise producing many kinds of pipe products, such as:
ERW steel pipe, hot-dipped galvanized steel pipe, oil casing pipe, SSAW steel pipe, square/rectangular steel pipe, and steel-plastic complex steel pipe.
TOP 500 ENTERPRISES IN CHINA
Certificates:
Tianjin Youfa Steel Pipe Group Co., have acquired certificates of API 5L/5CT, ISO9001, ISO14001, ISO18001, EN10219, FPC and UL / FM quality system.
-------------------------------------------------------------
