Galvanized Steel Wire Strand 7*2.65mm for ACSR Core with ASTM B 498 475 Standard Guy Wire Stay Wire Cable Gsw
HENAN BAIFA ELECTRIC POWER CO., Ltd.- Alloy or Not：Non-alloy
- Application：Rope, Packaging, Construction
- Technique：Galvanized
- Certification：ISO, CCC, CE
- Standard：BS, GB, ASTM, DIN
- Name：Stay Wire, Guy Wire, Steel Wire Rope
Base Info
- Specification：1.45-4.77mm

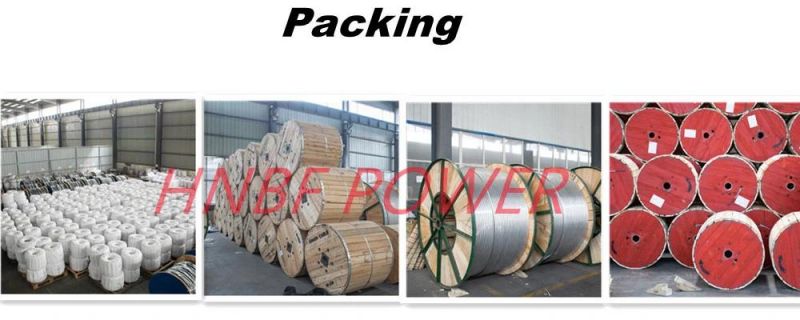

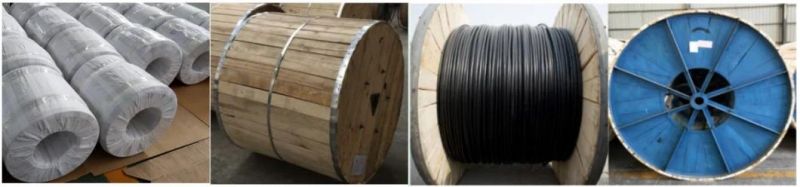

- Transport Package：Wooden Drum, Cloth
- Single Wire Dia：1.25-4.77mm
- Fit Standard：ASTM, BS, IEC, DIN
- Zinc Plate Grade：Class a
- Finishing：Zinc Plated
- Strands：1, 7, 19, 37
- Material：Carbon Steel
- Model NO.：GSW
- Trademark：HNBF
- Origin：China
- HS Code：7217200000
- Production Capacity：50000m,Month
Description
Approx.
Weight Inch mm KN KN KN kg/km 3/2.64 7/32 5.56 10.409 15.569 21.796 131 3/3.05 1/4 6.35 13.523 21.04 29.981 174 3/3.05 1/4 6.35 - - - 174 3/3.30 9/32 7.14 15.035 23.398 33.362 204 3/3.68 5/16 7.94 18.193 28.246 40.479 256 3/4.19 3/8 9.52 24.732 37.187 52.489 328 7/1.04 1/8 3.18 4.048 5.916 8.14 49 7/1.32 5/32 3.97 6.539 9.519 13.078 76 7/1.57 3/16 4.76 8.452 12.677 17.748 108 7/1.65 3/16 4.76 - - - 118 7/1.83 3/16 5.56 11.387 17.126 24.02 145 7/2.03 7/32 6.35 14.012 21.129 29.581 181 7/2.36 1/4 7.14 18.905 28.469 39.812 243 7/2.64 9/32 7.94 23.798 35.586 49.82 305 7/2.77 5/16 7.94 - - - 335 7/3.05 3/8 9.52 30.915 48.04 68.503 407 7/3.68 7/16 11.11 41.591 64.499 92.523 594 7/4.19 1/2 12.7 53.823 83.627 119.657 768 7/4.78 9/16 14.29 69.837 108.981 155.688 991 7/5.26 5/8 15.88 84.961 131.667 188.605 1211 19/2.54 1/2 12.7 56.492 84.961 118.768 751 19/2.87 9/16 12.49 71.616 107.202 149.905 948 19/3.18 5/8 15.88 80.513 124.995 178.819 1184 19/3.81 3/4 19.05 116.543 181.487 259.331 1719 19/4.50 7/8 22.22 159.691 248.211 354.523 2352 19/5.08 1 25.4 209.066 325.61 464.839 2384 37/3.63 1 25.4 205.508 319.827 456.832 3061 37/4.09 11/8 28.58 262 407.457 581.827 4006 37/4.55 11/4 31.75 324.72 505.318 721.502 4833
Diameter:1.24~5.50mm
Zinc Coating:150-400g/m2 ASTM class A. class B.
Tensile Strength:900-1720 mpa.
Intensity Level:General,High,Very High.
Min.No. of 360° twists:10~16.
Certificates

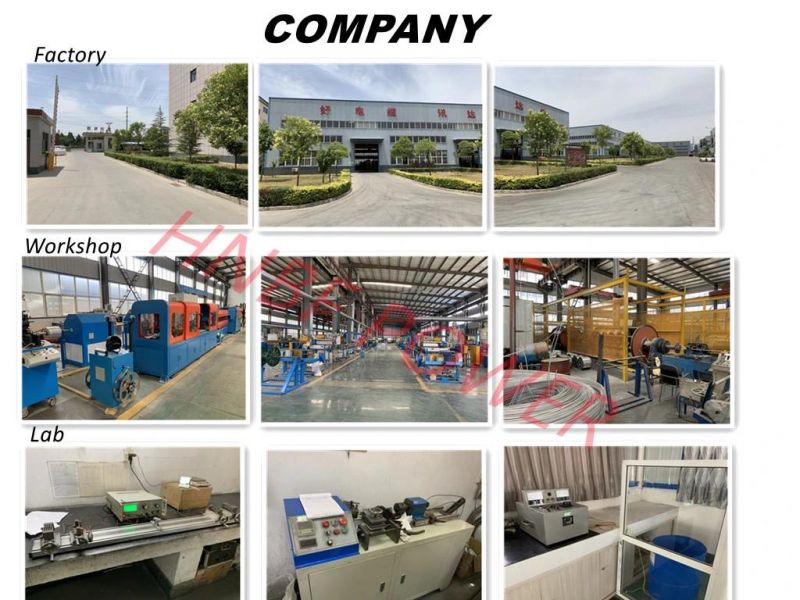

Henan Baifa Electric Power Co., Ltd. is a professional cable & wire manufacturer which integrates R&D, production and sales together. It's factory Henan Xunda Cable Co., Ltd was established in 2001, and is located in the Science & Technology Industrial Park of Gongyi, Zhengzhou City, Henan Province. The traffic & transportation are extremely convenient with beautiful environment there.

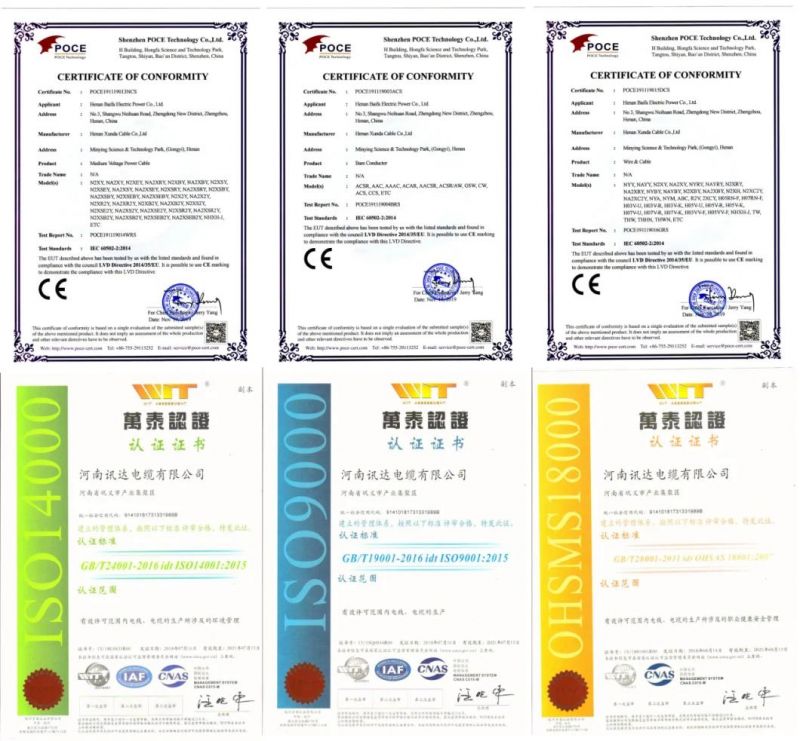

Our corporation has passed the ISO9001 quality management system certification, ISO14001 environmental management system certification and GB / T28001-2001 occupational health and safety management system certification, CE European Union Product Certification, CCC China Compulsory Certification, PCCC Power Product Certification, and Flame and Fire Retardant Cable Certification, Coal Safety Certification, High-tech New Enterprise in Henan Province and China Famous Brand.

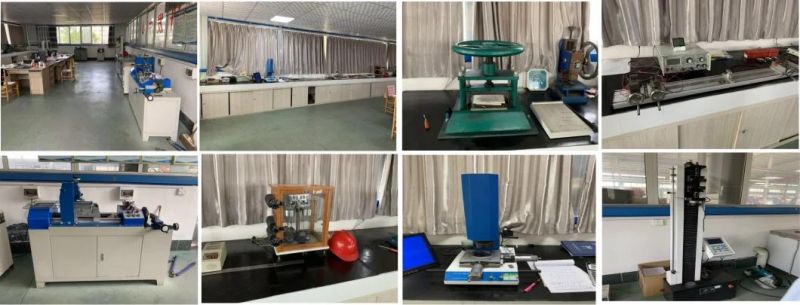

We have the advanced production and testing equipment made from China and abroad countries, completed scientific management system, and mature production technology with strict controlling of raw materials, to provide qualified and reputed products and services for customers. The annual production capacity is 2,600,000.00 km cables and wires. In our factory, there are above 200 staffs totally including workers and supervisors, besides, we also have our own rights for importation and exportation. With strong technical forces indeed, we have many technical and production workers to make sure the production demand. The main products we can produce are Aerial Bundled Cables (ABC), bare conductors (AAC, AAAC, ACSR, ACAR, ACS, CCS, GUY WIRE, STAY WIRE, STEEL WIRE etc.) , power cables and special cables including all the four series products.
Our products sales network has covered more than 20 provinces and municipalities in China. Most of products are sold to many countries for overseas marketing including the following areas like Philippines, Indonesia, Bangladesh, UK, Congo, Iran, Australia, Tanzania, USA, Canada, Madagascar, Pakistan, South Africa, Tunis, Dominica, Honduras, Guatemala, Iraq, Chile, Brazil, Peru etc.
Our principle is quality first, customer is God, to make them satisfied. Our goal is Baifa Power, Powering Strongly, to make the worldwide power grid operating orderly
Weight
Diameter:1.24~5.50mm
Zinc Coating:150-400g/m2 ASTM class A. class B.
Tensile Strength:900-1720 mpa.
Intensity Level:General,High,Very High.
Min.No. of 360° twists:10~16.
CertificatesHenan Baifa Electric Power Co., Ltd. is a professional cable & wire manufacturer which integrates R&D, production and sales together. It's factory Henan Xunda Cable Co., Ltd was established in 2001, and is located in the Science & Technology Industrial Park of Gongyi, Zhengzhou City, Henan Province. The traffic & transportation are extremely convenient with beautiful environment there.Our corporation has passed the ISO9001 quality management system certification, ISO14001 environmental management system certification and GB / T28001-2001 occupational health and safety management system certification, CE European Union Product Certification, CCC China Compulsory Certification, PCCC Power Product Certification, and Flame and Fire Retardant Cable Certification, Coal Safety Certification, High-tech New Enterprise in Henan Province and China Famous Brand.
We have the advanced production and testing equipment made from China and abroad countries, completed scientific management system, and mature production technology with strict controlling of raw materials, to provide qualified and reputed products and services for customers. The annual production capacity is 2,600,000.00 km cables and wires. In our factory, there are above 200 staffs totally including workers and supervisors, besides, we also have our own rights for importation and exportation. With strong technical forces indeed, we have many technical and production workers to make sure the production demand. The main products we can produce are Aerial Bundled Cables (ABC), bare conductors (AAC, AAAC, ACSR, ACAR, ACS, CCS, GUY WIRE, STAY WIRE, STEEL WIRE etc.) , power cables and special cables including all the four series products.
Our products sales network has covered more than 20 provinces and municipalities in China. Most of products are sold to many countries for overseas marketing including the following areas like Philippines, Indonesia, Bangladesh, UK, Congo, Iran, Australia, Tanzania, USA, Canada, Madagascar, Pakistan, South Africa, Tunis, Dominica, Honduras, Guatemala, Iraq, Chile, Brazil, Peru etc.
Our principle is quality first, customer is God, to make them satisfied. Our goal is Baifa Power, Powering Strongly, to make the worldwide power grid operating orderly
