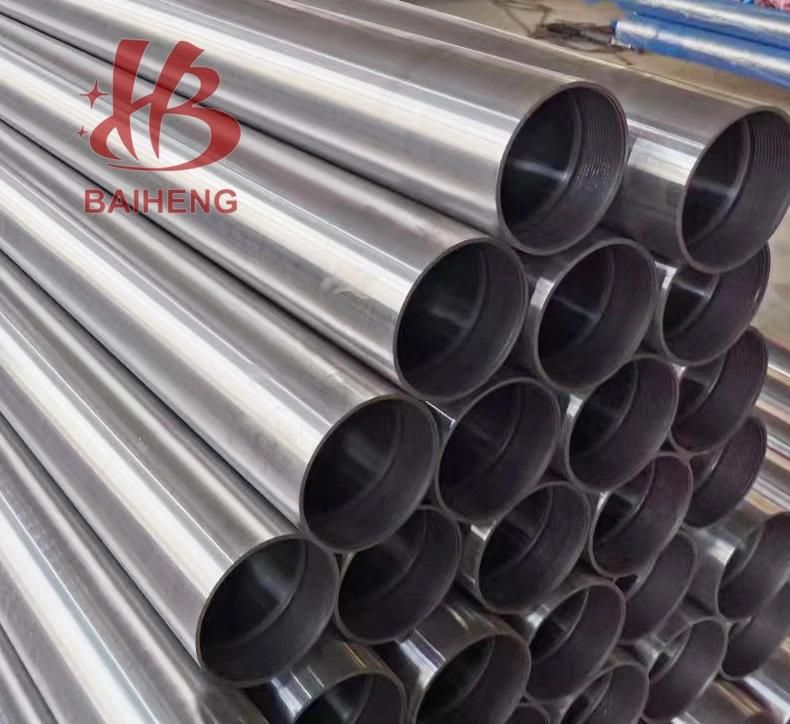

325X280 St52 E355 Cold Drawn Honed Tube Hydraulic Cylinder Pipe
Wuxi Baiheng Metal Co., Ltd- Usage：Oil,Gas Drilling
- Surface Treatment：Oiled
- Material：Carbon Steel
- Technique：Cold Drawn
- Type：Seamless
- Section Shape：Round
Base Info
- Origin：China
- Trademark：BAIHENG
- Specification：ID40-400
- Transport Package：in Bundel, with Plastics on Both Ends, Oil Coated
- Size：ID 40-400
- Model NO.：280x325
- HS Code：7304900000
- Production Capacity：500 Ton Per Month
Description
Tolerance for ID (μm) H7 H8 H9 H10 30 +21 0 +33 0 +52 0 +84 0 >30-50 +25 0 +39 0 +62 0 +100 0 >50-80 +30 0 +46 0 +74 0 +120 0 >80-120 + 35 0 + 54 0 +87 0 +140 0 >120-180 +40 0 +63 0 +100 0 +160 0 >180-250 +46 0 +72 0 +115 0 +185 0 >250-315 +52 0 +81 0 +140 0 +210 0 >315-400 +57 0 +89 0 +170 0 +230 0 Part of size list (ID*OD) 40*50 100*127 240*273 40*55 110*130 250*266 50*60 120*140 250*280 50*63 120*145 250*300 60*70 125*140 280*323 60*73 125*145 280*325 63*73 140*165 300*320 63*76 140*168 300*356 70*80 150*180 320*340 70*82 160*184 320*356 70*85 160*194 320*370 80*90 170*200 350*370 80*92 180*210 400*420 80*95 200*216 80*100 200*220 90*102 200*232 90*105 200*245 100*114 220*250 100*121 220*273
