Low Carbon Galvanized Wire Rope, Zinc Coated Steel Wire for Greenhouses
Nanjing Suntay Steel Co., Ltd.- Technique：Galvanized
- Application：Rope, Packaging, Netting, Manufacturing, Fencing, Construction
- Surface：Smooth
- Certification：ISO
- Alloy or Not：Non-alloy
- Standard：BS, JIS, GB, ASTM, DIN, AISI
Base Info
- Origin：Jiangsu, China
- Trademark：suntay
- Specification：1.0-4.8mm

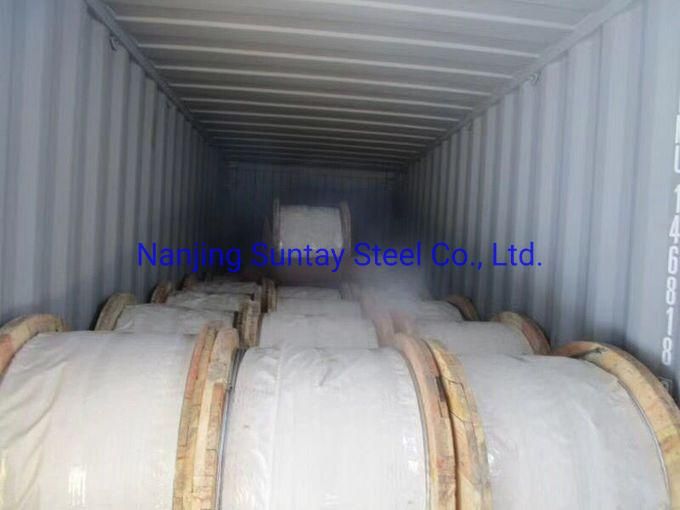

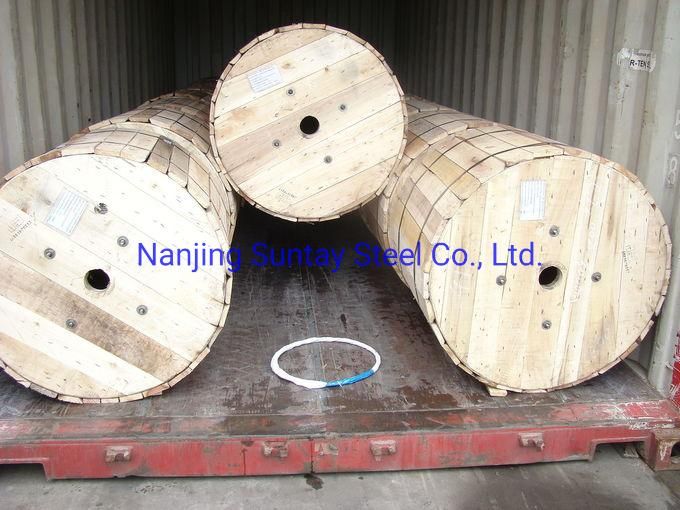

- Transport Package：Standard Export Packing in Coil or on Reel
- Model NO.：GS-210724-1
- HS Code：731210
- Production Capacity：2000000tons,Year
Description
1
Construction &Wire Size
7x3.25 mm
2
Tolerance on Wire Diameter
+/-0.08 mm
3
Breaking Load(Min)
58.05 KN
4
Zinc-coating(Min)
265 g/m2
5
Elongation in 610mm(Min)
6 %
6
Overall Diameter(nom)
9.8 mm
7
Lay Direction
Right Hand
8
Lay Distance
117.6-176.4 mm
9
Conductor Wt.
460 kg/km
10
Packing
2000 m/Drum
TECHNICAL PARTICULARS OF 12MM STAY WIRE
Standard :BS183 Grade1000&EN10244-2
1
Construction &Wire Size
7x4.0 mm
2
Tolerance on Wire Diameter
+/-0.1 mm
3
Breaking Load(Min)
88 KN
4
Zinc-coating(Min)
275 g/m2
5
Elongation in 610mm(Min)
6 %
6
Overall Diameter(nom)
12 mm
7
Lay Direction
Left Hand
8
Lay Distance
144-216 mm
9
Conductor Wt.
690 kg/km
10
Packing
2000 m/Drum
