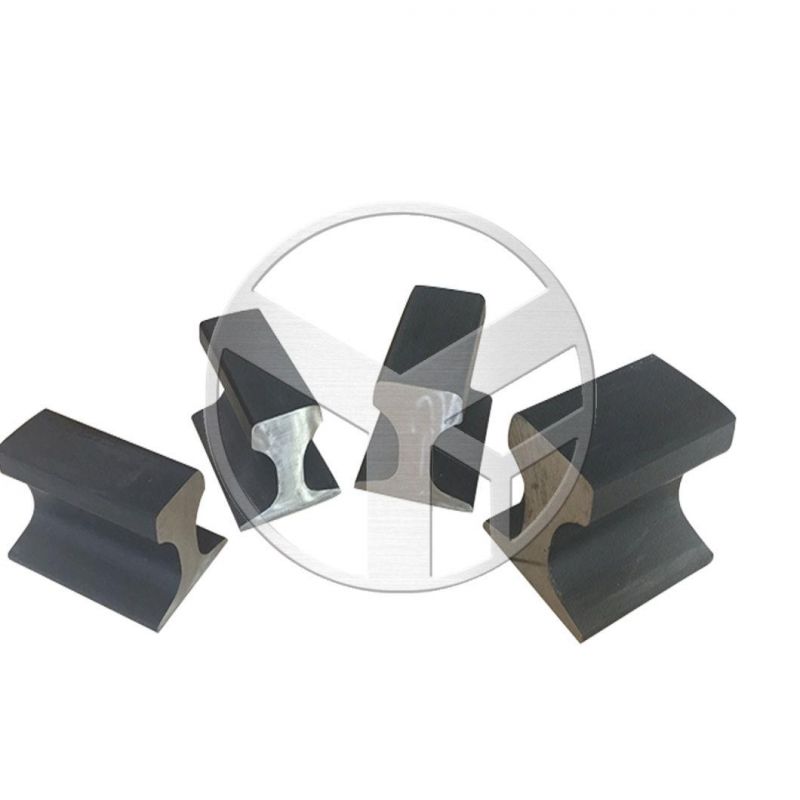

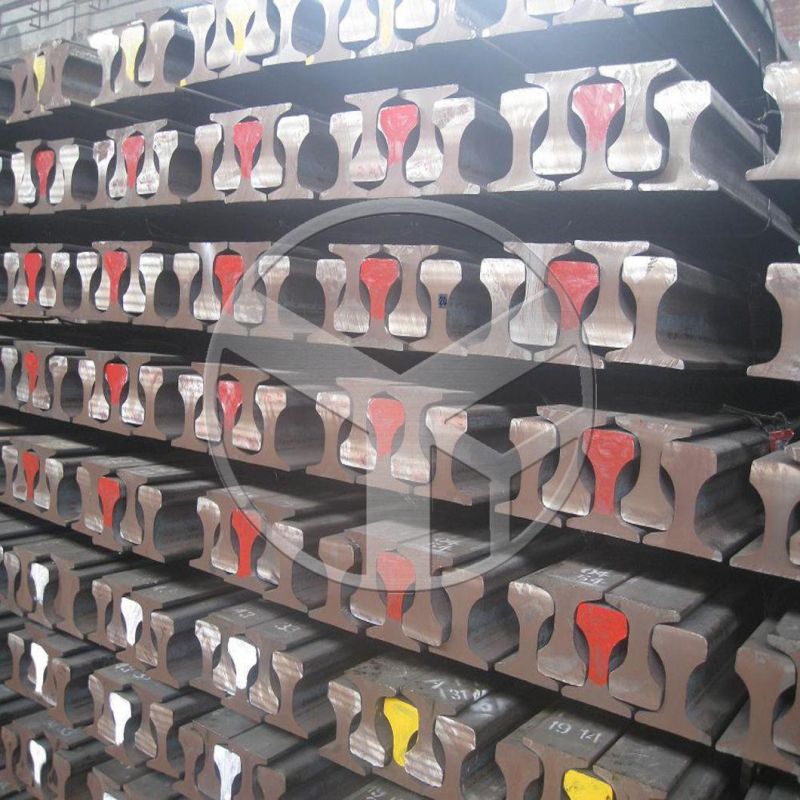

12m Length U71mn Qu70/Qu80/Qu100/Qu120 Cr70/Cr80/Cr100/Cr120 Kp70/Kp80/Kp100/Kp120 Crane Rail Manufacturer
HEBEI YONGYANG STEEL SALES CO., LTD.- Alloy：Non-alloy
- Surface：Black
- Application：Port, Industries
- Technics：Hot Rolled
- Standard：GB
- Special Use：Port, Industries
Base Info
- Origin：China
- Trademark：YONG YANG
- Specification：QU100
- Transport Package：Bare in Bundles by Steel Wire
- Model NO.：QU70,QU80,QU100,QU120
- HS Code：730210
- Production Capacity：200000ton,Month
Description
Parameterstype weight (kg/m) material length (m) QU100 88.96 U71Mn 12 rail height (mm) bottom width (mm) head width (mm) web thickness (mm) 150 150 100(108) 38 Size Rail Height Bottom Width Head Width Web Thickness Weightkg/m QU70 120 120 70(76.5) 28 52.80 QU80 130 130 80(87) 32 63.69 QU100 150 150 100(108) 38 88.96 QU120 170 170 120(129) 44 118.10
Steel rail, also called rail track, steel track, is the main component of railway track. Its function is to guide the wheels of the locomotive, bear the great pressure of the wheel, and keep the stability of railway transportation. The rail must provide continuous, smooth and minimum rolling surfaces for the wheels. In electrified railway or automatic block section, rail can also be used as an orbital circuit.
The steel rail in china are divided into Crane rail, Heavy rail and light rail.
Crane rails in China mainly includes: QU70, QU80, QU100 and QU120.
Crane rails are designed for carrying heavy loads and are used in the laying of crane track for port building. Compared with the railway's heavy rail, crane rail height is low and head width thick waist size is bigger.
Steel rail, also called rail track, steel track, is the main component of railway track. Its function is to guide the wheels of the locomotive, bear the great pressure of the wheel, and keep the stability of railway transportation. The rail must provide continuous, smooth and minimum rolling surfaces for the wheels. In electrified railway or automatic block section, rail can also be used as an orbital circuit.
The steel rail in china are divided into Crane rail, Heavy rail and light rail.
Crane rails in China mainly includes: QU70, QU80, QU100 and QU120.
Crane rails are designed for carrying heavy loads and are used in the laying of crane track for port building. Compared with the railway's heavy rail, crane rail height is low and head width thick waist size is bigger.
