CRC/ Hr ASTM, JIS, GB, AISI, DIN, BS Pre Painted Galvanized Metals Coils Hot Rolled Steel Plate in Roll PPGI PPGL Gi Coil for Steel Roofing Sheet
Shandong Guolian Iron and Steel CO., Ltd.- Certification：ISO, RoHS, IBR
- Standard：ASTM, JIS, GB, AISI, DIN, BS
- Warranty：1 Year
- After-sales Service：on Line
- Surface Treatment：Galvanized
- Technique：Cold Rolled
Base Info
- MOQ：5 Tons
- Material：Dx5d, SPCC, SGCC, CGCC, S350gd..etc
- Coil Weight：3-8 Tons
- Surface：Oiled, Galvanized, Chromated
- Coil ID：508,610mm
- Spangle：Zero, Big, Small, Rugular
- Length：According to Customers Requirement
- Width：600*1500mm
- Thickness：0.12-3.0mm
- Stock：Stock
- Edge：Mill
- Application：Building Material
- Model NO.：gi
- Payment Term：T,T or LC

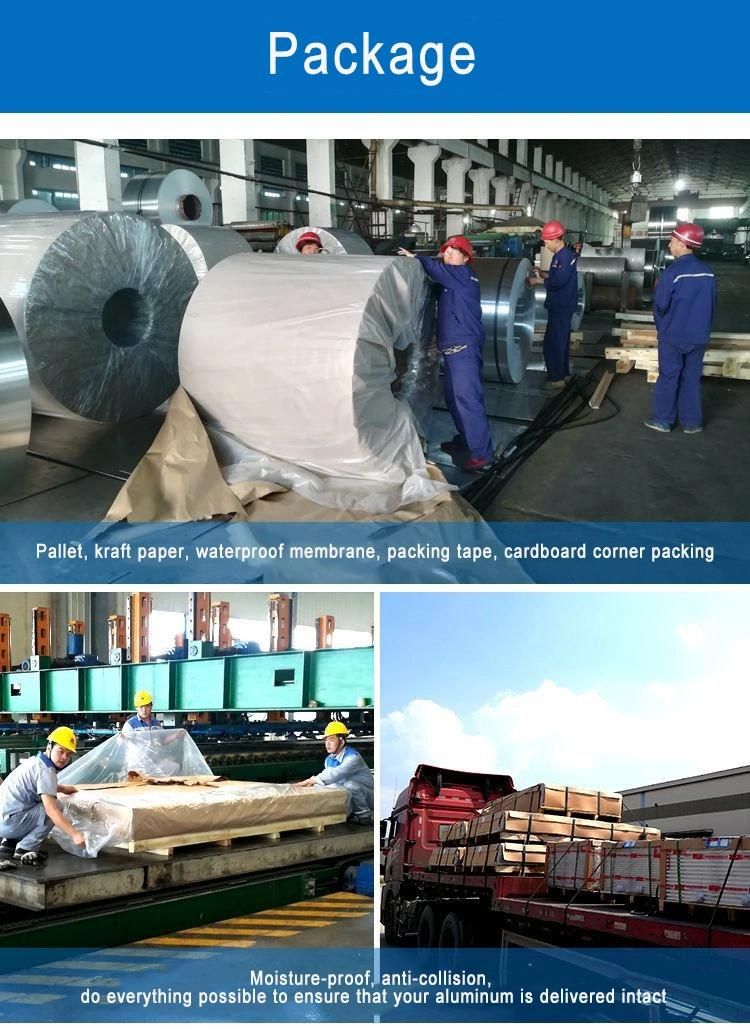

- Transport Package：Export Seaworthy Packing
- Specification：Can be customized
- Trademark：Guolian steel
- Origin：China
- HS Code：7210610000
- Production Capacity：5000 Tons Per Month
Description
Galvanized FAQ
What Is Hot Dipped Galvanized Steel
Hot Dipped Galvanized Steel Sheet in Coil is cold rolled steel coil coated with zinc on two sides by a continuous hot-dip process. This method tightly adheres the coating to the steel with an iron-zinc alloy bonding layer formed by a diffusion process while the heated steel strip is in contact with the molten zinc. One of the drawbacks of Galvanized is that if the Zinc coating is scratched off the steel, the Steel is left unprotected, and is subject to failure.
Type Of Galvanized Spangle
Galvanized with regular spangle, zinc-coated from 30g to 275g(g90). thickness from 0.15mm to 2.0mm. Regular spangle galvanized can be used in hot and wet outdoor places. For example fence, roofing, garage door, etc.
Galvanized with zero spangles, this kind of GI with brightly surface, zinc-coated from 30g to 2755g(g90). thickness from 0.12mm to 0.25mm. It could be used outdoor also. Currently mainly exported to Southeast Asia and Africa. It is cheaper than gi with regular spangle. This product can be processed later, for example, processed into stone coated tiles.
How Long The Service Life Of Regular Spangles And Zero Spangles Galvanized?
Service life depends on the Scope of application. Normally 5-10years without zinc dropping. If the incision is processed, then the useful life more than 10years.
Galvanized Steel Coil Could Be Oiled?
Yes, it could be oiled. 8-20g per square meters. Oiling can prevent the oxidation of galvanized sheets in a short time.
What Is The ASTM A653 Standard?
ASTM A653 is a kind of American standard. Equal Chinese Q195 or SGCC.
Do You Accept The Test Of Zinc Coating Or Not?
Yes, accept the test of zinc coating. We could send galvanized steel coil samples to the laboratory that the clients required. Or Chinese SGS.
