- Origin：Jiangsu, China
- Trademark：suntay
- Specification：1.0-4.8mm
- Transport Package：Standard Export Packing
- Model NO.：GS-21-323-30
- HS Code：731210
- Production Capacity：200000tons,Year
| Galvanized Steel Wire Strand BS183:1972 |
Number of Wires/Dia. | Approx.Strand Dia. | Minimum Breaking Load of Strand | Approx Weight |
| Grade 350 | Grade 480 | Grade 700 | Grade 850 | Grade 1000 | Grade 1150 | Grade 1300 |
| | mm | kN | kN | kN | kN | kN | kN | kN | Kg/km |
| 3/1.80 | 3.9 | 2.65 | 3.66 | - | - | - | - | - | 60 |
| 3/2.65 | 5.7 | 5.8 | 7.95 | - | - | - | - | - | 130 |
| 3/3.25 | 7 | 8.7 | 11.95 | - | - | - | - | - | 195 |
| 3/4.00 | 8.6 | 13.2 | 18.1 | - | - | - | - | - | 295 |
| 4/1.80 | 4.4 | 3.55 | 4.9 | - | - | - | - | - | 80 |
| 4/2.65 | 6.4 | 7.7 | 10.6 | - | - | - | - | - | 172 |
| 4/3.25 | 7.9 | 11.6 | 15.9 | - | - | - | - | - | 260 |
| 4/4.00 | 9.7 | 17.6 | 24.1 | 35.2 | - | - | - | - | 390 |
| 5/1.50 | 4.1 | 3.1 | 4.24 | 6.18 | - | - | - | - | 69 |
| 5/1.80 | 4.9 | 4.45 | 6.1 | 8.9 | - | - | - | - | 95 |
| 5/2.65 | 7.2 | 9.65 | 13.25 | 19.3 | - | - | - | - | 220 |
| 5/3.25 | 8.8 | 14.5 | 19.9 | 29 | - | - | - | - | 320 |
| 5/4.00 | 10.8 | 22 | 30.15 | 43.95 | - | - | - | - | 490 |
| 7/0.56 | 1.7 | 0.6 | 0.83 | 1.2 | - | 1.7 | 1.98 | 2.24 | 14 |
| 7/0.71 | 2.1 | 0.97 | 1.33 | 1.94 | - | 2.75 | 3.19 | 3.6 | 28 |
| 7/0.85 | 2.6 | 1.39 | 1.9 | 2.8 | - | 3.95 | 4.57 | 5.15 | 31 |
| 7/0.90 | 2.7 | 1.55 | 2.14 | 3..1 | - | 4.45 | 5.12 | 5.8 | 35 |
| 7/1.00 | 3 | 1.92 | 2.64 | 3.85 | - | 5.5 | 6.32 | 7.15 | 43 |
| 7/1.25 | 3.8 | 3.01 | 4.1 | 6 | - | 8.55 | 9.88 | 11.15 | 67 |
| 7/1.40 | 4.2 | 3.75 | 5.17 | 7.54 | 9.16 | 10.75 | 12.35 | 14 | 84 |
| 7/1.60 | 4.8 | 4.9 | 6.75 | 9.85 | 11.95 | 14.1 | 16.2 | 18.3 | 110 |
| 7/1.80 | 5.4 | 6.23 | 8.55 | 12.45 | - | 17.8 | 20.5 | 23.2 | 140 |
| 7/2.00 | 6 | 7.7 | 10.55 | 15.4 | - | 22 | 25.3 | 28.6 | 170 |
| 7/2.36 | 7.1 | 10.7 | 14.7 | 21.4 | - | 30.6 | 35.2 | 39.8 | 240 |
| 7/2.65 | 8 | 13.5 | 18.5 | 27 | - | 38.6 | 44.4 | 50.2 | 300 |
| 7/3.00 | 9 | 17.3 | 23.75 | 34.65 | - | 49.5 | 56.9 | 64.3 | 392 |
| 7/3.15 | 9.5 | 19.1 | 26.2 | 38.2 | - | 54.55 | 62.75 | 70.9 | 430 |
| 7/3.25 | 9.8 | 20.3 | 27.85 | 40.65 | - | 58.05 | 66.8 | 75.5 | 460 |
| 7/3.65 | 11 | 25.6 | 35.15 | 51.25 | - | 73.25 | 84.2 | 95.2 | 570 |
| 7/4.00 | 12 | 30.9 | 42.2 | 61.6 | - | 88 | 101 | 114 | 690 |
| 7/4.25 | 12.8 | 34.75 | 47.65 | 69.5 | - | 99.3 | 114 | 129 | 780 |
| 7/4.75 | 14 | 43.4 | 59.45 | 86.8 | - | 124 | 142.7 | 161.3 | 970 |
| 19/1.00 | 5 | 5.22 | 7.16 | 10.45 | - | 14.92 | 17.16 | 19.4 | 120 |
| 19/1.25 | 6.3 | 8.16 | 11.19 | 16.32 | - | 23.32 | 26.81 | 30.31 | 180 |
| 19/1.40 | 7 | 10.24 | 14.04 | 20.47 | - | 29.25 | 33.64 | 38.02 | 230 |
| 19/1.60 | 8 | 13.37 | 18.35 | 26.75 | - | 38.2 | 43.93 | 49.66 | 300 |
| 19/2.00 | 10 | 20.9 | 28.65 | 41.78 | 50.74 | 59.69 | 68.64 | 77.6 | 470 |
| 19/2.50 | 12.5 | 32.65 | 44.8 | 65.29 | 79.28 | 93.27 | 107.3 | 121.3 | 730 |
| 19/3.00 | 15 | 47 | 64.5 | 94 | 114.1 | 134.3 | 154.5 | 174.6 | 1050 |
| 19/3.55 | 17.8 | 65.8 | 90.27 | 131.6 | 159.9 | 188 | 216.3 | 244.5 | 1470 |
| 19/4.00 | 20 | 83.55 | 114.6 | 167.1 | 203 | 238.7 | 274.6 | 310.4 | 1870 |
| 19/4.75 | 23.8 | 117.85 | 161.4 | 235.7 | 286 | 336.7 | 387.2 | 437.7 | 2630 |
| 7/1.60 | 4.8 | 4.9 | 6.75 | 9.85 | 11.95 | 14.1 | 16.2 | 18.3 | 110 |
| 7/1.80 | 5.4 | 6.23 | 8.55 | 12.45 | - | 17.8 | 20.5 | 23.2 | 140 |
| 7/2.00 | 6 | 7.7 | 10.55 | 15.4 | - | 22 | 25.3 | 28.6 | 170 |
| 7/2.36 | 7.1 | 10.7 | 14.7 | 21.4 | - | 30.6 | 35.2 | 39.8 | 240 |
| 7/2.65 | 8 | 13.5 | 18.5 | 27 | - | 38.6 | 44.4 | 50.2 | 300 |
| 7/3.00 | 9 | 17.3 | 23.75 | 34.65 | - | 49.5 | 56.9 | 64.3 | 392 |
| 7/3.15 | 9.5 | 19.1 | 26.2 | 38.2 | - | 54.55 | 62.75 | 70.9 | 430 |
| 7/3.25 | 9.8 | 20.3 | 27.85 | 40.65 | - | 58.05 | 66.8 | 75.5 | 460 |
| 7/3.65 | 11 | 25.6 | 35.15 | 51.25 | - | 73.25 | 84.2 | 95.2 | 570 |
| 7/4.00 | 12 | 30.9 | 42.2 | 61.6 | - | 88 | 101 | 114 | 690 |
| 7/4.25 | 12.8 | 34.75 | 47.65 | 69.5 | - | 99.3 | 114 | 129 | 780 |
| 7/4.75 | 14 | 43.4 | 59.45 | 86.8 | - | 124 | 142.7 | 161.3 | 970 |
| 19/1.00 | 5 | 5.22 | 7.16 | 10.45 | - | 14.92 | 17.16 | 19.4 | 120 |
| 19/1.25 | 6.3 | 8.16 | 11.19 | 16.32 | - | 23.32 | 26.81 | 30.31 | 180 |
| 19/1.40 | 7 | 10.24 | 14.04 | 20.47 | - | 29.25 | 33.64 | 38.02 | 230 |
| 19/1.60 | 8 | 13.37 | 18.35 | 26.75 | - | 38.2 | 43.93 | 49.66 | 300 |
| 19/2.00 | 10 | 20.9 | 28.65 | 41.78 | 50.74 | 59.69 | 68.64 | 77.6 | 470 |
| 19/2.50 | 12.5 | 32.65 | 44.8 | 65.29 | 79.28 | 93.27 | 107.3 | 121.3 | 730 |
| 19/3.00 | 15 | 47 | 64.5 | 94 | 114.1 | 134.3 | 154.5 | 174.6 | 1050 |
| 19/3.55 | 17.8 | 65.8 | 90.27 | 131.6 | 159.9 | 188 | 216.3 | 244.5 | 1470 |
| 19/4.00 | 20 | 83.55 | 114.6 | 167.1 | 203 | 238.7 | 274.6 | 310.4 | 1870 |
Grade | Dia. (mm) | Tensile Strength Not less (Mpa) | Stress at elongation of 1% Not less (Mpa) | Elongation L0=250mm Not less | Torsion Not less Times/360° | Mandrel Dia |
| ≥1.24-2.25 | 1340 | 1170 | 3.0 | 16 | 1 |
Normal | ≥2.25-2.75 | 1310 | 1140 | 3.0 | 16 | 1 |
| ≥2.75-3.00 | 1310 | 1140 | 3.5 | 16 | 1 |
| ≥3.00-3.50 | 1290 | 1100 | 3.5 | 14 | 1 |
| ≥3.5-4.25 | 1290 | 1100 | 4.0 | 12 | 1 |
| ≥4.25-4.75 | 1290 | 1100 | 4.0 | 12 | 1 |
| ≥4.75-5.5 | 1290 | 1100 | 4.0 | 12 | 1 |
High | ≥1.24-2.25 | 1450 | 1310 | 2.5 | 16 | 1 |
| ≥2.25-2.75 | 1410 | 1280 | 2.5 | 16 | 1 |
| ≥2.75-3.00 | 1410 | 1280 | 3.0 | 16 | 1 |
| ≥3.00-3.50 | 1410 | 1280 | 3.0 | 14 | 1 |
| ≥3.5-4.25 | 1380 | 1240 | 3.0 | 12 | 1 |
| ≥4.25-4.75 | 1380 | 1170 | 3.0 | 12 | 1 |
| ≥4.75-5.5 | 1380 | 1170 | 3.0 | 12 | 1 |
Extra- High | ≥1.24-2.25 | 1620 | 1450 | 2.0 | 14 | 1 |
| ≥2.25-2.75 | 1590 | 1410 | 2.0 | 14 | 1 |
| ≥2.75-3.00 | 1590 | 1410 | 2.5 | 12 | 1 |
| ≥3.00-3.50 | 1550 | 1380 | 2.5 | 12 | 1 |
| ≥3.5-4.25 | 1520 | 1340 | 2.5 | 10 | 1 |
| ≥4.25-4.75 | 1520 | 1340 | 2.5 | 10 | 1 |
| ≥4.75-5.5 | 1520 | 1270 | 2.5 | 10 | 1 |
| Galvanized Steel Wire Strand ASTM A-475 |
| Number of Wire(Dia.) | Approx.Strand Dia. | Siemem Martin Grade | High Strength Grade | Extra-high Strength Grade | Approx.Weight |
| | Inch | mm | KN | KN | KN | kg/km |
| 3/2.64 | 7/32 | 5.56 | 10.409 | 15.569 | 21.796 | 131 |
| 3/3.05 | 1/4 | 6.35 | 13.523 | 21.04 | 29.981 | 174 |
| 3/3.05 | 1/4 | 6.35 | - | - | - | 174 |
| 3/3.30 | 9/32 | 7.14 | 15.035 | 23.398 | 33.362 | 204 |
| 3/3.68 | 5/16 | 7.94 | 18.193 | 28.246 | 40.479 | 256 |
| 3/4.19 | 3/8 | 9.52 | 24.732 | 37.187 | 52.489 | 328 |
| 7/1.04 | 1/8 | 3.18 | 4.048 | 5.916 | 8.18 | 49 |
| 7/1.32 | 5/32 | 3.97 | 6.539 | 9.519 | 13.078 | 76 |
| 7/1.57 | 3/16 | 4.76 | 8.452 | 12.677 | 17.748 | 108 |
| 7/1.65 | 3/16 | 4.76 | - | - | - | 118 |
| 7/1.83 | 3/16 | 5.56 | 11.387 | 17.126 | 24.02 | 145 |
| 7/2.03 | 7/32 | 6.35 | 14.012 | 21.129 | 29.581 | 181 |
| 7/2.36 | 1/4 | 7.14 | 18.905 | 28.469 | 39.812 | 243 |
| 7/2.64 | 9/32 | 7.94 | 23.798 | 35.586 | 49.82 | 305 |
| 7/2.77 | 5/16 | 7.94 | - | - | - | 335 |
| 7/3.05 | 3/8 | 9.52 | 30.915 | 48.04 | 68.503 | 407 |
| 7/3.68 | 7/16 | 11.11 | 41.591 | 64.499 | 92.523 | 594 |
| 7/4.19 | 1/2 | 12.7 | 53.823 | 83.627 | 119.657 | 768 |
| 7/4.78 | 9/16 | 14.29 | 69.837 | 108.981 | 155.688 | 991 |
| 7/5.26 | 5/8 | 15.88 | 84.961 | 131.667 | 188.605 | 1211 |
| 19/2.54 | 1/2 | 12.7 | 56.492 | 84.961 | 118.768 | 751 |
| 19/2.87 | 9/16 | 12.49 | 71.616 | 107.202 | 149.905 | 948 |
| 19/3.18 | 5/8 | 15.88 | 80.513 | 124.995 | 178.819 | 1184 |
| 19/3.81 | 3/4 | 19.05 | 116.543 | 181.487 | 259.331 | 1719 |
| 19/4.50 | 7/8 | 22.22 | 159.691 | 248.211 | 354.523 | 2352 |
| 19/5.08 | 1 | 25.4 | 209.066 | 325.61 | 464.839 | 2384 |
| 37/3.63 | 1 | 25.4 | 205.508 | 319.827 | 456.832 | 3061 |
| 37/4.09 | 11/8 | 28.58 | 262 | 407.457 | 581.827 | 4006 |
| 37/4.55 | 11/4 | 31.75 | 324.72 | 505.318 | 721.502 | 4833 |
| 3/2.64 | 7/32 | 5.56 | 10.409 | 15.569 | 21.796 | 131 |
| 3/3.05 | 1/4 | 6.35 | 13.523 | 21.04 | 29.981 | 174 |
| 3/3.05 | 1/4 | 6.35 | - | - | - | 174 |
| 3/3.30 | 9/32 | 7.14 | 15.035 | 23.398 | 33.362 | 204 |
| 3/3.68 | 5/16 | 7.94 | 18.193 | 28.246 | 40.479 | 256 |
| 3/4.19 | 3/8 | 9.52 | 24.732 | 37.187 | 52.489 | 328 |
| 7/1.04 | 1/8 | 3.18 | 4.048 | 5.916 | 8.18 | 49 |
| 7/1.32 | 5/32 | 3.97 | 6.539 | 9.519 | 13.078 | 76 |
| 7/1.57 | 3/16 | 4.76 | 8.452 | 12.677 | 17.748 | 108 |
| 7/1.65 | 3/16 | 4.76 | - | - | - | 118 |
| 7/1.83 | 3/16 | 5.56 | 11.387 | 17.126 | 24.02 | 145 |
| 7/2.03 | 7/32 | 6.35 | 14.012 | 21.129 | 29.581 | 181 |
| 7/2.36 | 1/4 | 7.14 | 18.905 | 28.469 | 39.812 | 243 |
| 7/2.64 | 9/32 | 7.94 | 23.798 | 35.586 | 49.82 | 305 |
| 7/2.77 | 5/16 | 7.94 | - | - | - | 335 |
| 7/3.05 | 3/8 | 9.52 | 30.915 | 48.04 | 68.503 | 407 |
| 7/3.68 | 7/16 | 11.11 | 41.591 | 64.499 | 92.523 | 594 |
| 7/4.19 | 1/2 | 12.7 | 53.823 | 83.627 | 119.657 | 768 |
| 7/4.78 | 9/16 | 14.29 | 69.837 | 108.981 | 155.688 | 991 |
| 7/5.26 | 5/8 | 15.88 | 84.961 | 131.667 | 188.605 | 1211 |
| 19/2.54 | 1/2 | 12.7 | 56.492 | 84.961 | 118.768 | 751 |
| 19/2.87 | 9/16 | 12.49 | 71.616 | 107.202 | 149.905 | 948 |
| 19/3.18 | 5/8 | 15.88 | 80.513 | 124.995 | 178.819 | 1184 |
| 19/3.81 | 3/4 | 19.05 | 116.543 | 181.487 | 259.331 | 1719 |
| 19/4.50 | 7/8 | 22.22 | 159.691 | 248.211 | 354.523 | 2352 |
3. Application

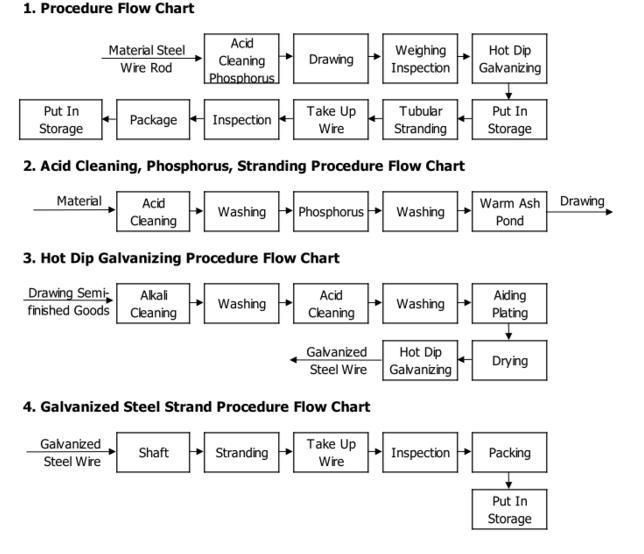

Used as overhead ground wire or static wire on transmission lines, as pole or structure guy wires, and as messenger cable, fields and pastures division, animal containment. 4.Production process:

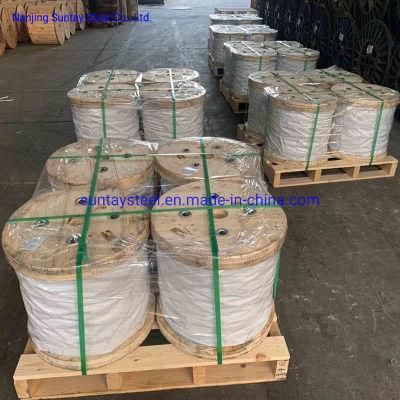

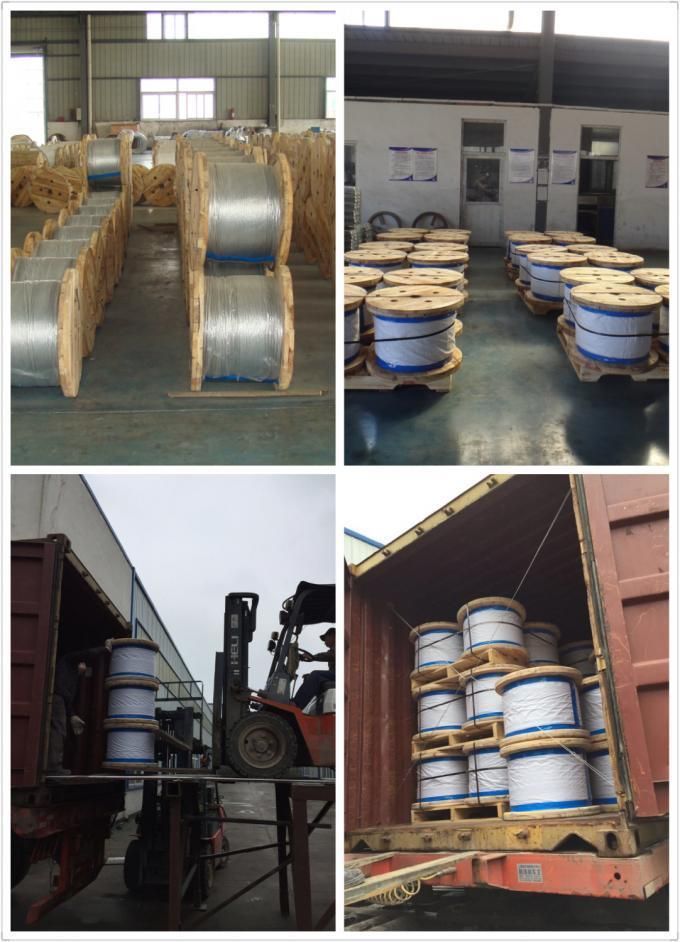

5.Packing&Loading:
Trade Terms:Min Order Qty: 1FCL / 25TDelivery Time: 10-15 daysPrice Terms: FOB CFR CIFPayment Terms: TT / LCFAQ
Q:If found the product with substardard quality.How can you solve it?
A:The buyer will be required to submit proof file,picture,ideo of the said substandard cargo send to us first. We can also send our engineer to your filed to check it directly,if need any.
Q:If sample available?
A:Yes,we can offer sample free of charge.But the express freight should be on buyer's account.
Q:If I order big quantity,what's the good price?
A:Please send the details enquiry to us ,such as the Item Number,Quantity for each item, Quality request,Logo,Payment Terms,Transport method,Discharge place etc.We will make the accurate quotation to you as soon as possible.
If you are interested in our products, pls feel free to tell me the diameter or nominal section area or the nick name to me. Then,I will send our best quotation to you.
