Hot Rolled High Strength Ar450 Xar550 Wear Resistant Steel Plate
Qingdao Hengcheng Steel Co., Ltd.- Certification：ISO, RoHS, IBR
- Standard：ASTM, AISI, GB, JIS, DIN, BS
- Type：Steel Plate
- Warranty：According to The Agreement
- After-sales Service：According to The Agreement
- Surface Treatment：Hot Rolled, Quenched, Tempered, Normalizing
Base Info
- Trade Term：Fob,CIF,CFR,EXW
- HS：7208370000
- MOQ：10 Tons
- Treatment：Hot Rolled, Quenched, Tempered, Normalizing
- Test：BV,SGS---Mtc
- Delivery Time：5-7 Days.
- Payment：T,T, L,C at Sight.
- Package：Useing Brown Paper, Cloth, etc
- Surface：Q+T
- Length：1-12m, as You Request
- Width：1000-3000mm
- Thickness：2-300mm

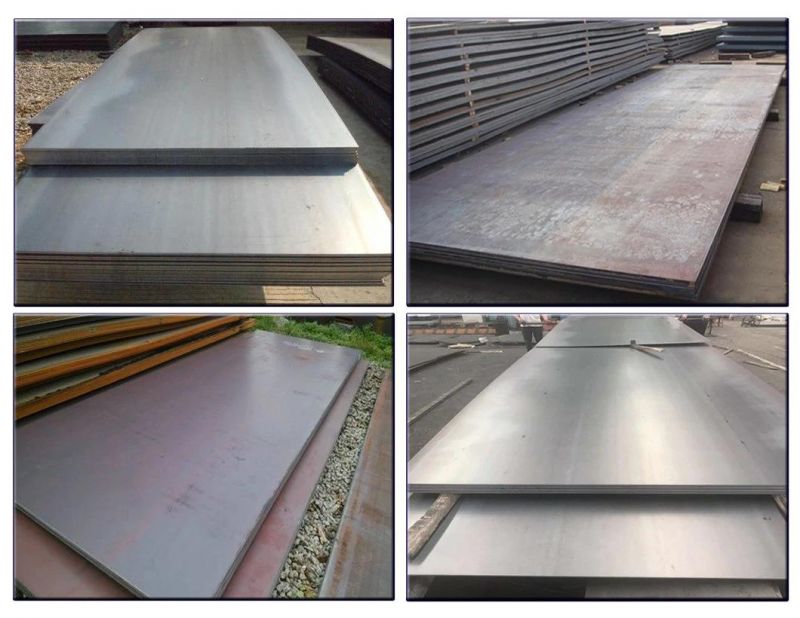

- Name：Ar450 Xar550 Wear Resistant Steel Plate
- Stock：Stock
- Special Use：High-strength Steel Plate
- Application：Ship Plate, Boiler Plate, Container Plate, Flange Plate
- Technique：Hot Rolled
- Model NO.：Ar450 Xar550 Wear Resistant Steel Plate
- Country：China
- Use：Buildings, Bridges, Ships etc.
- Transport Package：Standard Export Package
- Specification：width: 1000-3000mm
- Trademark：Hengcheng steel
- Origin：Shandong, China
- HS Code：7208370000
- Production Capacity：25000 Tons,Year
Description
Overview
Wear Resistant Steel Plate Specification
Standard
Grade DIN: XAR300,XAR400, XAR450, XAR500, XAR600, DILLIDUR400V,DILLIDUR450V,DILLIDUR500V; X120Mn12; 1.3401;
SSAB:400,450,500,550,600;WELDOX700,WELDOX900,WELDOX960;
NF: FORA400,FORA500,Creusabro4800,Creusabro8000;
EN: QUARD400,QUARD450,QUARD500 ; RAEX320,RAEX400,RAEX450,RAEX500;
DUrostat400,DUrostat450,DUrostat500;
JIS: WEL-HARD400, WEL-HARD500; SUMIHARD-K340,SUMIHARD-K400,SUMIHARD-K500
GB: NM360,NM400,M450,NM500,NM550,NM600,NR360,NR400,B-HARD360,B-HARD400,B-HARD450,KN-55,KN-60,KN-63. Thickness 2-300mm (2-100mm usually used) Width 1000-3000mm (1000-2200mm usually used) Length 1000-12000mm or as your request Surface Clean, finishing,blasting and painting according to customer requirement Delivery
States Hot-rolled, Controlled rolling, Normalizing, Annealing, Tempering,

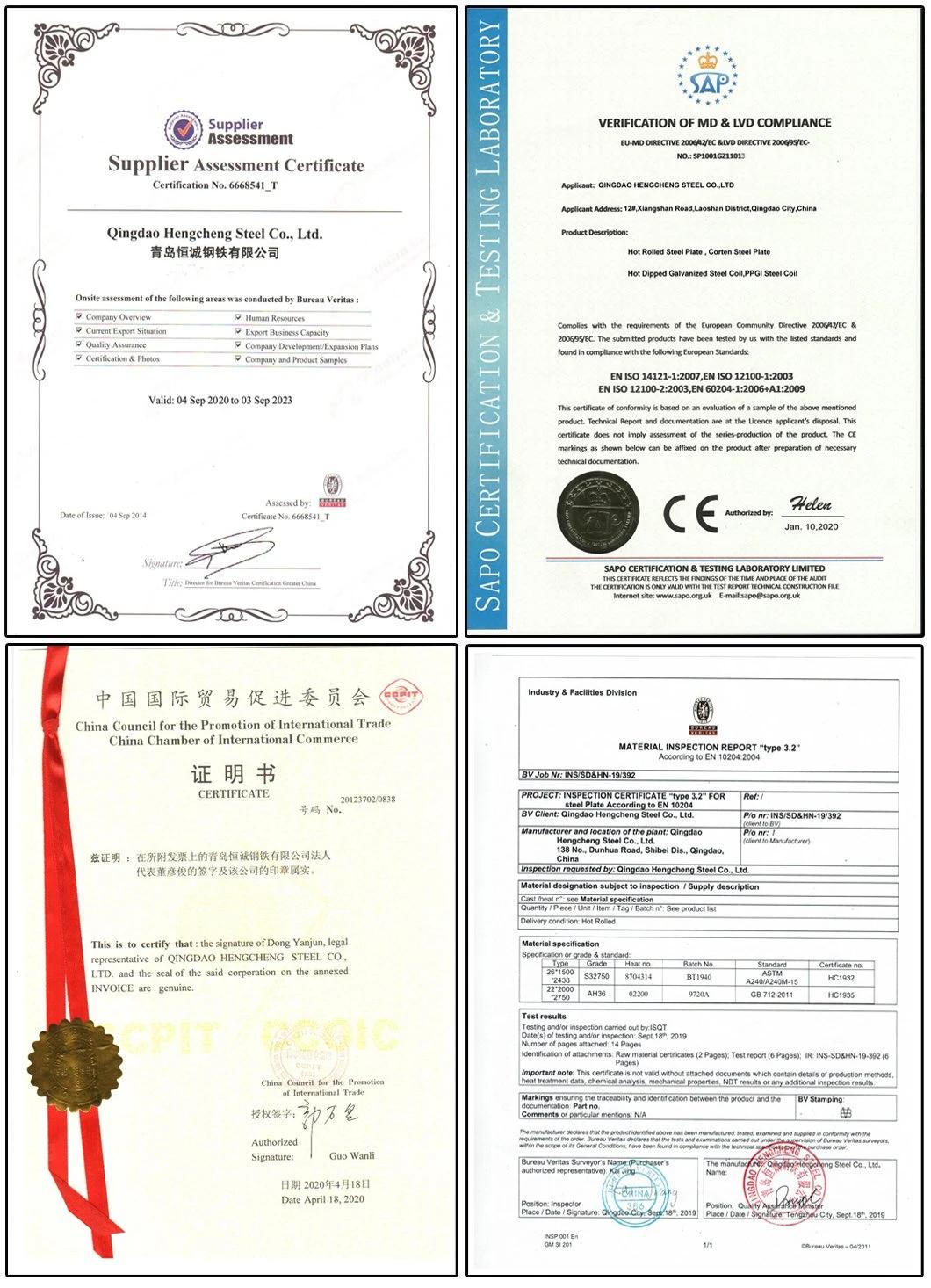

Quenching, N+T, Q+T,and other delivery states are available as required Certificate API,ISO,SGS,BV,CE etc Quality MTC will be provided with goods, third part inspection is acceptable, for example

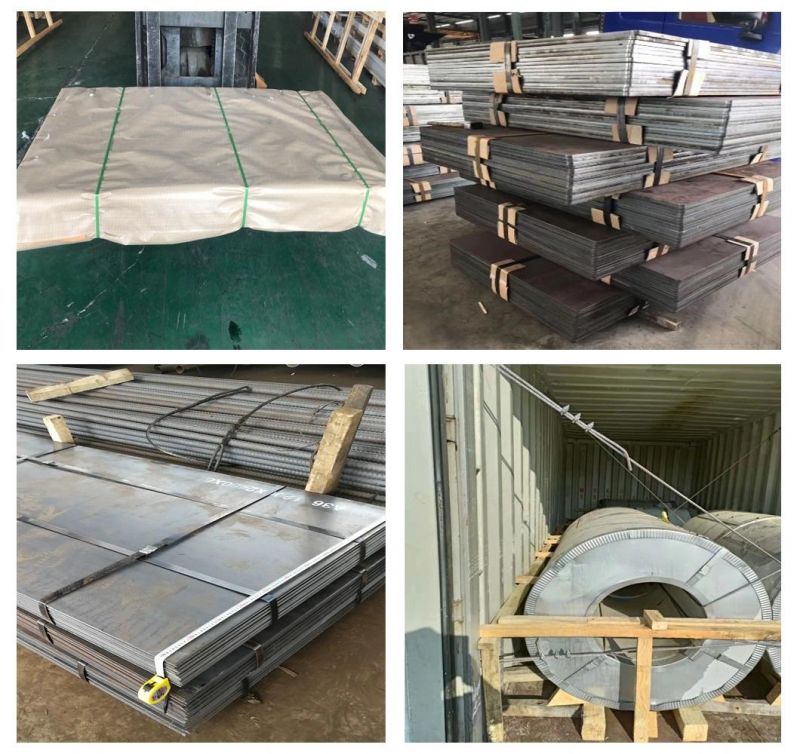

BV,SGS. Package Standard export seaworthy package,suit for all kinds of transport,
or as required. Container
Size
20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) Trade term Ex-Work,FOB,CNF,CFR,CIF,etc Application Widely used in a variety of architectural and engineering structures,such as
1.) metal constructions such as buildings,bridges,ships;
2.) transmission tower, reaction tower;
3.) lifting transportation machinery;
4.) industrial furnace;boilers
5.) container frame, warehouse goods shelves, etc
Wear Resistant Steel Plate Chemical Composition and Mechanical Properties Chemical Composition(Max) Material C Si Mn P S Cr Ni Mo Ti Bt Als CEV NM300 0.23 0.70 1.60 0.025 0.015 0.70 0.50 0.40 0.050 0.0005-0.0006 0.010 0.45 NM360 0.25 0.70 1.60 0.025 0.015 0.80 0.50 0.50 0.050 0.0005-0.0006 0.010 0.48 NM400 0.30 0.70 1.60 0.025 0.010 1.00 0.70 0.50 0.050 0.0005-0.0006 0.010 0.55 NM450 0.35 0.70 1.70 0.025 0.010 1.10 0.80 0.55 0.050 0.0005-0.0006 0.010 0.60 NM500 0.38 0.70 1.70 0.020 0.010 1.20 1.00 0.65 0.050 0.0005-0.0006 0.010 0.65 NM550 0.38 0.70 1.70 0.020 0.010 1.20 1.00 0.70 0.050 0.0005-0.0006 0.010 0.72 NM600 0.38 0.70 1.90 0.020 0.010 1.50 1.00 0.70 0.050 0.0005-0.0006 0.010 0.76 Material Tensile MPA Elongation % Impact energy -20ºC HBW NM300 ≥1000 ≥14 ≥24 270-300 NM360 ≥1100 ≥12 ≥24 330-390 NM400 ≥1200 ≥10 ≥24 370-430 NM450 ≥1250 ≥7 ≥24 420-480 NM500 ≥1250 ≥7 ≥24 ≥470 NM550 ≥1250 ≥7 ≥24 ≥530 NM600 ≥1250 ≥7 ≥24 ≥570 Grade C Si Mn P S Cr Mo Cu Ni B XAR400 0.20 0.80 1.50 0.025 0.010 1.00 0.50 -- -- 0.005 XAR450 0.22 0.80 1.50 0.025 0.012 1.30 0.50 0.30 -- 0.005
XAR500 0.28 0.80 1.50 0.025 0.010 1.00 0.50 -- -- 0.005
XAR600 0.40 0.80 1.50 0.025 0.010 1.50 0.50 -- 1.50 0.005 Grade Yield Strength
Reh MPa Tensile Strength
Rm MPa Elongation BH
(Brinell Hardness) XAR400 1150 1300 ≥12 360-440 XAR450 1200 1350 ≥10 410-490 XAR500 1500 1600 ≥9 450-530 XAR600 -- -- -- ≥550 Material C Si Mn P S Cr Mn13 1.1~1.3 0.3~0.5 12~13 ≤0.100 ≤0.040 ≤1.5 X120Mn12 1.1~1.3 0.3~0.5 12~13 ≤0.100 ≤0.040 ≤1.5 1.3401 1.1~1.3 0.3~0.5 12~13 ≤0.100 ≤0.040
≤1.5 SCMnH11 0.9~1.5 0.3~1.0 10~15 ≤0.100 ≤0.050 ≤1.5 ASTM A128 1.1~1.3 0.3~0.5 12~13 ≤0.100 ≤0.050 ≤1.5
