• Package Materials：Waterproof Paper, Plastic Paper, Steel
• Delivery Time：15-25 Days
• Loading Type：Vertical or Horizon
• Anti-Finger Color：Transparent, Gold, Green, Blue
• Tolerance：T:+,-0.02mm, W:+,-2mm
• Quality Standard：En10142,En10346,En10169,JIS3302
• Weight：1-8mt, Usually 2-4mt
• Grade：SGCC, Sgcd, Dx51d+Z, S220gd+Z
• Surface：Chromated, Oiled, Anti-Finger
• Base Materials：Cold Steel Coil
• Coil ID：508mm,610mm
• Width：10-600mm 600-1250mm
• Thickness：0.14-1.2
• Zinc Coating：60-275G,M2
• Spangle：Zero, Small, Regular, Minimized
• Stock：Stock
• Edge：Slit edge
• Application：Boiler Plate
• Model NO.：0.14-1.2*10-1250mm
• Transport Package：Standard Export Seaworthy Packing
• Specification：0.14-1.2*10-1250
• Trademark：CUS-STEEL
• Origin：Zhengzhou China (Mainland)
• HS Code：72106100
• Production Capacity：300000mt Per Year

Basic Info.

Model NO. 0.14-1.2*10-1250mm Application Boiler Plate Edge Slit edge Stock Stock Spangle Zero, Small, Regular, Minimized Zinc Coating 60-275G/M2 Thickness 0.14-1.2 Width 10-600mm 600-1250mm Coil ID 508mm/610mm Base Materials Cold Steel Coil Surface Chromated, Oiled, Anti-Finger Grade SGCC, Sgcd, Dx51d+Z, S220gd+Z Weight 1-8mt, Usually 2-4mt Quality Standard En10142/En10346/En10169/JIS3302 Tolerance T:+/-0.02mm, W:+/-2mm Anti-Finger Color Transparent, Gold, Green, Blue Loading Type Vertical or Horizon Delivery Time 15-25 Days Package Materials Waterproof Paper, Plastic Paper, Steel Transport Package Standard Export Seaworthy Packing Specification 0.14-1.2*10-1250 Trademark CUS-STEEL Origin Zhengzhou China (Mainland) HS Code 72106100 Production Capacity 300000mt Per Year

Product Description

1.Description

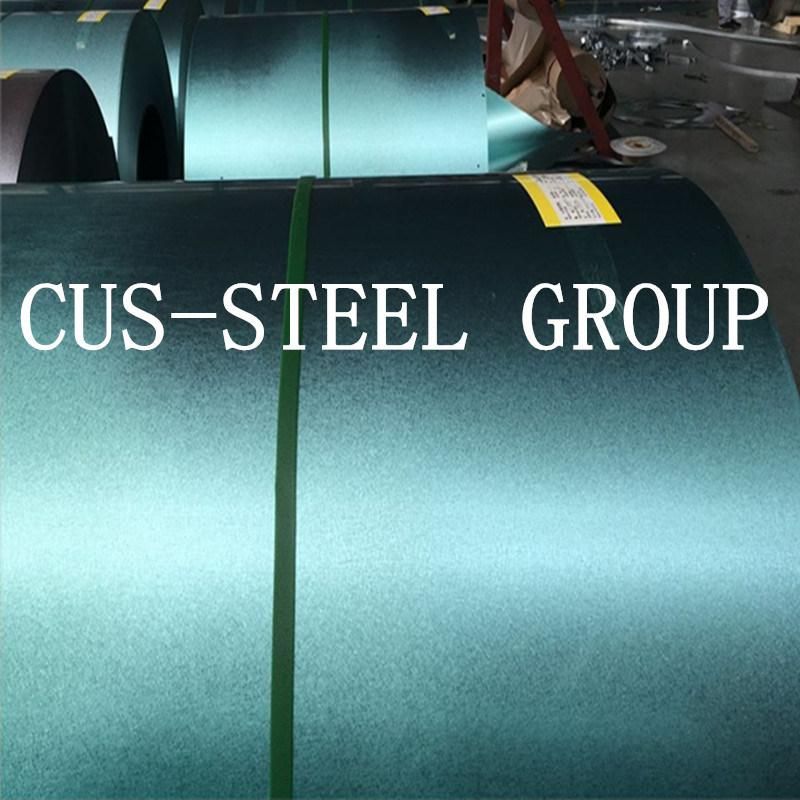

Aluzinc steel coil is a kind of coated steel coil/sheet. With the cold rolled steel of different strength and thickness as substrate, it is
produced through applying Al-Zn coat on both facesby hot dip process. In its coating, Al accounts for about 55%, Si 1.6%, while the
remaining is Zn


2.Main usage scope
1) Architecture roofs and outside walls of industrial buildings,garage,fencings and window blinds
2) Appliances industry outer clad sheet for washing machine,refrigerator,television,air conditioner and ventilation system, explosion-
proof strip, solar water heater and appliance parts
3) Auto industry muffler,heat shields of exhaust pipe and catalytic converter,auto parts&accessories
4) Industrial instruments electric control cabinet, industrial refrigeration equipment


3. Features
1) Formable, weldable and paintable
2) Superior long term corrosion resistance in the most atmospheric conditions. This is achieved through the combination of the sacrificial
protection of the zinc and barrier protection of aluminum
3) Hot dip galvalume coating out-perform galvanized coating from 2-6 times than galvanized steel
4) Well preserved zinc prevents the risk of red rust on the surface, a weakness of aluminum,and the product combines the strengths of both materials


4. Packing
1) Each aluzinc steel coil tube wrapped by plastic film and waterproof paper, one steel strip strapping on the coil circumference
2) 3 - 5 coils tube packed eye vertical on wood pallet, and strongly strapped by edge protection,and at least 4 steel straps through coil eye
3) Coil tube packed eye to sky on wood pallet



Product	Galvalume /Zincalum Steel Coil
Material Grade	SGCC / SGCH  / DX51D+AZ, etc
Thickness	0.14-1.2mm
Width	10-1250mm
Tolerance	Thickness: +/-0.02mm , Width:+/-2mm
Zinc-coating	AZ40-275g/m2
Technique	Raw material: Hot rolled steel coil --> Cold rolled_>hot dipped galvalume
Surface	Dried, Chromated, Unoiled
Spangle	Regular spangle , small spangle, zero spangle
ID	508MM
Coil weight	3-6 tons
Export package	Cardboard inner sleeves, Waterproof paper, galvanized steel covered and steel strip packed
