• Grade：SGCC, Sgcd, Dx51d+Z, S220gd+Z
• Weight：1-8mt, Usually 3-5mt
• Paint Guarantee：10-30 Years
• Loading Type：Vertical or Horizontal
• Paint：Nippon,Akzonobel
• Quality Standard：En10142,En10346,En10169,JIS3302
• Coating Structure：2,2 2,1
• Paint Type：PE, PVDF, HDP, SMP
• Back Paint Layer：7-12 Micron
• Top Paint Layer：18-25 Micron
• Coil ID：508mm,610mm
• Width：20-600mm 600-1500mm
• Thickness：0.13-1.0mm
• Zinc Coating：60-275G,M2

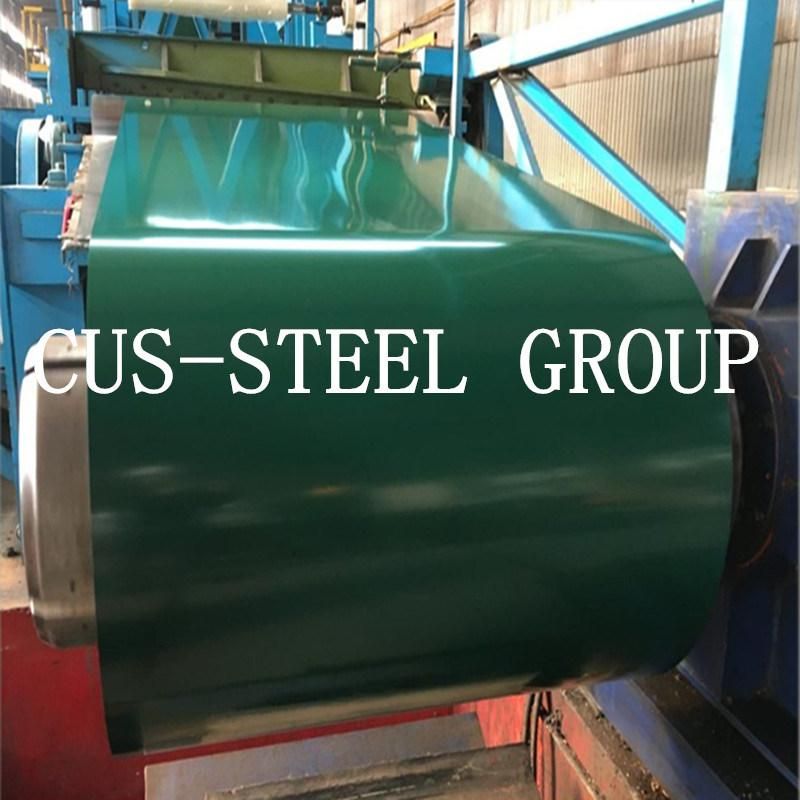

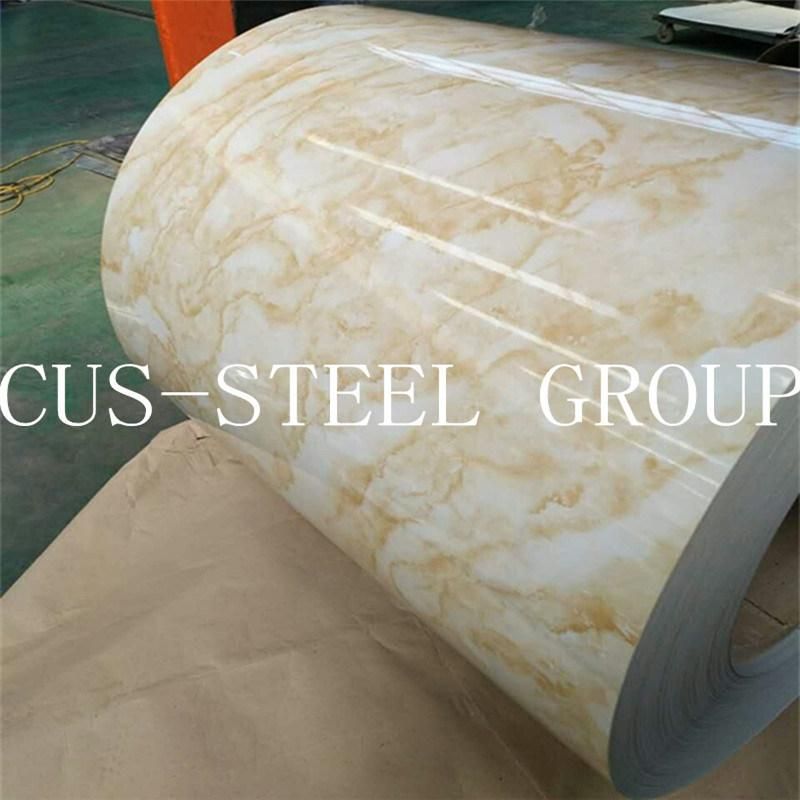

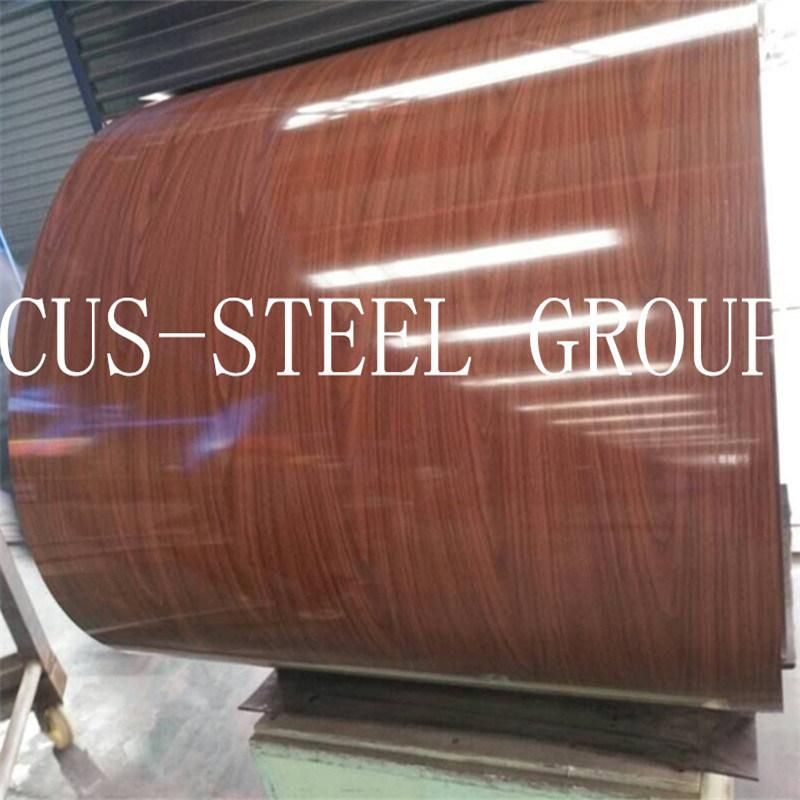

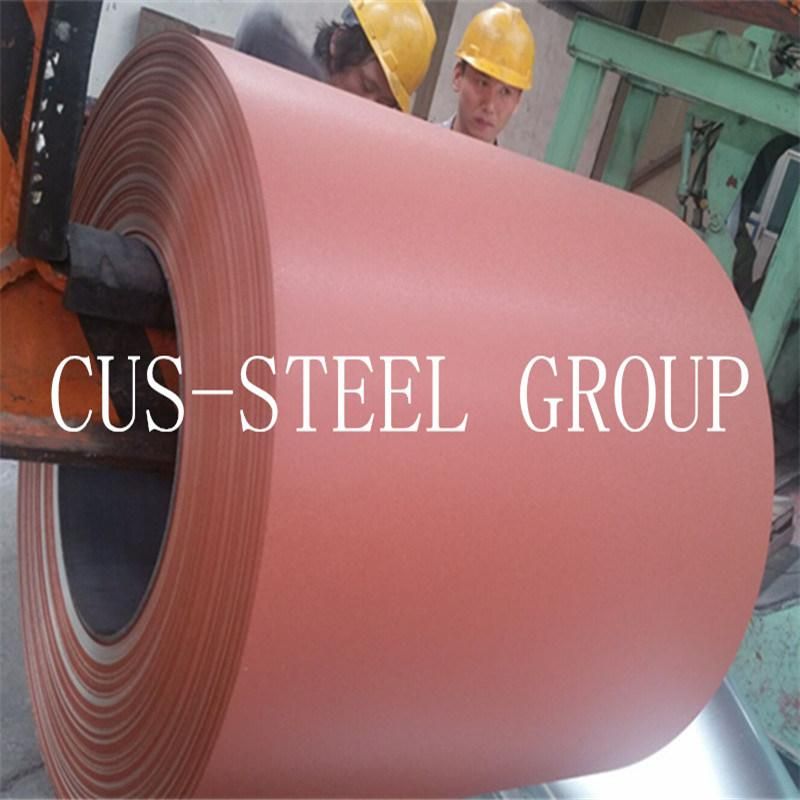

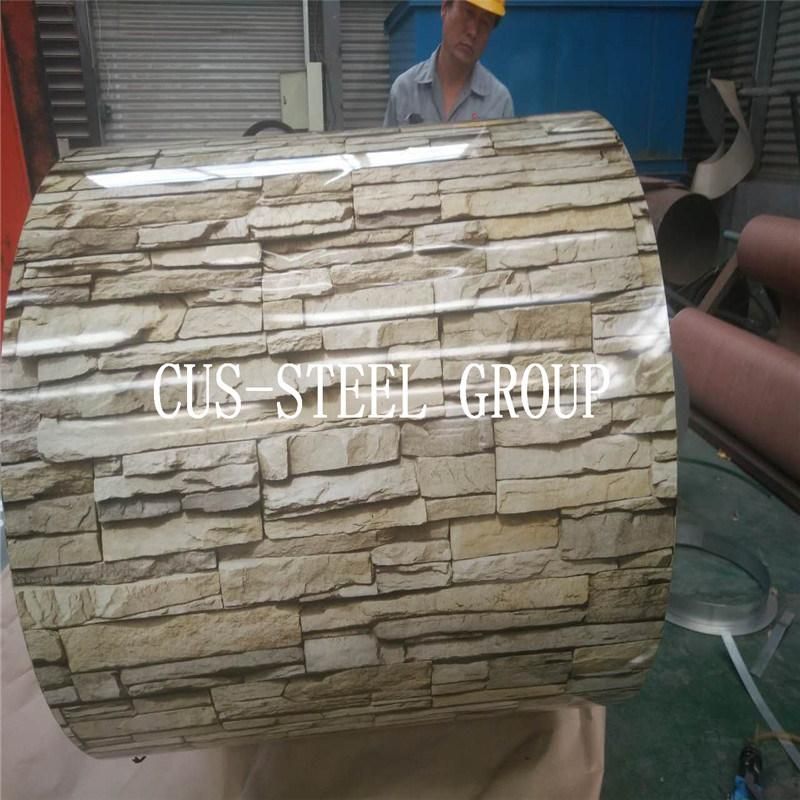

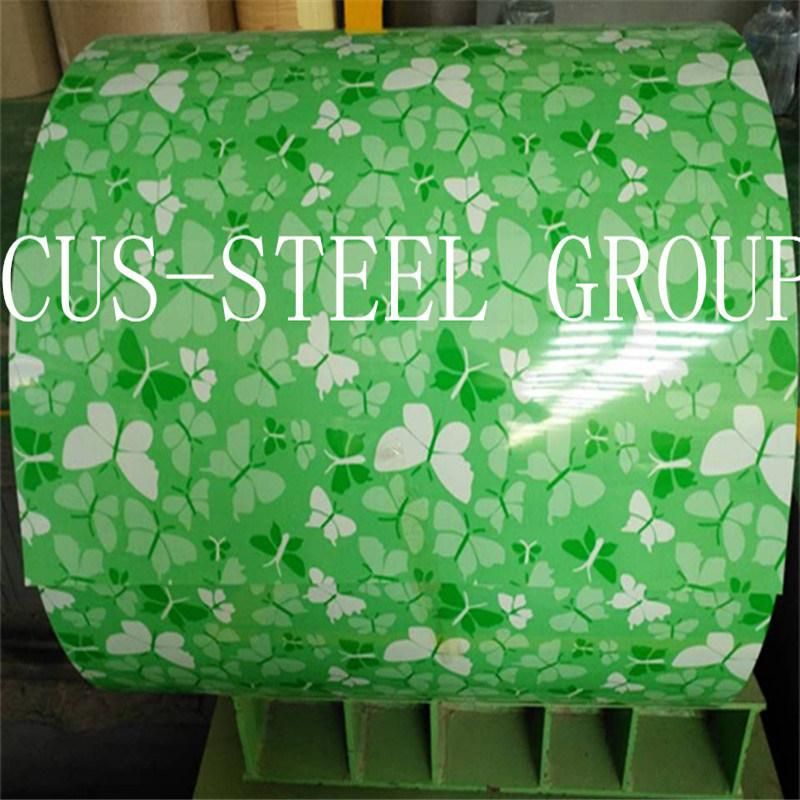

• Color：Ral Color,Printed,Filmed,Pressed,Matte
• Stock：Stock
• Edge：Mill
• Application：Boiler Plate
• Model NO.：0.12-0.8*10-1250mm
• Transport Package：Standard Export Seaworthy Packing
• Specification：0.13-0.8*13-1500
• Trademark：CUS-STEEL
• Origin：Zhengzhou China (Mainland)
• HS Code：72107010
• Production Capacity：300000mt Per Year

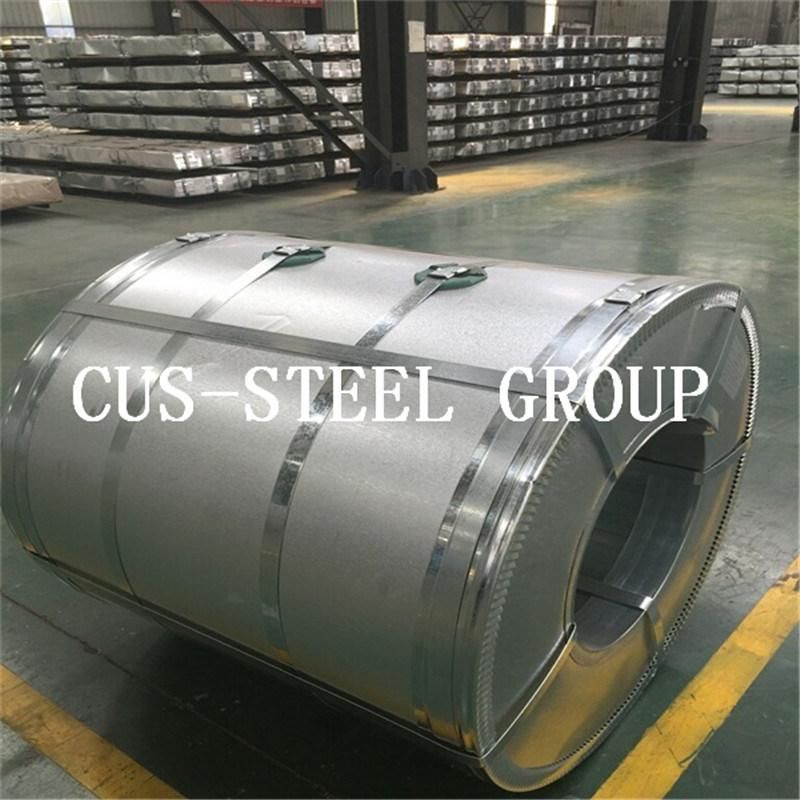

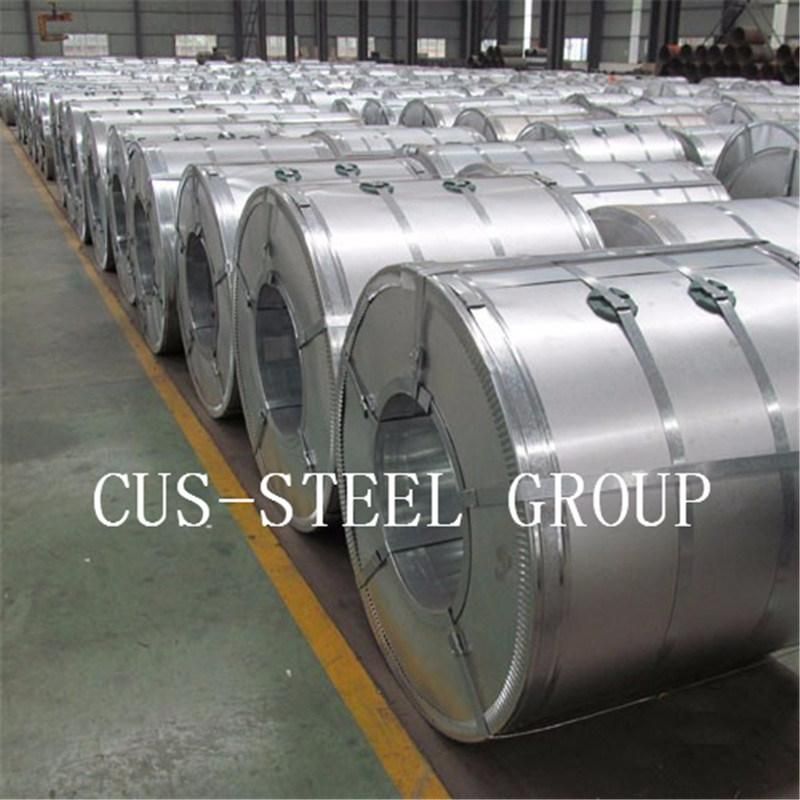

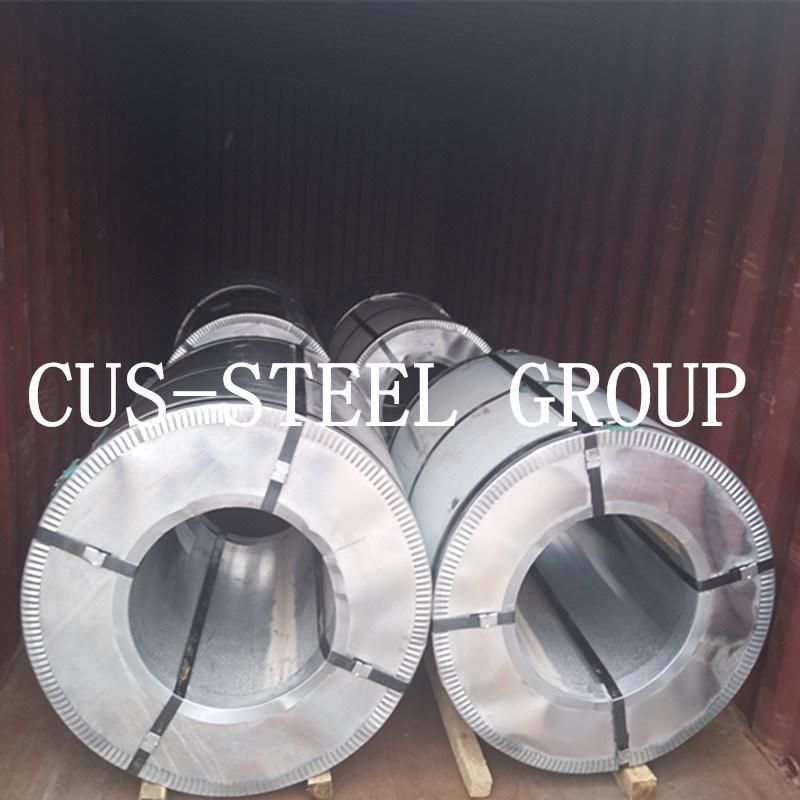

/Base Material Hot dip galvanized steel sheet(HDG) Hot dip AL-ZINC coated steel sheet(55% AL-ZN) Zinc-iron-alloy steel sheet( ZF)/Coating massZinc:60-275gm2    AL-ZN:60-220gm2/Thickness0.13-0.8mm/Tolerance of  thickness-0.03-+0.01mm/Width600-1250mm/ID610mm,508mm/Quality StandardEN10142,EN10326,EN10169,JIS3302,ASTMA755M,GB/T12754/Steel GradesDX51D,DX52D,DX53D,S220GD,S250GD,SGCC/Type of coatingPE,PVDF,HDP,SMP/Coating structure
(Top surface/bottom surface)2/2 (Double coated/ double coated)2/1 ( Double coated/ single coated)(Top Paint Layer)20-25μm  (Back Paint Layer)7-12μm/ Glossiness35-65 ±5°/ Weight of coil3-5 ton/ Package Method(Vertical packing)  ( Horizontal packing)
