• Specification：OD6MM-700MM
• Wt：0.5-45mm
• Length：0.5-20meters
• Production：1500ons,Year
• Transport Package：Galvanized Steel Strip&Wooden Case in Bundle,
• Section Shape：Round
• Usage：Boiler Pipe, Hydraulic,Automobile Pipe, Food,Beverage,Dairy Products, Machinery Industry, Chemical Industry, Mining, Construction & Decoration, Special Purpose, Nuclear Industry
• Model NO.：Inconel 625, 600, 601, 718, 750, 690 Incoloy 800,
• Trademark：OEM,TJTC
• Origin：Shanghai,Jiangsu,Zhejiang,Anhui
• HS Code：75071200
• Production Capacity：1500tons

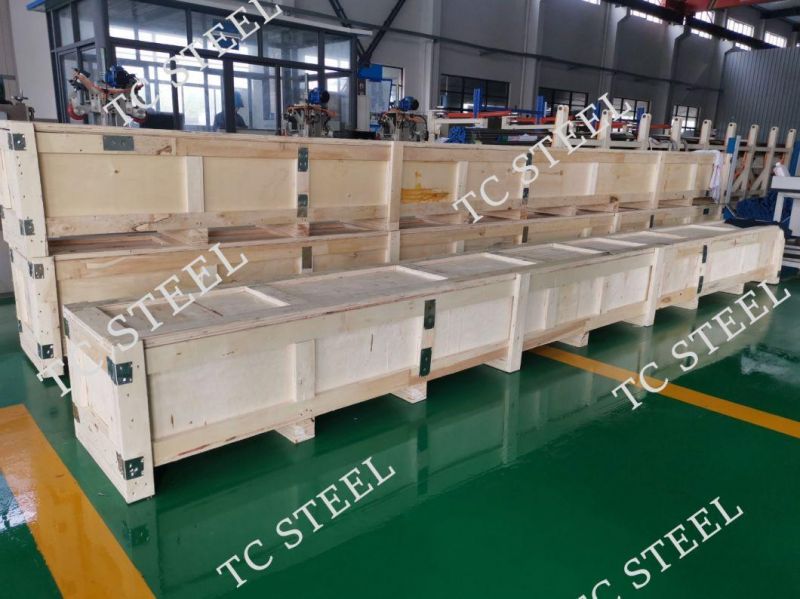

NameNickel Alloy Seamless TubeStandardASTM B622, ASTM B167, ASTM B163, ASTM B444CertificationIOS9001:2015, PEDOuter diameter6.0-609.6mmWall thickness0.5-45mmMaterialHastelloy B-2, C-276, C-22, C-4, G-3, G-30, G-35; Inconel 625, 600, 601, 718, 750, 690 Incoloy 800, 825, 840, 901, 925;                Monel 400, K-500; Haynes 556 (The product names are the registered trademarks of their respective owners. The enumeration here is only to show that the product specifications meet the requirements of relevant standards.)Delivery timeWithin 35 days after receiving depositPayment termT/T,L/CSupply ability3000tons per yearPackingExport standard package with polywood case or ISPM 15 stamped wooden caseInformationBeside the normal executive syandard.we could alse make the tubes according to your own requirements,such as wall thickness tolerance,hardness,surface requirements and etc.by different technical requirements and production technology,try our best to satisfied your.

DIN/EN

UNS No

International name

Component

1

2.4060

N02000

Nickl200

99Ni-0.15Fe-0.2Mn-0.1Si-0.1Cu-0.1C

2

2.4601

N02201

Nickl201

99Ni-0.15Fe-0.2Mn-0.1Si-0.1Cu-0.01C

3

2.4050

N02270

Nickl270

99.9Ni-0.02Fe-0.001Mn-0.002Si-0.005Cu-0.01C

4

1.4980

S66286

INCOLOY Alloy A286

25Ni-15Cr-1.5Mo-2Ti-1Mg-0.03C

5



N08367

INCOLOY Alloy 25-6HN

25Ni-20Cr-6.3MO-0.25Cu-0.2N-0.01P-0.05S-0.01C

6

1.4529

N08926

INCOLOY Alloy 25-6Mo

25Ni-20Cr-6.5Mo-1Cu-0.2N-1.0Mg-0.01P-0.005S-0.01C

7

2.4460

N08020

INCOLOY Alloy 20

36Ni-21Cr-3.5Cu2.5Mo-1Mn-0.01C

8

1.4563

N08028

INCOLOY Alloy 28

32Ni-27Cr-3.5Mo-1Cu-0.01C

9

1.4886

N08330

INCOLOY Alloy 330

35Ni-18Cr-2Mg-1SI-0.03C

10

1.4876

N08800

INCOLOY Alloy 800

32Ni-21Cr-0.3~1.2(Al+Ti)0.02C

11

1.4876

N08810

INCOLOY Alloy 800H

32Ni-21Cr-0.3~1.2(Al+Ti)0.08C

12

2.4858

N08825

INCOLOY Alloy 825

42Ni-21Cr-3Mo-2Cu-0.8Ti-0.1AI-0.02C

13

2.4816

N06600

Inconel Alloy 600

72Ni-151Cr-8Fr-0.2Cu-0.02C

14

2.4851

N06601

Inconel Alloy 601

60Ni-22Cr-1.2Al-0.02C

15

2.4856

N06625

Inconel Alloy 625

58Ni-21Cr-9Mo-3.5Nb-1CO-0.02C

16

2.4856

N06626

Inconel Alloy 625LCF

58Ni-21Cr-9Mo-3.5Nb-1CO-0.02C

17

2.4606

N06686

Inconel Alloy 686

57Ni-21Cr-16Mo-4W-0.01C

18

2.4642

N06690

Inconel Alloy 690

58Ni-30Cr-9Fe-0.2Cu-0.02C

19

2.4668

N07718

Inconel Alloy 718

52Ni-19Cr-5Nb-3Mo-1Ti-0.6Al-0.02C

20

2.4669

N07750

Inconel Alloy 750

70Ni-15Cr-6Fe-2.5Ti-0.06Al-1Nb-0.02C

21

2.4360

N04400

MONEL 400

63Ni-32Cu-1Fe-0.1C

22

2.4375

N05500

MONEL K-500

63Ni-30Cr-1Fe-3Al-0.6Ti-0.1C

23

2.4819

N10276

Hastelloy C-276

57Ni-16Mo-16Cr-5Fe-4W-2.5Co-1Mn-0.35V-0.08Si-0.01C

24

2.4610

N06455

Hastelloy C-4

65Ni-16Cr-16Mo-0.7Ti-3Fe-2Co-1Mn-0.08Si-0.01C

25

2.4602

N06022

Hastelloy C-22

56Ni-22Cr-13Mo-3Fe-2.5Co-0.5Mn-0.35V-0.08Si-0.01C

26

2.4675

N06200

Hastelloy C-2000

59Ni-23Cr-16Mo-1.6Cu-0.08Si-0.01C

27

2.4665

N06002

Hastelloy X

47Ni-22Cr-18Fe-9Mo-1.5Co-0.6W-0.1C-1mn-1Si-0.008B

28

2.4617

N10665

Hastelloy B-2

69Ni-28Mo-0.5Cr-1.8Fe-3W-1.0Co-1.0Mn-0.01C

29

2.4660

N10675

Hastelloy B-3

65Ni-28.5Mo-1.5Cr-1.5Fe-3W-3Co-3Mn-0.01C

30



N06030

Hastelloy G-30

43Ni-30Cr-15Fe-5.5Mo-2.5W-5Co-2Cu-1.5Mn-0.03C

31



N06035

Hastelloy G-35

58Ni-33Cr-8Mo-2Fe-0.6Si-0.3Cu-0.03C

32

1.4562

N08031

Nicrofer hMo31

31Ni-27Cr-6.5Mo-1.2Cu-2mn-0.01C

33

2.4605

N06059

Nicrofer hMo59

59Ni-23Cr-16Mo-1.0Fe-0.01C

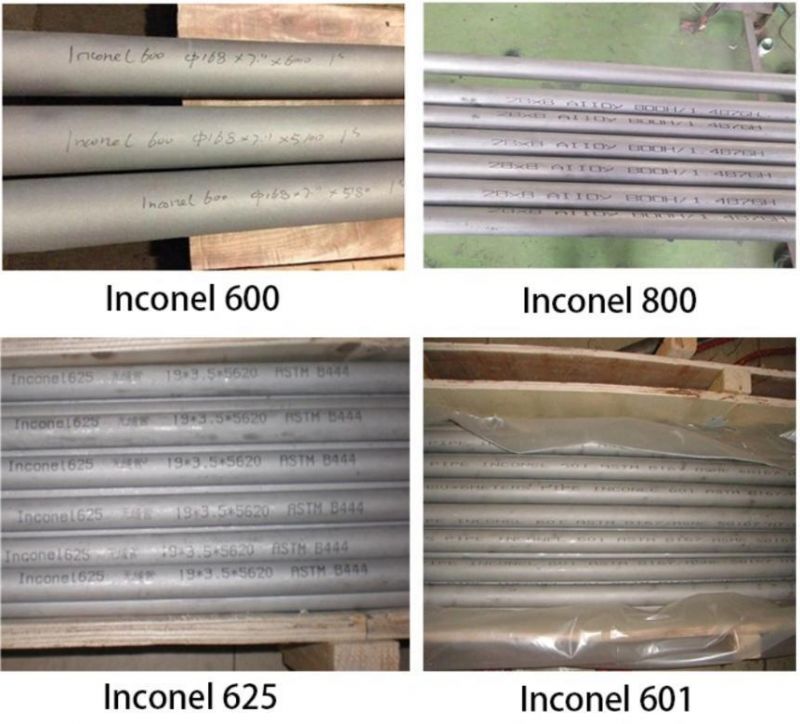

2. Some Alloy Seamless Pipes Showcase

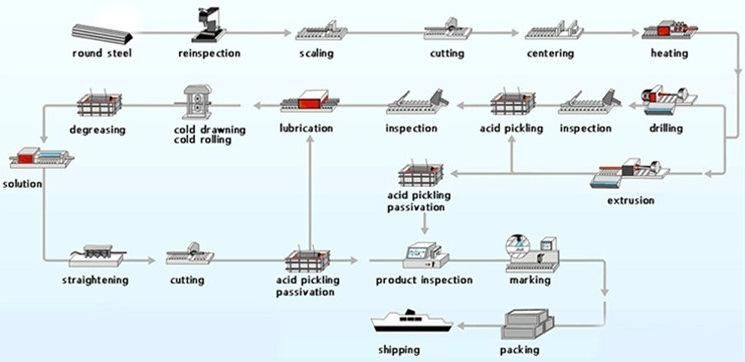

3. Seamless Steel Pipe Process

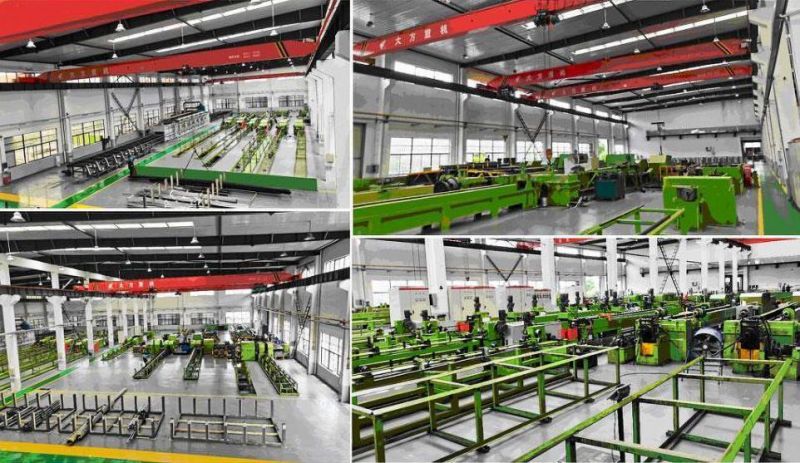

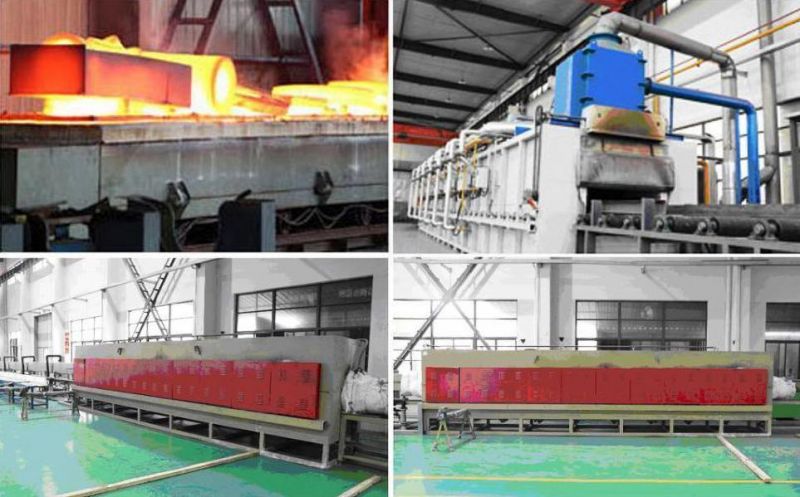

4.Seamless Pipe Production Facility

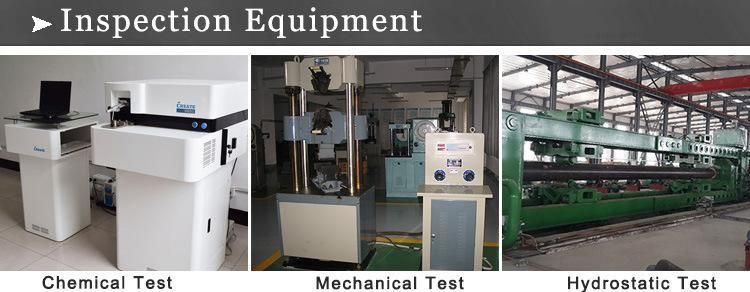

5. Seamless Pipe Inspection Equipment
