• Trademark：east conduit
• Specification：1,2"-4"
• Transport Package：Bundle
• Origin：China
• HS Code：73063090

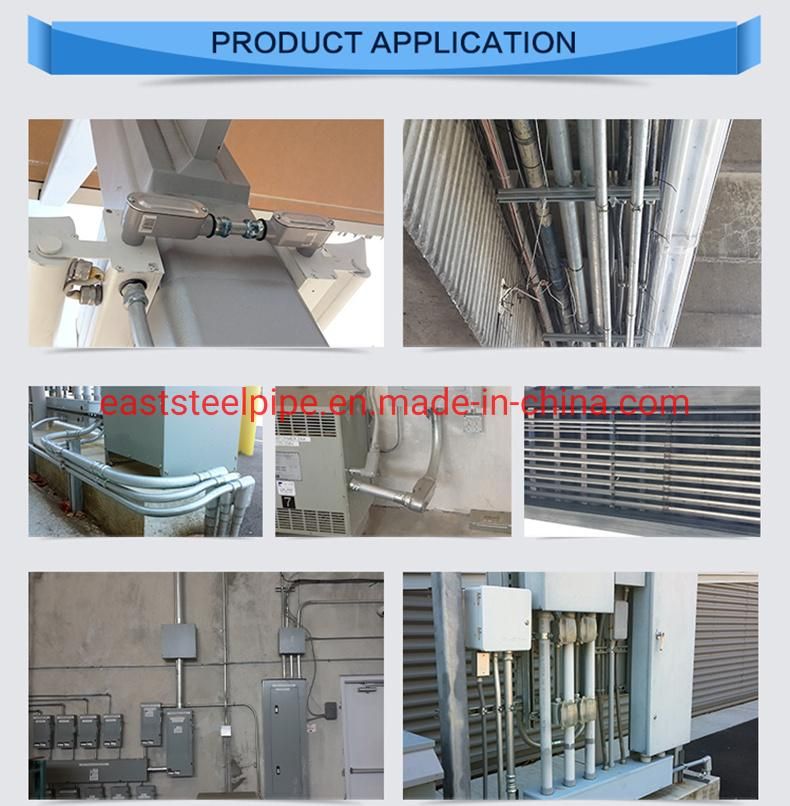

Product InformationStandard:UL6 & ANSI C80.1; File No.:E308290;Tade Size :from 1/2" to 6";Both Ends:threaded both ends with one coupling and plastic cap;Length:3050mm or according to customer's requirement;Usage:through the electrical wires with the purpose of protection for the electrical raceway system;Surface Finished:Hot dip galvanized(HDG);Material :carbon steel coil;Package:the conduits coverd with pvc paper then tied with steel straps;Delivery Time:20 to 30 days after we receive your advance payment or copy of L/C;Payment Term:L/C at sight or T/T;

Nominal Wt. per 100Ft(30.5M)Nominal Outside DiameterNominal Wall ThicknessU.S.MetricLbsKgIn.mmIn.mm1/2"168237.20.8421.30.1042.63/4"2110949.441.0526.70.1072.71"2716173.031.31533.40.1263.21-1/4"3521898.881.6642.20.1333.41-1/2"41263119.31.948.30.1383.52"53350158.762.37560.30.1463.72-1/2"63559253.562.875730.1934.93"78727329.773.588.90.2055.23-1/2"91880399.174101.60.2155.54"1031030467.214.5114.30.2255.75"1291400635.045.563141.30.2456.26"1551840834.626.625168.30.2666.8



Applicable tolerances:

Length: 10Ft (3.05m) ± ¼" (±6.35mm).

Outside Diameter: ½"-2" ±0.015" (±0.38mm); 2½"-4" ±0.025" (±0.64mm); 5"-6" ± 1%
