• Trademark：Xinyong
• Specification：As customer′s requirement
• Transport Package：Wooden Pallets
• Stock：Stock
• Edge：Mill
• Application：Container Plate
• Origin：China
• Production Capacity：5000tons,Month

Basic Info.

Application Container Plate Edge Mill Stock Stock Transport Package Wooden Pallets Specification As customer′s requirement Trademark Xinyong Origin China Production Capacity 5000tons/Month

Product Description




Product Name	Cold Rolled PE HDP SMP PVDF Coating Prepainted Zinc Galvalume Steel Sheet Price PPGL Hot DIP PPGI Ral Color Galvanized Steel Coil
Standard	AISI, ASTM, BS, DIN, GB, JIS
Painted Surface	Galvanized/Printed/Matte/Wrinkled/Embossed
Color	RAL Color Code or Customized
Thickness	0.12mm-1.2mm
Width	600mm-1250mm or Customized
Coil Weight	3 Tons -5 Tons
Coil ID	508mm / 610mm
Painting Coating	Top: 10 to 35 um (5 um + 12-20 um) Back: 7 +/- 2 um
Coating Types	PE/PVDF/HDP/SMP
MOQ	25 Tons(1 20ft FCL)

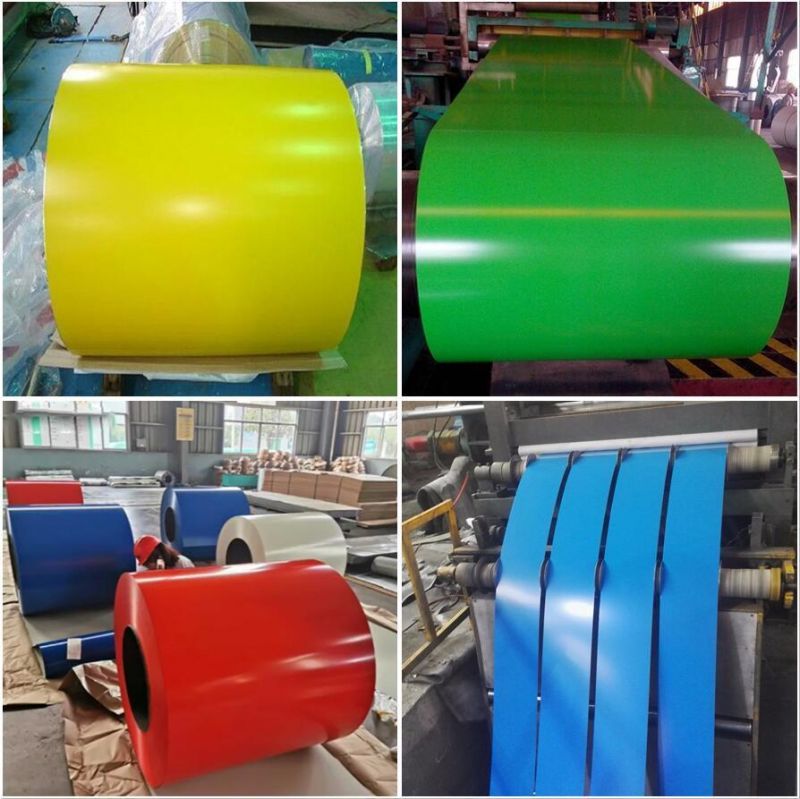

Introduction: Color-coated coils are based on hot-dip galvanized sheets, hot-dip galvalume sheets, electro-galvanized sheets, etc. After surface pretreatment (chemical degreasing and chemical conversion treatment), one or more layers of organic paint are applied to the surface, and then After baking and curing products. It is named after the colored steel coil coated with various organic coatings of different colors, referred to as color coated coil.

Coating type of pre-painted coil
Polyester (PE)
Good adhesion, rich colors, wide range in formability and outdoor durability, moderate chemical resistance, and low cost.
Silicon modified polyester
That is (SMP), the hardness of the coating film, abrasion resistance and heat resistance are good, as well as good external durability and chalking resistance, gloss retention, flexibility, and medium cost.
High durability polyester
Namely (HDP), excellent color retention and UV resistance, excellent outdoor durability and chalking resistance, good paint film adhesion, rich colors, and excellent cost performance.
Polyvinylidene fluoride
Namely (PVDF), excellent color retention and UV resistance, excellent outdoor durability and chalking resistance, excellent solvent resistance, good moldability, dirt resistance, limited color and high cost.

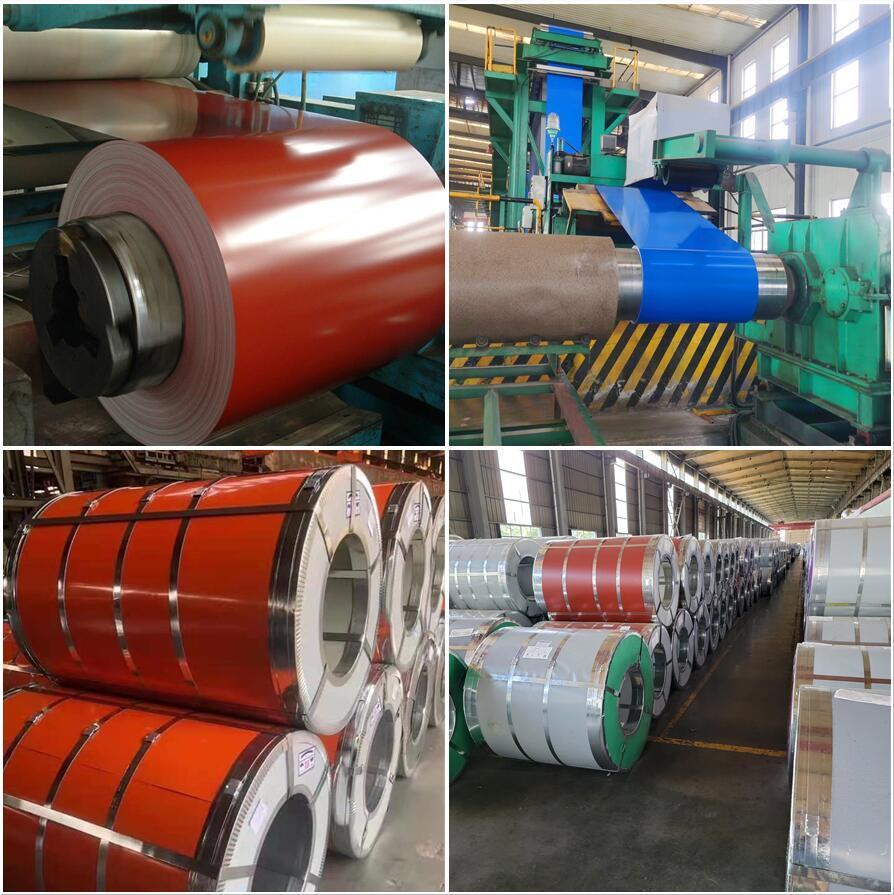

Products

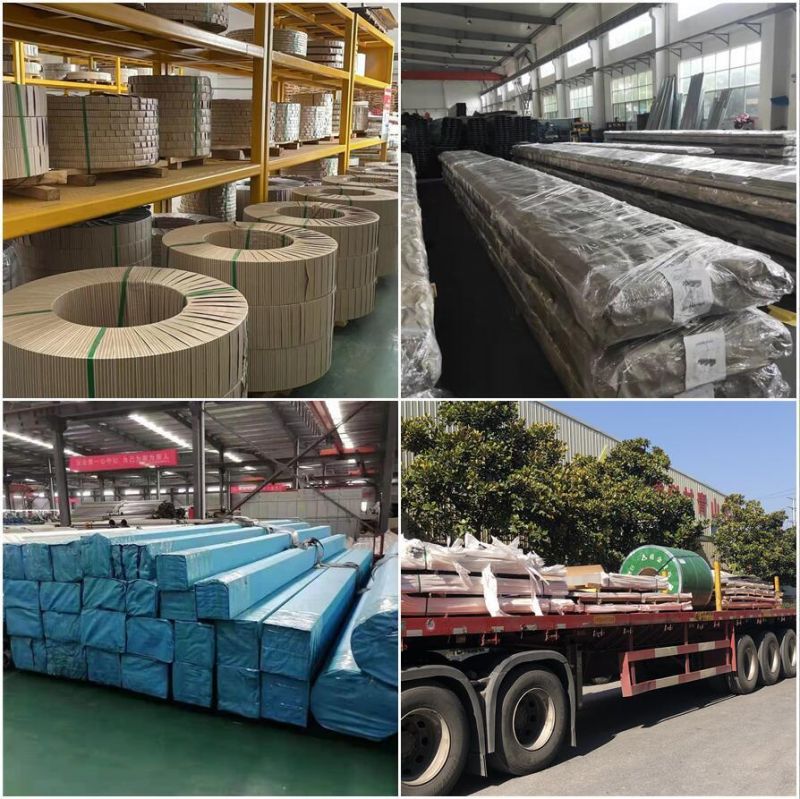

Factory


Certificates

Customer

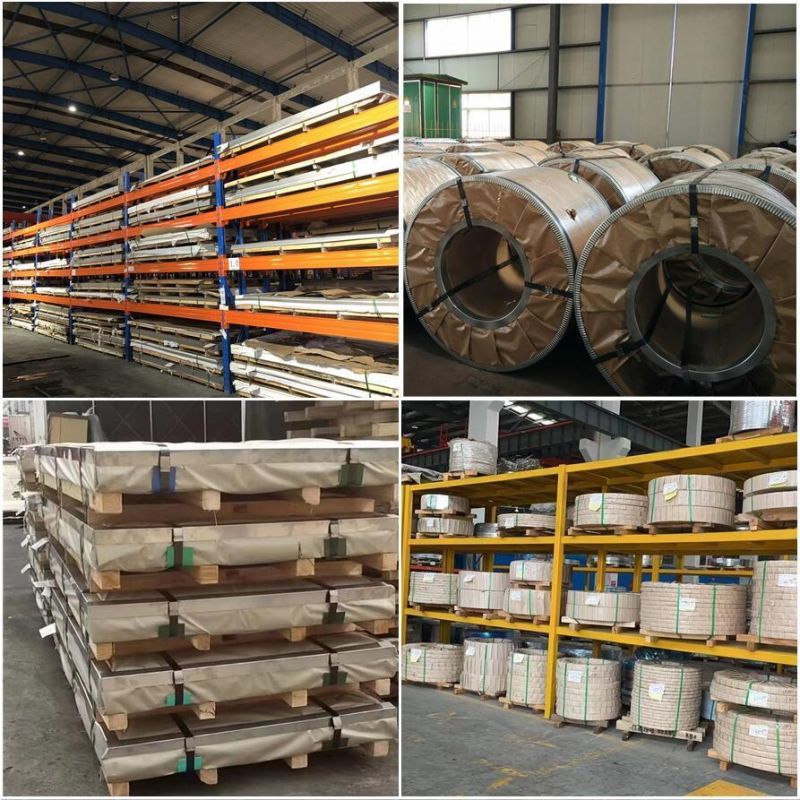

Preparation


Delivery
FAQ
Q: Are you trading company or manufacturer ?
A: We are Manufacturing and processing enterprises.

Q: How many countries you already exported?
A: Exported to more than 50 countries mainly from Brazil,India, Russia, UK, Vietnam, Egypt, Turkey, Saudi Arabia, Dubai etc.

Q: How long will it take to execute my order?
A: Our normal time to execute the order is 7-20 working days. We will let you know the estimated lead time after Payment ASAP.

Q: Can I have a sample for testing?
A: Free samples, you just need to pay the freight.

Q:Do you have inspection for the products before packing?
A: 100% self-inspection for the products, we put the quality as our first priority.

Q :Can I have a visit to your factory before the order?
A: Sure, welcome to visit our factory.
