• Specification：15mm-508mm
• Transport Package：Wooden &Plywood Case. PVC Bags
•  Duplex & Super Duplex Grade：Uns S31803, Uns S32205, Uns S31500, Uns S32304, U
• Steel Grade：ASTM A213 (ASME SA213)304h, 310h, 321H, 347H, 347H
• Pipe Type：Seamless&U Tube
• Length：2-15meters
• Wt：1.0-30mm
• Model NO.：Stainless Steel Pipe
• Trademark：ZD,TJTC,OEM
• Origin：Zhejiang,Anhui Province
• HS Code：7304
• Production Capacity：15000tons,Year

Basic Info.

Model NO. Stainless Steel Pipe Wt 1.0-30mm Length 2-15meters Pipe Type Seamless&U Tube Steel Grade ASTM A213 (ASME SA213)304h, 310h, 321H, 347H, 347H  Duplex & Super Duplex Grade Uns S31803, Uns S32205, Uns S31500, Uns S32304, U Transport Package Wooden &Plywood Case. PVC Bags Specification 15mm-508mm Trademark ZD/TJTC/OEM Origin Zhejiang/Anhui Province HS Code 7304 Production Capacity 15000tons/Year

Product Description

Product introduction1), Heat Exchanger Tubing (Straight and U tubing)
2), Air Cooler Tubing
3), Condenser Tubing
4), Evaporator Tubing

Specification:
ASTM A213 (ASME SA213): Specification for Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes
ASTM A789 (ASME SA789): Specification for Seamless and Welded Ferritic/Austenitic Stainless Steel Tubing for General Service
ASTM A268(ASME SA268): Specification for Seamless and Welded Ferritic and Martensitic Stainless Steel Tubing for General Service
Final Finishing: Solution Annealed & Pickled, Bright Annealed
The specifications of JIS G3463, EN 10216-5 are available.
 Duplex & Super Duplex
Stainless Steel Tube & Pipe
Grade Available: UNS S31803, UNS S32205, UNS S31500, UNS S32304, UNS S32750 S32760
Specification:
ASTM A789 (ASME SA789): Specification for Seamless and Welded Ferritic / Austenitic Stainless Steel Tubing for General Service
ASTM A790 (ASME SA790): Specification for Seamless and Welded Ferritic / Austenitic Stainless Steel Pipe
The specification of EN 10216-5 is available.

Pipes for Producing Pipe Fittings
Specification:
ASTM A312 (ASME SA312): Specification for Seamless, Welded, and Heavily Cold Worked Austenitic Stainless Steel Pipes
ASTM A790 (ASME SA790): Specification for Seamless and Welded Ferritic/Austenitic Stainless Steel Pipe
ASTM B423(ASME SB423): Specification for Nickel-Iron-Chromium-Molybdenum-Copper Alloy(UNS N08825 and N08221) Seamless Pipe and Tube
ASTM B407(ASME SB407): Specification for Nickel-Iron-Chromium Alloy Seamless Pipe and Tube
The specifications of JIS G3459 and EN 10216-5 are available.

Seamless Pipe
Specification:
ASTM A312 (ASME SA312): Specification for Seamless, Welded, and Heavily Cold Worked Austenitic Stainless Steel Pipes
ASTM A790 (ASME SA790): Specification for Seamless and Welded Ferritic/Austenitic Stainless Steel Pipes
ASTM B423(ASME SB423): Specification for Nickel-Iron-Chromium-Molybdenum-Copper Alloy(UNS N08825 and N08221) Seamless Pipe and Tube
ASTM B407(ASME SB407): Specification for Nickel-Iron-Chromium Alloy Seamless Pipe and Tube
The specifications of JIS G3459 EN 10216-5, DIN 17456, DIN 17458 are availabie.

Boiler Tube and Pipe
Grade: TP 304H, 310H,TP 316L ,321H, 347H, 347HFG
Specification:
ASME SA213: Standard Specification for Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes
The specifications of ASME SA312, JIS G3459, EN 10216-5, DIN 17456, DIN 17458 are available.

ASTM A312 (ASME SA312): Specification for Seamless, Welded, and Heavily Cold Worked Austenitic Stainless Steel Pipes
ASTM A790 (ASME SA790): Specification for Seamless and Welded Ferritic/Austenitic Stainless Steel Pipes
ASTM B423(ASME SB423): Specification for Nickel-Iron-Chromium-Molybdenum-Copper Alloy(UNS N08825 and N08221) Seamless Pipe and Tube
ASTM B407(ASME SB407): Specification for Nickel-Iron-Chromium Alloy Seamless Pipe and Tube
The specifications of JIS G3459 EN 10216-5, DIN 17456, DIN 17458 are availabie. Inspection And Test
Raw Material Inspection:
1. Check the material supplier's mill test certificates
2. Check the material's quantity, size, surface condition

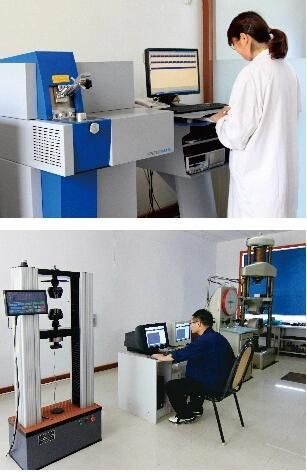

3. Conduct chemical analysis and mechanical property test


Process Inspection:

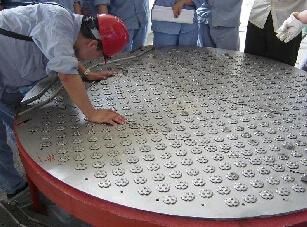

1. Inspect single work-piece's dimension, levelness, bend
degree, hole size, hole location, etc.
2. Inspect the work-piece's welding result


Cleaning Result Inspection:
After the work piece pass the process inspection, then go to cleaning to wipe out its oil&grease, dust, and other contaminants. Inspection method:
1. Visual inspection
2. Wipe test
3. Black light test
4. Mirror test (if need)


Assembly Inspection:
After cleaning inspection is good, then assemble on set to inspect its overall levelness, dimension, etc.Water Test:
Water test is a good way to check the distributor's working performance. The test items includes:
1. Liquid height in trough
2. Used time of one hole to fill the container
3. Calculate the coefficient variance(CV)


Package Inspection:
1. Check the small parts quantity according to packing list
2. Check the protect method of the internals
