• Top Paint Layer：15-35 Micron
• Color：Ral Color, Film, Pressed, Matt
• Loading Type：Vertical or Horizontal
• Paint Guarantee：10-30 Years
• Paint：Nippon,Akzonobel
• Package Weight：2-3.5 Ton
• Certificate：ISO9001, ISO14001
• Quality Standard：En10142, SPCC, Spcd, SGCC
• Coating Structure：2,1, 2,2
• Coating Type：PE, PVDF, SMP
• Zinc Coating：60-275G,M2
• Base Material：Galvanized, Galvalume
• Size Range：0.13-0.8mm;10-1250mm
• Product：PPGI, PPGL
• Stock：Stock
• Edge：Slit edge
• Application：Boiler Plate
• Model NO.：0.14-0.8*10-1250mm
• Back Paint Layer：5-35 Micron
• Transport Package：Export Seaworthy Package
• Specification：0.13-1.2*20-1500mm
• Trademark：CUS-STEEL
• Origin：China(Mainland)
• HS Code：72107010
• Production Capacity：300000 Ton Per Year

Basic Info.

Model NO. 0.14-0.8*10-1250mm Application Boiler Plate Edge Slit edge Stock Stock Product PPGI, PPGL Size Range 0.13-0.8mm;10-1250mm Base Material Galvanized, Galvalume Zinc Coating 60-275G/M2 Coating Type PE, PVDF, SMP Coating Structure 2/1, 2/2 Quality Standard En10142, SPCC, Spcd, SGCC Certificate ISO9001, ISO14001 Package Weight 2-3.5 Ton Paint Nippon,Akzonobel Paint Guarantee 10-30 Years Loading Type Vertical or Horizontal Color Ral Color, Film, Pressed, Matt Top Paint Layer 15-35 Micron Back Paint Layer 5-35 Micron Transport Package Export Seaworthy Package Specification 0.13-1.2*20-1500mm Trademark CUS-STEEL Origin China(Mainland) HS Code 72107010 Production Capacity 300000 Ton Per Year

Product Description

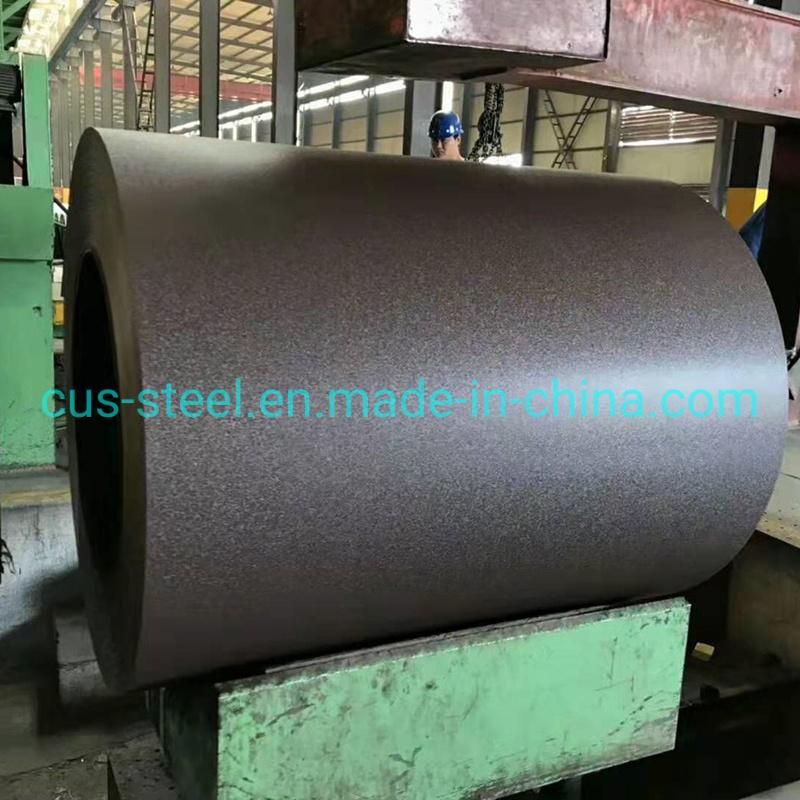

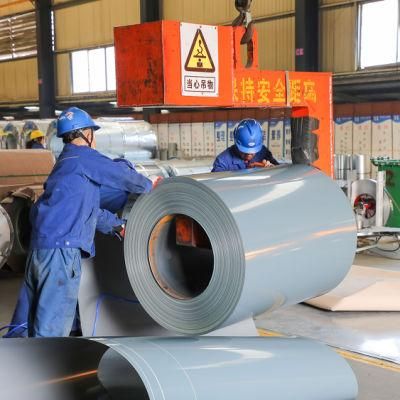

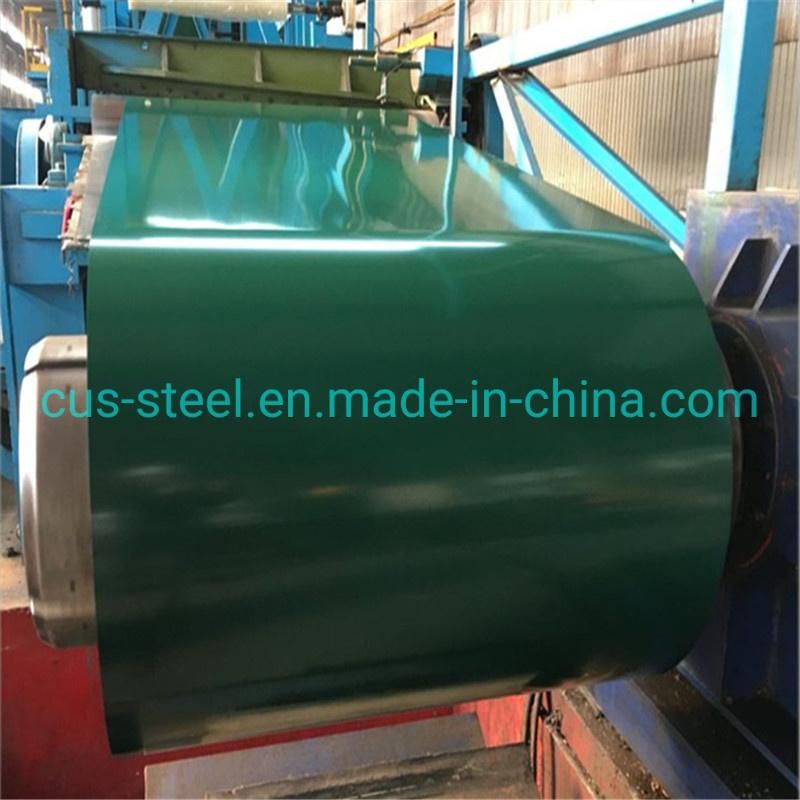

1) Prepainted Galvanized Steel Coil brief introduction
PPGI is pre-painted galvanised iron, also known as pre-coated steel, coil coated steel, color coated steel etc, typically with a hot dip zinc
coated steel substrate, that is the galvanized steel is painted before forming, as opposed to post painting which occurs after forming



2) Prepainted Galvanized Steel Coil product processing
Entry end-twin decolier-cleaning-entry looper-pretreatment-pretreatment oven-prime coater- prime oven-quench unit-finish coater-finish
oven-embosse-quench unit-quench unit-exit looper-shear-coiler-exit end



3) Prepainted Galvanized Steel Coil application
1) Mainly for automotive industry, household appliances, furniture, containers, cooking utensils
2) Contrustion of the outdoor roof, foof, structure, terrace, panels
3) Doors, screens, ceilings, bathrooms, stairs ventiilation chanel, communication channels



4) Prepainted Galvanized Steel Coil coating structure
1. Coating systems or configurations can be ustomized as client's requirements
2. Top coat can be 3-coat system (primer + base coat + finishing coat)
3. Backing can be single service coat or primer + backer coat +finishing coat
4. Both sides can also be color coated Color matching services provided for free



5) Prepainted Galvanized Steel Coil details
It can be subject to roll forming, lock forming and press forming because they are two coated-two baked with a high grade color resin of their
tight and flexible pre - treatment film

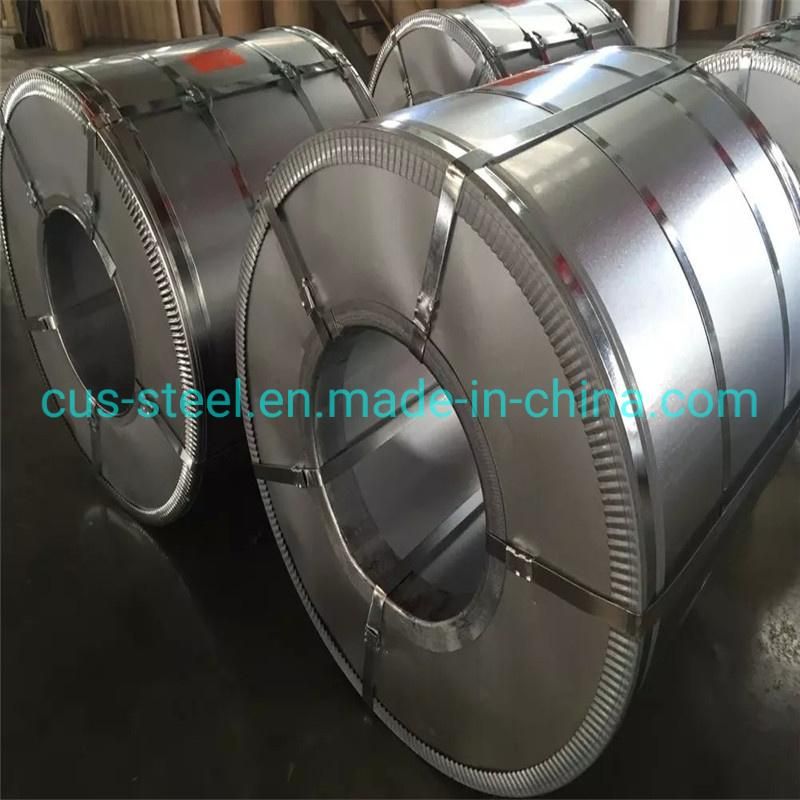

Base Material	Hot Dip Galvanized Steel Sheet,Hot Dip Al-zinc coated steel sheet
Steel Grade	DX51D,DX52D,DX53D,S220GD,S250GD,S350GD,SGCC,SPCC
Zinc Coating	60-275g/m2
Thickness	0.13mm-1.2mm
Width	10mm-1250mm
Tolerance	-0.02mm~+0.02mm
Inner Diameter	Ø508mm,Ø610mm
Top Coating	PE,PVDF,HDP,SMP
Coating Type	2/2 ,2/1 coating
Top Paint Layer	20-25μm
Back Paint Layer	7-25μm
Glossiness	35--65°
Quality Standard	EN10142,EN10346,EN10169,JIS3302,GB/T12754,ASTMA755M

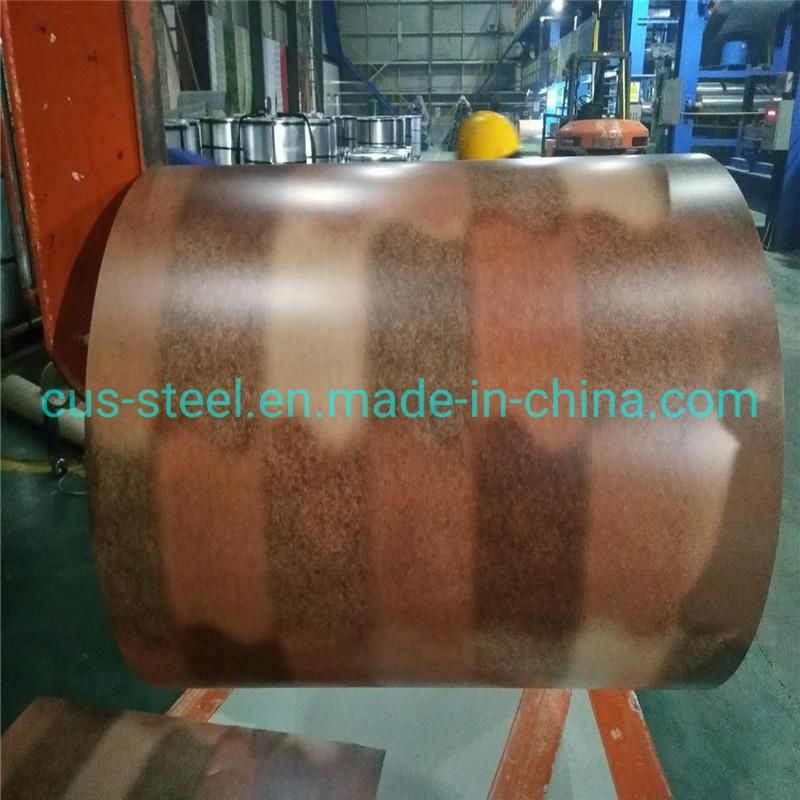

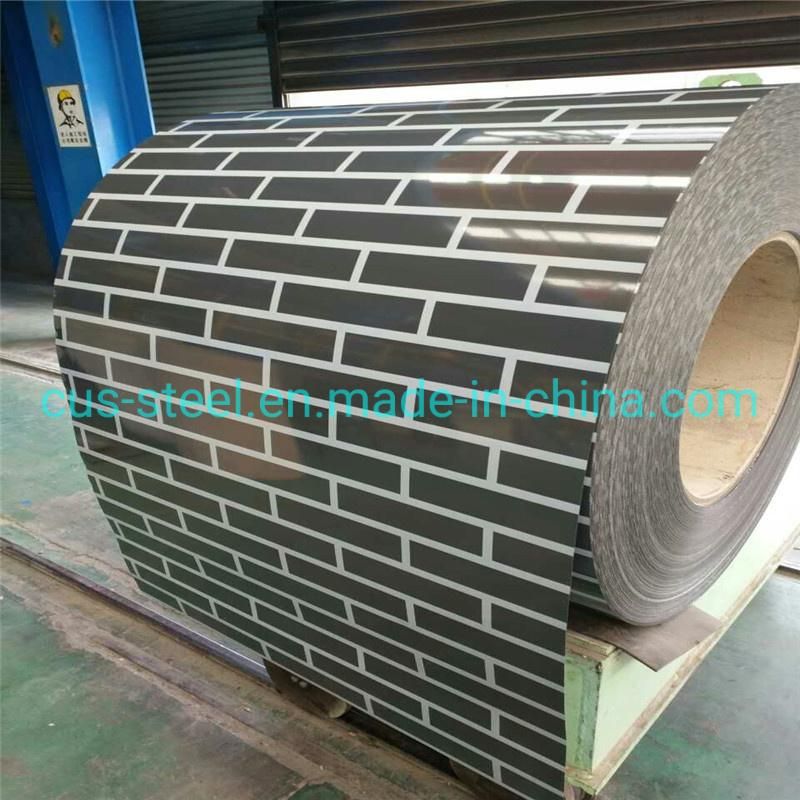

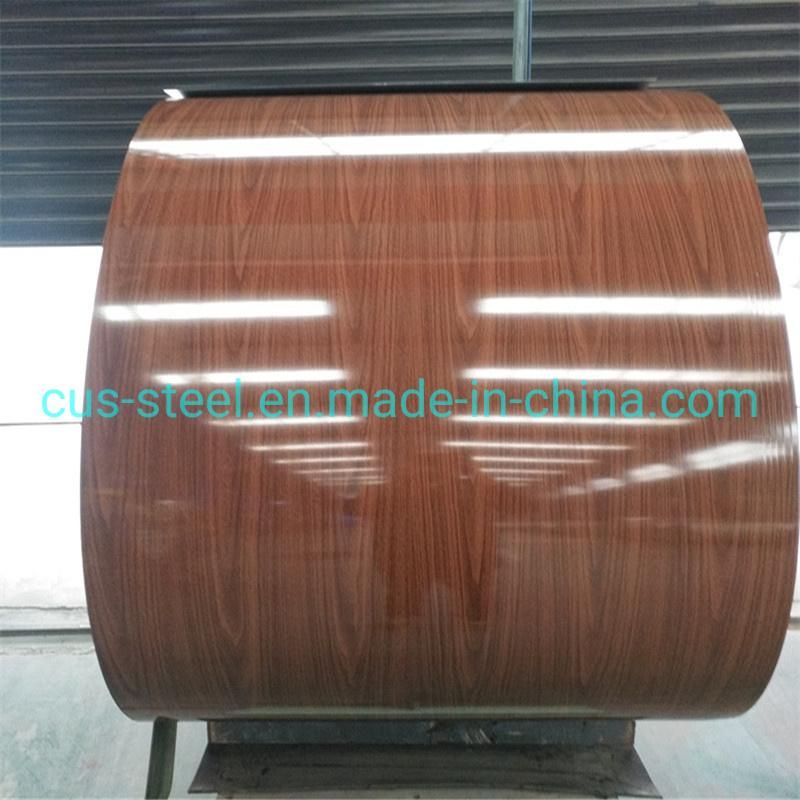

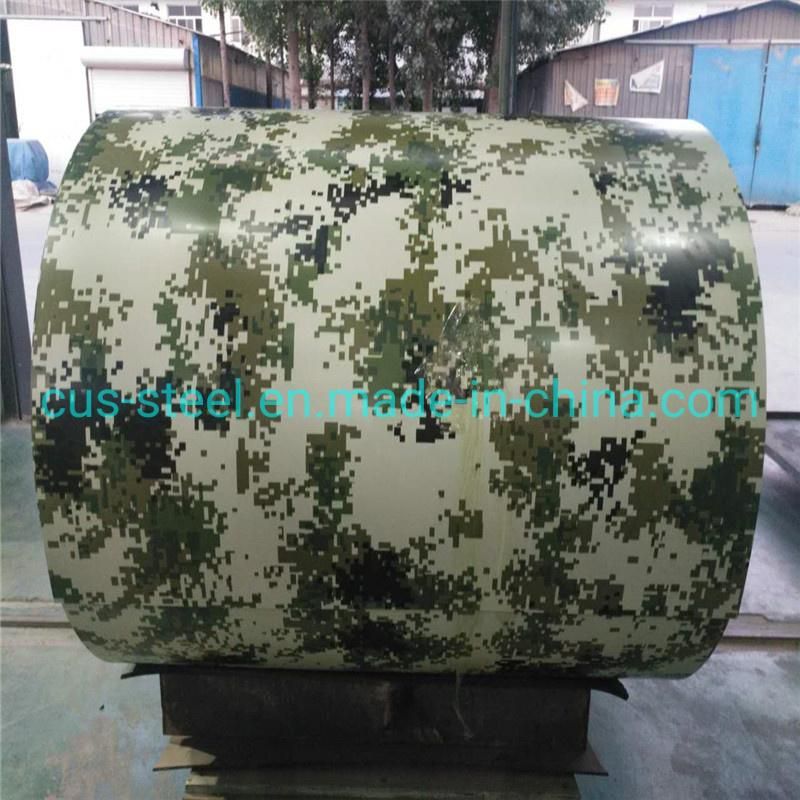

Color	RAL Color,wood /camouflage color plate,marble,pressed plate
Weight of Coil	2-5 ton

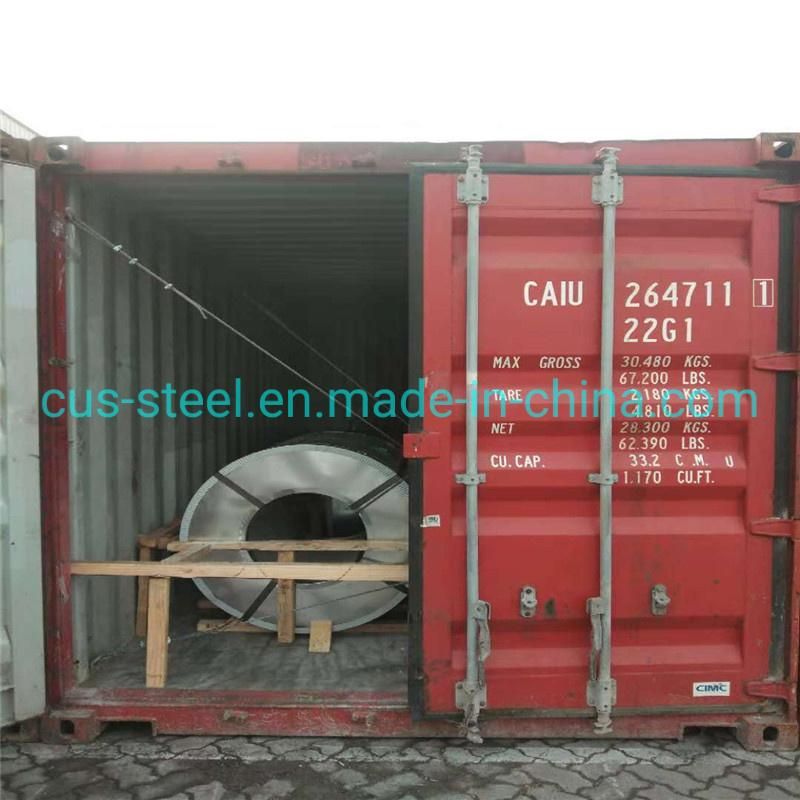

Package Method	Vertical.Horizontal,standard export seaworthy package,with plastic film,paper film,anti-rust paper,steel plate,strapping,paper corner armor,guard board and lock catch
Certificate	ISO9001,ISO14001,SGS
Advantage	Good adornment,anti-erode performance,strong coating adhesive
Application	Architecture,electrical home appliances,furniture,communal facilities and  communications and transportation.

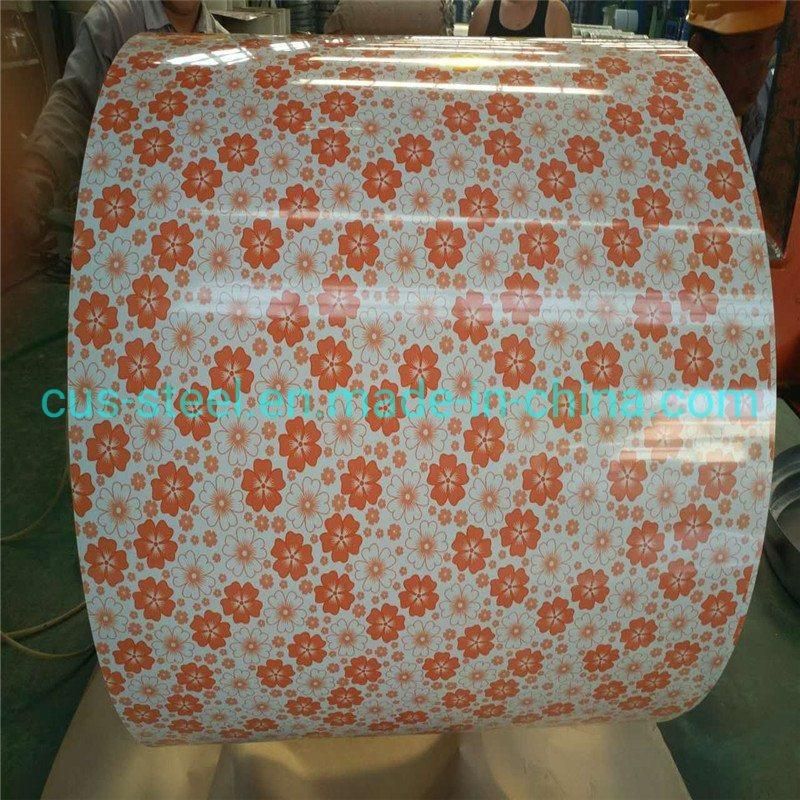

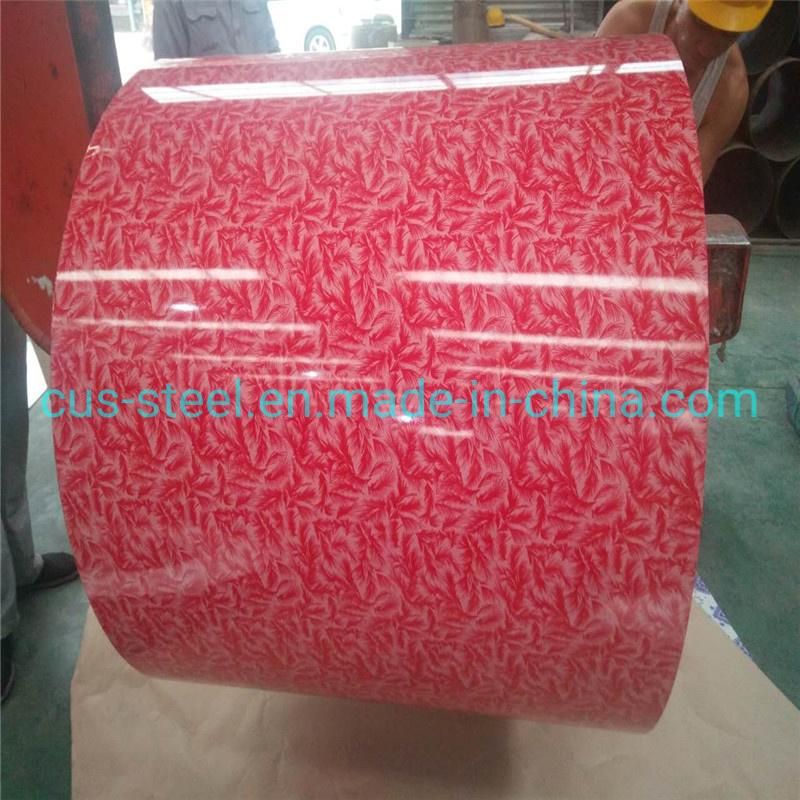

Special PPGI type	Printed,Filmed,Pressed,Matt
