• Coil Weight：Usually 3-5 Mt
• Package Method：Vertical, Horizontal
• Zinc Coating：Z30-275G,M2, Az30-180G,M2
• Base Material：Hot DIP Galvanized,Galvalume Steel Coil
• Color：Ral Color Card or Samples
• Painting Type：PE, PVDF, SMP, HDP
• Back Painting：5-12um
• Top Painting：25-40um
• Coating Structure：2,2, 2,1
• Coil ID：508,610mm
• Surface：Big,Small Matte
• Width：600-1250mm
• Thickness：0.12-1.2mm
• Quality Standard：En10142,10346,10169,JIS3302,Astma755mm
• Stock：Stock
• Model NO.：0.12-1.2mm*600-1250mm
• Lifetime：10-20 Years
• Transport Package：Export Seaworthy Package
• Specification：ISO,CE,SGS,BV,CU,V-TRUST
• Trademark：CUS-STEEL
• Origin：China
• HS Code：72107010
• Production Capacity：4000tons,Week

Basic Info.

Model NO. 0.12-1.2mm*600-1250mm Stock Stock Quality Standard En10142/10346/10169/JIS3302/Astma755mm Thickness 0.12-1.2mm Width 600-1250mm Surface Big/Small Matte Coil ID 508/610mm Coating Structure 2/2, 2/1 Top Painting 25-40um Back Painting 5-12um Painting Type PE, PVDF, SMP, HDP Color Ral Color Card or Samples Base Material Hot DIP Galvanized/Galvalume Steel Coil Zinc Coating Z30-275G/M2, Az30-180G/M2 Package Method Vertical, Horizontal Coil Weight Usually 3-5 Mt Lifetime 10-20 Years Transport Package Export Seaworthy Package Specification ISO/CE/SGS/BV/CU/V-TRUST Trademark CUS-STEEL Origin China HS Code 72107010 Production Capacity 4000tons/Week

Product Description

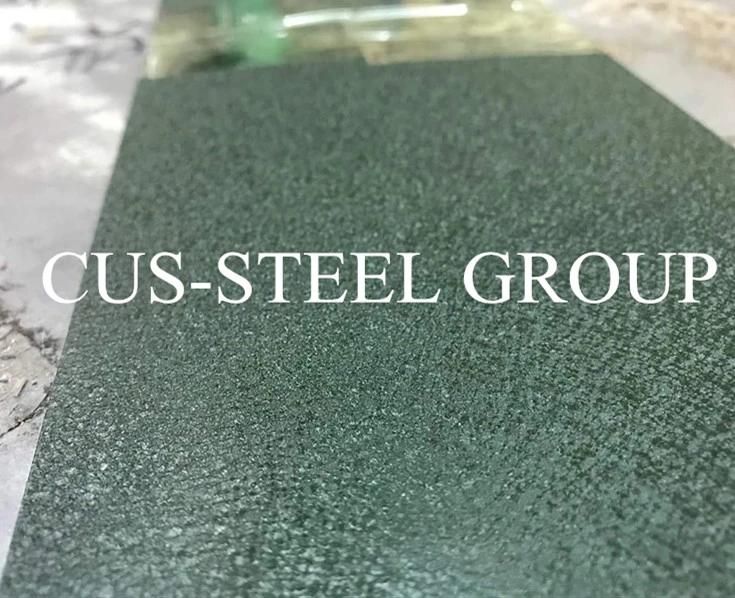

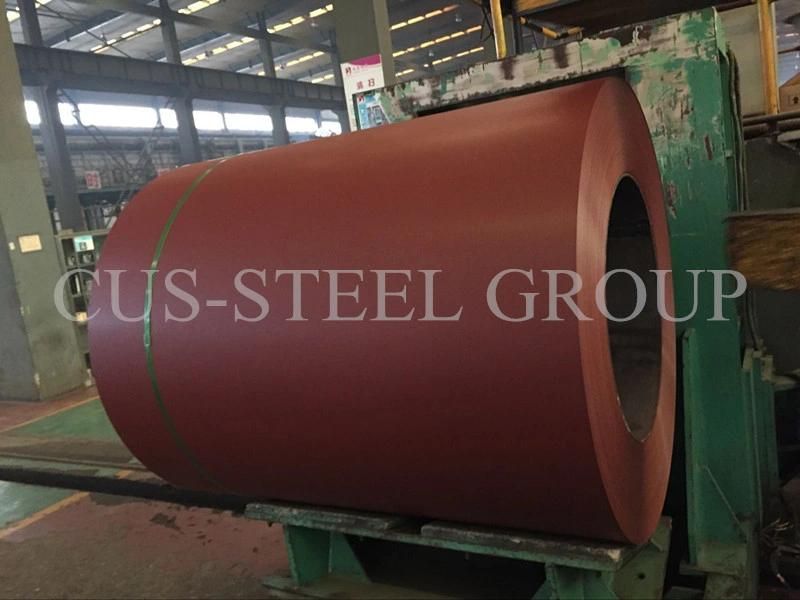

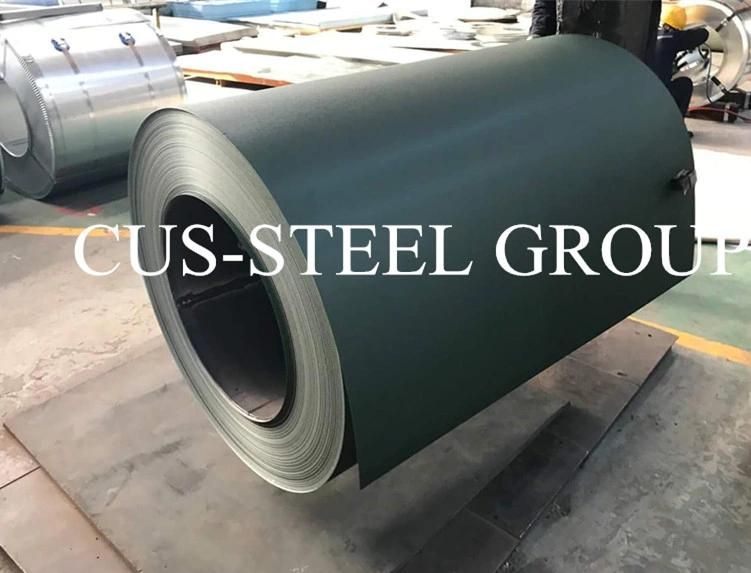

1. Ral8017 Wrinkle PPGI( PPGL)/Matt Prepainted Steel Coil Brief Introduction
It is a new type of coated sheet on a galvanized or galvanized steel sheet by a polyester coating  having a matte effect
or a textured effect on the surface of the dried coating. The surface of the coating gives a soft, lustrous, smooth and
slippery feel similar to fabric and suede, which is lower gloss, so the visual effect is closer to nature and anti-scratch.

2. Ral8017 Wrinkle PPGI( PPGL)/Matt Prepainted Steel Coil Product Processing
Entry end-twin decoliers-cleaning-entry looper-pretreatment coater-prime coater-prime oven-quench unit-finish coater-finish
oven-embosse-quench unit-exit looper-shears-coiler-exit end

3. Ral8017 Wrinkle PPGI( PPGL)/Matt Prepainted Steel Coil Main Usage
It is used as building materials(ceiling, metal roof tile) machinery parts (electrically controlled cabinets, Road maintain board, etc,
so it is mainly used in advertising Industry, construction, household appliances industry, electrical industry, furniture industry
and transportation.

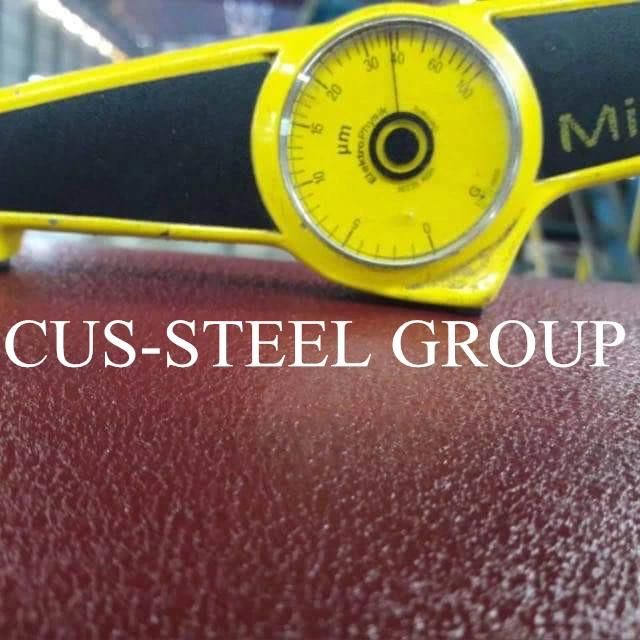

4. Ral8017 Wrinkle PPGI( PPGL)/Matt Prepainted Steel Coil Quality Control
Strict procurement process---skillful technical workers---final products inspection(resistance To corrosion, salt spray test, exposure test,
machinability, thermal resistance)---standard packing

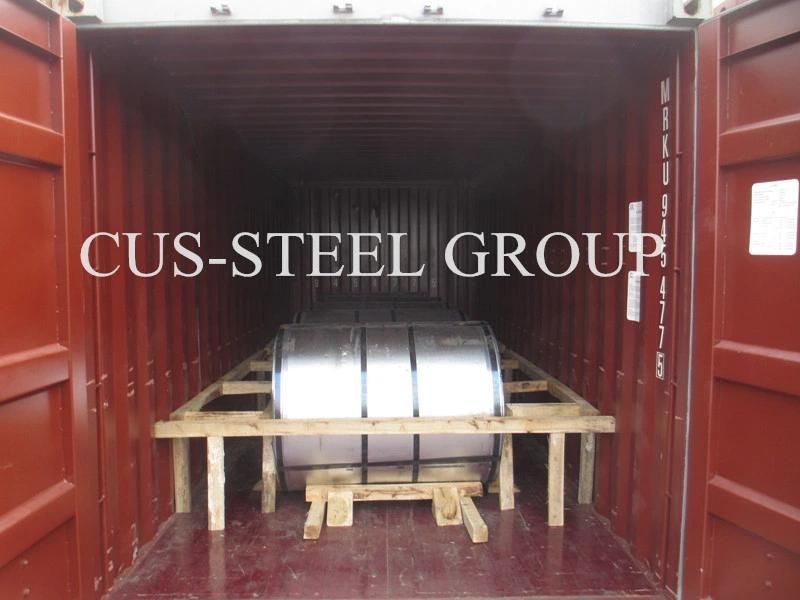

5. Ral8017 Wrinkle PPGI( PPGL)/Matt Prepainted Steel Coil Package Materials
1) steel coil 2) peripheral antirust board 3) inside paper corner armor 4)outside paper corner armor 5)plastic cannula 6)peripheral
corrugated paper 7)circle protective corrugated paper   8)periphery wrapper sheet  9)inner guard board  10)circle iron guard board
11)outside iron Guard board 12)inside iron guard board 13)latitude strapping 14)radial strapping  15)lock Catch gasket 16)lock catch

6. Ral8017 Wrinkle PPGI( PPGL)/Matt Prepainted Steel Coil Advantages
Flame Resistance, Anti-chemical medicament, Rust, Corrosion and Scratch Resistant, Anti-stain, easy to clean and maintain,
Stable surface quality, Resistance to stamping, Economic material for construction steel, longer life than galvanized steel.


Base Material	Hot Dip Galvanized Steel Sheet,Hot Dip Al-zinc coated steel sheet
Steel Grade	DX51D,DX52D,DX53D,S220GD,S250GD,S350GD,SGCC,SPCC
Zinc Coating	Z30-275g/m2,AZ30-180g/m2
Thickness	0.12mm-1.2mm
Width	600mm-1250mm
Tolerance	-0.02mm~+0.02mm
Inner Diameter	Ø508mm,Ø610mm
Top Coating	PE,PVDF,HDP,SMP
Coating Type	2/2 ,2/1 coating
Top Paint Layer	25-45μm
Back Paint Layer	5-12μm
Glossiness	35--65°
Quality Standard	EN10142,EN10346,EN10169,JIS3302,GB/T12754,ASTMA755M
Color	RAL Color,wood /camouflage color plate,marble,pressed plate
Weight of Coil	3-5tons or as per you request
Package Method	Vertical.Horizontal,standard export seaworthy package,with plastic film,paper film,anti-rust paper,steel plate,strapping,paper corner armor,guard board and lock catch
Certificate	ISO9001,ISO14001,SGS, BV, CU,V-TRUST
Advantage	Good adornment,anti-erode performance,strong coating adhesive
Application	Architecture,electrical home appliances,furniture,communal facilities and communications  and transportation.
Delivery Time	5-7 Days

Raw Materials

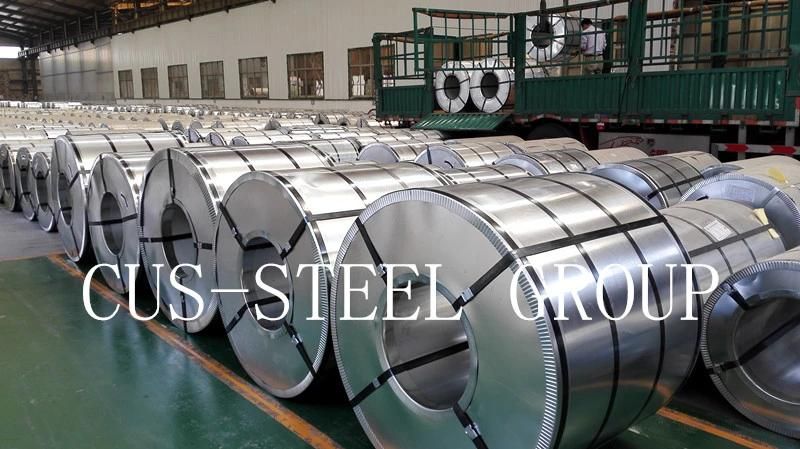

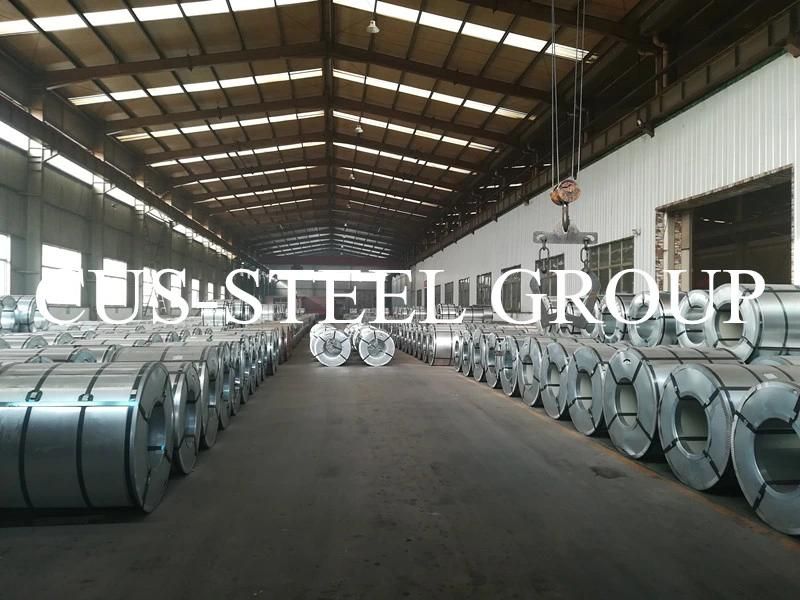

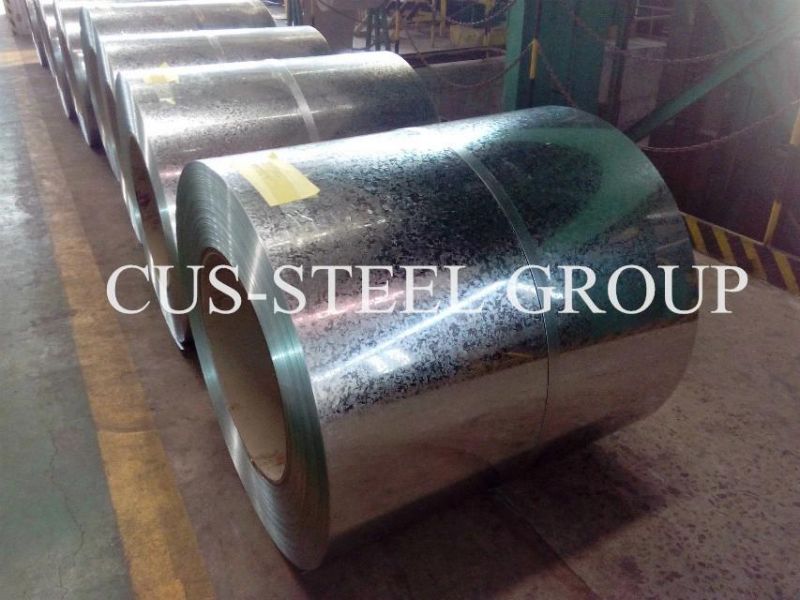

Hot Dip Galvanized Steel Sheet

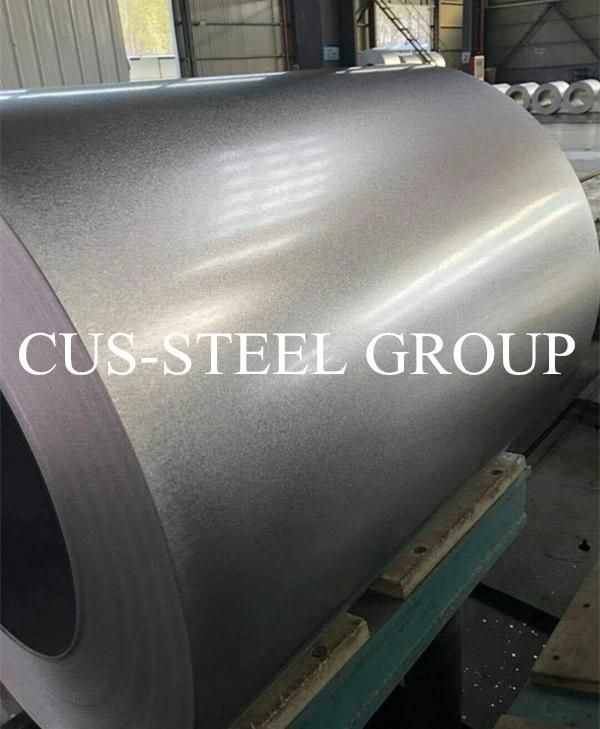

Hot Dip Al-zinc coated steel sheet







.


Ral Color Card
Color can be made as per Ral color card or the samples.

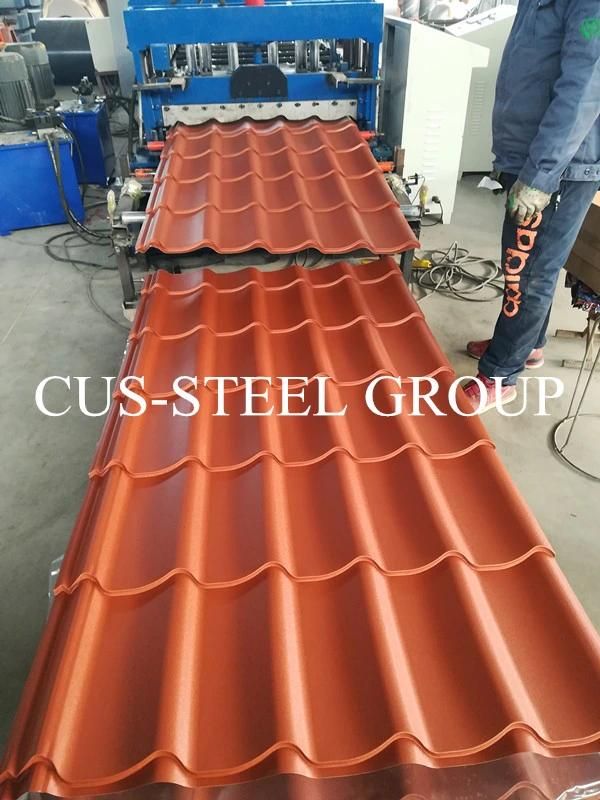

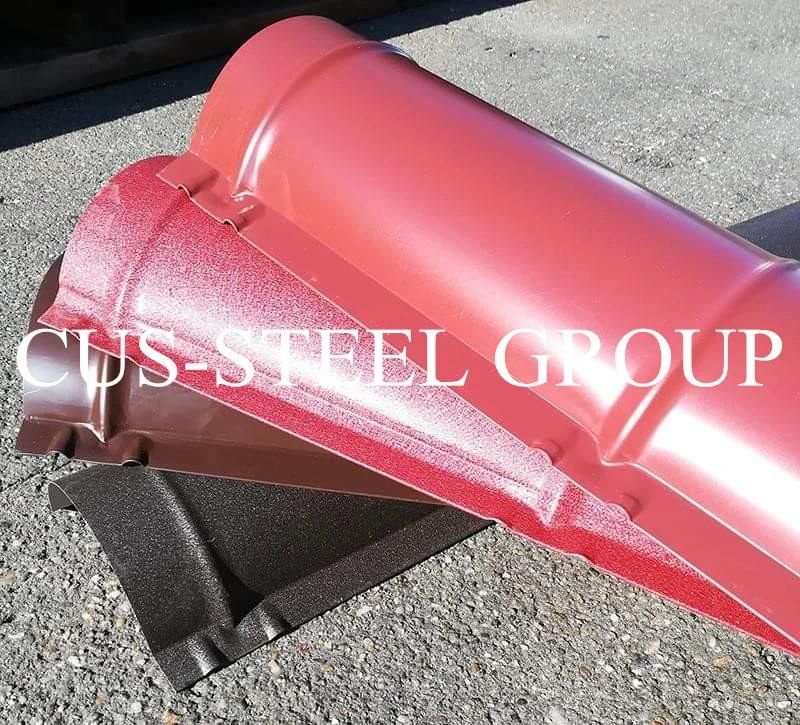

For Roofing Sheet and Accessory
