Scaffolding Pipe Scaffolding Part Type and Hot DIP Galvanized BS1139 Scaffolding Coupler
Tianjin Youfa International Trade Co., Ltd.- Commodity:Scaffolding Pipe Clamp
- Usage:Construction & Decoration, Scaffolding
- Surface Treatment:Galvanized
- Material:Carbon Steel
- Standard:En39,BS1139
- Diameter:1-1,2" (48.3mm)
Base Info
- Specification:48.3MM
- Transport Package:Steel Pallet, Woven Bag Packaging
- Business Type:Manufacturer & Exporter
- Zinc Coating:200GSM
- Steel Grade:S235gt,S355,Stk400,Stk500,Q345,Q235
- Coupler Type:Double Coupler,Swivel Coupler,Beam Coupler
- Production Type:Drop Forged, Pressed
- Trademark:YOUFA GROUP
- Origin:China
- HS Code:730840
- Production Capacity:500mt,Day
Description
BS EN39:2001Outer Diameter Wall Thickness Weight -7.50% 4 4.4
Dimensions,mass and tolerances according to EN39 / BS1139:
Dimensions
The specified outside diameter is 48.3MM and the specified wall thickness is 3.2MM for type 3 and 4.0MM for type 4;
Tolerances on dimensions
The tolerance on specified outside diameter is +/-0.5MM;
The tolerance on out of roundness is included in the diameter tolerance;
The tolerance on wall thickness is -10%;
The inside diameter of tubes shall allow insertion of agauge of diameter 37.7mm for aminimu length of 200mm;
Mass
The nominal mass per unit length of type 3 tube is 3.56kg/m and for type 4 tube 4.37kg/m
Tolerance on Mass
The mass deviation on a single tube shall notexceed -7.5% of the specified mass;

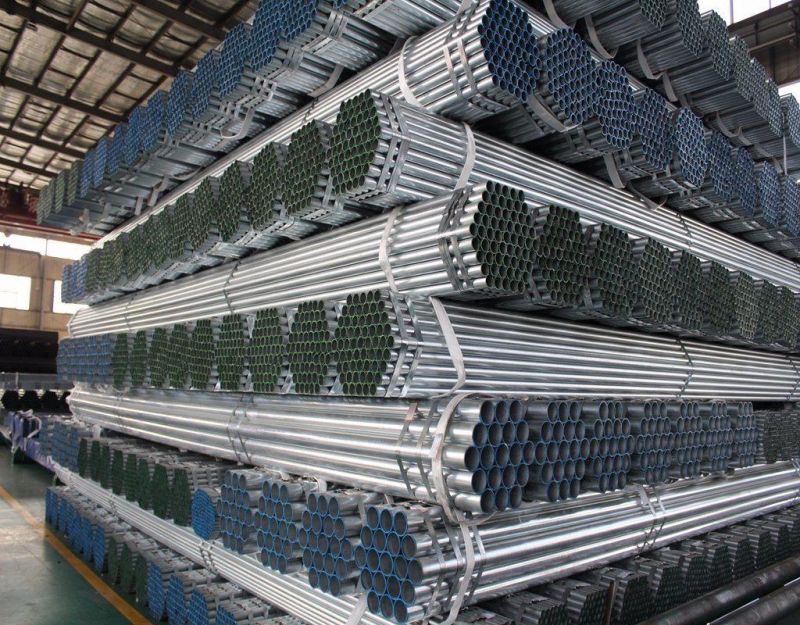

Customized Process type for Galvanized steel pipe:
1. Stamping / Embossing
2. Threaded ends / Socketed & plastic cap protection
3. Grooved ends
4. Bending / Arched
5. Water proof bag / Plastic bag protection
Company's information:

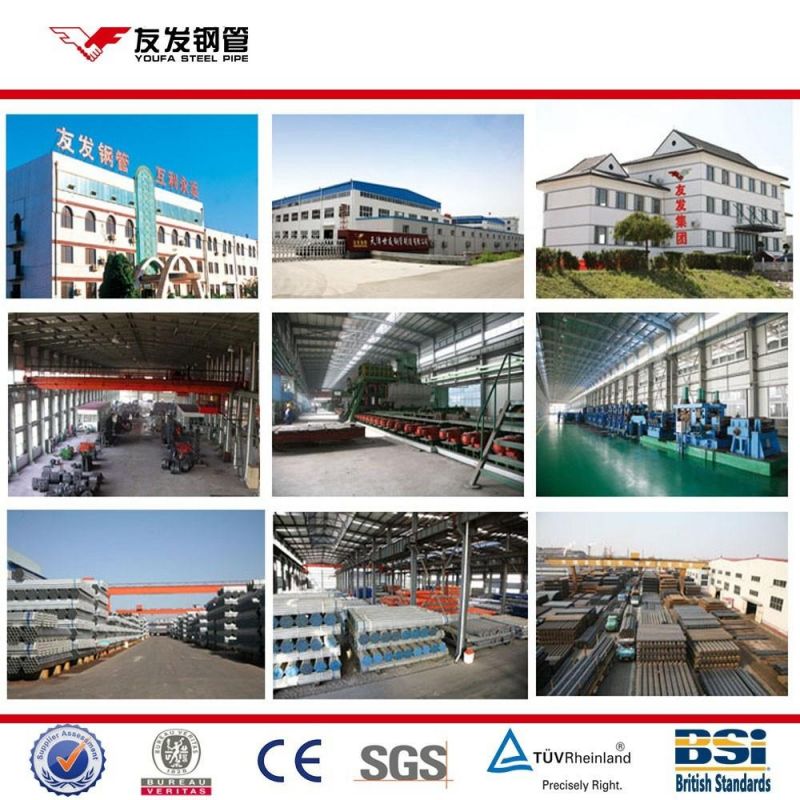

Tianjin Youfa Steel Pipe Group Co.,Ltd were founded on July 1st,2000, with the headquarters location at the largest welded pipe production basein China-Daqiuzhuang Village, Tianjin city, which is a large-scale steel pipe manufacturing enterprise producing many kinds of pipe products, such as:
ERW steel pipe, hot-dipped galvanized steel pipe, oil casing pipe, SSAW steel pipe, square/rectangular steel pipe, and steel-plastic complex steel pipe.
TOP 500 ENTERPRISES IN CHINA
Certificates:

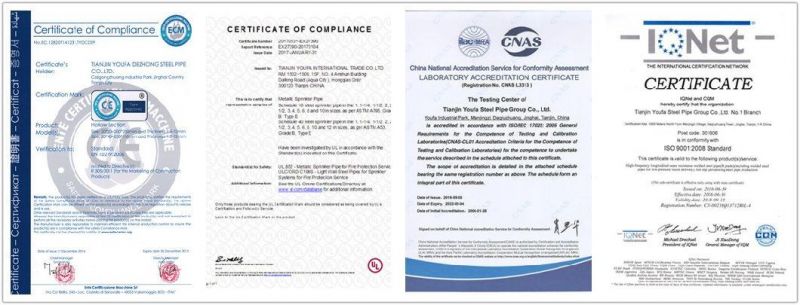

Tianjin Youfa Steel Pipe Group Co., have acquired certificates of API 5L/5CT, ISO9001, ISO14001, ISO18001, EN10219, FPC and UL / FM quality system.
-------------------------------------------------------------
----------------
Contacts:
Juilet
Export Dept
TIANJIN YOUFA STEEL PIPE GROUP
TIANJIN YOUFA INTERNATIONAL TRADE CO.,LTD
Address: Daqiuzhuang Town,Jinghai Distr.,Tianjin City,China
Group website: sianosteel.en.made-in-china.com
http://sianosteel.en.made-in-china.com
