DIN 17175 Boiler Carbon Steel Tube St35.8 for High Temperature Service
Jiangsu Baicheng Special Steel Pipe Manufacturing Co., Ltd.- Material：Carbon Steel
- Technique：Cold Drawn
- Type：Seamless
- Warranty：1 Year
- After-sales Service：Yes
- Surface Treatment：Oiled
Base Info
- Transport Package：Seaworthy Packing
- Length：up to 28 Meters
- Wall Thickness：1.5 ~ 10 mm
- out Diameter：16-89 mm
- Ends：Plain Ends
- MOQ：3 Tons
- Application：High Temperature Service Tube
- Standard：DIN 17175
- Section Shape：Round
- Usage：Pipeline Transport, Boiler Pipe, Oil,Gas Drilling, Chemical Industry
- Model NO.：St 35.8
- Specification：Boiler & Superheater Tube
- Trademark：BCU
- Origin：China
- HS Code：7304511000
- Production Capacity：25000 Tons,Year
Description
Overview
Product Description Seamless Alloy Steel Tube & Pipe 16-89 mm 1.5 - 10 mm Up to 28 meters According to the international standards, Customized Anti Rust Oil, Hexagonal Package, Plastic caps Woven bag, Seaworthy Packing, Wooden Case, Customized Supply bending tube for heat exchangers according to the client drawings Cold Drawn FOB, EXW, CIF, CFR 3 Tons ISO 9001, ISO 14001, ISO 45001, OHSAS 18001, TUV Steel grade Chemical Composition, % C Si Mn P S Cr Mo DIN 17175 St35.8 Max: 0.17 0.10 - 0.35 0.40 - 0.80 Max: 0.040 Max: 0.040 DIN 17175 St45.8 Max: 0.21 0.10 - 0.35 0.40 - 1.20 Max: 0.040 Max: 0.040 DIN 17175 15Mo3 0.12 - 0.20 0.10 - 0.35 0.40 - 0.80 Max: 0.035 Max: 0.035 0.25 - 0.35 DIN 17175 13CrMo910 0.10 - 0.18 0.10 - 0.35 0.40 - 0.70 Max: 0.035 Max: 0.035 0.70 - 1.10 0.45 - 0.65 DIN 17175 10CrMo910 0.08 - 0.15 Max: 0.50 0.40 - 0.70 Max: 0.035 Max: 0.035 2.00 - 2.50 0.90 - 1.20
Material NumberTensile Strength, Mpa Yield Strength, Mpa Elongation, % Wt ≤16 mm 16 mm≤ Wt ≤40 mm DIN 17175 St35.8 1.0305 360 - 480 Min: 235 Min: 225 Min: 25 DIN 17175 St45.8 1.0405 410 - 530 Min: 235 Min: 245 Min: 21 DIN 17175 15Mo3 1.5415 450 - 600 Min: 275 Min: 275 Min: 22 DIN 17175 13CrMo910 1.7335 440 - 590 Min: 295 Min: 295 Min: 20 DIN 17175 10CrMo910 1.7380 450 - 600 Min: 285 Min: 285 Min: 20
Material Number
Q: Are you a factory or trading company ?
A: We're a factory founded in 2015, with covered area 40,000 suqare meters.
Q: How long is your deliery time?
A: depends on your quantity, in general around (30-45) days
Q: What is your payment term?
A: 30% T/T in advance, balance before shipping, L/C at sight
Q: How do you insure the quality?
A: We've a strict requirement on every process of manufacturing for the purpose of producing better products.

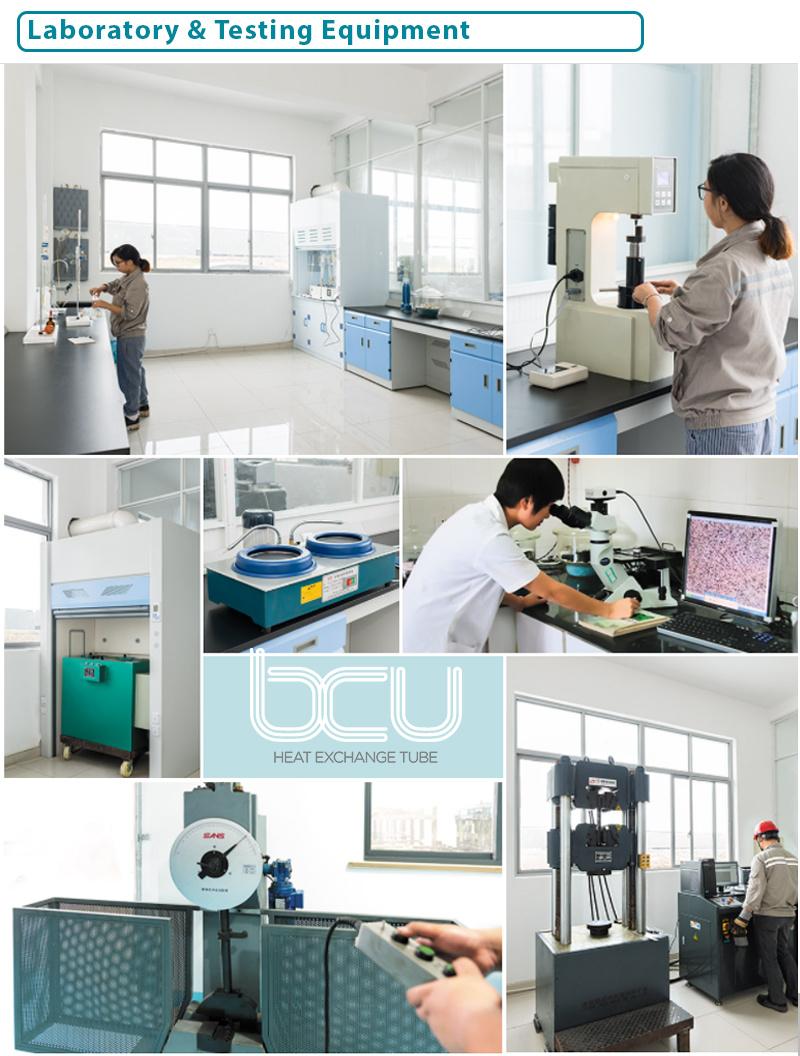

We supply the tube with MTC, 100% Eddy current test, 100% Ultrasonic test
Q: Do you supply samples ? Is it free or extra ??
A: Yes , We can provide free samples charge , but the freight cost should pay the client
