Ar450 Metal Alloy Sheet Normalizing High Strength Nm360 Nm400 Nm500 Building Material Xar500 Wear Resistant Steel Plate
Qingdao Hengcheng Steel Co., Ltd.- Standard：ASTM, AISI, GB, JIS, DIN, BS
- Type：Steel Plate
- Warranty：Yes
- After-sales Service：Yes
- Certification：ISO
- Surface Treatment：Blackface
Base Info
- Trade Term：Fob,CIF,CFR,EXW
- HS：7208370000
- MOQ：10 Tons
- Treatment：Hot Rolled, Quenched, Tempered, Normalizing
- Test：BV,SGS---Mtc
- Delivery Time：5-7 Days.
- Payment：T,T, L,C at Sight.

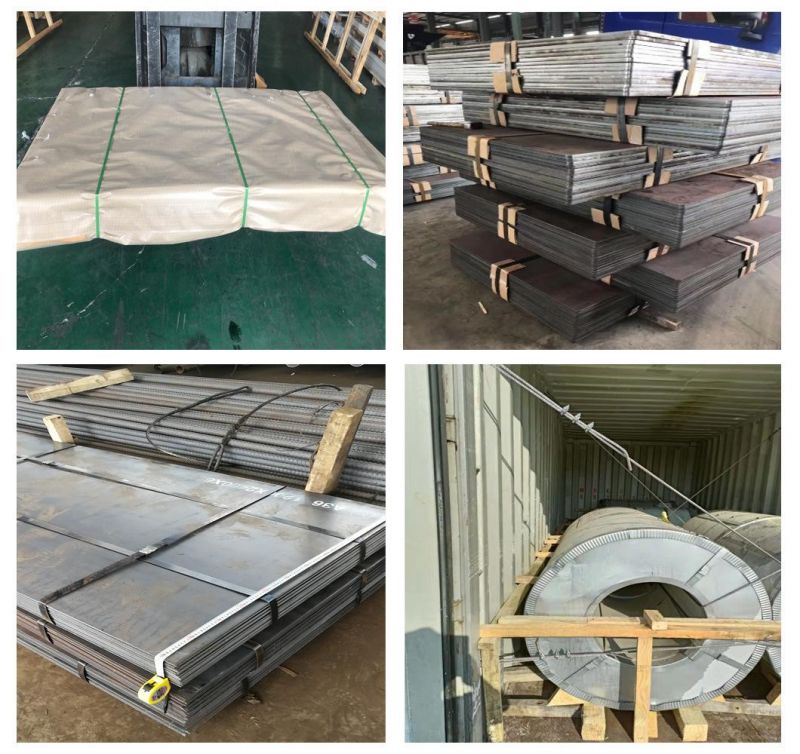

- Package：Useing Brown Paper, Cloth, etc
- Surface：Q+T
- Length：1-12m, as You Request
- Width：1000-3000mm
- Thickness：2-300mm
- Name：Xar500 Wear Resistant Steel Plate
- Stock：Not Stock
- Special Use：High-strength Steel Plate
- Application：Mold & Dies, Ship Plate, Boiler Plate, Container Plate, Flange Plate
- Technique：Hot Rolled
- Model NO.：Xar500 Wear Resistant Steel Plate
- Country：China
- Standard Grade：DIN,Ssab,NF,En,JIS,GB..
- Transport Package：Standard Export Package
- Specification：width: 1000-3000mm
- Trademark：Hengcheng steel
- Origin：Shandong, China
- HS Code：7208370000
- Production Capacity：25000 Tons,Year
Description
Overview
Customers and Comments
We are one of the leading steel prodcuts manufacturer and distributor from China which have been engaging in the field sales for 15 years with 12 years export experience.
Our main products coverContainer
Size
20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) Trade term Ex-Work,FOB,CNF,CFR,CIF,etc Application Widely used in a variety of architectural and engineering structures,such as
1.) metal constructions such as buildings,bridges,ships;
2.) transmission tower, reaction tower;
3.) lifting transportation machinery;
4.) industrial furnace;boilers
5.) container frame, warehouse goods shelves, etc
Wear Resistant Steel Plate Chemical Composition and Mechanical Properties Chemical Composition(Max) Material C Si Mn P S Cr Ni Mo Ti Bt Als CEV NM300 0.23 0.70 1.60 0.025 0.015 0.70 0.50 0.40 0.050 0.0005-0.0006 0.010 0.45 NM360 0.25 0.70 1.60 0.025 0.015 0.80 0.50 0.50 0.050 0.0005-0.0006 0.010 0.48 NM400 0.30 0.70 1.60 0.025 0.010 1.00 0.70 0.50 0.050 0.0005-0.0006 0.010 0.55 NM450 0.35 0.70 1.70 0.025 0.010 1.10 0.80 0.55 0.050 0.0005-0.0006 0.010 0.60 NM500 0.38 0.70 1.70 0.020 0.010 1.20 1.00 0.65 0.050 0.0005-0.0006 0.010 0.65 NM550 0.38 0.70 1.70 0.020 0.010 1.20 1.00 0.70 0.050 0.0005-0.0006 0.010 0.72 NM600 0.38 0.70 1.90 0.020 0.010 1.50 1.00 0.70 0.050 0.0005-0.0006 0.010 0.76 Material Tensile MPA Elongation % Impact energy -20ºC HBW NM300 ≥1000 ≥14 ≥24 270-300 NM360 ≥1100 ≥12 ≥24 330-390 NM400 ≥1200 ≥10 ≥24 370-430 NM450 ≥1250 ≥7 ≥24 420-480 NM500 ≥1250 ≥7 ≥24 ≥470 NM550 ≥1250 ≥7 ≥24 ≥530 NM600 ≥1250 ≥7 ≥24 ≥570 Grade C Si Mn P S Cr Mo Cu Ni B XAR400 0.20 0.80 1.50 0.025 0.010 1.00 0.50 -- -- 0.005 XAR450 0.22 0.80 1.50 0.025 0.012 1.30 0.50 0.30 -- 0.005
XAR500 0.28 0.80 1.50 0.025 0.010 1.00 0.50 -- -- 0.005
XAR600 0.40 0.80 1.50 0.025 0.010 1.50 0.50 -- 1.50 0.005 Grade Yield Strength
Reh MPa Tensile Strength
Rm MPa Elongation BH
(Brinell Hardness) XAR400 1150 1300 ≥12 360-440 XAR450 1200 1350 ≥10 410-490 XAR500 1500 1600 ≥9 450-530 XAR600 -- -- -- ≥550 Material C Si Mn P S Cr Mn13 1.1~1.3 0.3~0.5 12~13 ≤0.100 ≤0.040 ≤1.5 X120Mn12 1.1~1.3 0.3~0.5 12~13 ≤0.100 ≤0.040 ≤1.5 1.3401 1.1~1.3 0.3~0.5 12~13 ≤0.100 ≤0.040
≤1.5 SCMnH11 0.9~1.5 0.3~1.0 10~15 ≤0.100 ≤0.050 ≤1.5 ASTM A128 1.1~1.3 0.3~0.5 12~13 ≤0.100 ≤0.050 ≤1.5
More Products

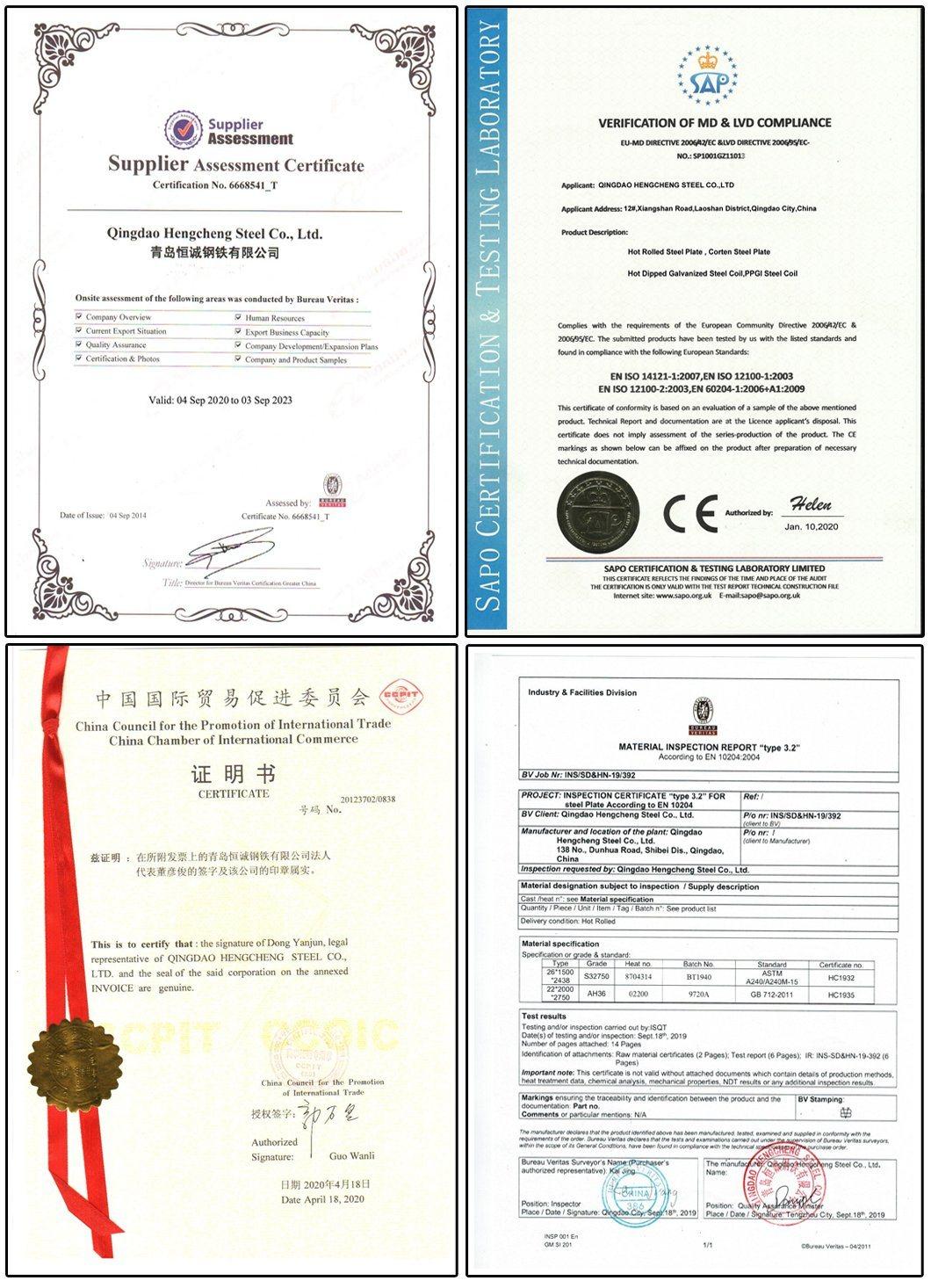

Certifications
