17*7 18*7 19*7 18*19 Rotation Resistant Steel Wire Rope Cable Cord for Crane Main Hoist Derricking 17X7 18X7 19X7 18X19 En12385 ISO2408
Jiangsu Safety Wire Rope Co., Ltd.- Application:Rope, Packaging, Netting, Manufacturing, Fencing, Construction
- Technique:Bright, Galvanized or PVC Coated
- Surface:Smooth
- Certification:ISO, CCC, CE
- Alloy or Not:Non-alloy
- Standard:BS, JIS, GB, ASTM, DIN, AISI
Base Info
- Classification:Main Hoist Rope, Derricking Rope, Anti-Twisting
- Rope Core:NFC, Sfc, Gsf, Wsc, Iwrc, Csc, Pwrc
- Core Material:Sisal, Fibre, Steel, Polymer, Mixed
- Processing Service:Bending, Welding, Punching, Decoiling, Cutting
- Quality:Excellent
- Metal Wire Drawing:Cold Drawing
- Sample:Available
- Product Name:Steel Wire Rope
- Breaking Load:1570MPa, 1770MPa, 1960MPa, 2160MPa
- Steel Grade:Carbon Steel #45 #60 #70
- Raw Material:Carbon Steel
- Norminal Diameter:8-60mm
- Status:Hard State
- Model NO.:Class 18x7
- Transport Package:Wooden Reels or Customized
- Specification:wire rope
- Trademark:Safety
- Origin:China
- HS Code:7312100000
- Production Capacity:60000 Tons,Year
Description
Minimum breaking load (kN)D/mm FC WC FC WC FC WC FC WC FC WC 6 14.0 15.5 17.5 18.5 19.8 20.9 21.9 23.1 24.1 25.5 7 19.1 21.1 23.8 25.2 26.9 28.4 29.8 31.5 32.8 34.7 8 25.0 27.5 31.1 33.0 35.1 37.2 38.9 41.1 42.9 45.3 9 31.6 34.8 39.4 41.7 44.4 47.0 49.2 52.1 54.2 57.4 10 39.0 43.0 48.7 51.5 54.9 58.1 60.8 64.3 67.0 70.8 11 47.2 52.0 58.9 62.3 66.4 70.2 73.5 77.8 81.0 85.7 12 56.2 61.9 70.1 74.2 79.0 83.6 87.5 92.6 96.4 102 13 65.9 72.7 82.3 87.0 92.7 98.1 103 109 113 120 14 76.4 84.3 95.4 101 108 114 119 126 131 139 16 99.8 110 125 132 140 149 156 165 171 181 18 126 139 158 167 178 188 197 208 217 230 20 156 172 195 206 219 232 243 257 268 283 22 189 208 236 249 266 281 294 311 324 343 24 225 248 280 297 316 334 350 370 386 408 26 264 291 329 348 371 392 411 435 453 479 28 306 337 382 404 430 455 476 504 525 555 30 351 387 438 463 494 523 547 579 603 638 32 399 440 498 527 562 594 622 658 686 725 36 505 557 631 667 711 752 787 833 868 918 40 624 688 779 824 878 929 972 1030 1070 1130 44 755 832 942 997 1060 1120 1180 1240 1300 1370 48 899 991 1120 1190 1260 1340 1400 1480 1540 1630 52 1050 1160 1320 1390 1480 1570 1640 1740 1810 1920 56 1220 1350 1530 1610 1720 1820 1910 2020 2100 2220 60 1400 1550 1750 1850 1980 2090 2190 2310 2410 2550

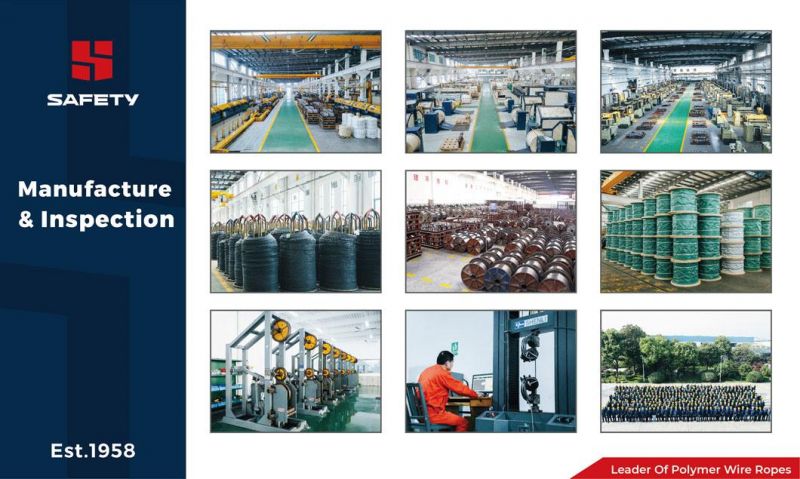

Overview of SAFETY
FAQ
1. Quality?
We focus on the manufacture of steel wire ropes for over 60 years and participated in the formulation of several important steel rope standards in China, such as GB/T 31979-2015, GB/T 29086-2012, GB/T 20118-2017, GB/T8903-2018. SAFETY's market share & industry rankings for elevator wire ropes are among the top 3 in the world. There is no need to worry about quality.
2. Price?
We provide high-quality products with moderate prices. A little higher prices bring you the better quality and service.
3. Customized?
Customizing products for special requirements is available, for example: strength/tensile, twist direction, diameter, material, surface coating, etc.
4. Delivery time?
seven days will be ok if wire ropes are in stock. If not, we need additional 30 days to produce your wire ropes.
5. Service
Our professional service team can provide installation guidance services and basic technical training on wire ropes if you need.
