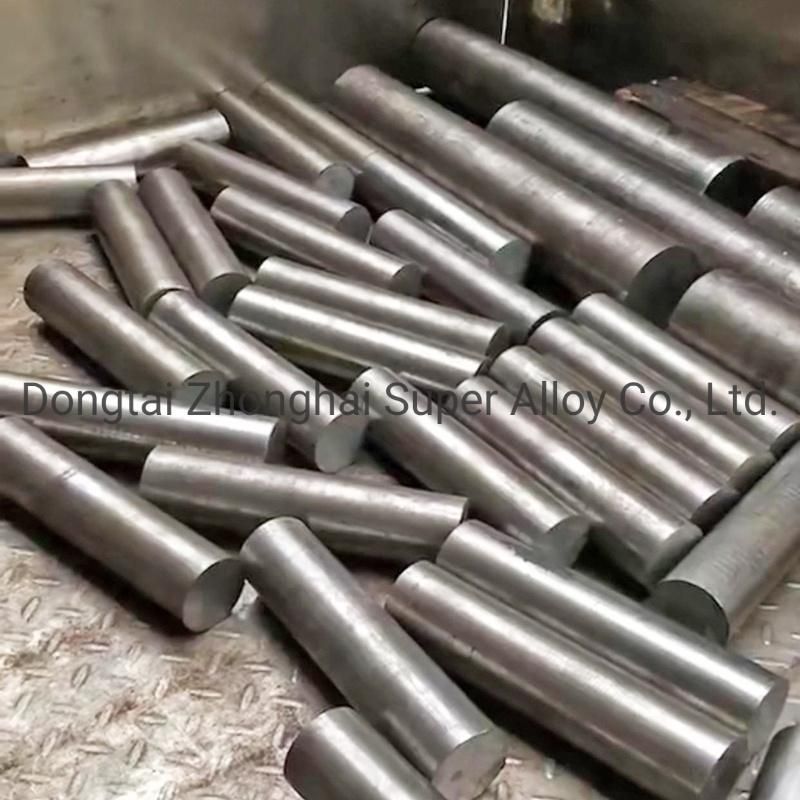

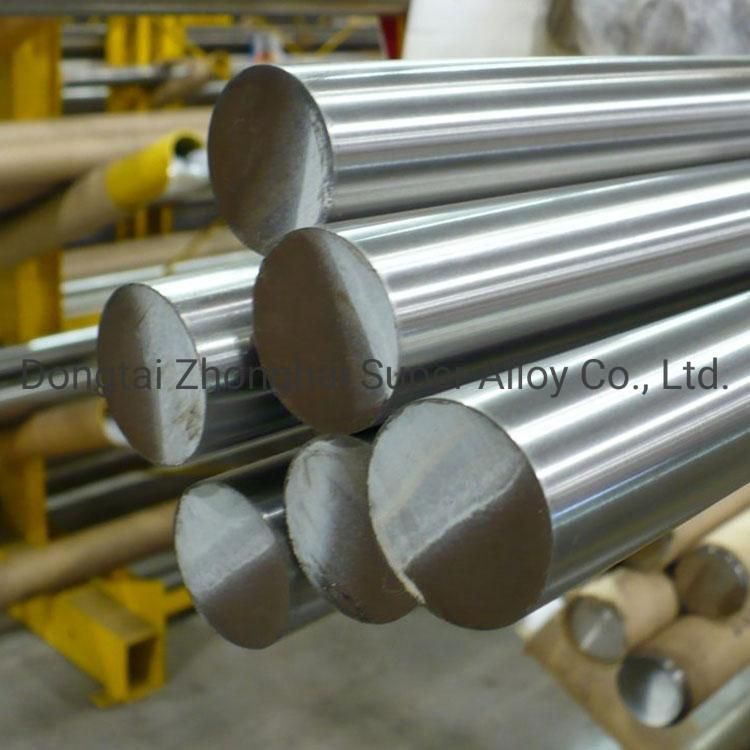

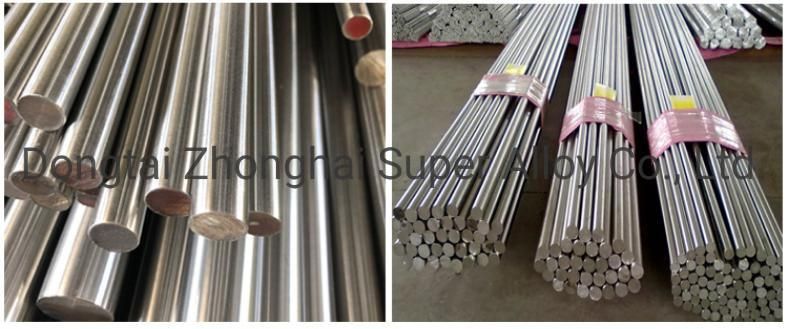

Cold Drawn Inconel 825 Nickel Alloy Round Bar
Dongtai Zhonghai Super Alloy Co., Ltd.- Shape：Pipe
- Technique：Cold Drawn
- Composition：Nickel Alloy
- Standard：ASTM, DIN, JIS, GB, BS
- Type：Round
- Surface Treatment：Polished
Base Info
- Specification：φ 6-273mm; δ 1-30mm; Length 1000-8000mm
- Transport Package：Wooden Box
- Supply Ability：500 Ton,Tons Per Month Incoloy 825
- Grade：Nickel Base Alloy, Incoloy 825
- Model Steel：Incoloy 825
- M.O.Q：300kg
- Application：Structural Steel Bar
- Special Use：Mold Steel
- Model NO.：Alloy 825
- Trademark：ZHS
- Origin：Jiangsu, China
- HS Code：75071200
- Production Capacity：2000tons, Month
Description
Alloy% Ni Cr Fe C Mn Mn Cu Mo Al Ti P S Min 38 19.5 balance 1.5 2.5 1 0.6 825 Max 46 23.5 balance 0.05 1 0.5 3 3.5 0.2 1.2 0.02 0.03
Incoloy 825 Physical properties
Incoloy 825 Alloy mi nimum mechanical properties in the room temperature
Characteristic as below
1. Good stress corrosion cracking resistance performance
2. Good resistance for pitting and crevice corrosion performance
3. Good anti-oxidation and non-oxidzing heat acid performance
4. Good mechanical performance in both room temperature and up to 550°C
5. Have the pressure vessel authenticate when manufacture temperature up to 450°C
Incoloy 825 Metallurgical structure
825 is the face-centered cubic lattice structure.
Incoloy 825 Corrosion resistance
825 is an all-purpose project alloy, have good corrosion resistance of the acid and alkali metal property in both oxidation and reduction environments. High nickel content made it with effective stress corrosion cracking resistance performance. 825 have excellent corrosion resistance in different kinds of media, such as sulfuric acid, phosphoric acid
Incoloy 825 Application field
825 widely use in many kinds of industry field that the working temperature no more than 550°C.
Incoloy 825 Typical application field
1. Sulfuric acid factory usage for heating pipe, container, basket, chain and so on.
2. Cooling heat exchanger, marine product pipeline system and gas pipeline of acidic environment.
3. Heat exchanger, steam machine, washing, impregnation pipe, etc. for phosphoric acid produce
4. Oil refining in the air heat exchanger
5. Food project
6. Chemical process
7. Application of high pressure oxygen flam-retardant alloy

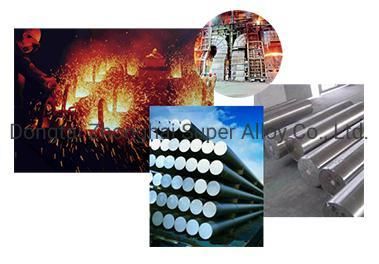

FACTORY
Delivery
More product
Incoloy 825 Physical properties
| Density | 8.1 g/cm³ |
| Melting point | 1370-1400°C |
Incoloy 825 Alloy mi nimum mechanical properties in the room temperature
| Alloy state | Tensile strength Rm N/mm² | Yield strength R P0. 2N/mm² | Elongation A 5 % | Brinell hardness HB |
| 825 | 550 | 220 | 30 | ≤200 |
Characteristic as below
1. Good stress corrosion cracking resistance performance
2. Good resistance for pitting and crevice corrosion performance
3. Good anti-oxidation and non-oxidzing heat acid performance
4. Good mechanical performance in both room temperature and up to 550°C
5. Have the pressure vessel authenticate when manufacture temperature up to 450°C
Incoloy 825 Metallurgical structure
825 is the face-centered cubic lattice structure.
Incoloy 825 Corrosion resistance
825 is an all-purpose project alloy, have good corrosion resistance of the acid and alkali metal property in both oxidation and reduction environments. High nickel content made it with effective stress corrosion cracking resistance performance. 825 have excellent corrosion resistance in different kinds of media, such as sulfuric acid, phosphoric acid
Incoloy 825 Application field
825 widely use in many kinds of industry field that the working temperature no more than 550°C.
Incoloy 825 Typical application field
1. Sulfuric acid factory usage for heating pipe, container, basket, chain and so on.
2. Cooling heat exchanger, marine product pipeline system and gas pipeline of acidic environment.
3. Heat exchanger, steam machine, washing, impregnation pipe, etc. for phosphoric acid produce
4. Oil refining in the air heat exchanger
5. Food project
6. Chemical process
7. Application of high pressure oxygen flam-retardant alloy
