• Model NO.：15ChM
• Length：1-12m
• Thickness：1.2-9.5mm
• Delivery Time：15-30 Days After Down Payment
• Process：Cold Draw, Cold Rolled, etc.
• Alloy or Not：Non Alloy
• Standard or Not：Standard
• Secondary or Not：Non Secondary
• Price Term：Fob, CIF, CNF
• Payment：L,C, T,T
• Od：1,2" to 24"
• Transport Package：in Seaworthy Export Packing
• Specification：ASTM, JIS, En, DIN, GB, Ks
• Trademark：Kingmetal
• Origin：China
• HS Code：73060000
• Production Capacity：20000 Tons,Month

Basic Info.

Model NO. 15ChM Length 1-12m Thickness 1.2-9.5mm Delivery Time 15-30 Days After Down Payment Process Cold Draw, Cold Rolled, etc. Alloy or Not Non Alloy Standard or Not Standard Secondary or Not Non Secondary Price Term Fob, CIF, CNF Payment L/C, T/T Od 1/2" to 24" Transport Package in Seaworthy Export Packing Specification ASTM, JIS, En, DIN, GB, Ks Trademark Kingmetal Origin China HS Code 73060000 Production Capacity 20000 Tons/Month

Product Description

GOST 8732-78 Seamless Hot-worked Steel Pipes 15ChM


Standard: GOST 8732-78 Equivalent Standard: ASTM A106, ASTM A53, EN 10216-1, DIN 1629

Material: 15ChM  Equivalent Material: 15CrMo

Chemistry Composition

C, % Si, % Mn, % Cr, % Ni, % Mo, % S, % P, % Cu, % 0.11-0.18 0.17-0.37 0.40-0.70 0.80-1.10 0.30 max 0.40-0.55 0.025 max 0.025 max 0.30 max

Mechanical Properties

Tensile Strength, MPa Yield Strength, MPa Elongation, % 431 min 225 min 21 min

Outside Diameter & Tolerance

Outside Diameter, mm Tolerance 32≤OD≤50 ±0.5mm 51≤OD≤219 ±1%

Wall thickness & Tolerance

Wall Thickness, mm Tolerance, % 3≤OD≤15 +12.5/-15 16≤OD≤30 ±12.5 32≤OD≤45 +10/-12.5

GOST 8732-78 applies to hot-worked seamless steel pipes of general purpose, manufactured by outside diameter, wall thickness and length.

Manufacture: the tubes shall be manufactured by cold drawn and hot rolled. Delivery Condition: heat treated. Inspection & Test: chemical composition analysis, elongation test, hardness test, flattening test, bending test, flaring test, NDT, surface inspection and dimension check.

Length: 4000mm; 6000mm; 6500mm; 10000mm; 12010mm; and so on. Max developed length: 30 meters, also U bending, finning, studded process can be provided. Option: shot blasting on the outside surface to remove mill scale, make the surface matte colour; surface polishing as preparation work done for further processing, for instance finning.

Surface: Black painted,oil coated, Smooth, Bright,etc.

Application:Structural pipe, Fluid pipe, boiler pipe, drill pipe, oil and gas pipe, hydraulic pipe, etc.

Advantages:
1.30 + years of production experience at your service.
2. The fastest delivery
3. The lowest price
4. Most comprehensive standards and materials for your choice.
5.100% export.
6. Our products EXPORT to Africa, Oceania, mid east, eastern Asia, Western Europe etc.

Why us
*100% exportation
*100% satisfication
*100% inspection

Product Show:

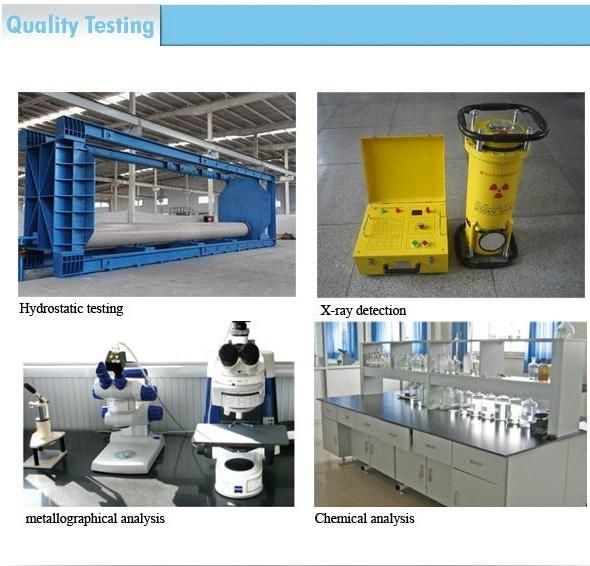

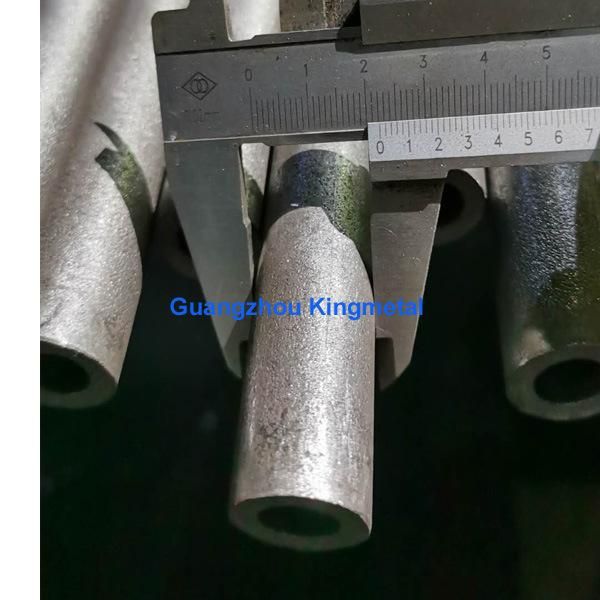

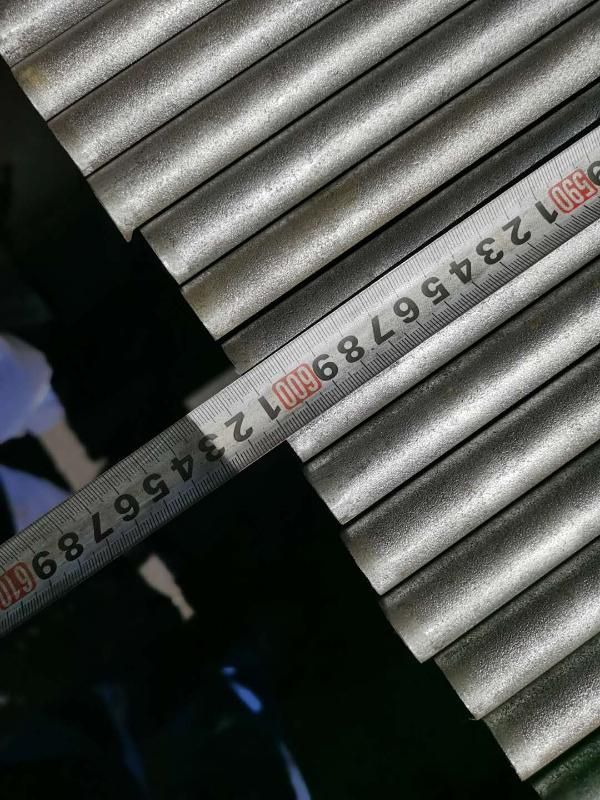

Pipe Checking:

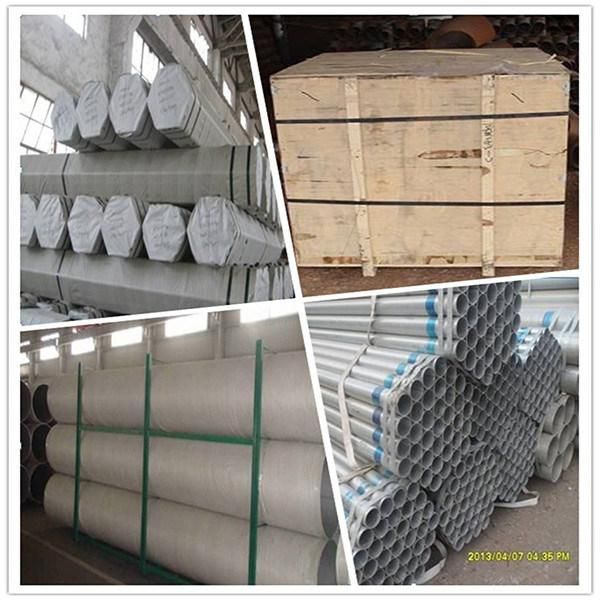

Packing:
