• Model NO.：1.2080, D3, SKD1, Cr12
• Special Use：Mold Steel
• Grade：SKD1, D3, Cr12, 1.2080
• Hardness：Annealed Hbs248 Max
• Diameter：10-180mm
• Length：3000-6000mm
• Payment：30% deposit, balance by L,C at sight or T,T
• Certificate：ISO,Mill Certificate
• MOQ：3MT
• Sample：Free
• Test：Ut 100% passed
• Ut standard：Sep 1921-84 class 3 C,C to D,D
• Production route：EF,EAF+LF+VD,ESR
• Transport Package：Standard or Customized
• Specification：dia10-180*3000-6000mm
• Trademark：CF STEEL
• Origin：China
• HS Code：7228309900
• Production Capacity：1000mt,Month

Basic Info.

Model NO. 1.2080, D3, SKD1, Cr12 Special Use Mold Steel Grade SKD1, D3, Cr12, 1.2080 Hardness Annealed Hbs248 Max Diameter 10-180mm Length 3000-6000mm Payment 30% deposit, balance by L/C at sight or T/T Certificate ISO/Mill Certificate MOQ 3MT Sample Free Test Ut 100% passed Ut standard Sep 1921-84 class 3 C/C to D/D Production route EF/EAF+LF+VD/ESR Transport Package Standard or Customized Specification dia10-180*3000-6000mm Trademark CF STEEL Origin China HS Code 7228309900 Production Capacity 1000mt/Month

Product Description

Cold Work Mould Steel Round Bar (1.2080 SKD1 D3 Cr12)


1.  Application:

Used for making small impact,high quality wear cold-punching mould
1) Used for high tolerance and long service life of all kinds of cold stamping die and cold shear blade, thread rolling plate, etc..
2) Tabletting punches and sleeves for corrosive.
3) Suitable for complex deformation of mould.

AISI D3 Cold Work Steel has high strength, good hardenability and wear resistance. D3 is suitable for applications such as complex blanking and forming tools for long runs and for hard and abrasive materials.


2. Features

1) High hardenability, high hardness, high wear resistance and good toughness, quenching deformation, etc..
2) High carbon high chromium tool steel.
3) Good machinablity and inoxidizability.
4) Immune from sinking in use, high resistance to heavy pressure.


3. Steel Grade: 1.2080/ D3/ SKD1/Cr12 Cold Work Mould Steel


4. Chemical Compositons


C	Si	Mn	P	S	Cr
1.90-2.20	0.10-0.60	0.20-0.60	≤0.030	≤0.030	11.00-13.50

5. Delivery Date

Abundant stock, 15-20 days.
Customized products, 30-50 days.


6. Payment term: T/T or L/C

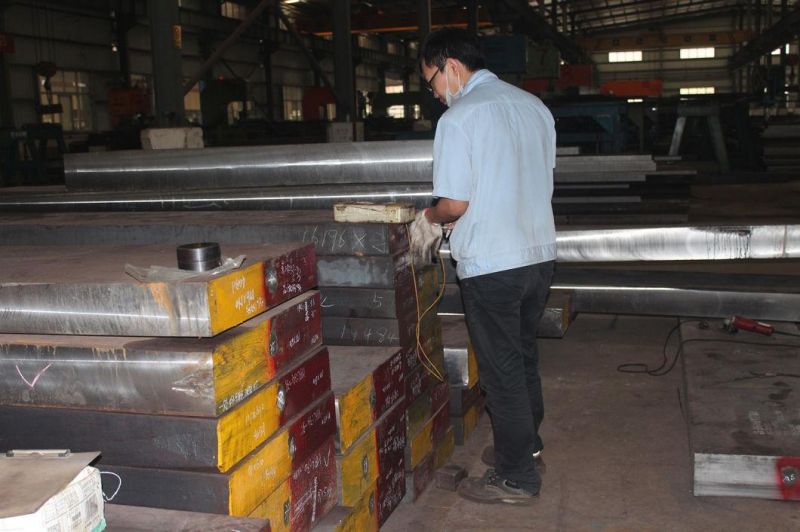

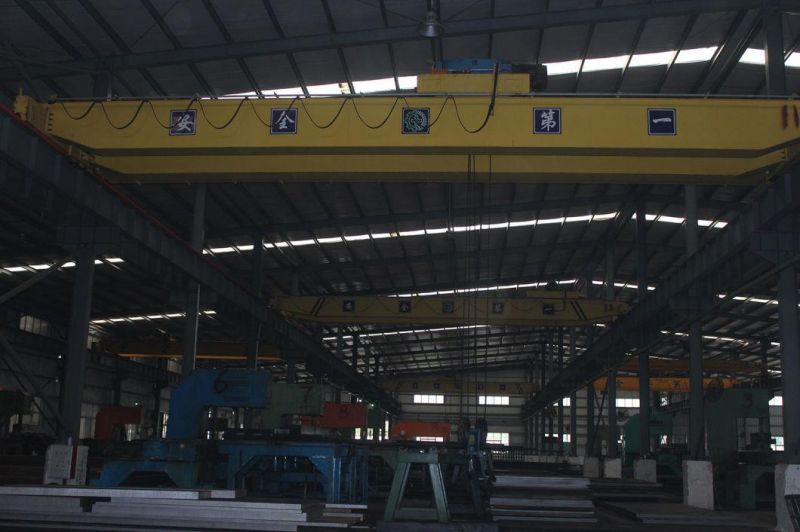

Warehous

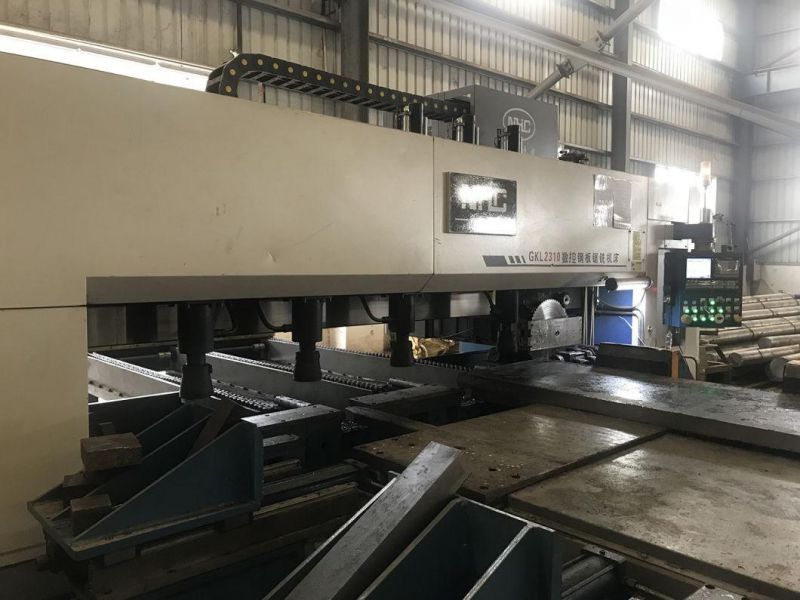

Processing

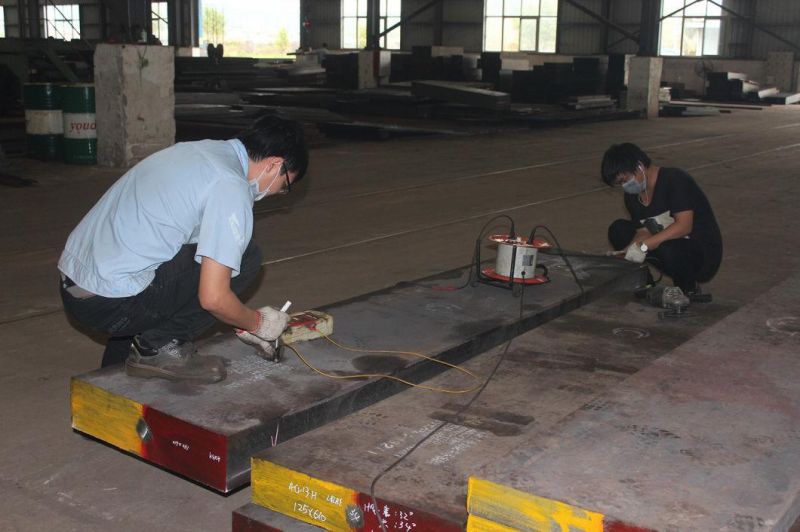

Strict Quality Control
