• Model NO.：SAE8620, 20CrNiMo, 1.6523
• Special Use：High-strength Steel Plate, Wear Resistant Steel, Free Cutting Steel, Used for Spring Steel for Gas Engine
• Application：Alloy Steel for Mechanical
• Grade：GB 50CRV , AISI 6150 , DIN 1.8159
• Thickness：20-800mm
• Width：200-500mm
• Length：500-5800mm
• Heat Treatment：Annealing, Q+T
• Test：SGS,Ut 100%,Element Testing
• Payment：30%Deposit, Blance by L,C at Sight or T,T
• Certificate：ISO,Mill Certificate
• Delivery Quatity：Include MOQ
• Transport Package：Export Standard Packing or Customers′demand
• Specification：DIN JIS AISI ASTM GB BS
• Trademark：CF STEEL
• Origin：China
• HS Code：7225401000
• Production Capacity：1000t,Month

Basic Info.

Model NO. SAE8620, 20CrNiMo, 1.6523 Special Use High-strength Steel Plate, Wear Resistant Steel, Free Cutting Steel, Used for Spring Steel for Gas Engine Application Alloy Steel for Mechanical Grade GB 50CRV / AISI 6150 / DIN 1.8159 Thickness 20-800mm Width 200-500mm Length 500-5800mm Heat Treatment Annealing/ Q+T Test SGS/Ut 100%/Element Testing Payment 30%Deposit, Blance by L/C at Sight or T/T Certificate ISO/Mill Certificate Delivery Quatity Include MOQ Transport Package Export Standard Packing or Customers′demand Specification DIN JIS AISI ASTM GB BS Trademark CF STEEL Origin China HS Code 7225401000 Production Capacity 1000t/Month

Product Description

SAE8620, 20CrNiMo, 1.6523

Chemical Composition:

C	Si	Mn	Cr	Ni	Mo	S	P
0.18-0.23	0.15-0.35	0.70-0.90	0.40-0.60	0.40-0.70	0.15-0.25	≤0.035	≤0.035

1.Feature:
1) Demand has high yield strength, tensile strength and fatigue strength, there has enough plasticity and toughness;
2) Demanding by refining outside the furnace, vacuum electroslag remelting or processing, or double vacuum smelting, vacuum induction furnace smelting suitable heat treatment;
3) Corrosion resistant steel, heat-resistant steel, wear-resistant steel, magnetic steel, and other special physical and chemical properties of the steel;

2.Application:
1) Zinc, aluminum, magnesium and other  alloy die-casting molds;
2) Heat dies and all kinds of hot forged molds;
3) Metal extrusion die holder;

3. Ready Stock:
Round bar dia20-100mm black surface and hot rolled deliver condition.

4. Heat Treatment
1) Preheating 2-4 hours in  500-600°C;
2) Keeping temperature for 2 hours in  850-880°C;
3) Oil cooling to reach 50-100°C;
4) After quenching can reach a hardness of 50-52HRC, then tempered at 200°C.
then hardness can reach above 48 HRC;

5.Melting Process
1) EAF:Electric Furnace+LF+VD (Optional);
2) ESR:Electric Furnace+LF+VD+Eleroslag Remelted (Optional);

6.Packaging Details:
Packed with plastic film, seaworthing packing, others according to customers' requirements;

7.Delivery time:
For abundant stock, 15-20 days.For customized products, 30-50 days.

All the sizes as require can be customerized as fresh production with MOQ,products of required specifications can be developed/produced per international, chinese or industry standards, or based on agreements with customers.

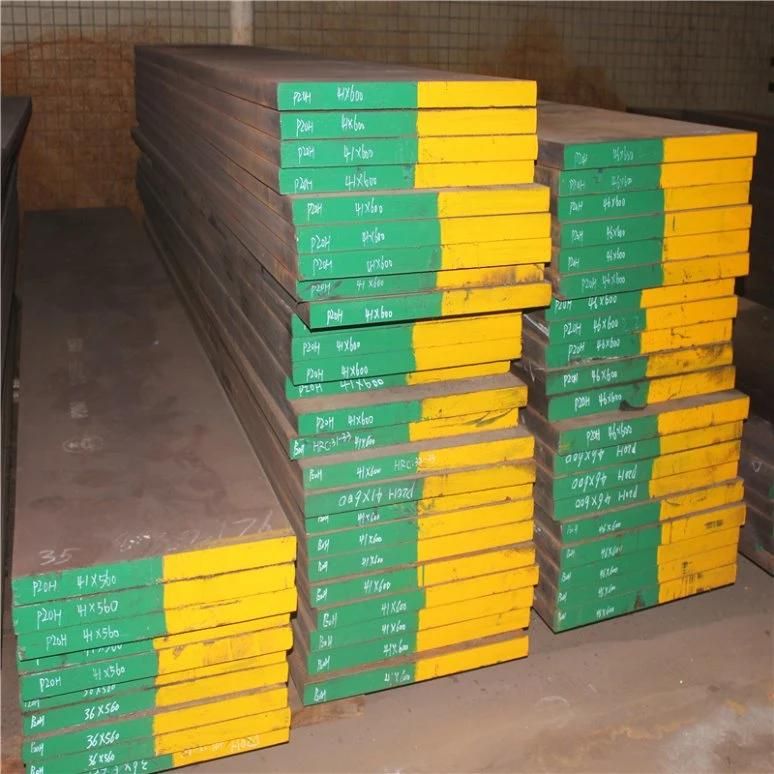

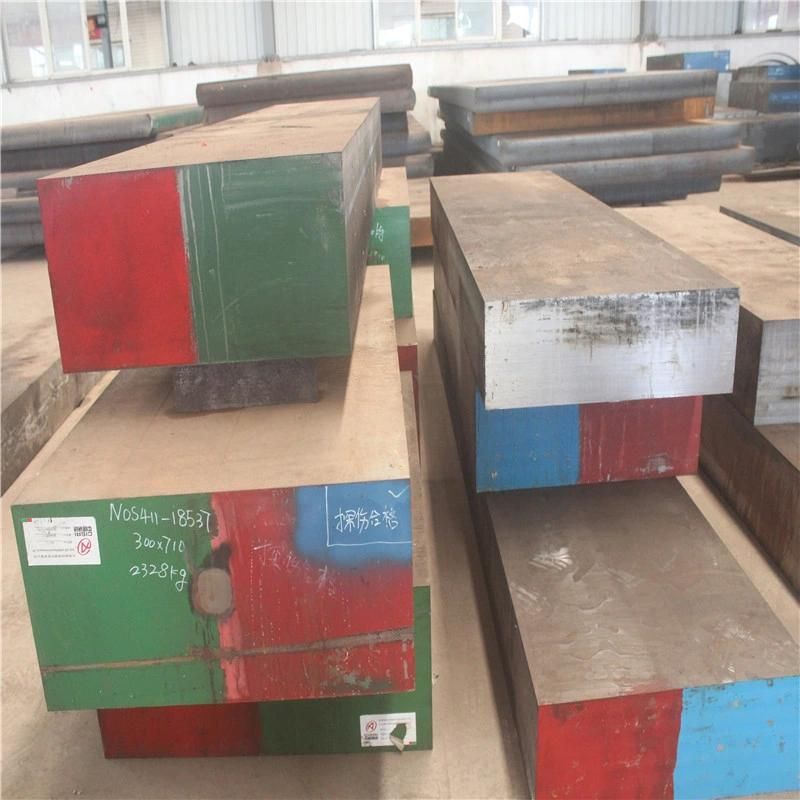

Product pictures:




CONTAINER PICTURE
